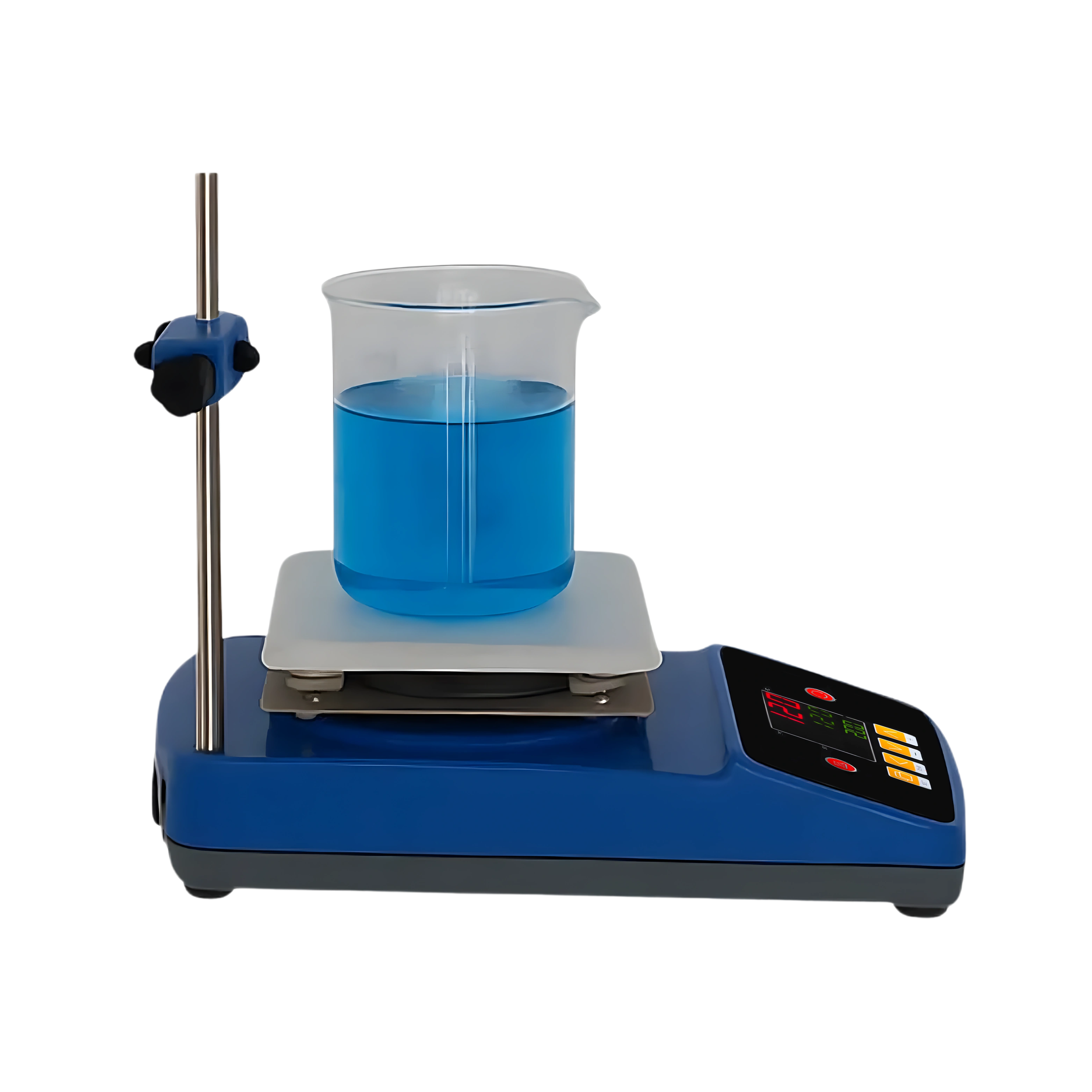

Intelligent hotplate stirrer LB-23 HPS is a black ceramic top hotplate stirrer with a stirring range of 0 rpm to 2000 rpm. Features a stirring capacity for flasks ranging from 50 ml to 15 L. It is equipped with PID controlled temperature of 400 °C for uniform heat distribution. It offers digital temperature control and an outer thermo that measures and controls the liquid temperature value together with the front panel. The inner thermo, controls and measures the hotplate stirrer temperature.
Request Quote Download CatalogSpecifications
Stirring capacity | 50 ml ̴ 15 L |
Top ceramic dimension | 280 mm × 280 mm |
Power | 750 W |
Temperature | 400 °C |
Stirring range | 0 rpm ~ 2000 rpm |
Stirring speed accuracy | ± 1 rpm |
Temperature accuracy | ± 1 °C |
Voltage | 160 V ̴ 240 V, 110 V ̴ 120 V |
Motor power | 40 W, DC 20 V |
Weight | 9.3 kgs |
Features
Applications
Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields
Standard Accessories
Accessory No | Accessory | Number |
A1 | Removable holder | 1 PC |
A2 | Clamp with screw | 1 PC |
A3 | Inner Thermocouple 4-spin | 1 PC |
A4 | Outer Thermocouple | 1 PC |
A6 | Four-finger Extension Clamp, Length 300 mm | 1 PC |
A8 | Magnetic stir bar White PTFE-coated Length: 30mm Diameter :6 mm | 1 PC |
Stirring capacity | 50 ml ̴ 1 L |
Top ceramic dimension | 140 mm × 140 mm |
Power | 260 W |
Temperature | 400 °C |
Stirring capacity | 2 L |
Top ceramic dimension | 180 mm × 180 mm |
Power | 410 W |
Temperature | 400 °C |
Stirring capacity | 50 ml ̴ 10 L |
Top ceramic dimension | 230 mm × 230 mm |
Power | 600 W |
Temperature | 400 °C |
Stirring capacity | 50 ml ̴ 15 L |
Top ceramic dimension | 280 mm × 280 mm |
Power | 750 W |
Temperature | 400 °C |
