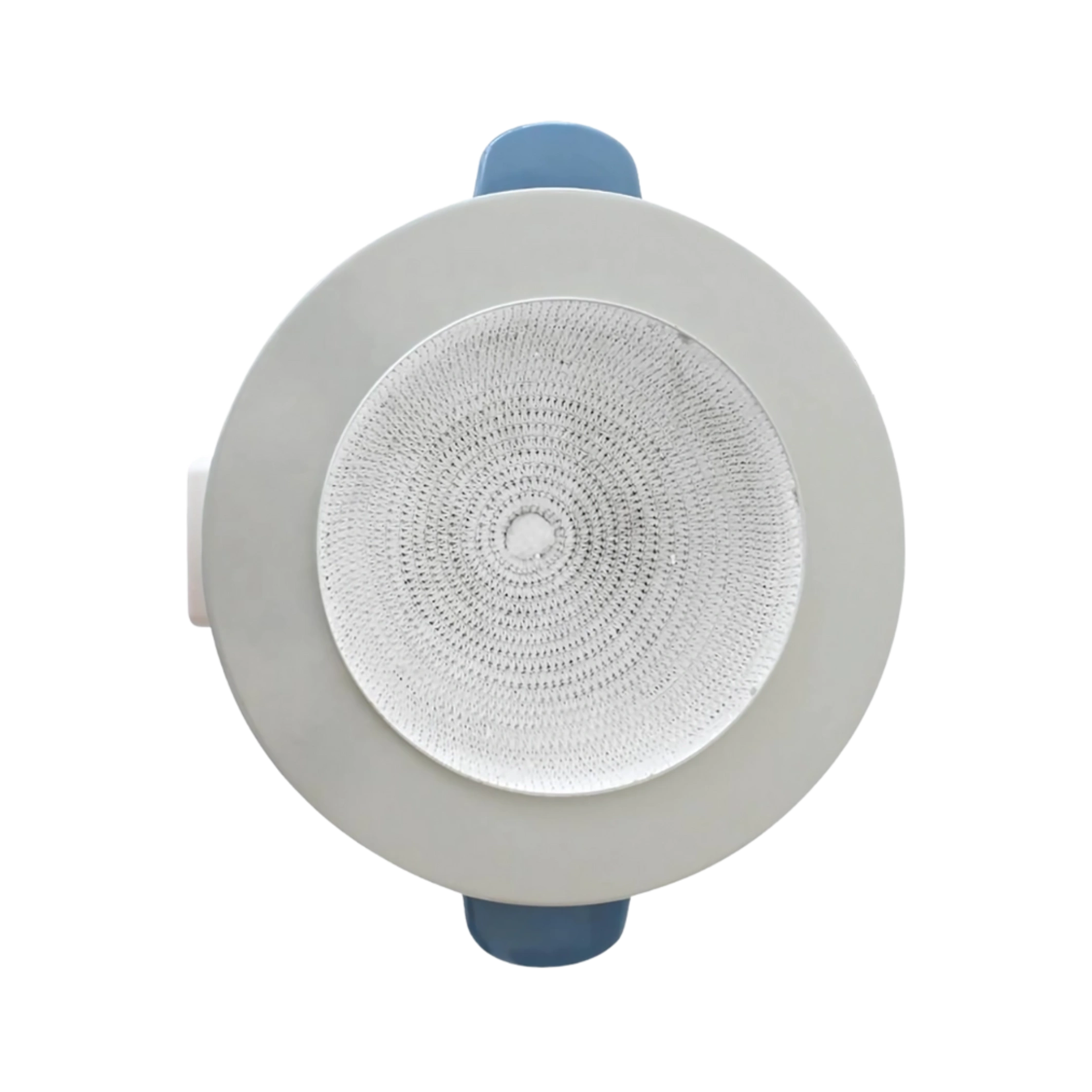

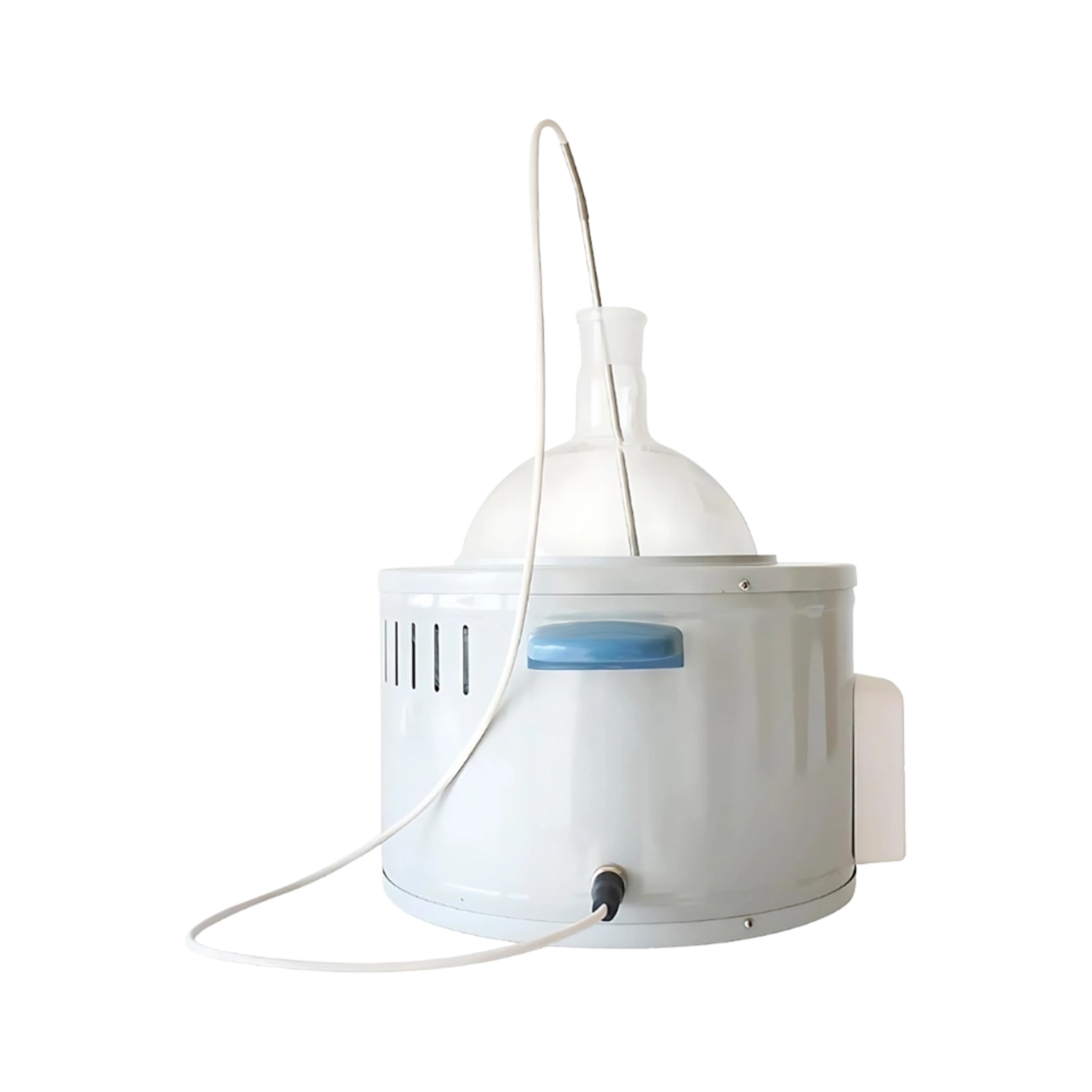

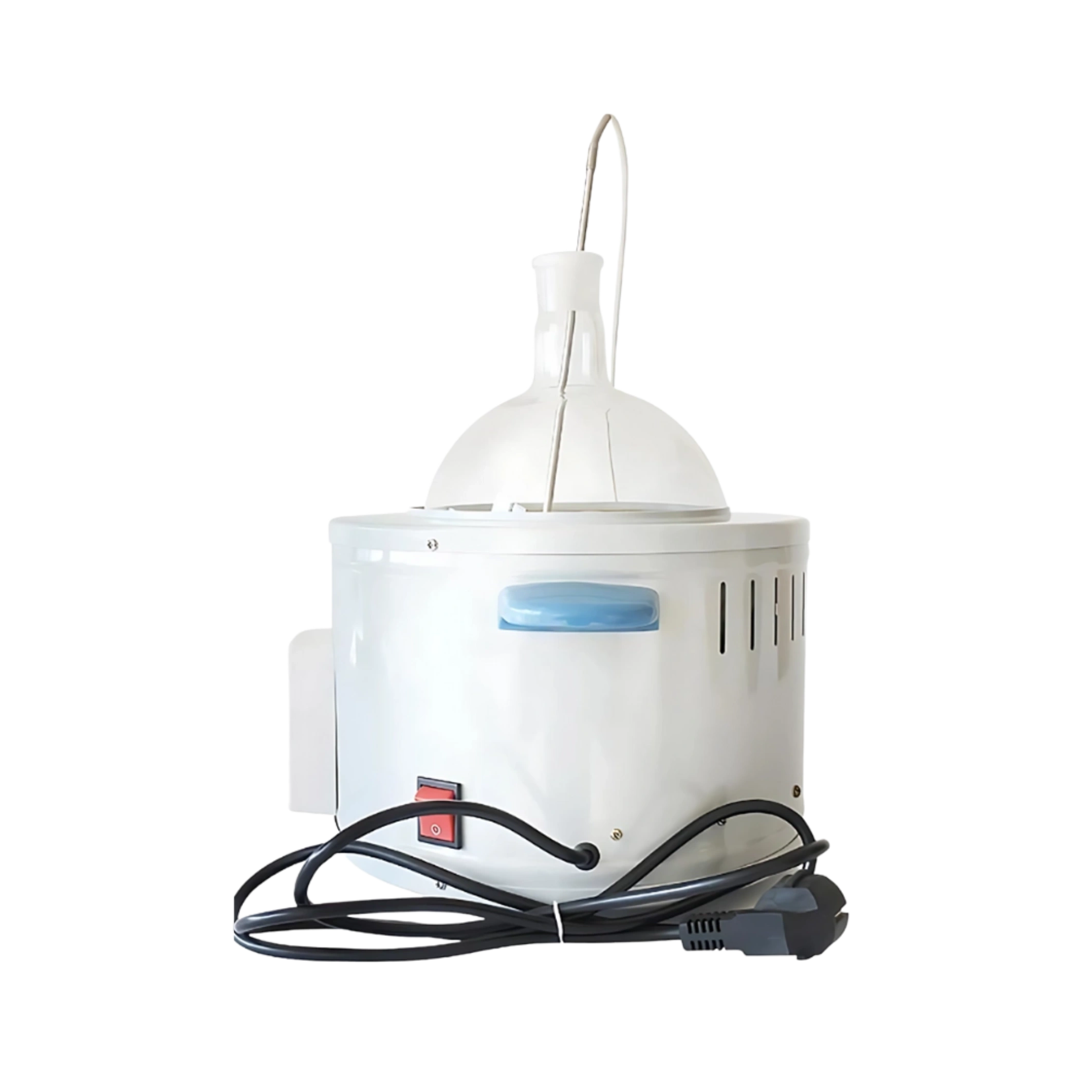

Intelligent Thermostatic Heating mantles LB-46HMT
Intelligent thermostatic heating mantle LB-46HMT is a table top unit with a capacity of 3 L. It features a PID temperature controller and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C. It consists of an outer thermocouple that measures and controls the liquid temperature value together with the front panel and an inner thermocouple that controls and measures the heating mantle temperature.
$ 1150
Download CatalogSpecifications
| Capacity | 3 L |
| Power | 750W |
| Temperature | 380 °C |
| Temperature accuracy | ± 1 °C |
| Voltage | 166 V ̴ 240 V, 110 V ̴ 120 V |
Features
- Capacity of 3 L
Continuous working time
Alkali-free glass fiber
PID temperature control
Customized mantle available
Insulating course material of alumina silicate fiber
Standard Accessories
| Accessory No. | Accessory | Quantity |
| A1 | Removable holder | 1 |
| A2 | Clamp with screw | 1 |
| A3 | Inner Thermocouple (4 - spin) | 1 |
| A4 | Outer Thermocouple (4 - spin) | 1 |
| · Stainless Steel Length: 235mm | ||
| · Wire length : 1000mm | ||
| A5 | Magnetic bead | 1 |
| · Designed specifically for round bottom flasks | ||
| · PTFE - coated | ||
| · Length: 20mm | ||
| · Diameter : 10 mm |
Applications
Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields
