Intelligent Thermostatic  Heating mantles LB-47HMT

Intelligent Thermostatic Heating mantles LB-47HMT

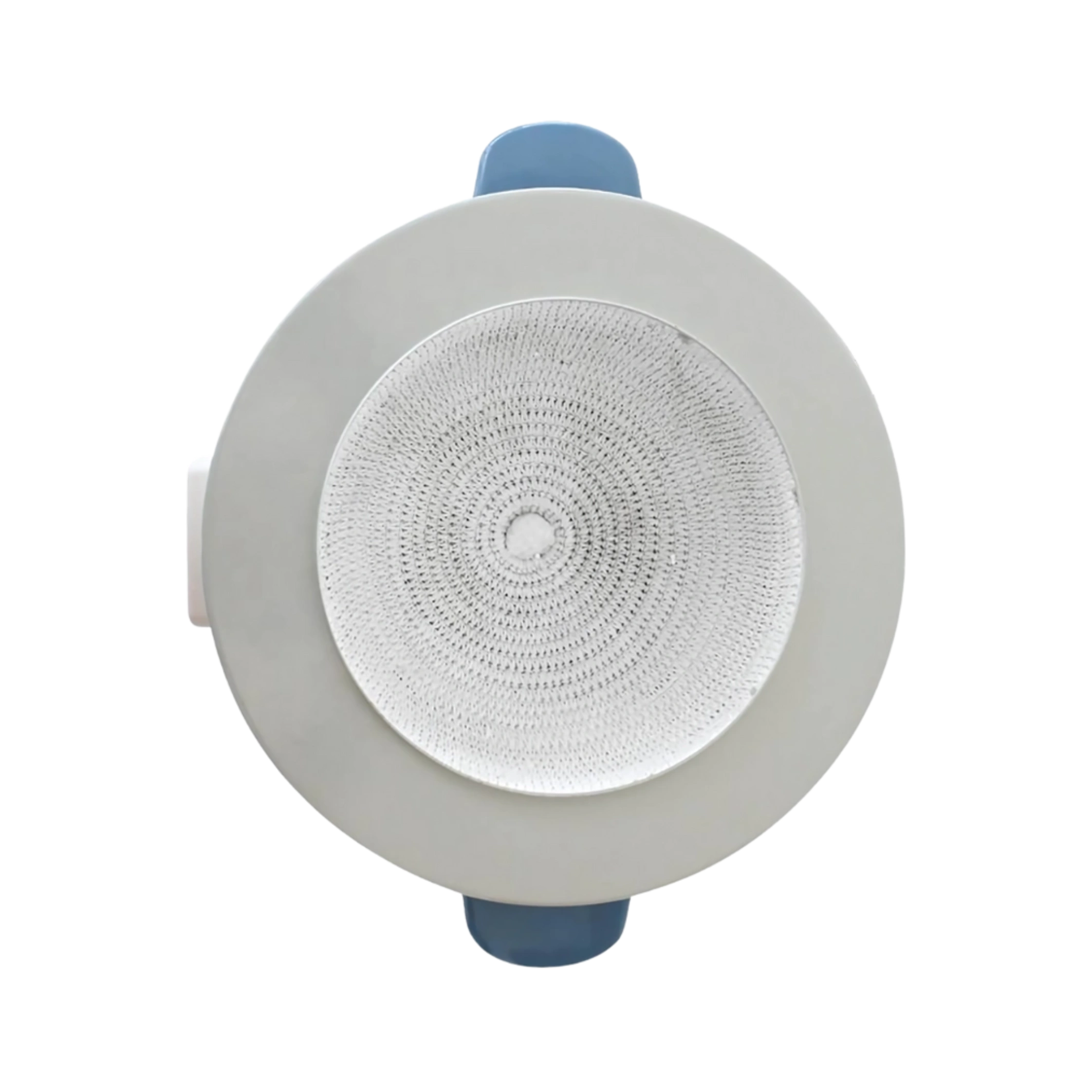

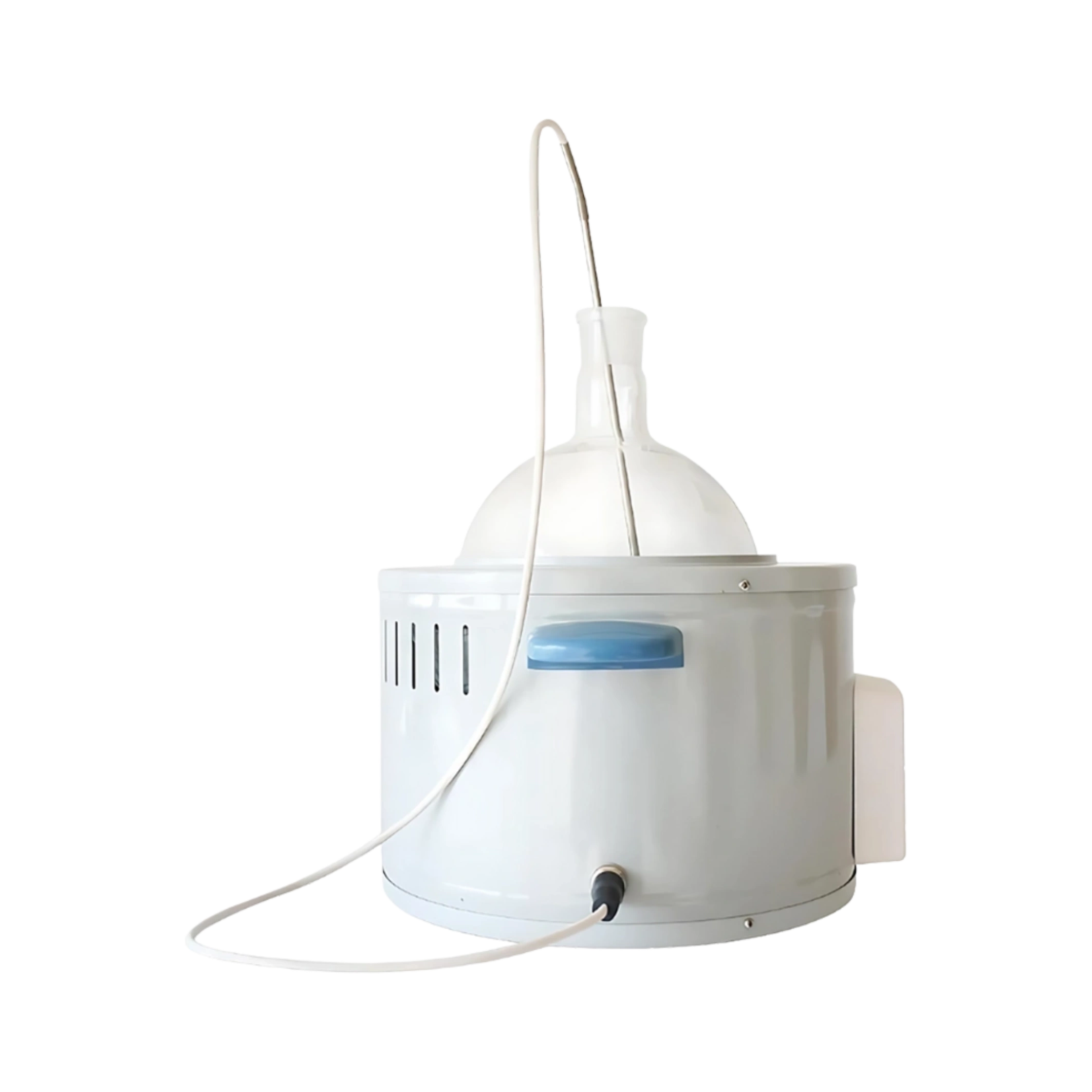

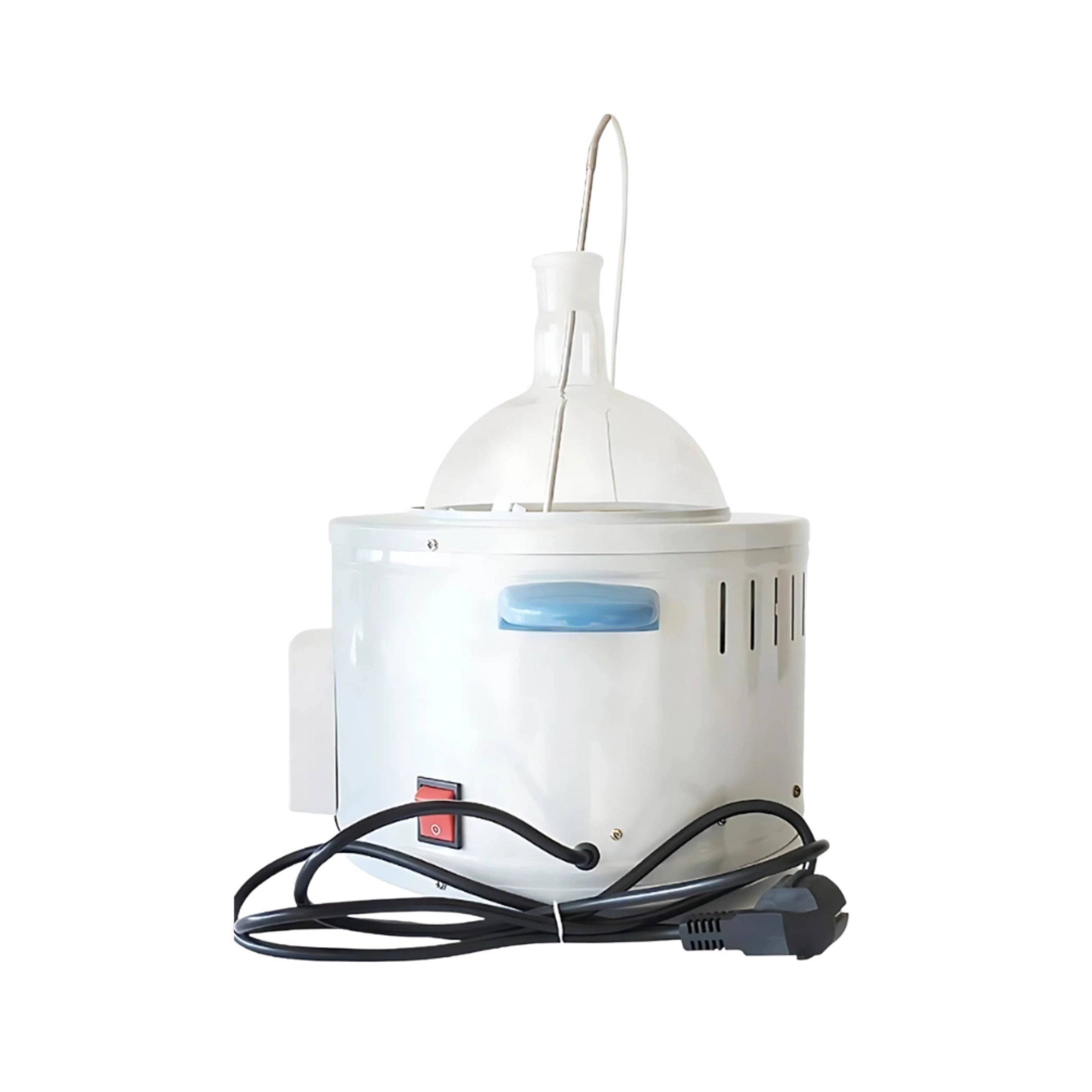

Intelligent thermostatic heating mantle LB-47HMT is a table top unit with a capacity of 5 L. It features a PID temperature controller and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C. It consists of an outer thermocouple that measures and controls the liquid temperature value together with the front panel and an inner thermocouple that controls and measures the heating mantle temperature.

Buy Now Download Catalog

Specifications

Capacity 5 L
Power 1100W
Temperature 380 °C
Temperature accuracy ± 1 °C
Voltage 167 V ̴ 240 V, 110 V ̴ 120 V

Features

  • Capacity of 5 L
  • Continuous working time
  • Alkali-free glass fiber
  • PID temperature control
  • Customized mantle available
  • Insulating course material of alumina silicate fiber

Applications

Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields

Standard Accessories

Accessory No. Accessory Quantity
A1 Removable holder 1
A2 Clamp with screw 1
A3 Inner Thermocouple (4 - spin) 1
A4 Outer Thermocouple (4 - spin) 1
·         Stainless Steel Length: 235mm
·         Wire length : 1000mm
A5 Magnetic bead 1
·         Designed specifically for round bottom flasks
·         PTFE - coated
·         Length: 20mm
·         Diameter : 10 mm

Our Team Of Experts Will Promptly Address Your Inquiry.

What our customers say

Fawad Ahmed logo

2 years ago

Add a review

Intelligent Thermostatic Heating Mantle

Intelligent Thermostatic Heating Mantle : Intelligent Thermostatic  Heating mantles LB-40HMT
Capacity 50 ml
Power 110 W
Temperature 380 °C
Temperature accuracy ± 1 °C
Intelligent Thermostatic Heating Mantle : Intelligent Thermostatic  Heating mantles LB-44HMT
Capacity 1 L
Power 530 W
Temperature 380 °C
Temperature accuracy ± 1 °C
Intelligent Thermostatic Heating Mantle : Intelligent Thermostatic  Heating mantles LB-49HMT
Capacity 20 L
Power 5000W
Temperature 380 °C
Temperature accuracy ± 1 °C
Intelligent Thermostatic Heating Mantle : Intelligent Thermostatic  Heating mantles LB-48HMT
Capacity 10 L
Power 3000W
Temperature 380 °C
Temperature accuracy ± 1 °C
Intelligent Thermostatic Heating Mantle : Intelligent Thermostatic  Heating mantles LB-43HMT
Capacity 500 ml
Power 220 W
Temperature 380 °C
Temperature accuracy ± 1 °C
Intelligent Thermostatic Heating Mantle : Intelligent Thermostatic  Heating mantles LB-45HMT
Capacity 2 L
Power 650W
Temperature 380 °C
Temperature accuracy ± 1 °C
Intelligent Thermostatic Heating Mantle : Intelligent Thermostatic  Heating mantles LB-46HMT
Capacity 3 L
Power 750W
Temperature 380 °C
Temperature accuracy ± 1 °C
Intelligent Thermostatic Heating Mantle : Intelligent Thermostatic  Heating mantles LB-42HMT
Capacity 250 ml
Power 216 W
Temperature 380 °C
Temperature accuracy ± 1 °C
Intelligent Thermostatic Heating Mantle : Intelligent Thermostatic  Heating mantles LB-41HMT
Capacity 100 ml
Power 130 W
Temperature 380 °C
Temperature accuracy ± 1 °C

Labotronics Intelligent Digital Display Heating Mantle is a cutting-edge laboratory device engineered for precise and user-friendly heating applications. Featuring a digital display and intelligent control system, it allows for accurate and programmable temperature adjustments, making it ideal for tasks like distillation, reflux, and sample evaporation. Its advanced design ensures uniform heat distribution and temperature maintenance, reducing the risk of overheating or temperature fluctuations. Our mantle is an indispensable tool for researchers and scientists seeking efficient and reliable heating solutions, offering the convenience of digital temperature monitoring and control in a compact and durable package.

Capacity 30 L
Power 3500 W
Temperature 380 °C
Temperature accuracy ±5 °C
Capacity 50 L
Power 5000 W
Temperature 380 °C
Temperature accuracy ±5 °C

Labotronics Analog 4 Position Heating Mantles are laboratory heating devices engineered for the concurrent heating of four round-bottom flasks or glassware. These mantles come equipped with analog temperature control, allowing users to manually adjust and maintain desired heating levels. The four independent heating positions offer versatility for experiments, with robust construction to ensure uniform heat distribution and safety. They are well-suited for a range of applications in chemistry and research, providing a cost-effective solution for heating multiple samples simultaneously and maintaining temperature control with ease.

Capacity 500 ml
Power 220 W
Temperature 380 °C
Temperature accuracy ± 1 °C
Capacity 1000 ml
Power 530 W
Temperature 380 °C
Temperature accuracy ± 5 °C
Capacity 100 ml
Power 130 W
Temperature 380 °C
Temperature accuracy ± 5 °C
Capacity 250 ml
Power 216 W
Temperature 380 °C
Temperature accuracy ± 1 °C

Our Analog 2 Position Heating Mantles are laboratory heating devices designed for simultaneous heating of two round-bottom flasks or glassware. These mantles feature analog temperature control, allowing users to adjust and maintain the desired heating levels manually. The two independent heating positions offer versatility for experiments, with durable construction to ensure even heat distribution and safety. They are suitable for various applications in chemistry and research, where the need for basic, cost-effective heating of multiple samples is a priority.

Capacity 100ml
Power 130 W
Temperature 380 °C
Stirring speed range 0 rpm ̴ 2500 rpm
Capacity 100ml
Power 130 W
Temperature 380 °C
Stirring speed range
Capacity 1 L
Power 530 W
Temperature 380 °C
Stirring speed range 0 rpm ̴ 2500 rpm
Capacity 500ml
Power 220 W
Temperature 380 °C
Stirring speed range 0 rpm ̴ 2500 rpm

Our temperature uncontrolled heating mantle is a basic laboratory device designed for general heating purposes. Unlike precision models, it lacks temperature control features and operates at a fixed, unregulated temperature. While it provides simplicity and affordability, it may not be suitable for applications demanding precise temperature management. This heating mantle is often used for tasks such as gentle warming or uniform heating without the need for precise temperature control. It serves as a budget-friendly option for laboratories with less demanding heating requirements, prioritizing simplicity and cost-effectiveness over temperature precision.

Capacity 5 L
Power 1100 W
Temperature 380 °C
Temperature accuracy ±5 °C
Capacity 1 L
Power 530 W
Temperature 380 °C
Temperature accuracy ± 5 °C
Capacity 100 mL
Power 130 W
Temperature 380 °C
Temperature accuracy ± 5 °C
Capacity 2 L
Power 650 W
Temperature 380 °C
Temperature accuracy ±5 °C

Labotronics advanced thermostatic heating mantle is precision laboratory equipment designed for controlled and uniform heating of round-bottom flasks and other glassware. It features advanced temperature regulation capabilities, allowing users to set and maintain specific temperatures with great accuracy. Equipped with a digital display and user-friendly controls, this mantle offers convenient temperature adjustments. Its durable construction ensures even heat distribution and long-term reliability, making it an ideal choice for various chemical and scientific applications where precise and consistent heating is essential.

Capacity 3 L
Power 750 W
Temperature 380 °C
Temperature accuracy ± 1 °C
Capacity 20 L
Power 5000 W
Temperature 380 °C
Temperature accuracy ± 1 °C
Capacity 500 mL
Power 220 W
Temperature 380 °C
Temperature accuracy ± 1 °C
Capacity 50 mL
Power 110 W
Temperature 380 °C
Temperature accuracy ± 1 °C
