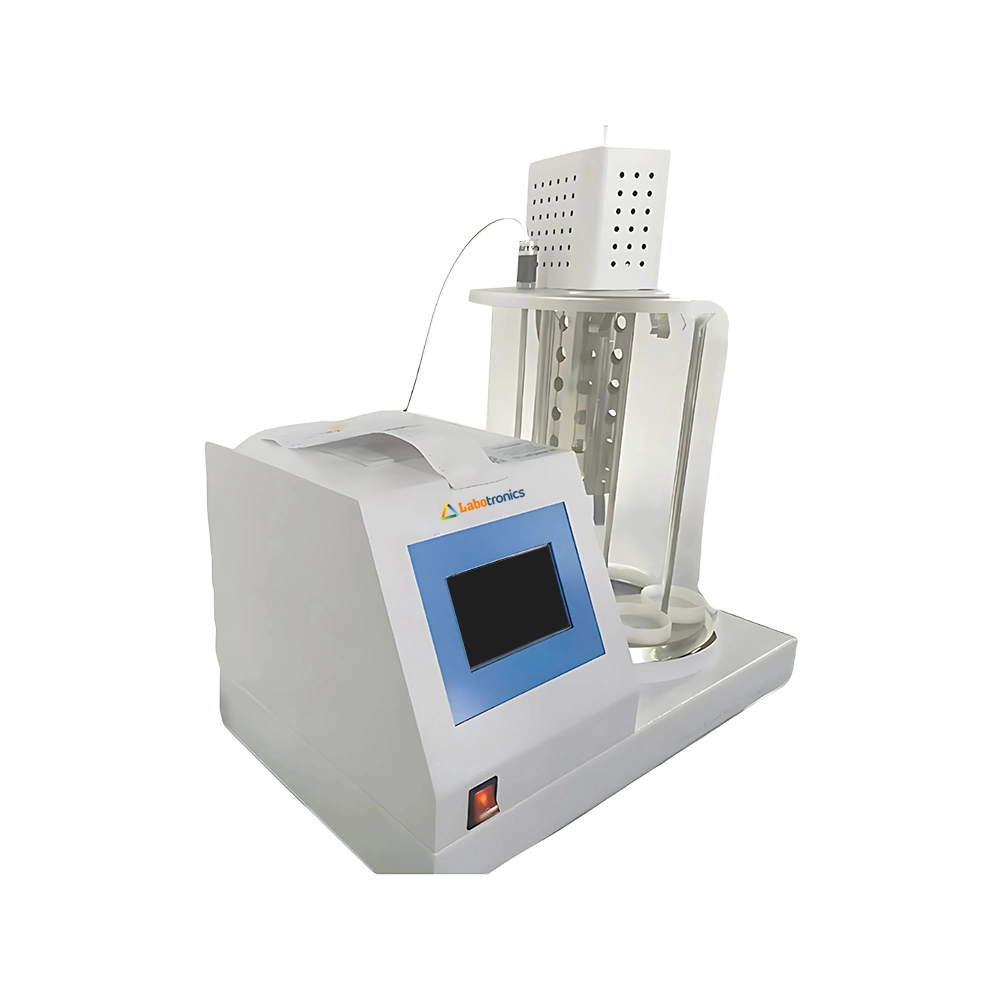

Kinematic Viscosity Bath LB-10KVB

Name: Kinematic Viscosity Bath LB-10KVB
Brand: Labotronics
SKU: LB-10KVB
Rating: 4.9 (525 reviews)

Kinematic Viscosity Bath LB-10KVB offers a wide testing range of 0.5 mm²/s to 20000 mm²/s, ensuring accurate viscosity measurements. It provides a controlled temperature range from RT to 100 °C, accommodating both low and high-viscosity oils. It incorporates a ring-shaped daylight lamp for enhanced visual clarity during testing. Our viscosity bath features a large LCD color screen, offering a visualized and clear real-time display.

$ 3000

Download Catalog Download Manual

Specifications

Testing Range	0.5 mm²/s to 20000 mm²/s 0.3 mPa.s to 40000 mPa.s
Temperature Control Range	RT to 100 °C
Temperature Control Accuracy	± 0.1 °C
Sample Installing Capacity	4 pieces
Homoeothermic Bathtub	300 × 300 mm double layer
Time Range	0.1 s to 999.9 s
Time Accuracy	± 0.1 s
Stirring Speed	1520 rpm
Ambient Temperature Range	0 °C to 40 °C
Relative Humidity	< 80 %
Power Consumption	800 W
Power Supply	AC 220 V ± 10 %; 50 Hz
Dimensions	560 × 370 × 520 mm
Weight	20 kg

Features

Temperature and time indicator
Corrosion-resistant stainless steel
Complies with ASTM D 445 standards
Three-point capillarimeter clutch
Automatic viscosity calculation
High-speed thermal printing
Auto-timing and auto-result printing

Applications

Kinematic Viscosity Bath LB-10KVB is used in industries such as petroleum, pharmaceuticals, and chemical sectors for accurate viscosity testing. It is ideal for laboratories that require precise temperature control and analysis of various oil viscosities.

Get Quote

Kinematic Viscosity Bath LB-40KVB

Cold Bath Volume	8L
Temperature Range	20 to - 60° C
Temperature Accuracy	± 0.1° C
Slot Holes	Single
Temperature Sensor	Pt100 (Platinum resistor)

$ 4775

Kinematic Viscosity Bath LB-30KVB

Stirring mode	Motor stirring
Accuracy	± 0.1 °C
Suction regulation	Potentiometer
Compliance	ASTM D445
Bath holes	4

$ 9375

Kinematic Viscosity Bath LB-21KVB

Testing Range	0.5 to 20000 mm²/s (with different viscosity tubes)
Temperature Control Range	20℃ to 100℃
Temperature Accuracy	±0.01℃
Working Temperature Range	0℃ to 40℃
Relative Humidity	<80%

$ 3375

Kinematic Viscosity Bath LB-20KVB

Temperature Range	RT to 120℃
Temperature Range Precision	≤±0.1℃
Temperature Control Precision	RT to 40℃≤±0.2℃
Liquid Bath Holes	4
Test Times	from 1 to 6 times (Adjustable)
