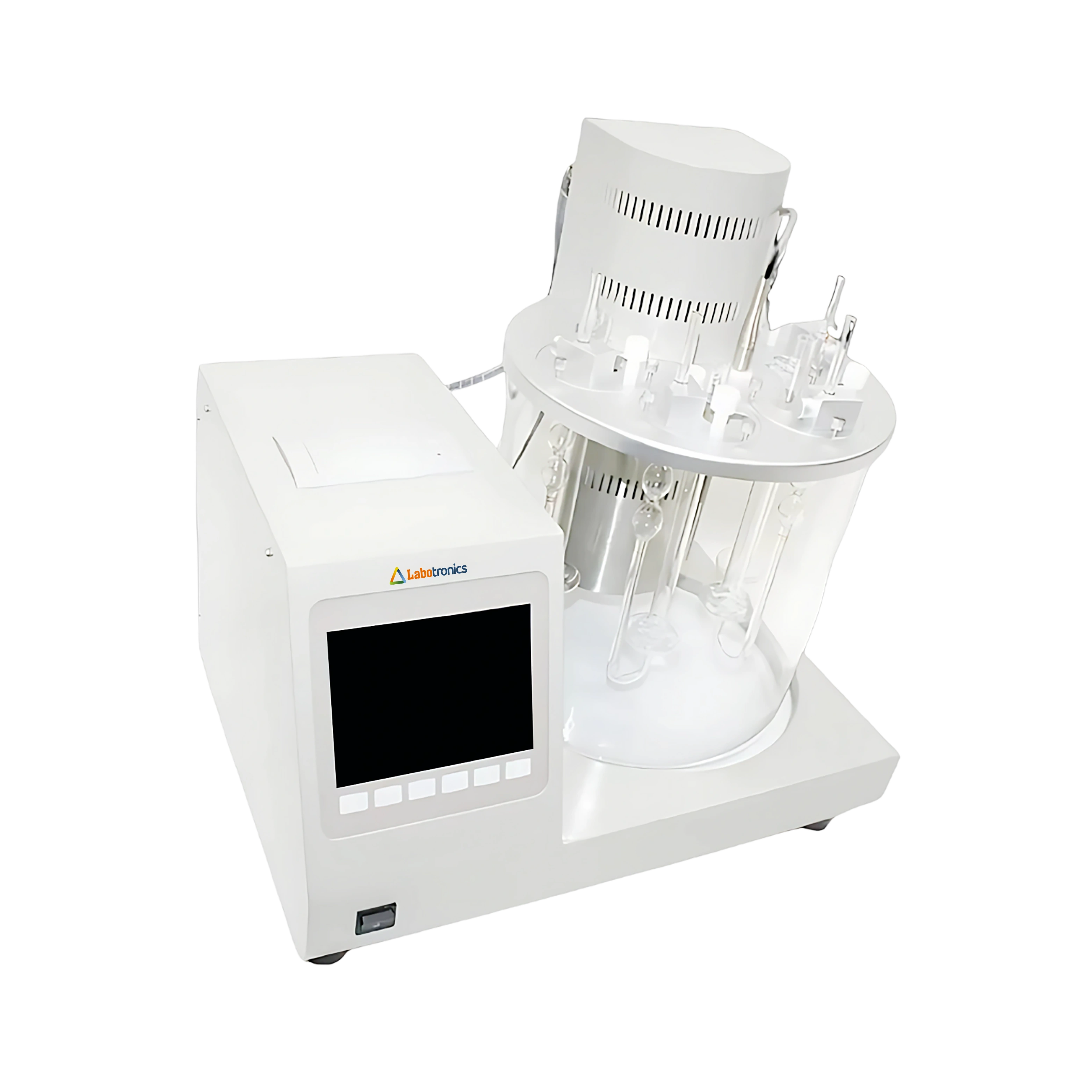

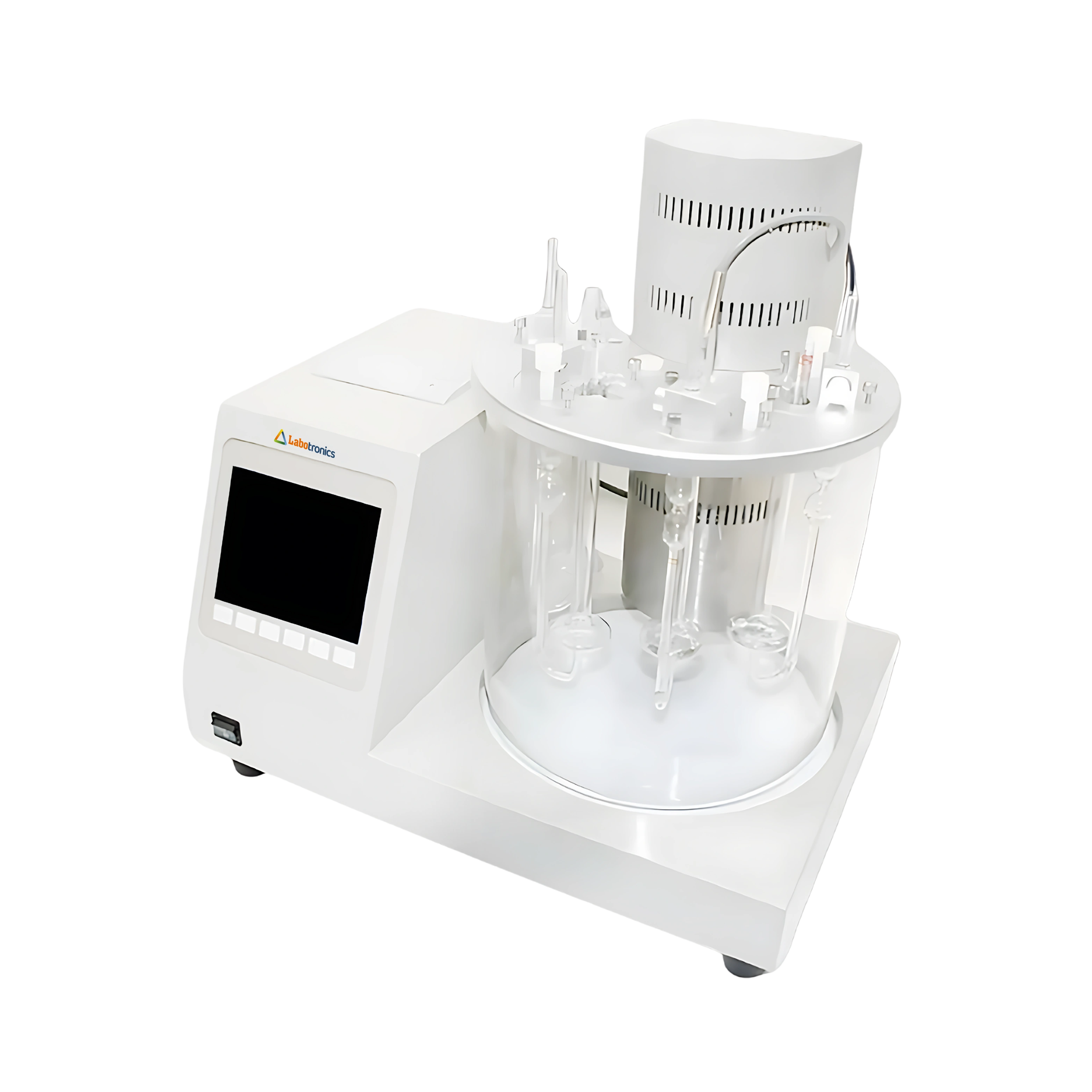

Kinematic Viscosity Bath LB-20KVB is a PID-controlled unit that operates at temperature ranges between RT to 120℃. It is designed with 4 bath holes, allowing for multiple sample testing and increased throughput. Our viscosity bath is integrated with an LCD screen for easy operation and real-time monitoring of parameters.
Buy Now Download CatalogSpecifications
Temperature Range | RT to 120℃ |
Temperature Range Precision | ≤±0.1℃ |
Temperature Control Precision | RT to 40℃≤±0.2℃ |
Liquid Bath Holes | 4 |
Test Times | from 1 to 6 times (Adjustable) |
Bath Fiber Glass Thickness | 4mm |
Bath Fiber Glass Diameter | 245mm |
Bath Height | 250 mm |
Power Supply | from 1 to 6 times (Adjustable) |
Power Consumption | AC220V±10V 50HZ |
Machine Dimension | 1000W |
Bath Dimension | 590×450×460mm |
Net Weight | 410×310×390mm |
Gross Weight | 14 kgs |
Features
Applications
Kinematic Viscosity Bath measures the kinetic viscosity of lubricating oils, fuels and other fluids and is widely utilized in quality control, research and development and industry standards compliance.
What our customers say
Mae .
8 months ago
Nyamdorj Idema
1 year ago
Sajjad Hussain
1 year ago
Darco Kibej
1 year ago
Himanshu Gaur
1 week ago
Realyta Gadis
3 years ago
RONNY MURITHI
3 days ago
Sami Akhtar
3 years ago
George Lasu
11 months ago
Ahmed Salah
1 month ago
S. Kavidhas
3 years ago
Maisaa Al Araimi
7 months ago
Michael Aravind
2 months ago
Halima Kulo
4 days ago
Ashwin Sacheendran
3 years ago
Aditya Chadha
2 years ago
Add a review
Testing range | |
Temperature control range | |
Sample installing capacity | |
Time range |
Testing Range | 0.5 mm²/s to 20000 mm²/s 0.3 mPa.s to 40000 mPa.s |
Temperature Control Range | RT to 100 °C |
Temperature Control Accuracy | ± 0.1 °C |
Sample Installing Capacity | 4 pieces |
Cold Bath Volume | 8L |
Temperature Range | 20 to - 60° C |
Temperature Accuracy | ± 0.1° C |
Slot Holes | Single |
Testing range | |
Temperature control range | |
Sample installing capacity | |
Time range |
Our Soxhlet water bath is a laboratory device used for liquid-liquid extractions, particularly in the process of extracting soluble compounds from solid samples, such as for chemical analysis or sample preparation. It consists of a round-bottom flask containing the sample to be extracted, a siphon, and a water bath. The flask is heated by the water bath, causing the solvent within the flask to evaporate and then condense in a vertical condenser. The condensed solvent drips back into the sample, creating a continuous cycle of extraction. This method is particularly useful for the extraction of compounds that have limited solubility in the chosen solvent, as it ensures thorough and efficient extraction over an extended period.
Capacity | 4 hole opening type |
Bath dimension | 330 x 320 x 100 mm |
External dimension | 360 x 330 x 210 mm |
Heater capacity | 1000 W |
Capacity | 6 hole opening type |
Bath dimension | 890 x 150 x 100 mm |
External dimension | 950 x 250 x 210 mm |
Heater capacity | 2000 W |
Laabotronics Shaking Water Bath offers precise temperature control and sample agitation simultaneously. They feature high linearity motors for quiet operation and precise shaking motion. These baths utilize microprocessor controllers and PID algorithms to maintain temperature accuracy. They are constructed from high-quality stainless steel for durability and ease of maintenance. Our designs ensure uniform heating/cooling and gentle agitation for consistent conditions in various applications.
Capacity | 30 L |
Temperature Range | 5 to 100 ℃ |
Temperature Tolerance | ± 0.1 ℃ |
Shaking Frequency | 0 to 200 times/min |
Capacity | 170 L |
Temperature Range | RT to 100 ℃ |
Ambient Temperature | 15 to 35 ℃ |
Accuracy | ± 0.1 ℃ (at constant temperature) |
Our Cold Trap Baths operate within a controlled temperature range to capture water vapor and harmful gases in vacuum systems. They offer direct and indirect cooling methods, protecting sensitive materials from contact with cooling agents. They use eco-friendly refrigerants for energy-efficient, sustainable cooling. They come with temperature displays for precise temperature monitoring. Our cold trap baths are ideal for use in laboratories, industrial drying, and processes like solvent recovery, capacitor drying, and battery core applications.
Capacity | 7 L |
Refrigeration Compressor | ½ hp |
Temperature | -75 °C |
Thermocouple | Pt 100 Ω |
Capacity | 5L |
Temperature Range | 5 to 35°C |
Minimum Temperature Range | - 40°C |
Vacuum Nozzle | KF25 |
Capacity | 3 bottles |
Temperature Range | 5 to 35°C |
Minimum Temperature Range | -40°C |
Vacuum Nozzle | φ12 hose connector |
Labotronics evaporation loss test bath is a specialized laboratory apparatus used to determine the rate of evaporation and loss of volatile substances from a liquid sample under controlled conditions. It consists of a temperature-controlled chamber with a liquid reservoir and a cover, which can be sealed or partially open. The liquid sample is placed in the chamber, and the bath is set to the desired temperature, typically following specific testing standards. The test measures the loss of the volatile components due to evaporation over a specified time period. These baths are commonly used in various industries, including petrochemicals, automotive, and environmental testing, to assess the evaporation characteristics of lubricants, fuels, and other liquids. Evaporation loss test baths play a crucial role in quality control and product development, ensuring that substances can meet the necessary standards and performance requirements.
Samples tested | |
Temperature range | |
Temperature control accuracy | |
Flow rate |
Samples tested | Oil and grease |
Temperature range | RT ~ 200 °C |
Temperature control accuracy | ± 0.1 °C |
Flow rate | 0.4 g/min ~ 4 g/min |
Our thermostatic sand bath is a laboratory heating device that utilizes heated sand to maintain a precise and uniform temperature for chemical reactions and sample heating. Consisting of a heat-resistant container filled with dry sand, it is equipped with a heating element and a temperature control system that regulates the sand's temperature, allowing for accurate and stable heating of reaction vessels, test tubes, or other containers placed within it. Labotronics instruments are commonly employed in various scientific and chemical applications, enabling researchers to control and sustain specific reaction temperatures with high precision, thus facilitating reproducible and controlled experiments while minimizing the risk of overheating or cooling fluctuations.
Temperature range | RT ~ 300 °C |
Heating power | 2000 W |
Working dimensions | 300 × 400 × 100 mm |
Power supply | AC 220 V/ 60 Hz AC 110 V/ 50 Hz |
