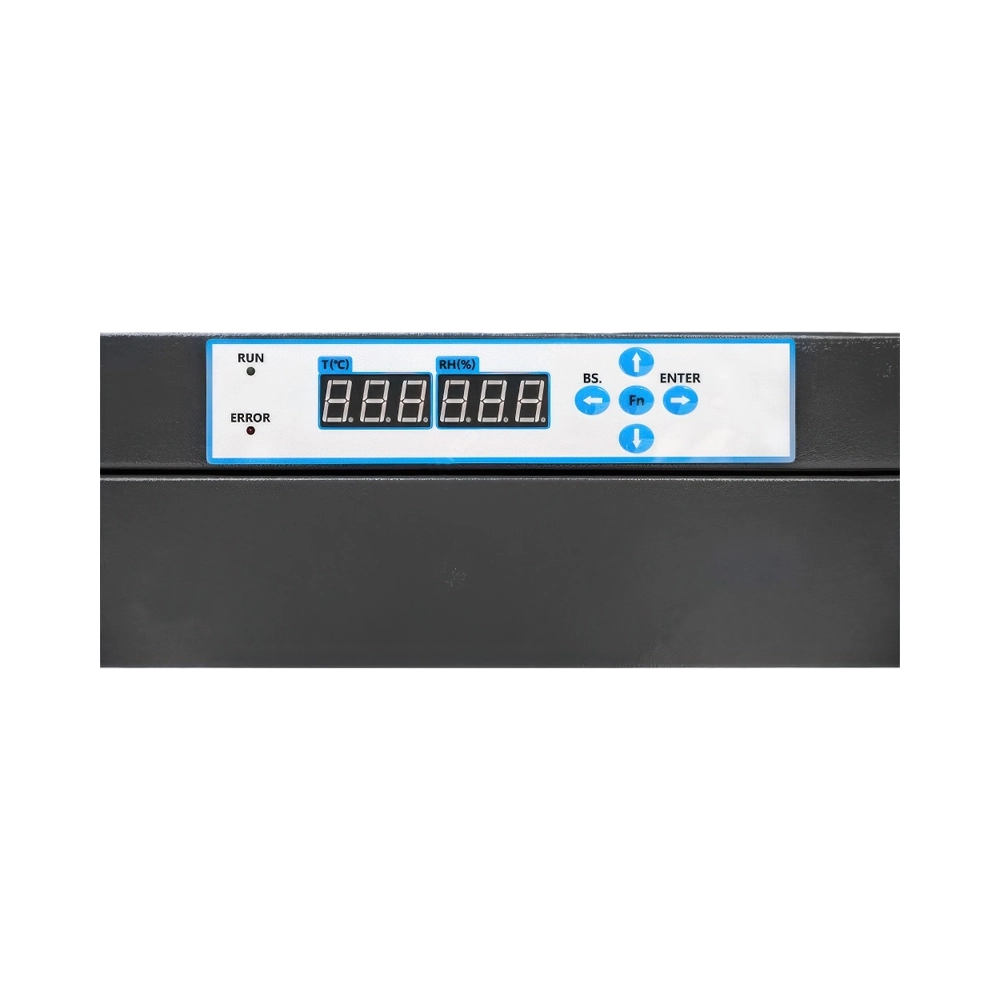

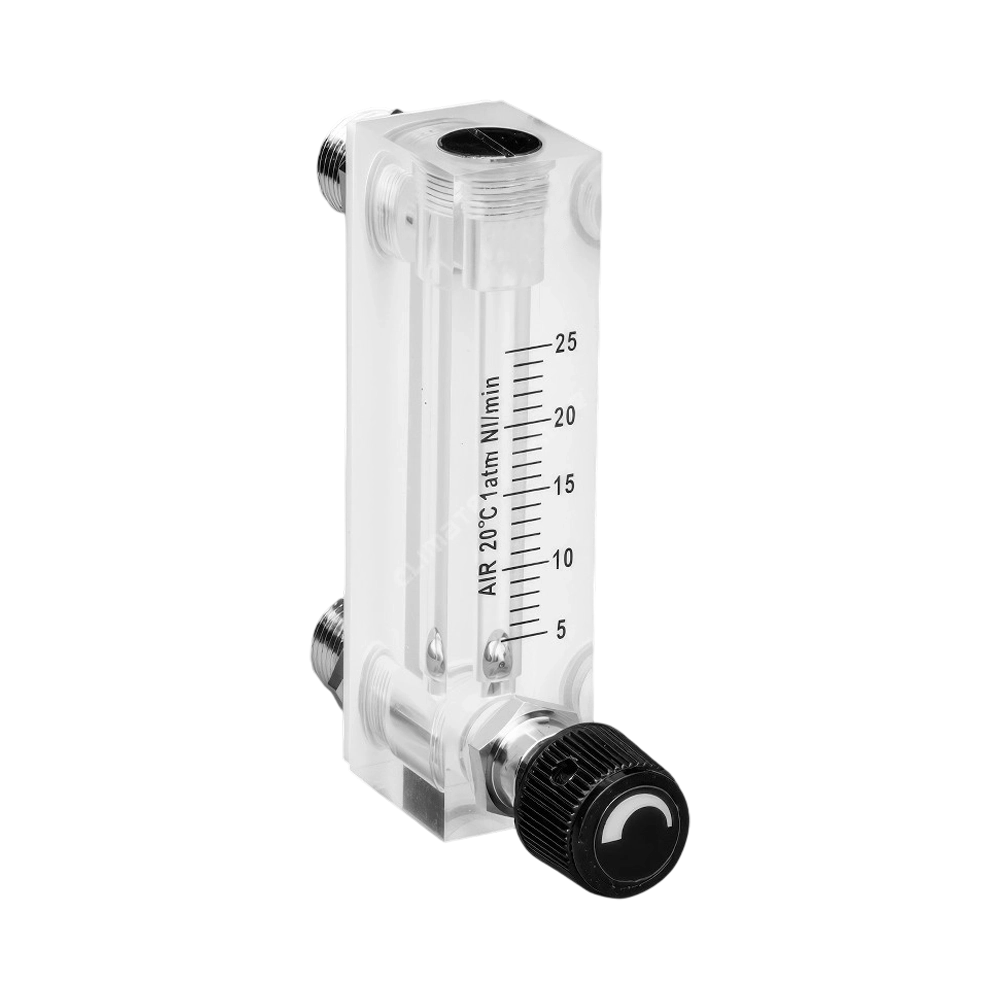

Nitrogen Cabinet LB-16NC provides a 718L capacity with 1% to 60% RH humidity control, ensuring safe storage of moisture-sensitive components. The system automatically adjusts nitrogen flow based on internal humidity levels. It features humidity and temperature sensors to maintain stable storage conditions. Our cabinet efficiently preserves ultra-low humidity environments, offering reliable protection for sensitive items.
$ 3350
Download CatalogSpecifications
| Capacity | 718L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 5pcs (Height adjustable) |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 15 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Material | 1.2 mm thick galvanized steel with ESD-safe coating |
| Power Consumption | 15W |
| Inner Dimension (W × D × H) | 596 × 682 × 1723 mm |
| Outer Dimension (W × D × H) | 598 × 710 × 1910 mm |
| Net Weight | 84 kg |
| Gross Weight | 105 kg |
Features
Adjustable humidity control
Adjustable shelving system
ESD-safe coating
Door open alarm
Calibration reminder
Applications
Nitrogen Cabinet LB-16NC is ideal for storing moisture-sensitive items like ICs, PCBs, and semiconductors under controlled low-humidity conditions. It is widely used in electronics manufacturing, research labs, semiconductor facilities, and aerospace industries.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Capacity | 320L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 15 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 1436L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 5pcs (Height adjustable) |
| Maximum Load Capacity | 100 kg/shelf |
| Recovery Time | Maximum 15 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 870L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 5pcs (Height adjustable) |
| Maximum Load Capacity | 100 kg/shelf |
| Recovery Time | Maximum 15 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 435L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 15 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 240L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 50 kg/shelf |
| Recovery Time | Maximum 15 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 540L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 15 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 160L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 50 kg/shelf |
| Recovery Time | Maximum 15 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Humidity Range | 1–60% RH |
| Display Precision | ±3% RH, ±0.5°C |
| Display Resolution | 0.1% RH, 0.1°C |
| Volume | 98 L |
| Nitrogen Supply | Multi-point gas supply through 30+ small holes, with automatic cut-off at the set humidity |
