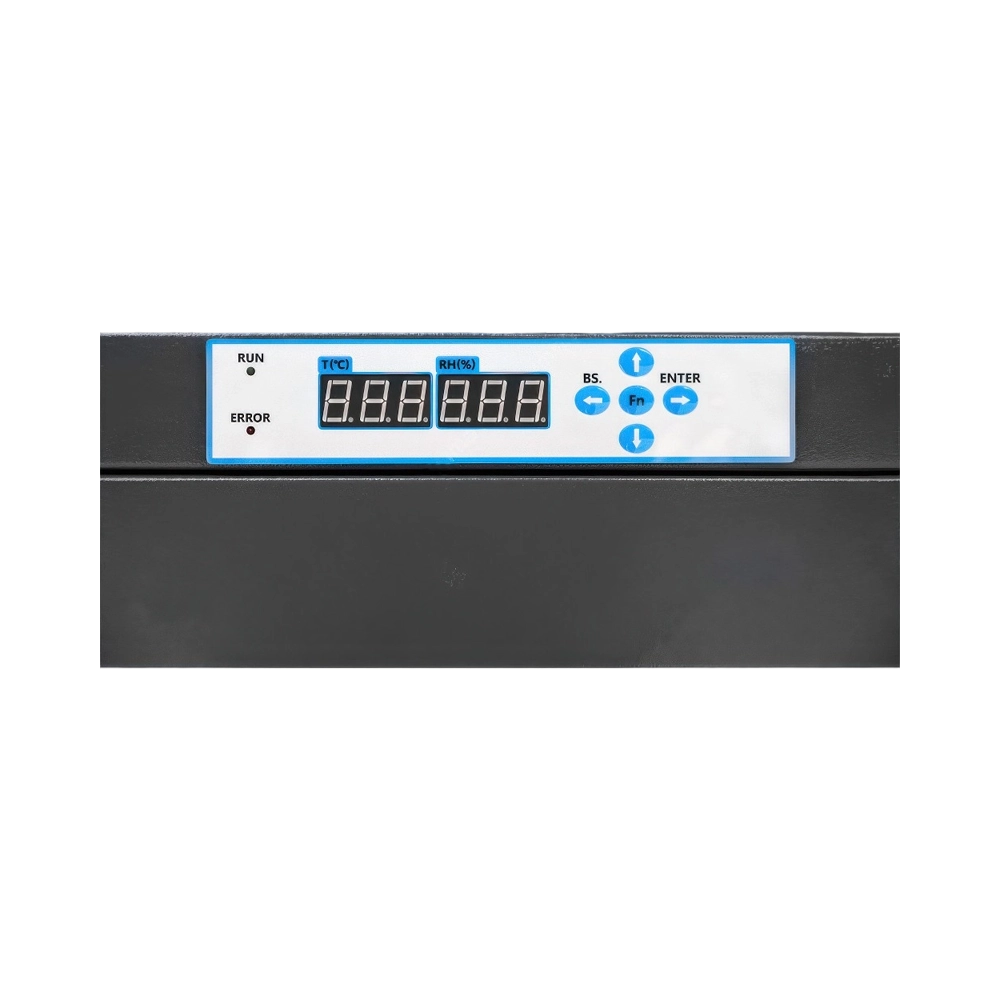

Nitrogen Cabinet LB-17NC offers an 870L storage capacity with adjustable humidity control from 1% to 60% RH, ensuring precise storage for moisture-sensitive items. It includes five height-adjustable shelves, supporting a load of up to 100 kg per shelf. Its rapid recovery system maintains stable humidity levels. Our cabinet features high-precision temperature and humidity sensors for real-time monitoring of internal conditions.
$ 3512.5
Download CatalogSpecifications
| Capacity | 870L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 5pcs (Height adjustable) |
| Maximum Load Capacity | 100 kg/shelf |
| Recovery Time | Maximum 15 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Material | 1.2 mm thick galvanized steel with ESD-safe coating |
| Power Consumption | 15W |
| Inner Dimension (W × D × H) | 898 × 572 × 1698 mm |
| Outer Dimension (W × D × H) | 900 × 600 × 1890 mm |
| Net Weight | 110 kg |
| Gross Weight | 130 kg |
Features
Adjustable humidity control
ESD-safe coating
Door open alarm
Over-humidity alarm
Calibration reminder
Applications
Nitrogen Cabinet LB-17NC is used to store moisture- and oxygen-sensitive components such as ICs, PCBs, and SMT assemblies. It is ideal for use in semiconductor production lines, electronics assembly areas, and cleanroom laboratories.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Capacity | 435L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 15 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 540L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 15 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 320L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 15 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 160L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 50 kg/shelf |
| Recovery Time | Maximum 15 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 240L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 50 kg/shelf |
| Recovery Time | Maximum 15 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Humidity Range | 1–60% RH |
| Display Precision | ±3% RH, ±0.5°C |
| Display Resolution | 0.1% RH, 0.1°C |
| Volume | 98 L |

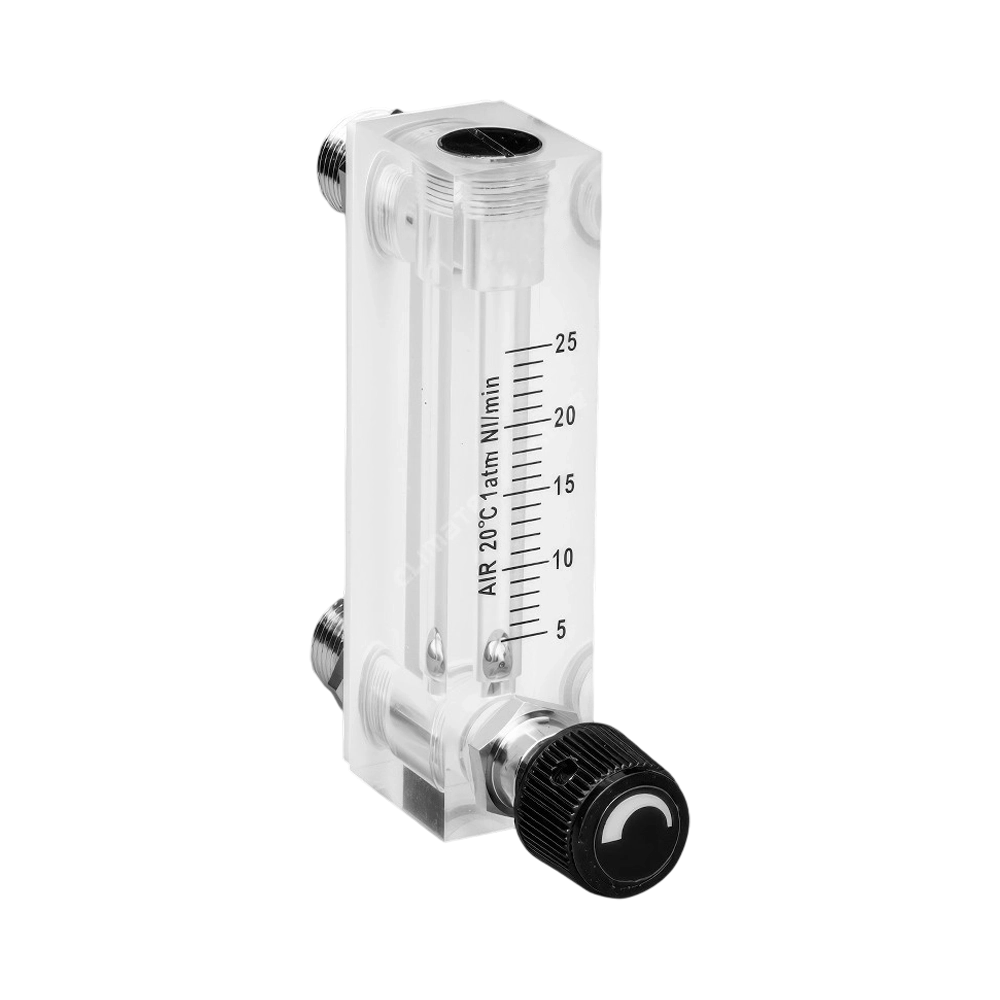

| Nitrogen Supply | Multi-point gas supply through 30+ small holes, with automatic cut-off at the set humidity |
| Capacity | 1436L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 5pcs (Height adjustable) |
| Maximum Load Capacity | 100 kg/shelf |
| Recovery Time | Maximum 15 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 718L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 5pcs (Height adjustable) |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 15 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
