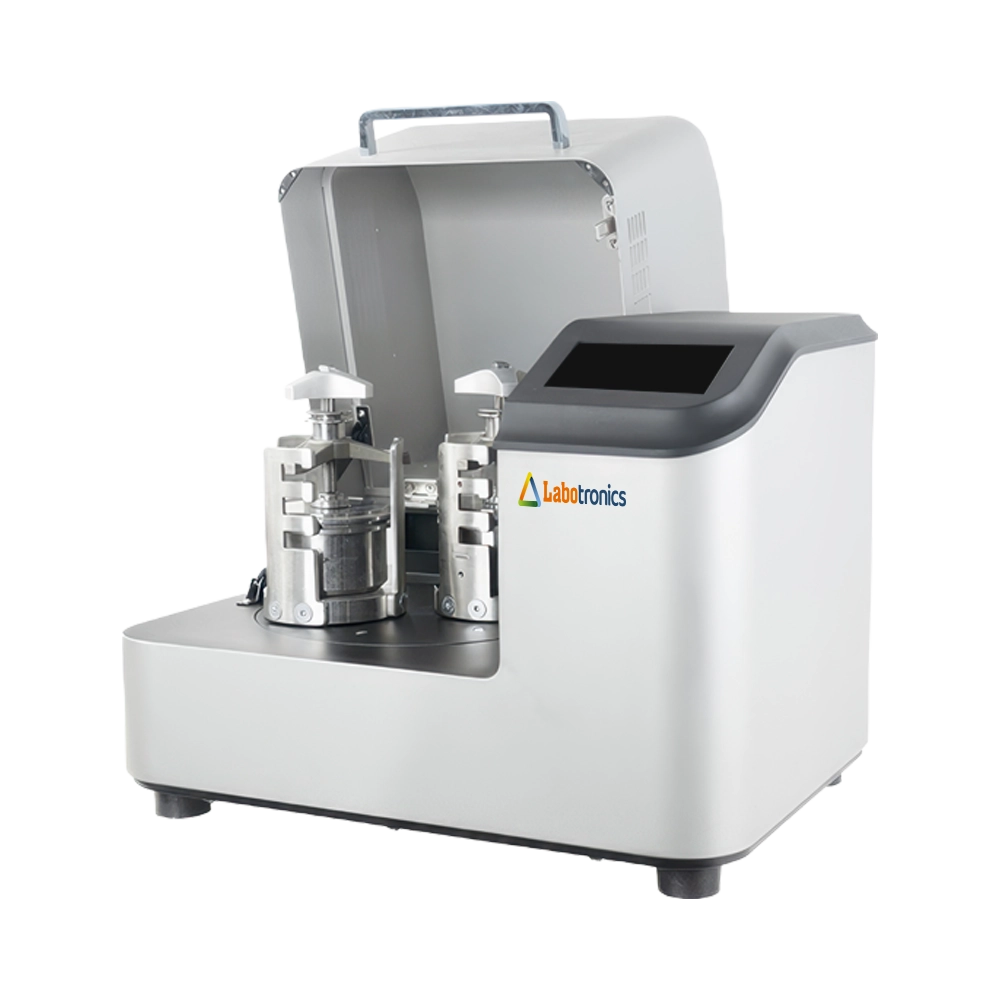

Planetary Ball Mill LB-21PBM

Name: Planetary Ball Mill LB-21PBM
Brand: Labotronics
SKU: LB-21PBM
Rating: 4.7 (538 reviews)

Planetary Ball Mill LB-21PBM offers precise and efficient grinding within a speed range of 100 to 650 rpm. It efficiently handles feed sizes up to 10 mm suitable for nanotechnology, material science, and pharmaceutical applications. It is constructed from high-quality materials, ensuring durability in demanding environments. Our ball mill is equipped with a 7-inch LED display, offering an intuitive interface for effortless monitoring and control of the grinding process.

$ 12737.5

Download Catalog

Specifications

Feed Size	< 10mm
Final Fineness	< 0.1um (up to nanometer for colloidal grinding)
Speed Range	100 to 650 rpm
Speed Ratio	1: -2
Maximum Jar Capacity	125 ml × 2
Grinding Stations	2
Time Setting	0 to 99min (cycle times 01-99)
Effective Sun Wheel Diameter	290 mm
Power Consumption	750W
Power Supply	220V,50/60Hz
Dimension	685 × 510 × 506 mm
Packaging Dimension	860 × 960 × 780 mm
Weight	145 kg

Features

Easy operation and cleaning
Fast grinding to nano fineness
Automatic direction reversal to prevent agglomerations
Suitable for continuous operation
Program-controlled parameters

Applications

Planetary Ball Mill LB-21PBM is used for dry or wet grinding and mixing of soft, hard, brittle, and fibrous samples with ultra-fine results. It is widely applied in geology, metallurgy, medicine, agriculture, building materials, and environmental research for processing minerals, ores, ceramics, chemicals, and polymers.
