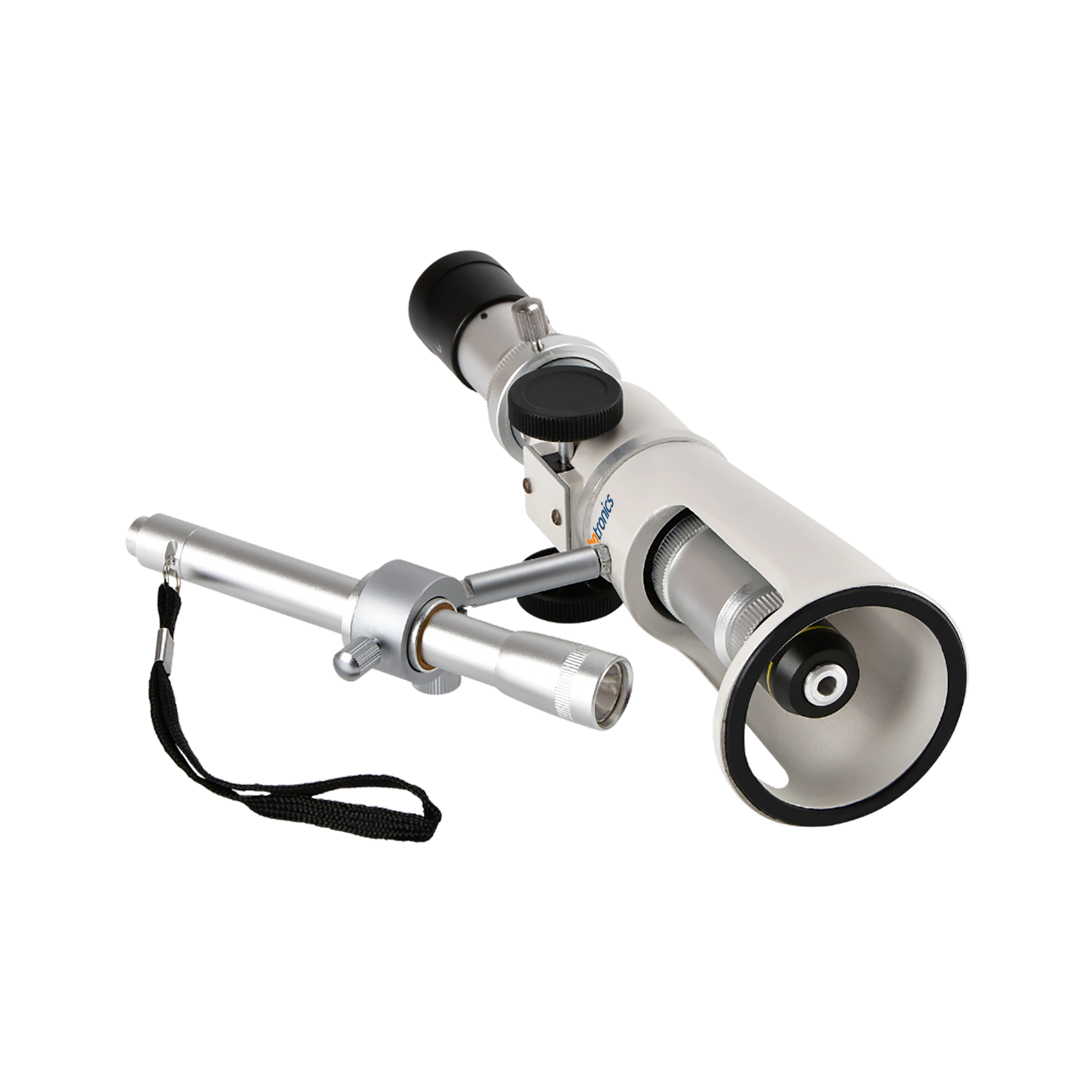

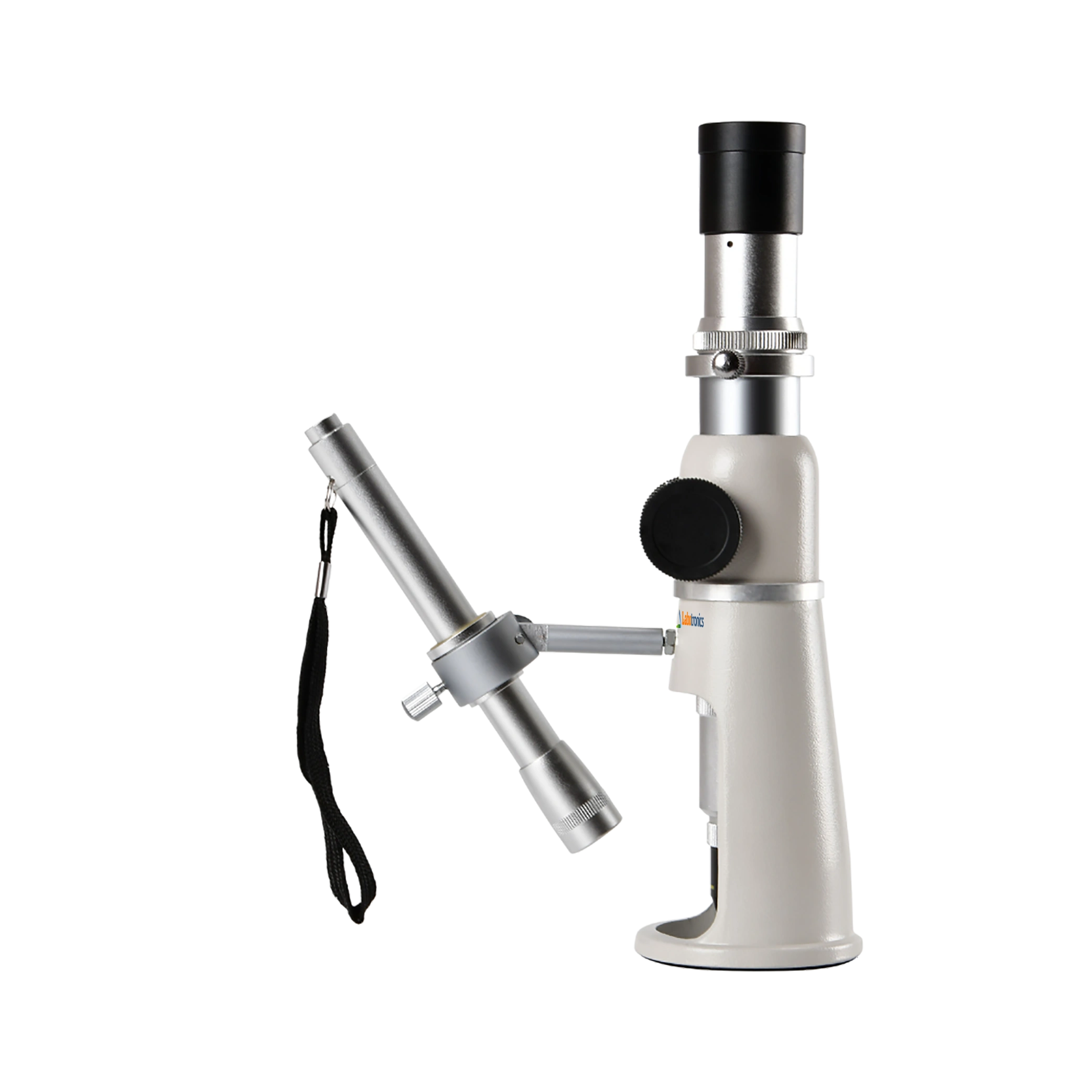

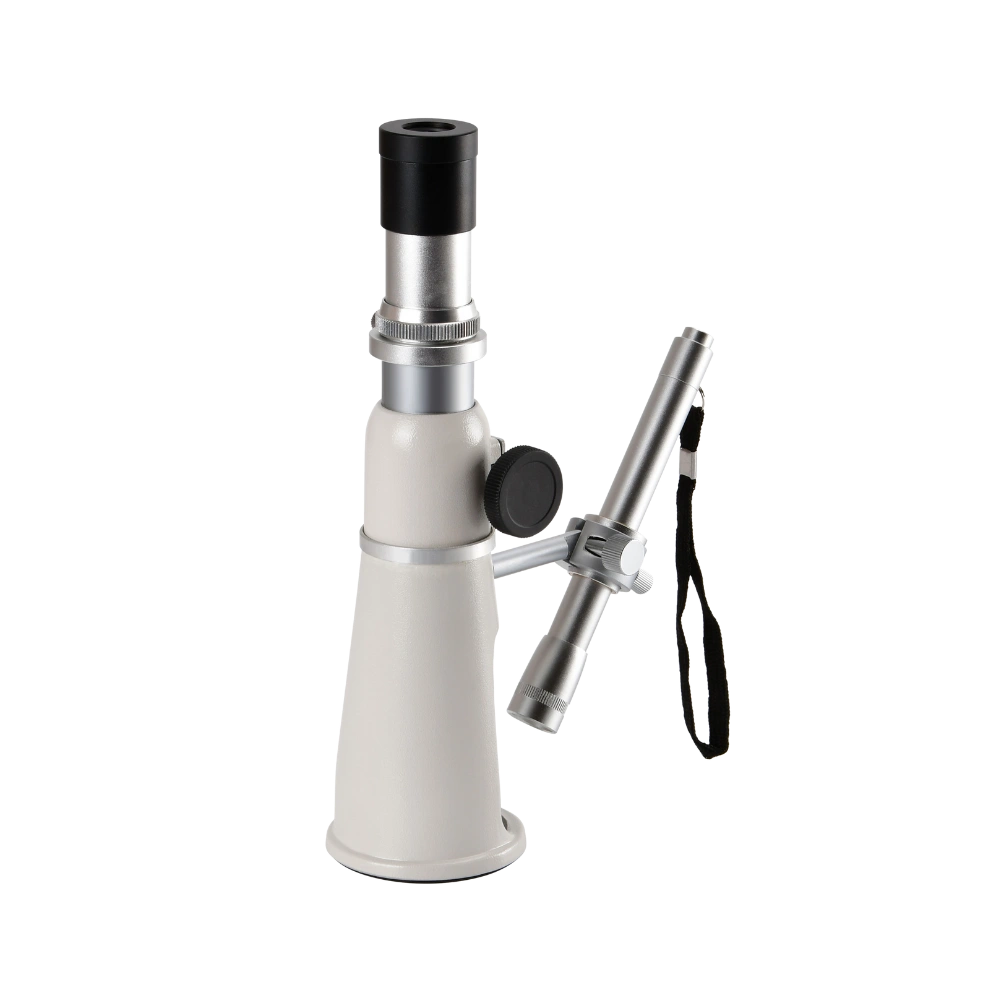

Portable Measuring Microscope LB-15PET delivers 50x magnification, allowing precise examination of fine sample details. It is equipped with a 5x objective lens, ensuring crisp and accurate visualization of specimens. It provides a 30 mm focusing range, allowing smooth and precise adjustment of sample positions. Our microscope features a built-in compact pen light, offering bright illumination to enhance image clarity during observations.
$ 1075
Download CatalogSpecifications
| Magnification | 50x |
| Objective | 5x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Micrometer Division | 0.02 mm |
| Numerical Aperture | 0.12 |
| Mechanical Tube Length | 160 mm |
| Working Distance | 17.6 mm |
| Light Source | Pen Light |
| Power Supply | AAA Battery |
| Product Dimension | 63 × 210 mm |
| Packaging Dimension | 690 × 270 × 220 mm |
| Net Weight | 5.8 kg |
| Gross Weight | 6.8 kg |
Features
Smooth focus control
Compact and portable
Lightweight build
Long working distance
Stable base support
User-friendly design
Applications
Portable Measuring Microscope LB-15PET is ideal for precise observation and measurement of small samples. It is commonly used in laboratories, workshops, research centers, and quality control environments.
Frequently asked questions For Portable Measuring Microscope
1. What is a portable measuring microscope?
A portable measuring microscope is a compact, handheld optical instrument designed to magnify and precisely measure small objects and components. It is ideal for accurate inspections and quality control across various industries.
2. What are the ideal applications for portable measuring microscopes?
These microscopes are perfect for measuring tiny mechanical parts, electronic circuit boards, fibers, and other small items that require precise dimensional analysis. Labtronics portable measuring microscopes help professionals ensure quality standards efficiently and reliably.
3. Can Labotronics microscopes be used outdoors or in the field?
Yes, their compact size, battery-powered illumination, and rugged build make them perfect for outdoor or on-site inspections in industries like construction, manufacturing, or utilities.
4. Can Labotronics portable measuring microscopes measure different magnifications?
Yes, Labotronics offers models with a variety of magnifications ranging from 20X to 100X, allowing users to select the ideal zoom level for their specific measurement and inspection needs.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Magnification | 40x |
| Objective | 4x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Micrometer Division | 0.025 mm |
| Magnification | 20x |
| Objective | 2x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Micrometer Division | 0.05 mm |
| Magnification | 40x |
| Objective | 4x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Micrometer Division | 0.025 mm |
| Magnification | 100x |
| Objective | 10x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Micrometer Division | 0.01 mm |
| Magnification | 100x |
| Objective | 10x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Micrometer Division | 0.01 mm |
| Magnification | 20x |
| Objective | 2x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Micrometer Division | 0.05 mm |
| Magnification | 50x |
| Objective | 5x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Micrometer Division | 0.02 mm |
