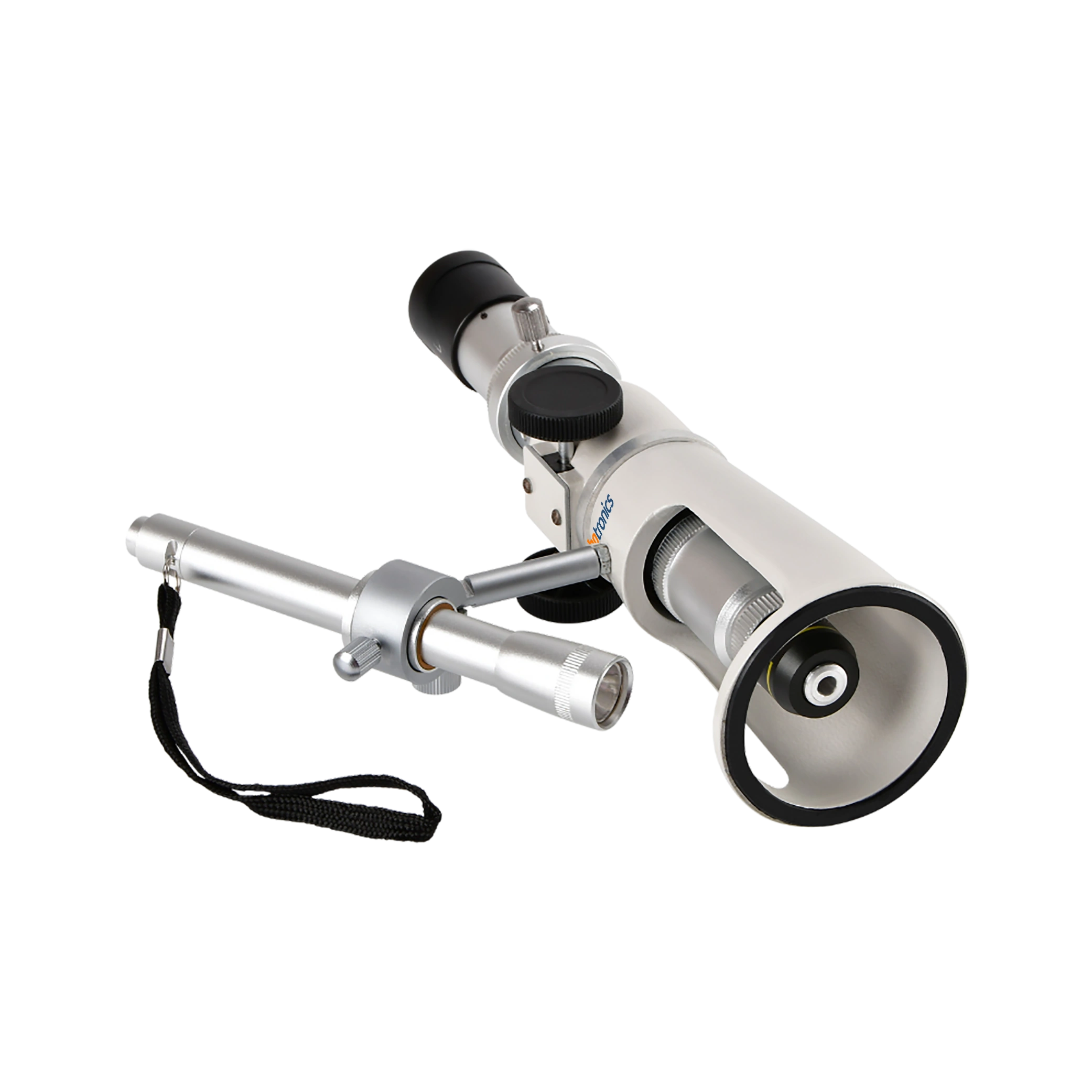

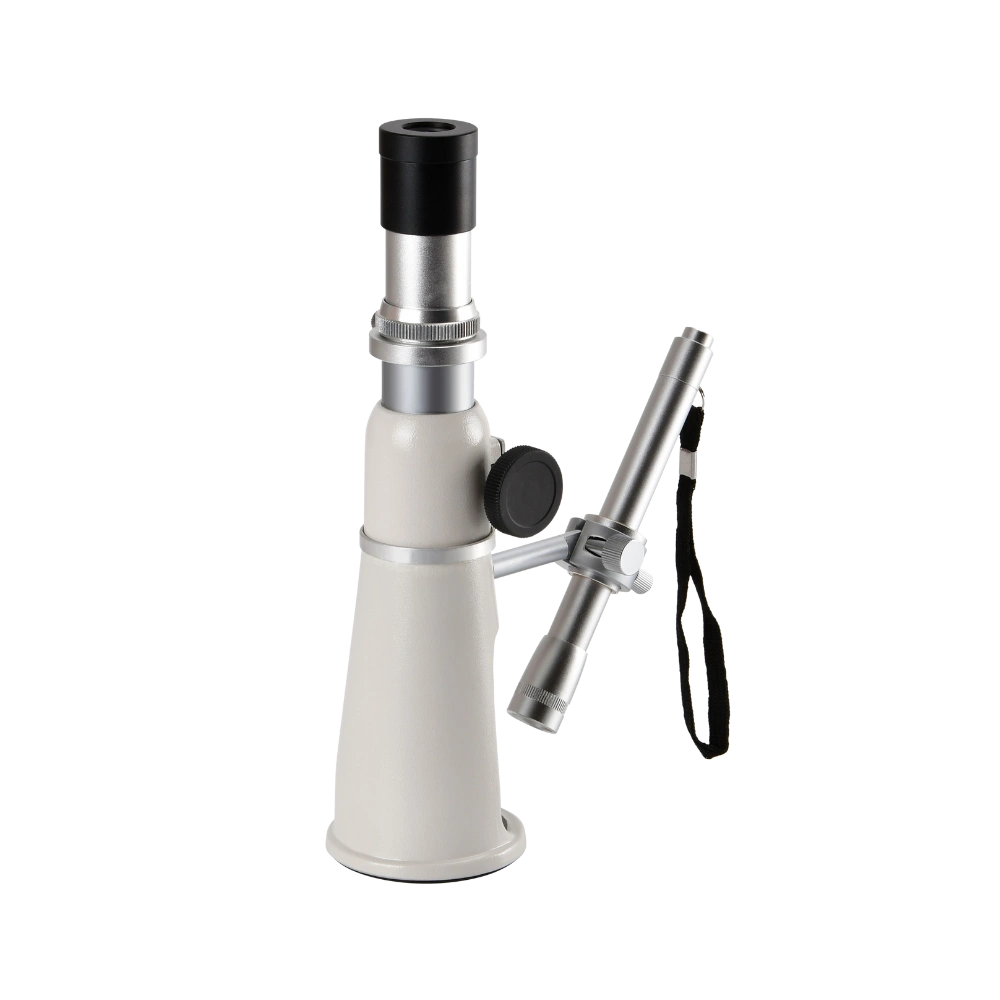

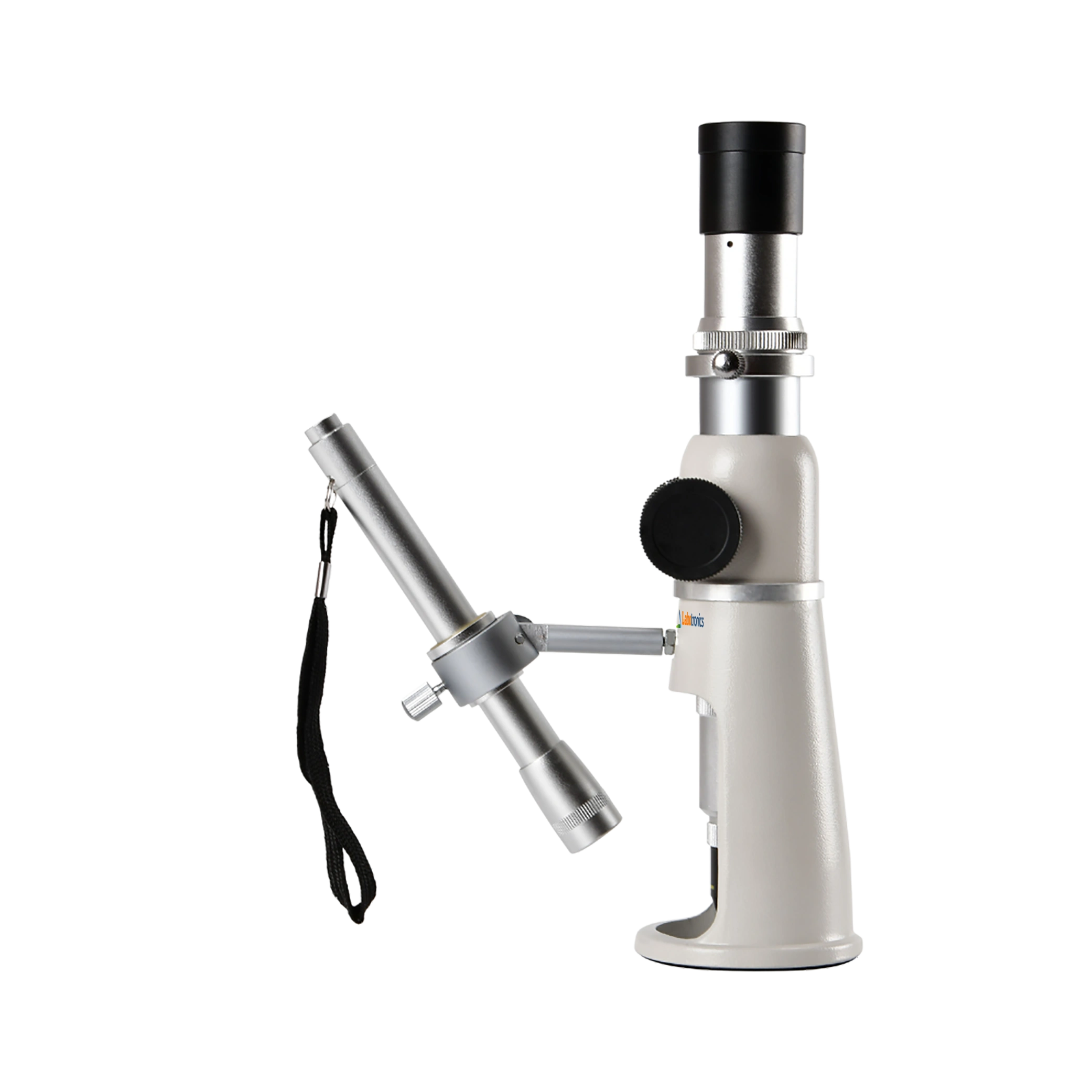

Portable Measuring Microscope LB-17PET

Portable Measuring Microscope LB-17PET

Portable measuring microscope LB-17PET is a smart size, light weight, and easy to operate unit. High quality optical components provide exceptional resolution. With holder and without holder illumination options available as per user requirement.

Buy Now Download Catalog

Specifications

Total magnification 20X
Objective 160 mm
Illumination Pen Light Illumination (with holder, No Battery)
Numerical aperture 0.05
Mechanical tube length 160 mm
Eyepiece 10X / 18 Cross with Reticle
Diameter of viewing field in eyepiece Φ 18 mm
Eyepiece reticle 0.1 mm
Fine division 0.05 mm
Working distance 17.2 mm
Focus range 30 mm
Diameter of bearing plane Φ 63 mm
Height of microscope 210 mm
Weight 650 g

Features

  • Eyepiece 10X with reticle and diopter adjustment
  • 10X / 18 Cross with Reticle
  • Fitted with high quality precision optics to give the best performance

Applications

Used for spot examination of machinery industry, paper making, printing and textile.
