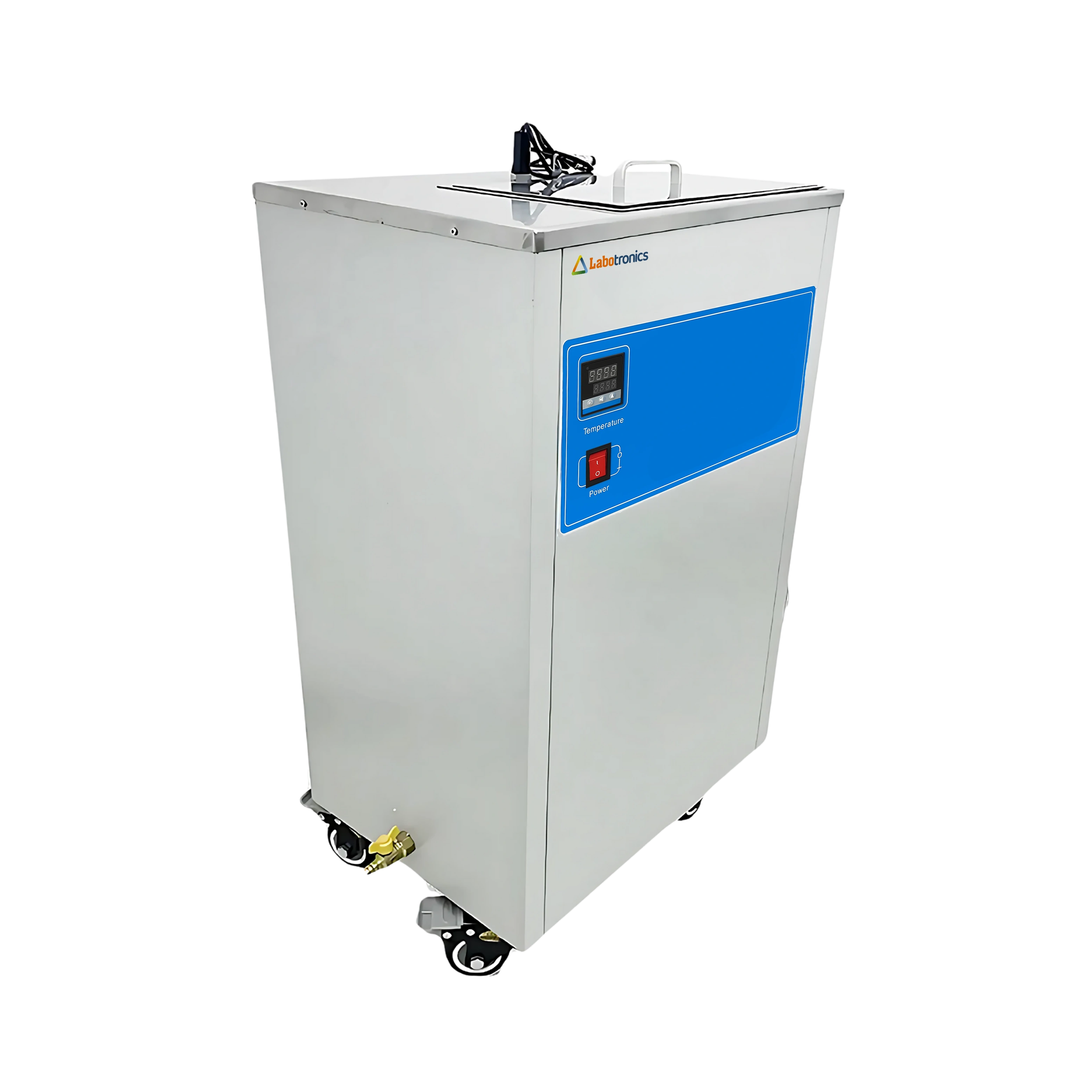

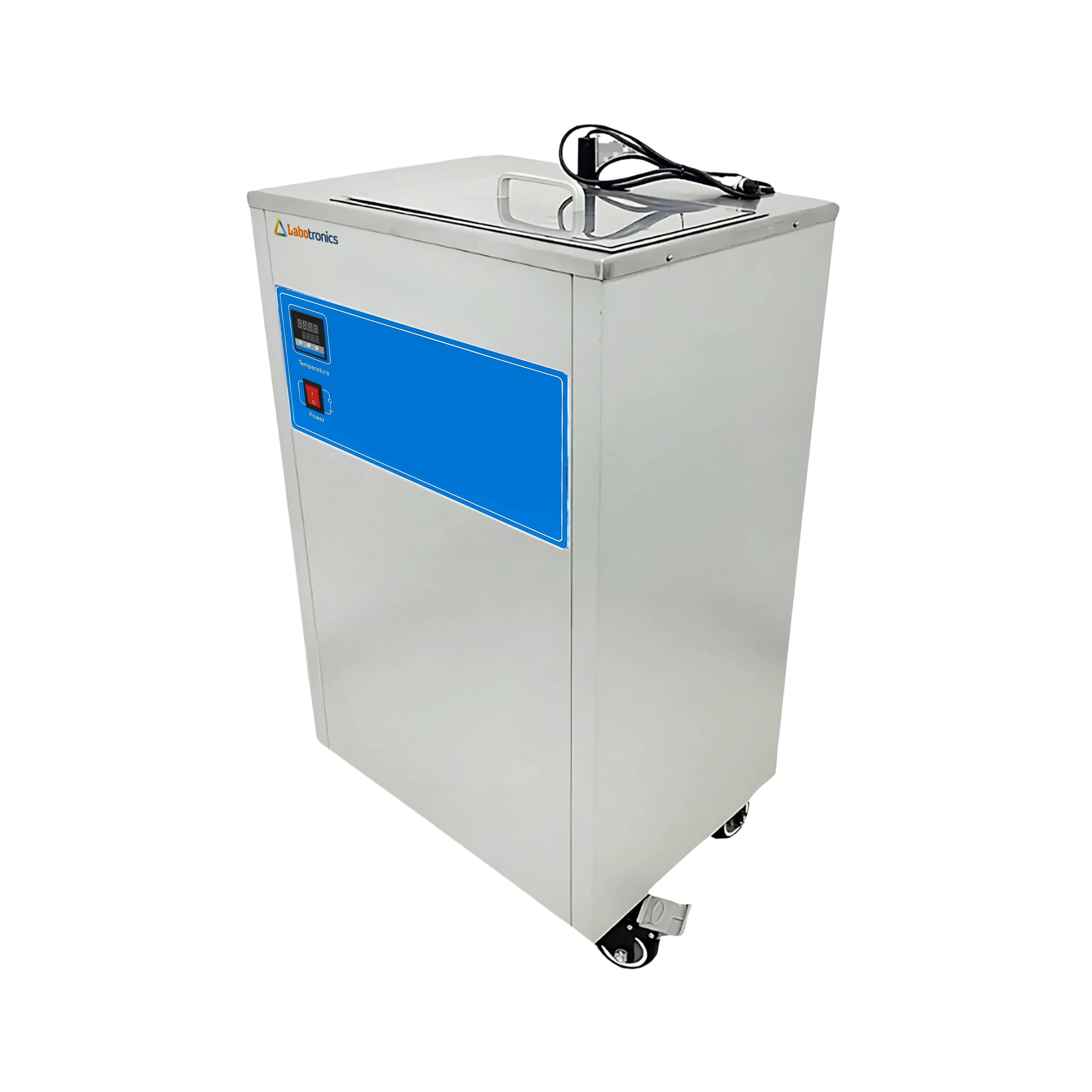

Reid Vapor Pressure Bath LB-10RVP

Name: Reid Vapor Pressure Bath LB-10RVP
Brand: Labotronics
SKU: LB-10RVP
Rating: 4.6 (589 reviews)

Reid Vapor Pressure Bath LB-10RVP tests vapor pressure of the petroleum products with temperature control range from RT to 100 ℃ and has accuracy of ± 0. 1 ℃. Designed with Pt 100 temperature sensor for accurate temperature control, displays the temperature on digital screen. Equipped with stainless steel bath and shell, making it resistant to corrosion and bomb body has switch valve for easy gas charge and discharge.

$ 4075

Download Catalog

Specifications

Temperature control range	RT to 100 ℃
Accuracy	± 0. 1 ℃
Temperature sensor	Pt 100
Pressure range	1Mpa (grade 0.4) 2.5Mpa (grade 0.4)
Humidity	≤ 85%
Power	2000 W
Power supply	AC220V ± 10, 50Hz
Dimensions (L × W × H)	650 × 470 × 1060 mm
Weight	57 Kg

Features

Temperature control range from RT to 100 ℃ and has accuracy of ± 0. 1 ℃
Temperature control system has digital display for visualization of technical parameters
Convenient modification of the technical parameters
Accurate temperature control with simplified operation method
Stainless steel bath and shell ensures protection against corrosion
Floor type model having two bombs for enhanced efficiency of the product
Instruments can hang total two test bomb bodies independently or at same time
Modern PID temperature control technology enriched with self-tuning feature
Pressure indicator display gauge for displaying pressure
Bomb body switches valve for convenient gas charge and discharge

Standard Accessories

Saturated vapor pressure tester
Vapor pressure bomb (gas, liquid chamber)
Thermometer 38 to 42 °C, 0.1 °C
Pressure gauge 0 to 100 Kpa
Thermometer rubber stopper
Power cable

Applications

Reid Vapor Pressure Bath is used for performing vapor pressure testing across petroleum industries, research laboratories, academics, etc.
