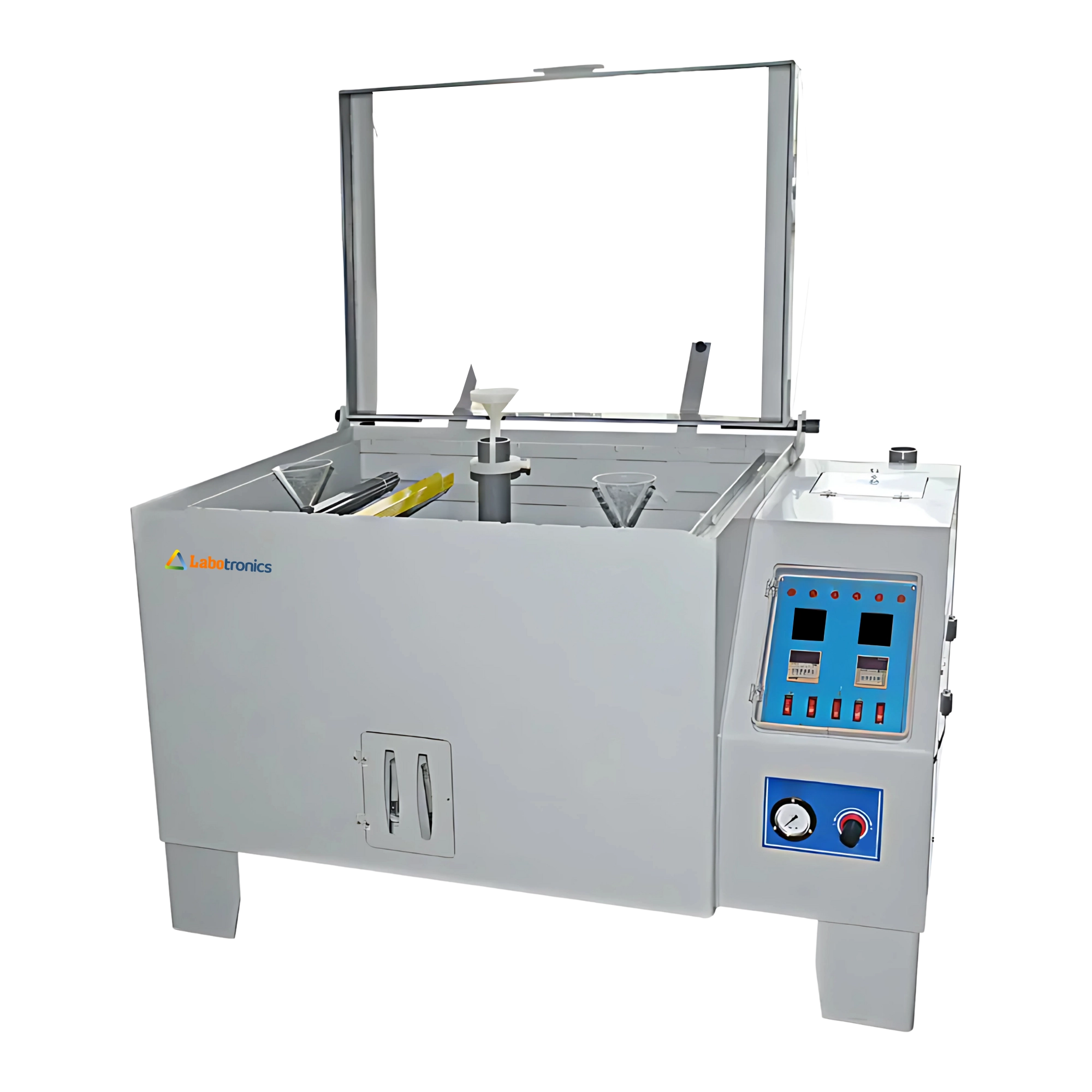

Salt Spray Chamber LB-23SSC

Name: Salt Spray Chamber LB-23SSC
Brand: Labotronics
SKU: LB-23SSC
Rating: 5 (556 reviews)

Salt Spray Chamber LB-23SSC operates within a temperature range of 5°C to 50°C and has a 108L capacity for precise corrosion resistance testing. It is equipped with a saturated barrel heating system, ensuring a stable testing environment. It features an independent acrylic conical disperser spray tower for uniform fog dispersion. Our chamber supports programmable or interrupted spray cycles, allowing flexible test durations.

$ 2712.5

Download Catalog

Specifications

Capacity	108L
Temperature Range	RT 5°C to 50°C
Saturated Barrel Temperature Range	47°C to 63°C
Temperature Uniformity	≤ ±2.0°C
Temperature Fluctuation	≤ ±5.0°C
Spray Quantity	1.0 to 2.0ml/80cm²/h
Spray Tower	Independent acrylic conical disperser
Spray Nozzle	PYREX glass precision nozzle
Spray Method	Programmable or interrupted spray
Demist Method	Air squeezing, 120°cone-shaped lid
Material	P.V.C and P rigid plastic plate
Power Supply	AC 220V 50Hz
Interior Dimension (W × H × D)	600 × 450 × 400 mm
Exterior Dimension (W × H × D)	1100 × 670 × 1180 mm
Packaging Dimension (W × H × D)	1200 × 800 × 1300 mm
Net Weight	125 kg
Gross Weight	160 kg

Features

Independent spray tower
Low temperature fluctuation
Air squeezing demisting
Secure door lock

Applications

Salt Spray Chamber LB-23SSC is ideal for evaluating the corrosion resistance of materials and coatings, ensuring product durability. It is widely used in the automotive, aerospace, electronics, and metal manufacturing industries.

Salt Spray Chamber LB-21SSC

Capacity	270L
Temperature Range	RT 5°C to 50°C
Saturated Barrel Temperature Range	47°C to 63°C
Temperature Uniformity	≤ ±2.0°C
Temperature Fluctuation	≤ ±5.0°C

$ 2975

Salt spray chamber LB-20SSC

Chamber capacity	60 L
Interior dimensions (W x H x D)	600 x 400 x 450 mm
Exterior dimensions (W x H x D)	1130 x 1070 x 630 mm
Temperature range	35 °C ± 1°C to 50 °C ± 1°C
Heater power	3 kW + 0.75 kW

$ 3912.5

Salt Spray Chamber LB-24SSC

Capacity	480L
Temperature Range	RT 5°C to 50°C
Saturated Barrel Temperature Range	47°C to 63°C
Temperature Uniformity	≤ ±2.0°C
Temperature Fluctuation	≤ ±5.0°C

$ 7218.75

Salt Spray Chamber LB-25SSC

Capacity	1200L
Temperature Range	RT 5°C to 50°C
Saturated Barrel Temperature Range	47°C to 63°C
Temperature Uniformity	≤ ±2.0°C
Temperature Fluctuation	≤ ±5.0°C

$ 10850

Salt spray chamber LB-22SSC

Chamber capacity	800 L
Interior dimensions (W x H x D)	1600 x 500 x 1000 mm
Exterior dimensions (W x H x D)	2240 x 1500 x 1600 mm
Temperature range	35 °C ± 1°C to 50 °C ± 1°C
Heater power	15 kW + 1 Kw
