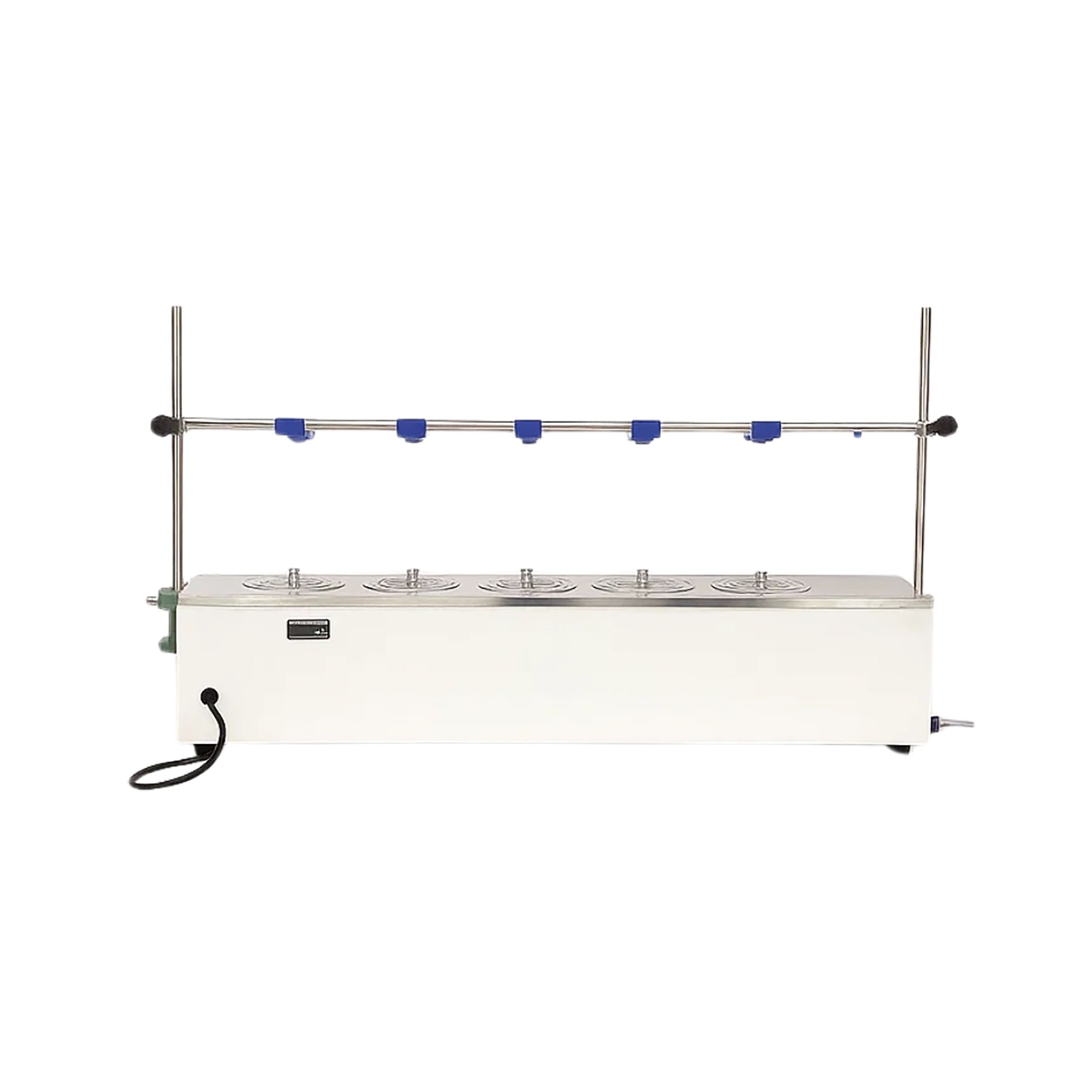

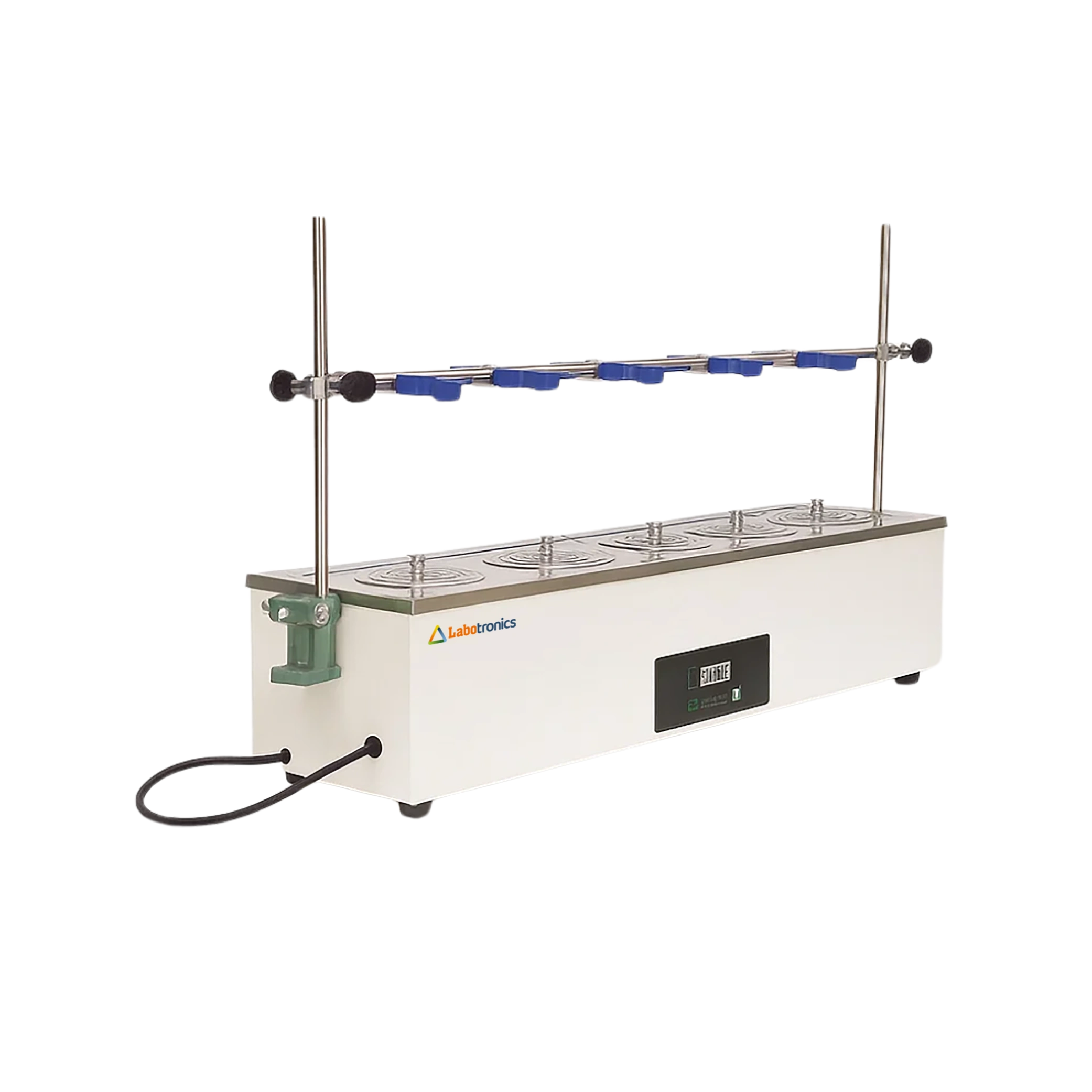

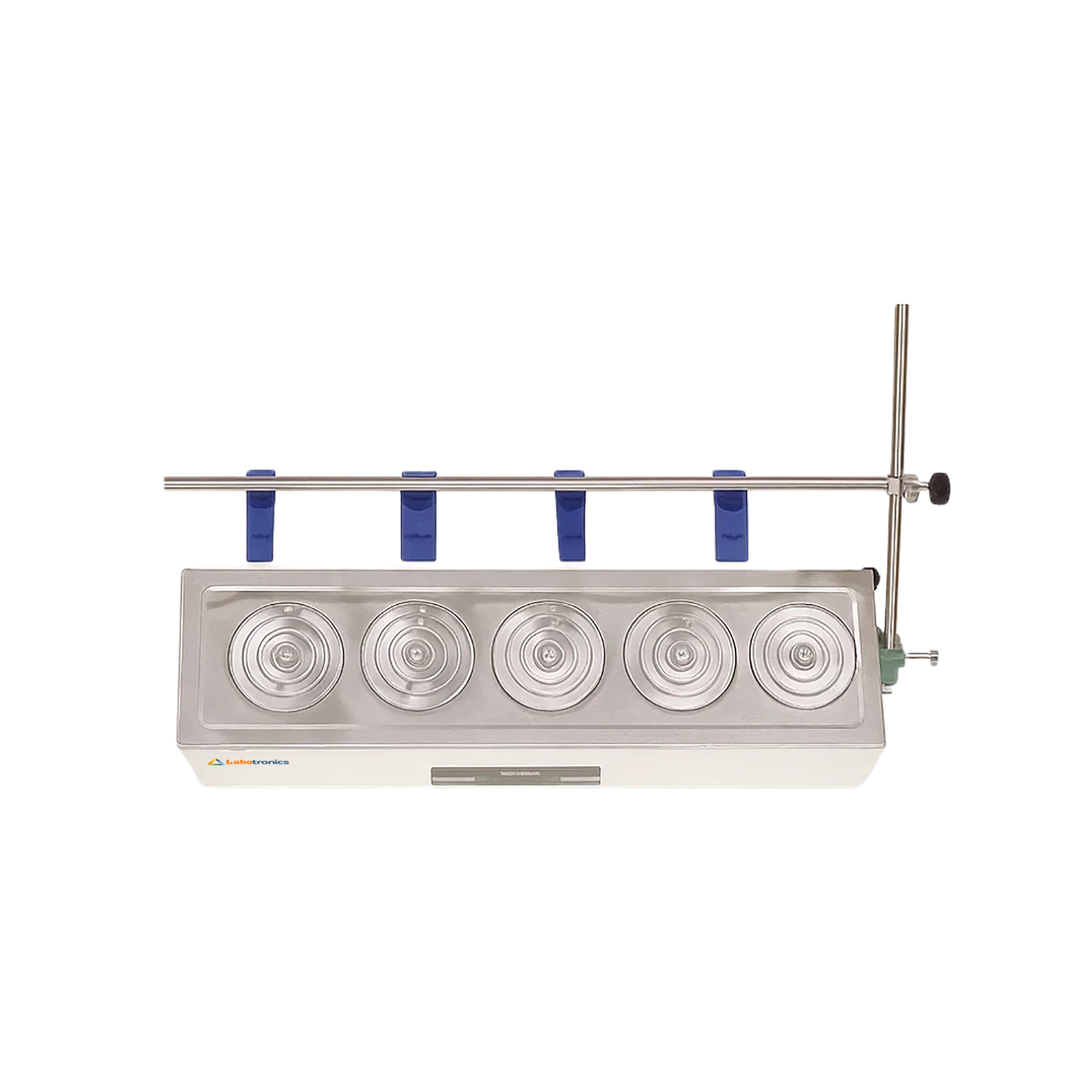

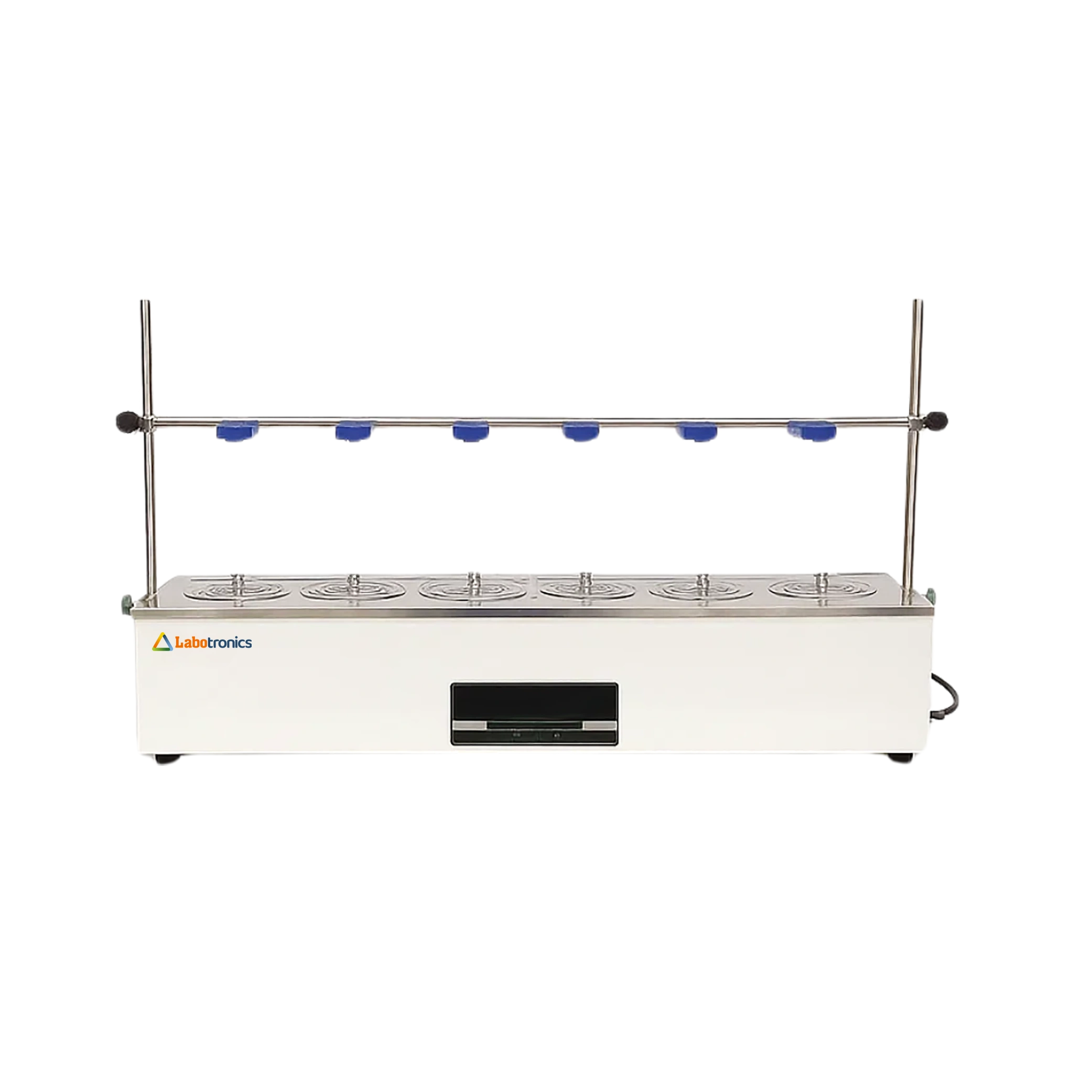

Soxhlet water bath LB-10SWB
Soxhlet water bath LB-10SWB is a stainless steel unit with different capacities of hole opening type. The temperature of the water bath is controlled by PID temperature controller. The bath is provided with concentric rings which can be adjusted in order to fit the flasks of varied sizes.
$ 2475
Download CatalogSpecifications
| Capacity | 4 hole opening type |
| Bath dimension | 330 x 320 x 100 mm |
| External dimension | 360 x 330 x 210 mm |
| Heater capacity | 1000 W |
| Temperature range | + 5 °C ̴ 98 °C |
| Thermocouple | PT – 100 Ω |
| Top opening diameter | Ø 110 mm |
| Power | AC 220 V, 50 Hz / 60 Hz, 1 Ø |
Features
- PID temperature controller
- LED display
- Opening ring, frame and clamp
- SSR type temperature regulator
Applications
Used in pharmaceutical industries, clinical and biomedical experiments that need uniformity and accuracy with temperature control.
