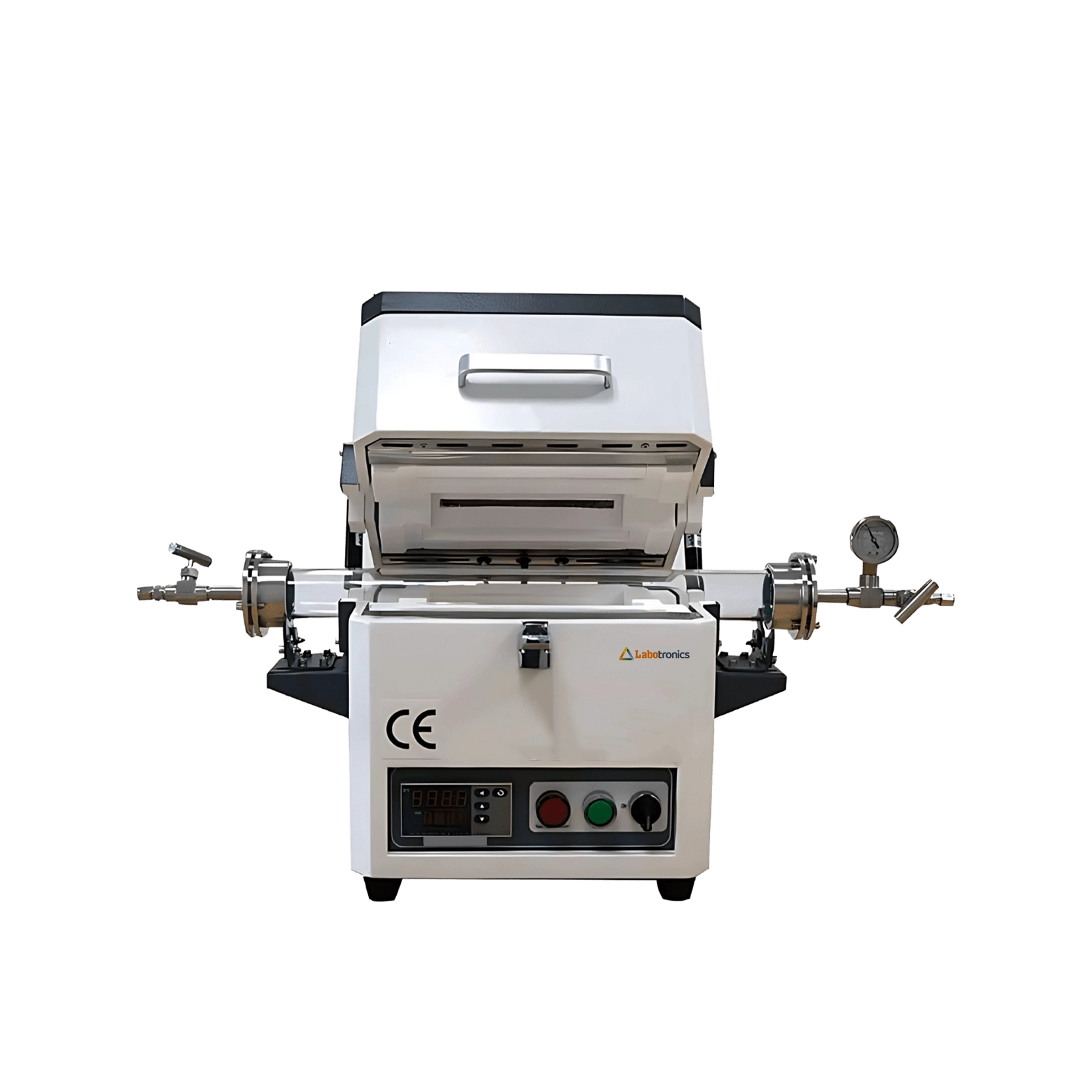

Tube Furnace LB-11TF operates at a maximum temperature of 1200℃, ensuring precise material processing and thermal treatment. It is equipped with an N-type thermocouple for accurate sensing of internal furnace temperature. It features a spacious tube and heating zone, accommodating a variety of sample types and sizes. Our tube furnace utilizes a digital PID temperature controller for accurate and stable temperature regulation.
$ 3612.5
Download CatalogSpecifications
| Temperature Range | 1100℃ |
| Maximum Temperature Range | 1200℃ |
| Temperature Precision | ± 1℃ |
| Thermocouple | N type |
| Temperature Controller | Yudian 516P digital PID controller |
| Heating Rate | ≤ 25℃/min (recommended: 15℃/min for longer furnace life) |
| Heating Zone Size | 300 mm |
| Tube Size | 50 × 1000 mm |
| Heating Element | HRE alloy resistance wire |
| Certification | ISO9001, CE, SGS, TUV |
| Furnace Shell | CNC-processed cold-rolled steel sheets |
| Chamber Material | Alumina ceramic fiber plate |
| Power Supply | 220V / 2 KW, Single Phase, 50/60Hz |
| Product Dimension | 1010 × 510 × 680 mm |
| Packaging Dimension | 1010 × 610 × 800 mm |
| Net Weight | 50 kg |
| Gross Weight | 70 kg |
Features
Uniform thermal distribution
Overheat protection alarm
High thermal efficiency
High-quality heating element
Durable furnace shell
Standard Accessories
Furnace Body × 1
Temperature Controller System × 1
Thermocouple × 1
3-Meter Power Cord
High-Temperature Furnace Gloves × 1 Pair
Crucible Tong × 1 Pair
3-meter Pu Pipe (6 to 8mm) × 1 Pcs
50 mm Quartz Tube × 1 Pc
Applications
Tube Furnace LB-11TF is ideal for high-temperature applications such as material processing, sintering, annealing, and melting. It is widely used in laboratories, research facilities, and industrial settings.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Heater power | 12 kW (adjustable) |
| Heating tube diameter ( Ø ) | 50 mm |
| Heating tube length | 300 mm |
| Maximum temperature range | 1000 °C |
| Working temperature range | 900 °C ~ 1300 °C |
| Heater power | 3 kW |
| Heating tube diameter ( Ø ) | 50 mm |
| Heating tube length | 300 mm |
| Maximum temperature range | 1000 °C |
| Working temperature range | 300 °C ~ 900 °C |
| Maximum Temperature | 1200°C |
| Continuous Working Temperature | 1100°C |
| Temperature Accuracy | ± 1°C |
| Heating Zones | Three zones: 300mm + 300mm + 300mm (Total 900mm) |
| Vacuum Pressure Range | 1 to 10 Pa |
| Heater power | 2 kW |
| Heating tube diameter ( Ø ) | 50 mm |
| Heating tube length | 300 mm |
| Maximum temperature range | 1000 °C |
| Working temperature range | 300 °C ~ 900 °C |
