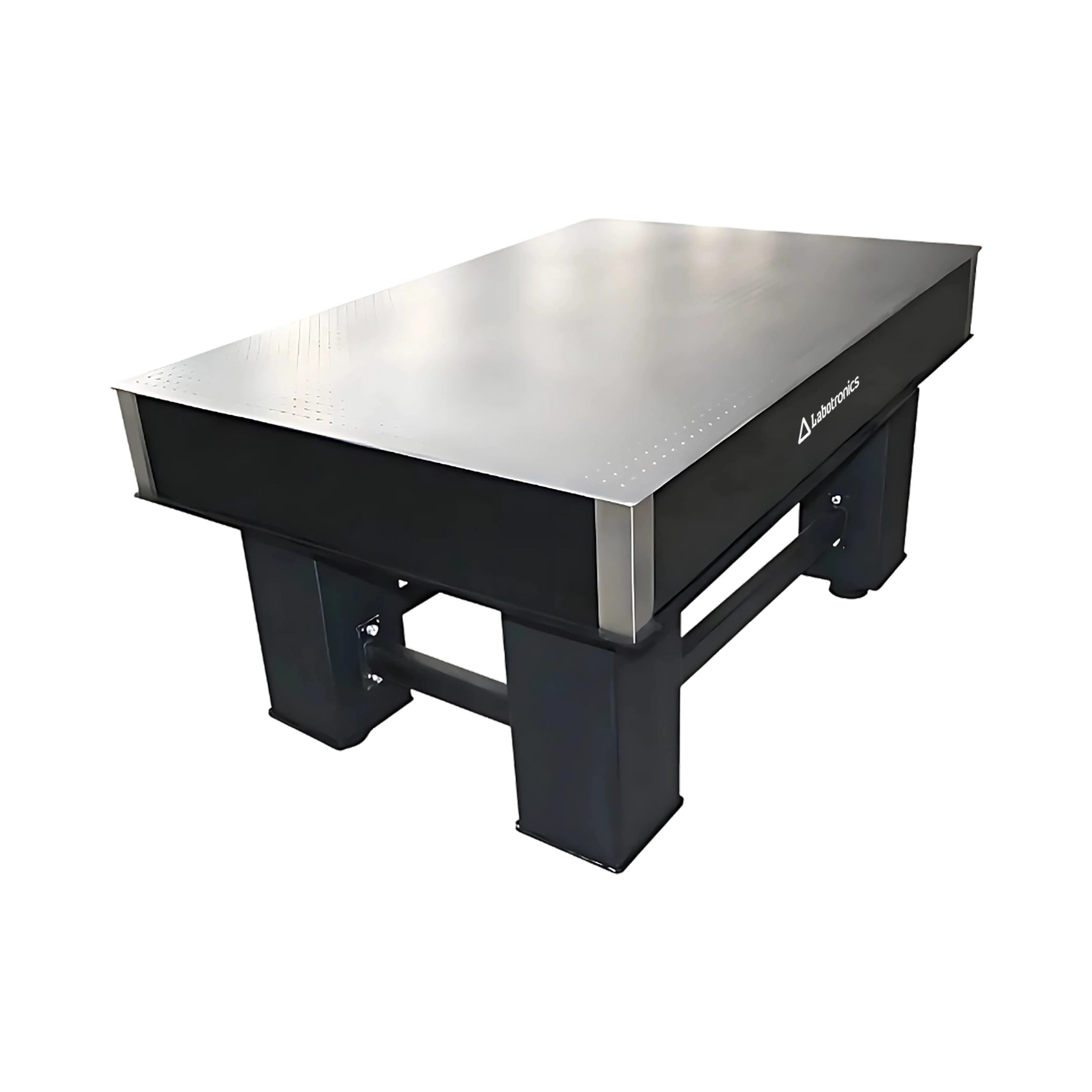

Vibration Isolation Table LB-11VIT

Name: Vibration Isolation Table LB-11VIT
Brand: Labotronics
SKU: LB-11VIT
Rating: 5 (568 reviews)

Vibration Isolation Table LB-11VIT supports a load capacity of 400 to 2500 kg, accommodating various heavy and delicate equipment. It employs a low natural frequency system of 3 to 6 Hz, effectively damping external vibrations. It features a plated steel honeycomb core for lightweight strength and high rigidity. Our vibration isolation table utilizes broadband damping technology, ensuring optimal stability and precision.

$ 4125

Download Catalog

Specifications

Load Capacity	400 to 2500 kg
Natural Frequency of System	3 to 6Hz
Optical Tops Construction	Honeycomb core sandwiched structure
Core	Plated steel honeycomb
Top Skin	5mm thickness ferromagnetic stainless-steel plate, brush finished
Side Walls	Carbon steel plate with damped wood composite, vinyl-covered finish
Bottom Skin	5.0 mm thickness carbon steel plate, epoxy painted finish
Surface Flatness	Less than 0.05 mm/m²
Surface Coarseness	0.8µm to 1.6µm
Swing	Less than 5µm
Mounting Holes	Metric: M6-1.0 holes on 25 mm or 50 mm grid
Damping	Broadband standard damping
Product dimension	2000 × 750 × 200 × 900mm
Package Dimension	1250 × 2450 × 500 mm
Net Weight	280 kg
Gross Weight	310 kg

Features

High-performance isolation
Customizable load range
Corrosion-resistant coating
Minimal vibration interference
Epoxy-painted finish

Standard Accessories

Leg Links

Support Bearing Rods

Legs

Locking Screws

Optional Accessories

Adjustable Wrench

Level Meter

Applications

Vibration Isolation Table LB-11VIT is used to provide stable, vibration-free surfaces for precision equipment in sensitive environments. It is ideal for microscopy, metrology, semiconductor processing, and optical experiments.
