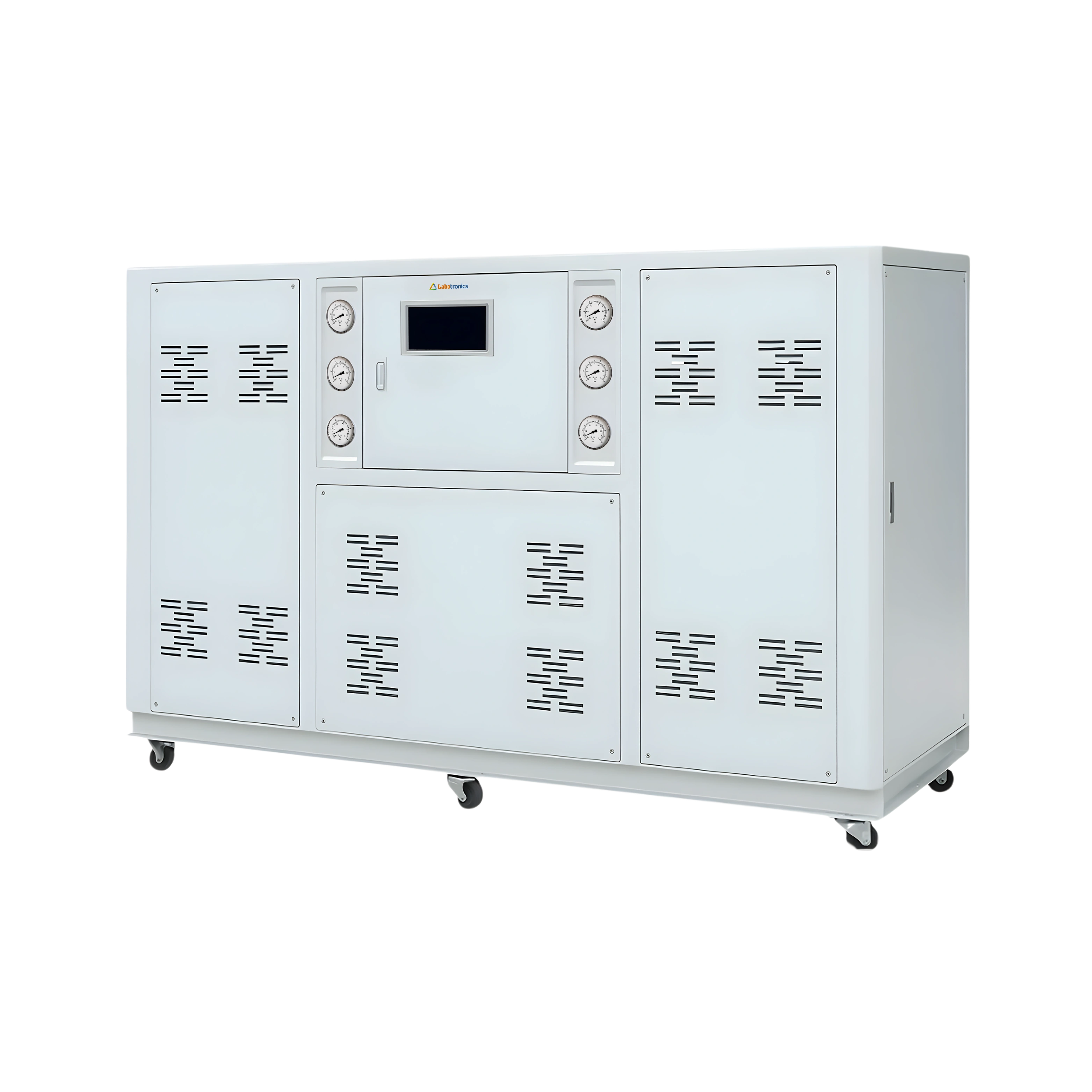

Water cooled chiller LB-83WCC is a micro-computer controlled chillers with a temperature range from 3 °C to 30 °C. It is equipped with a refrigerant type of R134A/R22/R407C/R410A/R404A. It has a refrigeration capacity from 8251 kcal/h to 170383 kcal/h. It is equipped with a hermetic scroll type compressor which prevents leakage.
Buy Now Download CatalogSpecifications
| Temperature range | 3 °C ~ RT |
| Total power | 5.25 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Compressor | Hermetic scroll type/piston |
| Power supply | 3N-380 V/415 V; 50 Hz/ 60 Hz |
| Circulating pump | 0.75 kW |
| Machine size (L × W × H) | 1080 × 550 × 1000 mm |
| Weight | 200 kgs |
Features
Applications
Industrial water chiller can be used in cooling processes in plastics industry, electroplating industry, chemical industry, pharmaceutical industry, food industry, etc.
What our customers say
Add a review
| Temperature range | 3 °C ~ RT |
| Total power | 20.95 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 17.2 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 26 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 34 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 41.50 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 6.75 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 10.5 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 50.5 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 12.5 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 9 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 4.5 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 3.375 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 2.575 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
Labotronics air-cooled chillers are robust and energy-efficient refrigeration systems used for cooling large industrial and commercial spaces. These systems work by extracting heat from the surroundings and transferring it into the ambient air, making them ideal for environments where water resources are limited or expensive. Our laboratory air-cooled chillers are equipped with powerful fans that dissipate heat, maintaining the desired temperature in processes such as HVAC systems, data centers, and manufacturing plants. They offer cost-effective operation, lower maintenance requirements, and a smaller footprint compared to water-cooled counterparts, making them a popular choice for facilities seeking efficient cooling solutions while ensuring sustainability and ease of installation.
| Temperature range | 3 °C ~ RT |
| Total power | 37.1 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 9.9 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 5.61 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 55.2 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Capacity | 8 L |
| Temperature Control Range | 5 °C to 40 °C |
| Temperature Control Method | HOT gas by-gas and PID combined |
| Temperature Stability | ± 0.3 °C |
