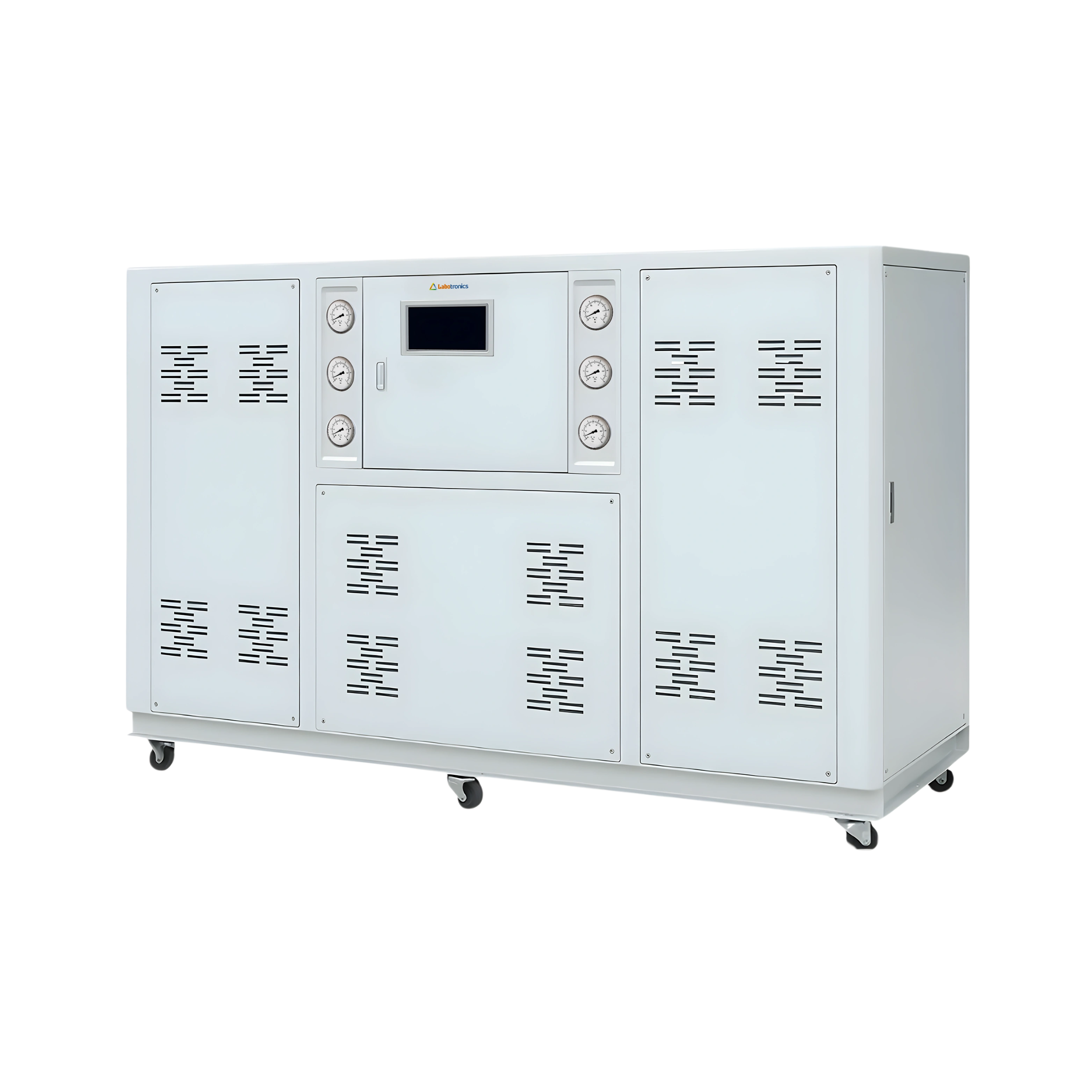

Water cooled chiller LB-88WCC is a micro-computer controlled chillers with a temperature range from 3 °C to 30 °C. It is equipped with a refrigerant type of R134A/R22/R407C/R410A/R404A. It has a refrigeration capacity from 8251 kcal/h to 170383 kcal/h. It is equipped with a hermetic scroll type compressor which prevents leakage.
Buy Now Download CatalogSpecifications
| Temperature range | 3 °C ~ RT |
| Total power | 17.2 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Compressor | Hermetic scroll type/piston |
| Power supply | 3N-380 V/415 V; 50 Hz/ 60 Hz |
| Circulating pump | 2.2 kW |
| Machine size (L × W × H) | 1750 × 760 × 1500 mm |
| Weight | 440 kgs |
Features
Applications
Industrial water chiller can be used in cooling processes in plastics industry, electroplating industry, chemical industry, pharmaceutical industry, food industry, etc.
| Temperature range | 3 °C ~ RT |
| Total power | 4.5 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 5.25 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 26 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 34 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 12.5 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 6.75 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 50.5 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 9 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 10.5 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 41.50 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 3.375 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 20.95 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
| Temperature range | 3 °C ~ RT |
| Total power | 2.575 kW |
| Water tank capacity | 20 L |
| Current | 8 Amps ~ 200 Amps |
