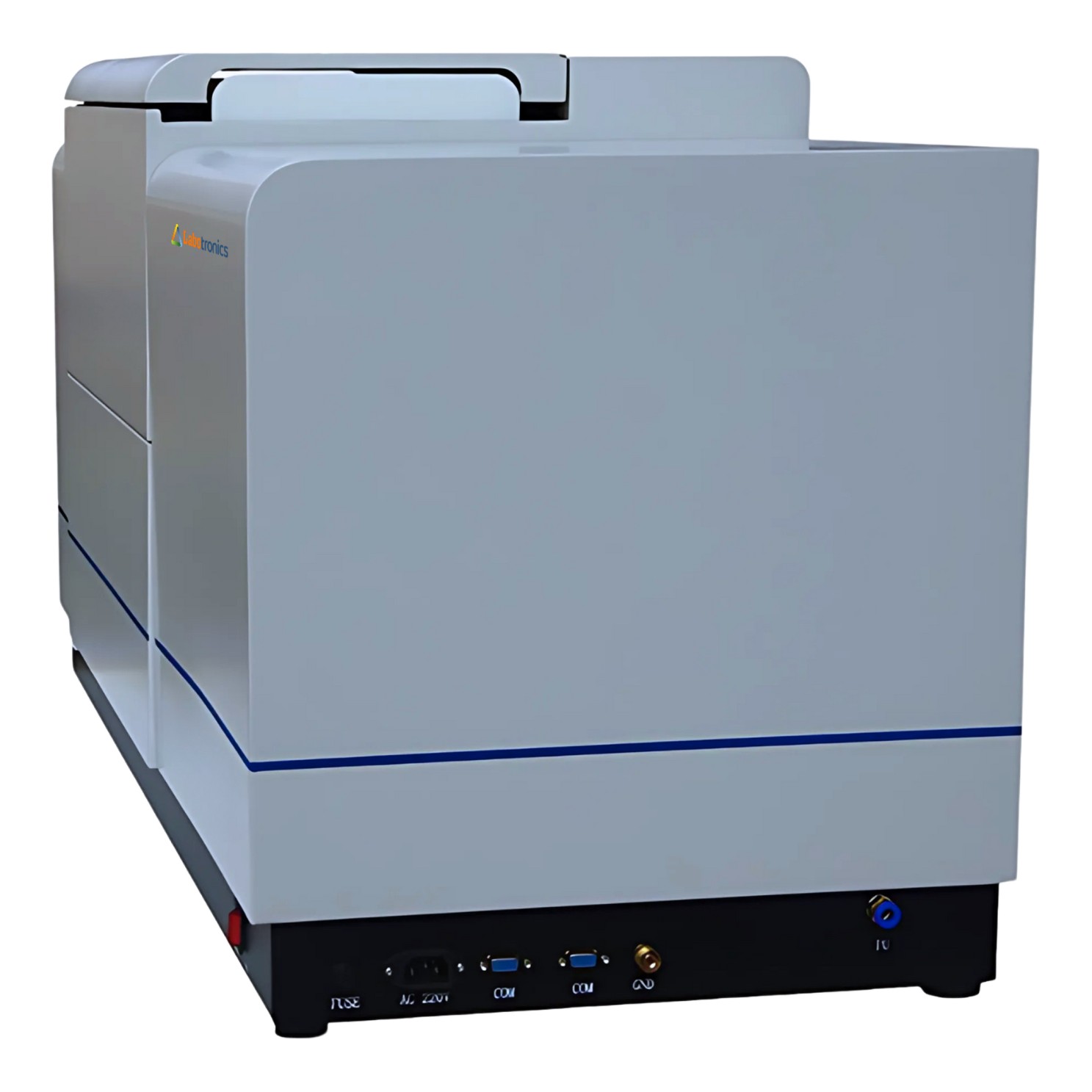

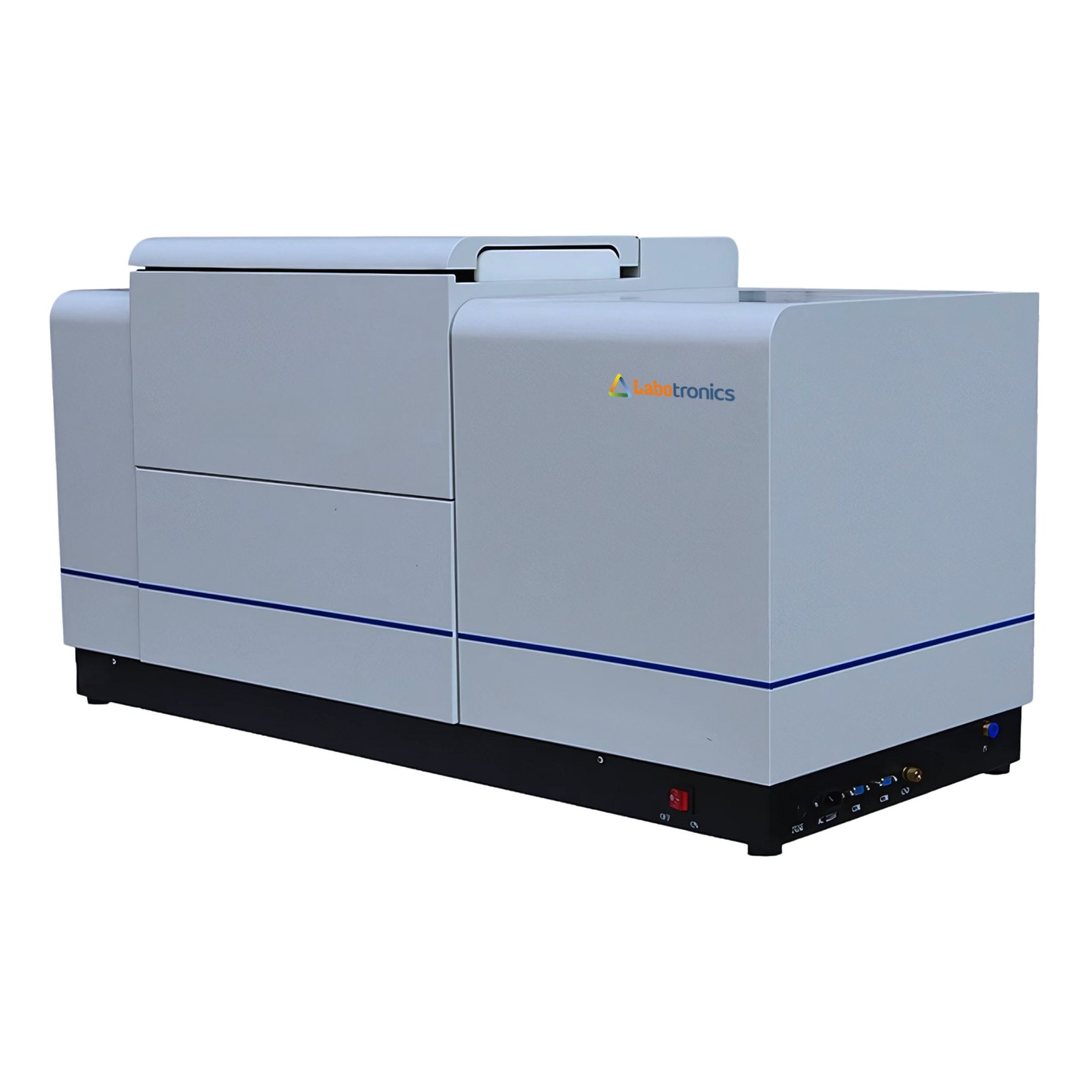

Wet And Dry Laser Particle Size Analyzer LB-10WDPA

Wet And Dry Laser Particle Size Analyzer LB-10WDPA

Name: Wet And Dry Laser Particle Size Analyzer LB-10WDPA
Brand: Labotronics
SKU: LB-10WDPA
Rating: 4.5 (572 reviews)

Wet and Dry Laser Particle Size Analyzer LB-10WDPA offers a broad measuring range of 0.01μm to 2000μm, delivering high-precision particle size analysis. It features a large 1000 mL sample tank and supports micro-sample analysis down to 10 mL. The system operates in fully automatic and manual modes for flexible sample analysis. Our analyzer uses advanced dual-laser optics with a patented Fourier transform for precise and wide-angle detection.

Get Quote Download Catalog

Specifications

Measuring Range	Wet: 0.1 to 2000 μm Dry: 0.1 to 2000 μm
Measurement Principle	Laser Diffraction (Mie & Fraunhofer Scattering)
Sample Volume	Tank: 1000 mL Micro-Sample: 10 mL
Accuracy Error	Wet < 1% Dry < 1% (CRM D50)
Repeatability Error	Wet < 1% Dry < 1% (CRM D50)
Test Speed	500 ms interval per test
Stirrer Speed	Up to 3000 RPM (Adjustable)
Operation Mode	Fully automatic / Manual
Feeding Pressure Range	0 to 6 Bar (Compressed Air) (Dry Mode)
Flow Rate	30L/min (Wet Circulation)
Light Source	High-performance semiconductor laser (λ=3) P ≥ 3.0MW Auxiliary semiconductor laser λ=635nm, P ≥ 2.0MW
Detector Array	Wet: 127 detectors Dry: 100 detectors Log-spaced, 0.015° to 145°
Optical Path	Converging light Fourier transform system
Optical Bench Alignment	Wet: < 2μm Dry: < 1μm
Focal Length	500 mm
Circulator Power	70 W
Wet Sample Dispersion System	Frequency: 40 KHz Power: 60 W Time: ± 15
Dimension (L × W × H)	1060 × 480 × 540 mm
Weight	58 kg

Features

Wet & dry modes
Adjustable stirrer speed
User-friendly software
Log-spaced detectors
Multiple analysis modes
ISO-compliant standards

Applications

Wet and Dry Laser Particle Size Analyzer LB-10WDPA is used for precise particle size measurement in both wet and dry samples. It is widely used in industries like pharmaceuticals, chemicals, mining, cement, and food processing for research and quality control.
