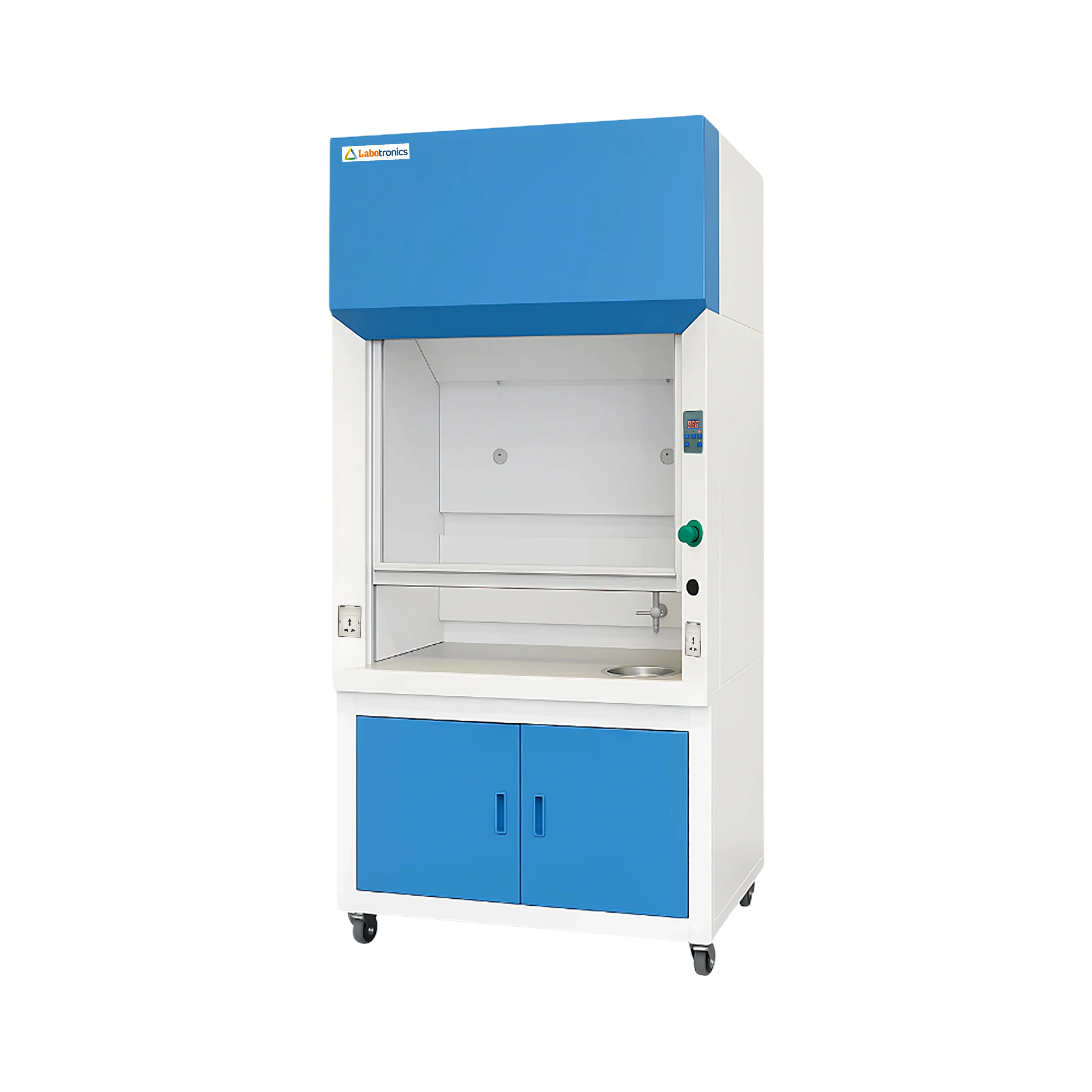

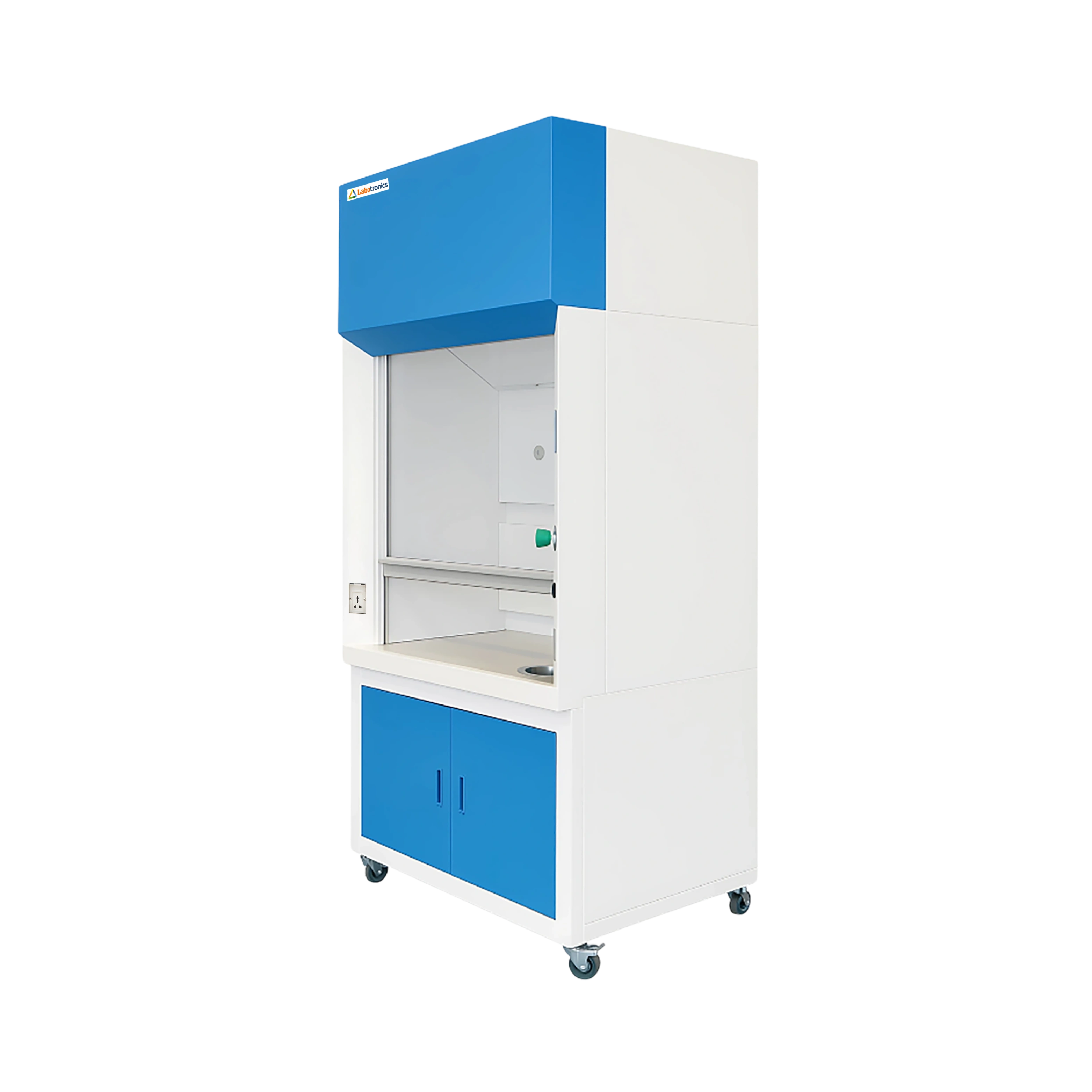

Ducted fume hood LB-20DFH is a floor mounted dual layered structured unit made of exterior cold-rolled steel and interior melamine board. Built-in axial flow blower ( PP ) controls air stream speed. LED digital screen displays air flow level. Standard PVC exhaust duct removes toxic fumes and provide excellent chemical resistance.
Buy Now Download CatalogSpecifications
| Internal dimensions | 790 × 600 × 870 mm |
| External dimensions | 1000 × 800 × 2515 mm |
| Work surface height | 900 mm |
| Maximum opening | 750 mm |
| Air velocity | 0.3 m/sec ~ 0.8 m/sec |
| System exhaust volume | 570 m3/h |
| Front window | 5 mm toughened glass |
| LED lamp | 8 W × 1 |
| Exhaust duct length | 4 meters |
| Exhaust duct diameter | 300 mm |
| Pipe strap | 2 |
| Noise | ≤ 60 dB |
| Power consumption | 400 W |
| Power supply ( AC ) | 220 V ±10 %, 50 / 60 Hz 110 V ± 10 %, 60 Hz |
| Main body dimensions | 1140 × 940 × 1850 mm |
| Base cabinet dimensions | 1140 × 940 × 1050 mm |
| Weights | 250 kgs |
Features
Applications
Used to completely remove chemical fumes ( potential toxics ) from laboratories and protects the lab environments. Used during general chemical applications.
| Internal dimensions | 980 × 570 × 700 mm |
| External dimensions | 1240 × 800 × 2200 mm |
| Work surface height | 850 mm |
| Maximum opening | 740 mm |
| Internal dimensions | 820 × 670 × 730 mm |
| External dimensions | 1040 × 800 × 2200 mm |
| Work surface height | 850 mm |
| Maximum opening | 520 mm |
| Internal dimensions | 1620 × 670 × 730 mm |
| External dimensions | 1840 × 800 × 2200 mm |
| Work surface height | 850 mm |
| Maximum opening | 520 mm |
| Internal dimensions | 1620 × 570 × 872 mm |
| External dimensions | 1840 × 800 × 2200 mm |
| Work surface height | 850 mm |
| Maximum opening | 740 mm |
| Exhaust Airflow Rate | 0.5 m/sec |
| Fan Type | Top low-speed exhaust fan |
| Shell Material | 1.0 mm cold-rolled steel |
| Liner Material | 5 mm PP anti-corrosion board |
| Internal dimensions | 1320 × 670 × 730 mm |
| External dimensions | 1540 × 800 × 2200 mm |
| Work surface height | 850 mm |
| Maximum opening | 520 mm |
| Internal dimensions | 990 × 600 × 870 mm |
| External dimensions | 1200 × 800 × 2515 mm |
| Work surface height | 900 mm |
| Maximum opening | 750 mm |
| Internal dimensions | 780 × 520 × 700 mm |
| External dimensions | 1040 × 750 × 2200 mm |
| Work surface height | 850 mm |
| Maximum opening | 740 mm |
| Exhaust Airflow Rate | 0.5 m/sec |
| Fan Type | Top low-speed exhaust fan |
| Shell Material | 1.0 mm cold-rolled steel |
| Liner Material | 5 mm PP anti-corrosion board |
| Inner Dimension | 1250 × 630 × 1150 |
| Outer Dimension | 1500 × 800 × 2350 |
| Airflow Rate | 600 to 1200 m³/h |
| Airflow Velocity | 0.3 to 0.8 m/s |
| Internal dimensions | 1320 × 570 × 872 mm |
| External dimensions | 1540 × 800 × 2200 mm |
| Work surface height | 850 mm |
| Maximum opening | 740 mm |
| Internal dimensions | 1590 × 600 × 870 mm |
| External dimensions | 1800 × 800 × 2515 mm |
| Work surface height | 900 mm |
| Maximum opening | 750 mm |
| Internal dimensions | 1020 × 670 × 730 mm |
| External dimensions | 1240 × 800 × 2200 mm |
| Work surface height | 850 mm |
| Maximum opening | 520 mm |
| Maximum Opening | 780 mm |
| Airflow velocity | 0.3~0.5 m/s |
| Illumination | >400LUX, LED lighting |
| Diameter of exhaust outlet | 250 mm |
