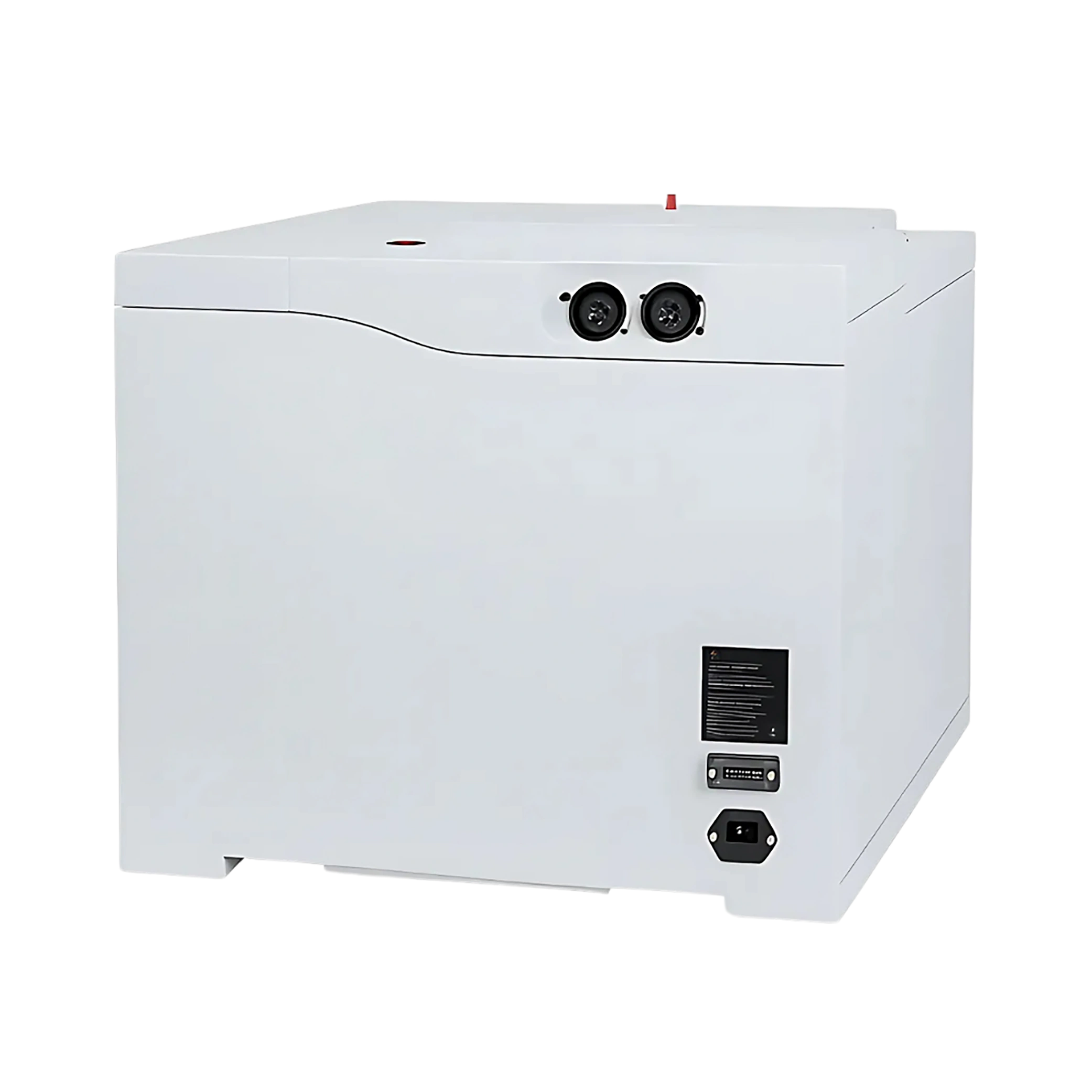

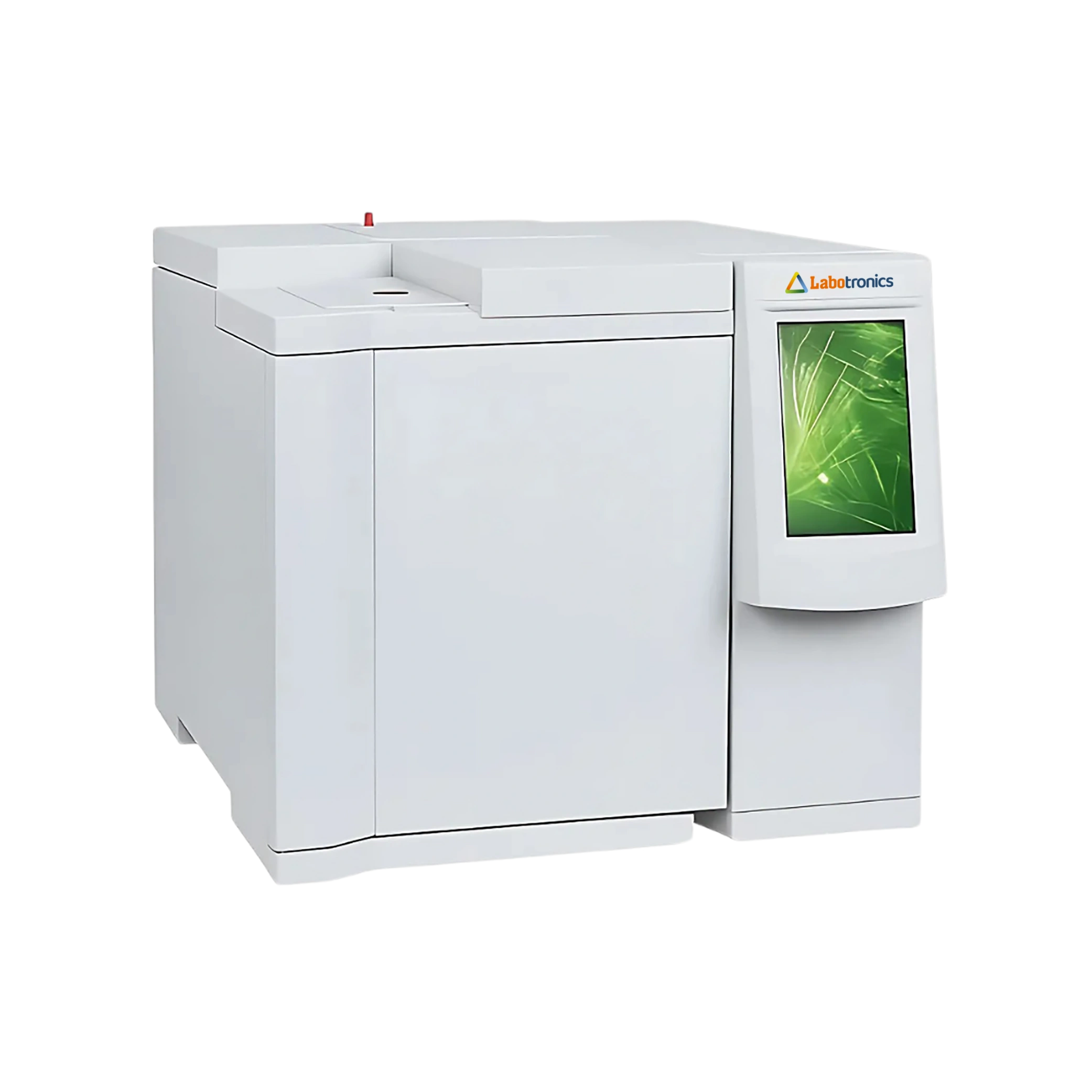

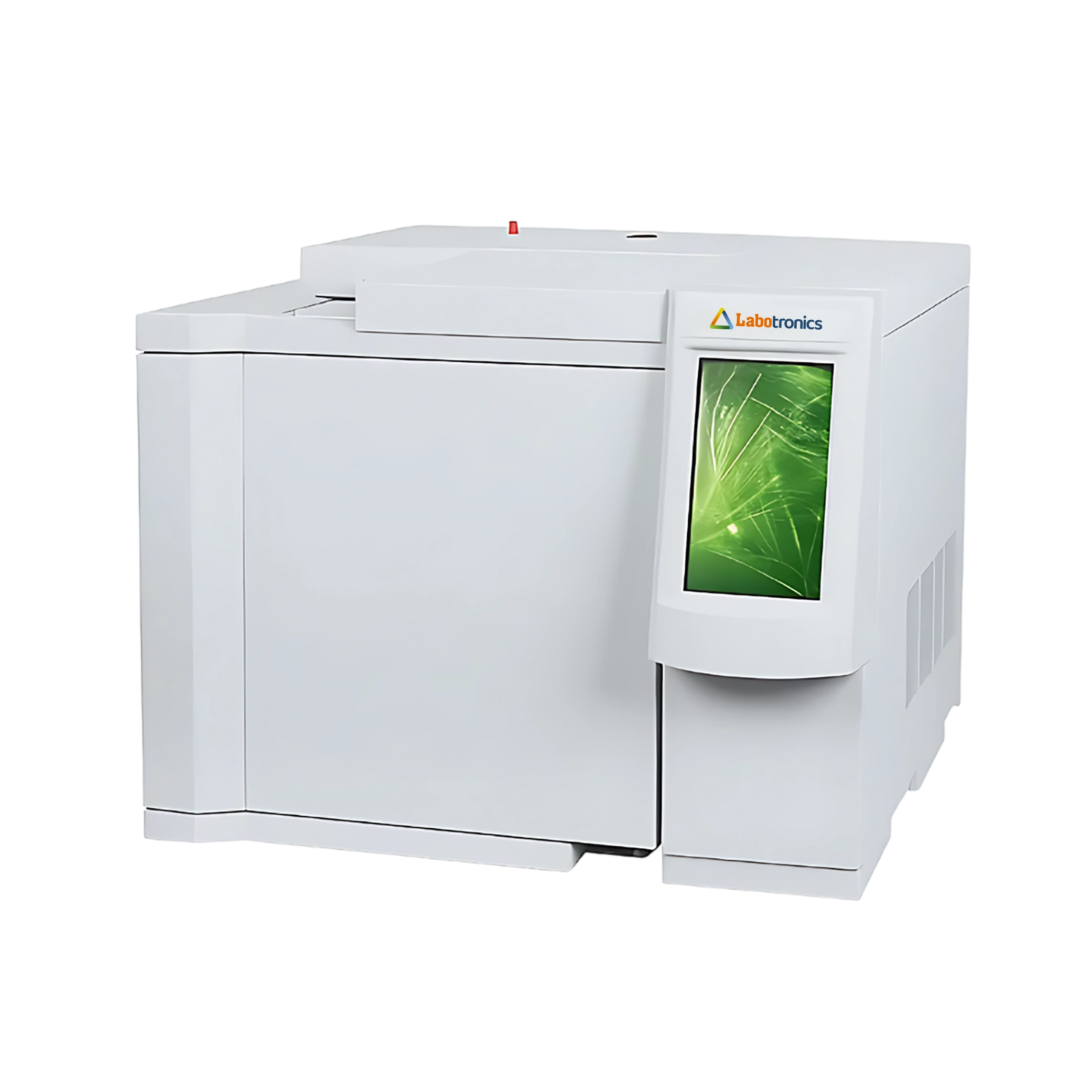

Gas Chromatography LB-50GC

Gas Chromatography LB-50GC

Gas Chromatography LB-50GC is equipped with a 9 phase 10 platform temperature programme with a temperature range of 5 °C to 400 °C. Features an APC controlled Flame Ionization Detector (FID) with high sensitivity for a range of analyses. Built-in provision for the synchronous external trigger function and external trigger starts the equipment and workstation software at the same time.

Buy Now Download Catalog

Specifications

Sample injector temperature range RT +7 °C ~ 420 °C
Power supply AC 220 V ± 10 % ; 50 Hz / 60 Hz
Dimensions ( W x D x H ) 1020 x 660 x 740 mm
Gross weight 82 kgs

Features

  • LCD display indicating temperature , gas flow and heating curve
  • Synchronous external trigger function and external trigger starting equipment and workstation software at the same time
  • Multi-core and 32-bit embedded hardware system
  • Eight pieces external extension interfaces connectable with control valve
  • Self-test and automatic fault recognition function

Standard Accessories

Accessory No Accessory
1)        TCD detector
2)        FID detector
3)        Capillary Injection System
4) Chromatography workstation software

Optional Accessories

Accessory No Accessory
1.        Chromatographic Column
2.        Gas purifier

Applications

Used in the analysis of oil extraction and refining industry, petrochemical analysis, gas industry, quality control of medicines, food and chemicals, in quality supervision of medicines, foods and chemicals and scientific research institutes

Detector Specifications

Hydrogen Flame Ionization Detector ( FID ) Logarithmic amplifier
High voltage switch control
Baseline signal display
Ignition coil control
Detection limit : ≤ 3 x 10-12 g/s ( Sample : n-hexadecane )
Dynamic range : 107
Thermal Conductivity Detector ( TCD ) ( Optional ) Bridge voltage switch control
Bridge current setting : 0 to 220 mA
Sensitivity : 6000 mv.ml/mg
Dynamic range : 105

Oven Specifications

Temperature range RT +5 °C ~ 400 °C
Temperature accuracy ± 0.02 °C
Temperature programme 9 phase / 10 platform
Temperature heating rate 60 °C / min

Request Quotation

Gas Chromatography

Power supply AC 110 V / 220 V ± 10 % ; 50 Hz / 60 Hz
Dimensions ( W x D x H ) 800 x 570 x 650 mm
Gross weight 75 kgs

Labotronics liquid chromatography is a widely used analytical technique in which a liquid mobile phase carries a sample through a chromatographic column filled with a stationary phase, facilitating the separation and analysis of compounds in a mixture. It is employed across diverse fields, including chemistry, pharmaceuticals, environmental science, and biology, to separate, identify, and quantify substances based on their chemical properties. Our analytical liquid chromatography comes in various forms, such as high-performance liquid chromatography (HPLC), ultra-high-performance liquid chromatography (UHPLC), and liquid chromatography-mass spectrometry (LC-MS), each offering unique advantages for specific applications. With its versatility, high sensitivity, and ability to handle a broad range of sample types, LC plays a pivotal role in quality control, research, and diagnostics, making it an indispensable tool for scientists and researchers in numerous laboratory settings.

Pump System Gradient
Pump Flow Rate 0.001 to 9.999 mL/min
Pump Flow Rate Accuracy ≤ ± 0.5% (1 mL/min, water, room temperature)
Pump Flow Rate Precision RSD ≤ 0.08% (1 mL/min, water, room temperature)
Pump System Isocratic
Pump Flow Rate 0.001 to 9.999 mL/min
Pump Flow Rate Accuracy ≤ ± 0.5% (1 mL/min, water, room temperature)
Pump Flow Rate Precision RSD ≤ 0.08% (1 mL/min, water, room temperature)

Laboratory ion chromatography is a versatile analytical technique used for the precise separation and quantification of ions in controlled laboratory settings. It involves a sample's injection into a chromatographic system, where ions are separated within a column based on their affinity for a stationary phase. Our ion chromatography is particularly valuable for analyzing inorganic ions, both anions and cations, and it finds extensive applications in environmental monitoring, water quality assessment, pharmaceutical research, and food and beverage analysis. Offering high sensitivity and selectivity, IC empowers scientists to accurately determine the composition and concentration of ions in diverse samples, playing a crucial role in quality control, scientific research, and understanding ionic content in various materials and solutions within the laboratory.

Dimensions (L x W x H) 325 x 400 x 500 mm
Weight 21 kgs
Whole plastic pipeline Made of PEEK material
Six way valve PEEK material FLOM series of six way valve, pressure 5000 psi, a signal automatic collecting and flow function
Dimensions (L x W x H) 350 x 470 x 510 mm
Weight 26 kgs
Whole plastic pipeline Made of PEEK material
Six way valve Rheodyne electromagnetic six-way valve, compression resistance of 7000 psi, collect signals automatically.
Dimensions (L x W x H) 350 x 470 x 650 mm
Weight 34 kgs
Whole plastic pipeline Made of PEEK material
Six way valve Rheodyne electromagnetic six-way valve, compression resistance of 7000 psi, collect signals automatically
Dimensions (L x W x H) 500 x 570 x 510 mm
Weight 40 kgs
Whole plastic pipeline Made of PEEK material
Six way valve Rheodyne electromagnetic six-way valve, compression resistance of 7000 psi, collect signals automatically.

Our Solid Phase Extractors are essential for efficient sample preparation, enabling laboratories to isolate and purify target compounds from complex matrices. These units are equipped with advanced materials that minimize cross-contamination and optimize analyte purity. They also support eco-friendly practices by reducing solvent consumption and waste generation. The user-friendly interface simplifies operation, minimizing the chances of errors during sample preparation. Our SPE systems are designed for versatile applications across pharmaceuticals, environmental testing, food safety, and clinical diagnostics.

Capacity 24 Holes
Workplace dimensions 240 × 70 × 138 mm
Pressure Display Pressure Gauge
Vacuum Degree 0.098 MPa

Labotronics Thin-Layer Chromatography systems facilitate effective compound separation ensuring high reproducibility for various experiments. These TLC systems are designed to be compatible with a wide range of solvents, allowing for versatile applications in laboratory settings. They offer customizable adsorbent layer thickness, improving separation efficiency and resolution for diverse analytical needs. Our TLC systems are designed for both small-scale studies and large-scale industrial applications, offering essential support for researchers and quality control professionals.

Camera 20 million pixels
Pixel Density 16-bit (65536 grayscale)
Focus Method Autofocus
Exposure Timer Range 0 to 2000 ms
