Horizontal Autoclave LB-14HCA has a capacity of 500 L with a maximum working temperature of 134 °C, ensuring versatile and efficient sterilization. It operates at a working pressure of 0.22 MPa, with a maximum of 0.23 MPa, ensuring safe and consistent sterilization. It comes with fully automatic control and an integrated drying function for efficient, hands-free sterilization. Our autoclave is equipped with over-temperature and over-pressure protection, for enhanced safety.
$ 8802.5
Download CatalogSpecifications
| Capacity | 500 L |
| Temperature Range | 40 to 134 °C |
| Maximum Working Temperature | 134 °C |
| Temperature Uniformity | ≤ ± 2 °C |
| Working Pressure | 0.22 MPa |
| Maximum Working Pressure | 0.23 MPa |
| Timer Range | 0 to 60 min |
| Drying Time Range | 0 to 60 min |
| Power Consumption | 18 kW |
| Power Supply | AC 380 V; 50 Hz |
| Interior Dimension | Φ 700 × 1300 mm |
| Exterior Dimension | 1800 × 900 × 1820 mm |
| Packaging Dimension | 1850 × 1050 × 2100 mm |
| Net Weight | 470 kg |
| Gross Weight | 580 kg |
Features
Gravity displacement sterilization
Overcurrent protection
Audible pressure alarm
Automatic pressure relief
Low-water level protection
Stainless steel chamber
High temperature uniformity
Applications
Horizontal Autoclave LB-14HCA is suitable for sterilizing surgical instruments, test cloth items, and laboratory utensils. It is widely used in hospitals, operating rooms, pharmaceutical factories, and research laboratories.
Frequently asked questions For Horizontal Autoclave
1. What makes the Labotronics Horizontal Autoclave LB-14HCA energy-efficient despite its large size?
Labotronics Horizontal Autoclave LB-14HCA features optimized heating and cold air discharge systems that reduce unnecessary energy consumption while maintaining reliable sterilization.
2. What user-friendly features are built into the Labotronics Horizontal Autoclave LB-14HCA?
Labotronics Horizontal Autoclave LB-14HCA includes an audible pressure alarm, automatic cycle control, and intuitive interface functions that simplify operation for technicians and healthcare professionals.
3. Is the Labotronics Horizontal Autoclave LB-14HCA suitable for continuous daily operation?
Yes, Labotronics LB-14HCA is built for heavy-duty use with a high-capacity design, reliable safety systems, and consistent performance, making it suitable for facilities requiring multiple sterilization cycles daily.

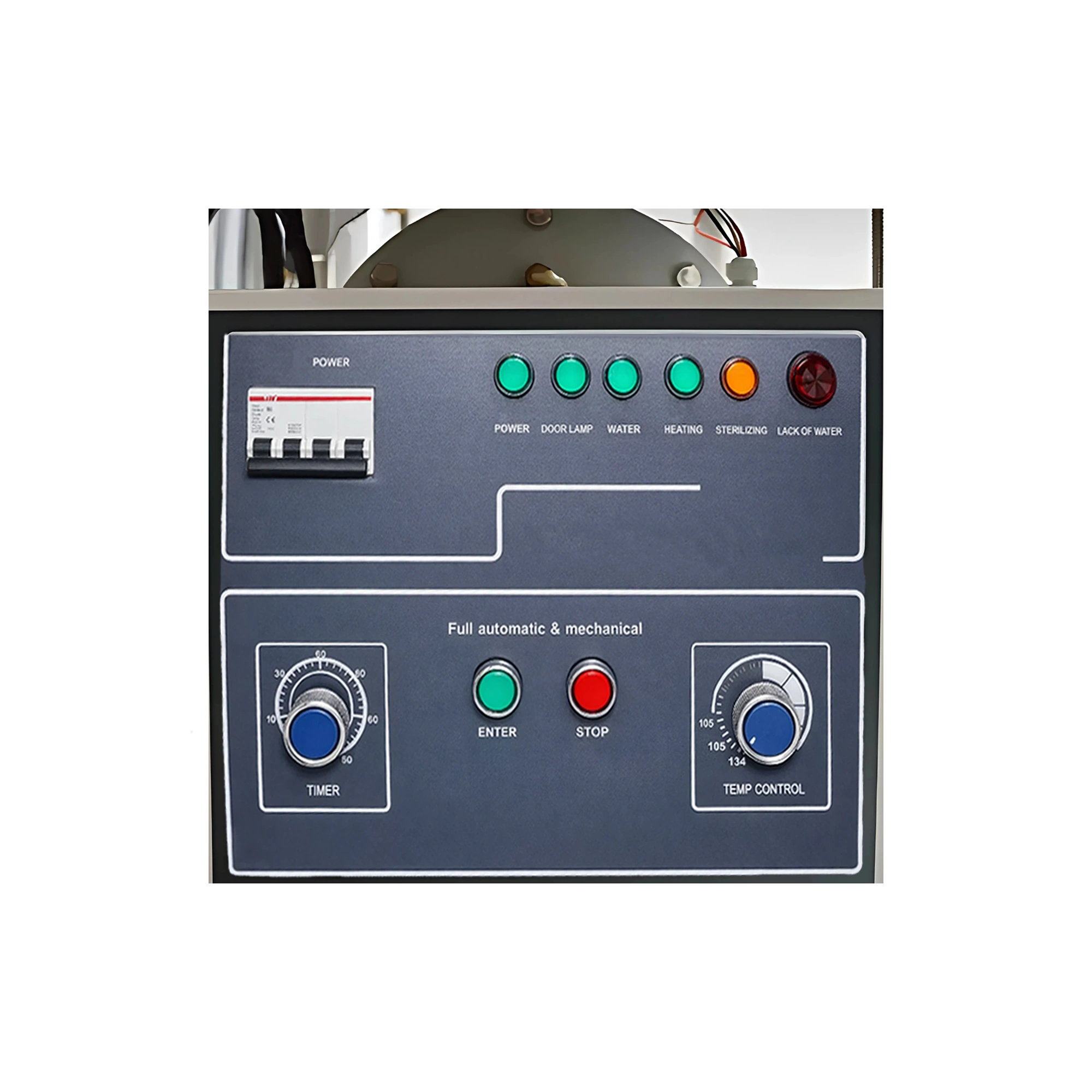

4. What role does the digital control panel play in Labotronics Horizontal Autoclaves?
Labotronics Horizontal Autoclaves integrate digital displays that provide real-time monitoring of temperature, pressure, and cycle status, ensuring smooth and user-friendly operation.
5. How do Labotronics Horizontal Autoclaves maintain temperature consistency across large chambers?
Labotronics Horizontal Autoclaves are designed with advanced heating and circulation systems that ensure uniform temperature distribution, preventing hot or cold spots inside the chamber.
6. Do Labotronics Horizontal Autoclaves provide flexibility in sterilization cycles?
Yes, Labotronics Horizontal Autoclaves offer adjustable temperature ranges and cycle settings, allowing users to sterilize different types of materials efficiently in one system.
7. How do Labotronics Horizontal Autoclaves handle cold air removal during sterilization?
Labotronics Horizontal Autoclaves are designed with efficient air displacement and exhaust systems, ensuring complete removal of cold air to achieve reliable sterilization conditions.
8. How do Labotronics Horizontal Autoclaves handle water shortages during operation?
Labotronics Horizontal Autoclaves are equipped with automatic low-water level protection systems, preventing cycle interruptions and protecting the heating elements.
