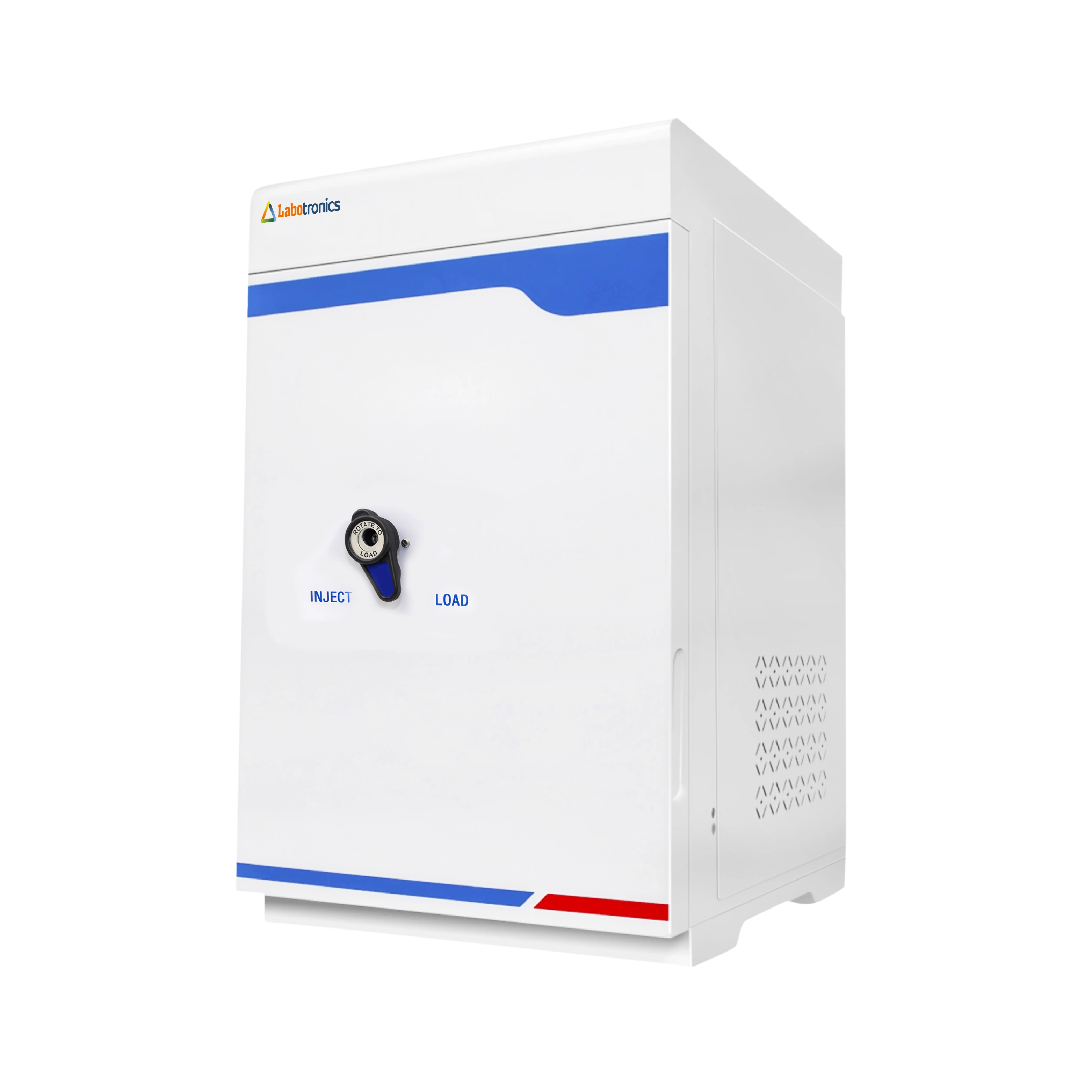

Ion Chromatography LB-10ICG

Name: Ion Chromatography LB-10ICG
Brand: Labotronics
SKU: LB-10ICG
Rating: 4.6 (594 reviews)

Ion Chromatography LB-10ICG unit is a chromatography system used for high precision cation and anion analysis. It is incorporated with PEEK (Polyether ether ketone) flow path system, ensuring chemical resistant at high temperature. Features pentode or bipolar circuit conductivity for identification and measurement of analytes. Built in single channel and double channel detection mode for efficient separation.

$ 26162.5

Download Catalog

Specifications

Dimensions (L x W x H)	325 x 400 x 500 mm
Weight	21 kgs
Whole plastic pipeline	Made of PEEK material
Six way valve	PEEK material FLOM series of six way valve, pressure 5000 psi, a signal automatic collecting and flow function

Features

Pentode or bipolar circuit conductivity for analytes detection
Single or double channel detection mode
Chemical resistant PEEK flow path system
High precision cation and anion analysis
Digital temperature controlled detection system
Overpressure and leak protection alarm

Standard Accessories

Sr No	Accessory name	Quantity
1	Ion chromatograph host	1
2	High pressure advection pump	1
3	Conductivity detector	1
4	Manual 6-way valve	1
5	Anion column	1
6	Anion Guard column	1
7	Suppressor	1
8	Chromatography workstation	1
9	Column thermostat system	1
10	Spare parts kit	1
11	Vacuum degassing pump	1
12	Sand core filtration device	1
13	Pretreatment column	20
14	0.22 µm syringe filter	200

Optional Accessories

Sr No	Accessory name	Quantity
1	Conductivity Detector (Cation)	1
2	Suppressors (Cation)	1
3	Cation column	1
4	Cation guard column	1
5	External Eluent Generator (Anion)	1
6	UV-Detector	1
7	Low pressure degasser	1
8	Amperometric detector	1
9	Autosampler (SHA-1,40 positions)	1
10	Autosampler (SHA-12,54 positions)	1
11	Autosampler (SHA-1,108 positions)	1

Applications

Used in chemistry, clinical laboratory and research center, food industry, pharmaceutical, petrochemical, metallurgy, healthcare for high capacity cation and anion analysis.

Ion Chromatography Pump

Type	High pressure double plunger tandem advection pump
High pressure pump maximum pressure	42 MPa
Flow range	0.001 mL/min ~ 9.999 mL/min
Flow accuracy	RSD < 0.1 %
Flow repeatability	RSD ≤ 0.2 %

Conductivity Detector

Type	Five electrodes conductance detector
Cell volume	≤ 0.8 µL
Resolution	≤ 0.0020 nS/cm
Measure range	0 µS/cm ~ 35000 µS/cm
Output Voltage	-6000 mV ~ 6000 mV
Baseline noise	≤ 0.05 % FS
Baseline drift	≤ 3 % FS/30 min
Range of temperature	Room temperature +5 °C to 60 °C
Precision of temperature control	± 0.01 °C
Temperature compensation	1.7 %/°C
Maximum operating pressure	10 MPa

Analysis Ability

Anion analysis	F^-,Cl^-,Br^-,I^-,NO₂^-,PO₄^3-,NO^3-,SO₄^2- and other anions
Cation analysis	Li⁺,Na⁺,NH₄⁺,K⁺,Mg²⁺,Ca²⁺,Sr²⁺,Ba²⁺ and other cations
Linear range	≥ 103
Analysis of reproducibility	≤ 1.5 % (measured by the Cl^-, Na⁺)
Minimum detectable concentration	Cl^-≤ 0.0005 µg/ml, BrO₃^-≤ 0.001 µg/ml,Na⁺ ≤ 0.004 µg/ml
