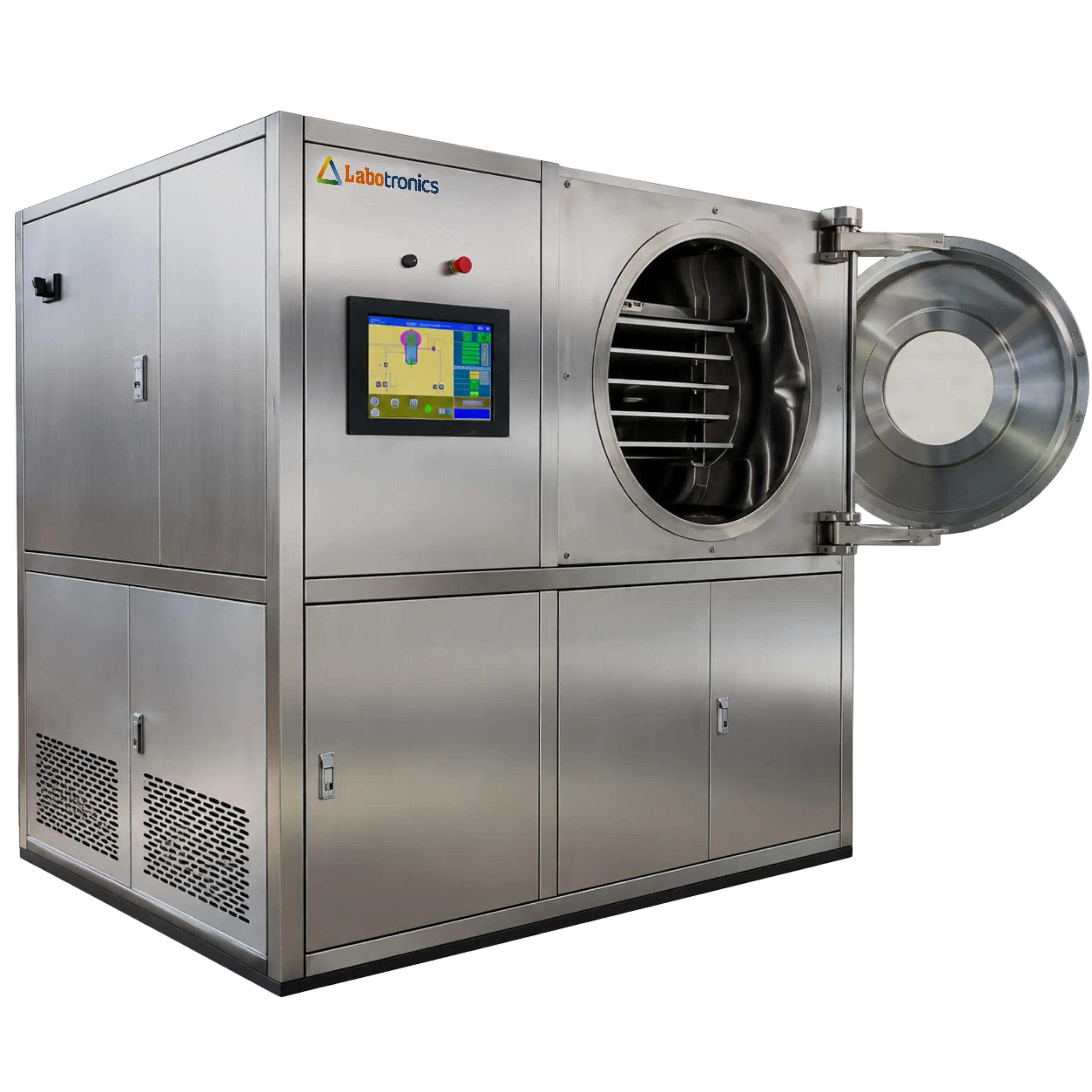

Vacuum Freeze Dryer LB-10VFD features a freeze-drying area of 1.5 m2 and can handle a loading capacity of 20 kg. It has a built-in vapor trap with a continuous de-icing system. Our vacuum freeze dryer uses double-side radiation for heating, with electric heaters ensuring even and efficient drying. The drying chamber is made of durable, corrosion-resistant SUS304 stainless steel, ensuring it is robust, hygienic, and easy to clean. It has a secure mechanical door closing mechanism that prevents leaks and contamination during freeze-drying, ideal for industrial and laboratory settings.
$ 81400
Download CatalogSpecifications
| Heating Area | 1.5 m² |
| Loading Capacity | 20 kg/batch |
| Maximum Water Trapping Capacity | 15 kg/batch |
| Heating Method | Double-side radiation |
| Heating Media | Electric heaters |
| Heating Plate Temperature Range | Room temperature to +120°C |
| Operating Mode | Automatic control after pre-setting |
| Drying Chamber Material | SUS304 stainless steel |
| Number of Heating Plates | 5 pcs |
| Door Closing Mechanism | Mechanical |
| Time to Reach Maximum Vacuum | 15 min |
| Maximum Vacuum | 20 Pa |
| Maximum Shelf Temperature | 120°C |
| Condensation Temperature | -40 to -45°C |
| Current Load | 15 kW |
| Heating Capacity | 600 W |
| Cooling Capacity | 3.6 kW |
| Tray Material | Anodized aluminum |
| De-icing Method | Electric and natural |
| De-icing Time | 20 min to 1 h |
| Drawer Loading Volume | 45 L |
| Number of Trays | 4 trays/batch |
| Tray Size | 568 × 687 × 35 mm |
| Cold Trap Material | Stainless steel 304 with copper tubes |
| Nominal Water Sublimation Capacity | >18 kg/batch |
| Nominal Working Pressure | >30 Pa |
| Refrigerant | R404A |
| Dimensions (W × D × H) | 1915 × 1140 × 2020 mm |
| Gross Weight | 1800 kg |
Features
Standard Accessories
Drying Chamber × 1 pcs Heating Plate Module × 1 set Vapor Condenser Module × 1 pcs Freon Refrigeration Compressor × 1 pcs Solenoid Valve and Expansion Valve × 1 pcs Other Valves and Pipes × 1 set Vacuum Pump × 1 pcs Pressure Transducer × 1 pcs Other Valves and Pipes × 1 set Control board with Components × 1 pcs Industrial Computer (HMI) × 1 pcs Weight Sensor × 1 pcs Control Software in the Computer for the operators is in English version × 1 pcs Temperature Sensor × 6 pcs Aluminum Trays × 8 pcs
Applications
A vacuum freeze dryer is ideal for preserving the nutritional value, flavor, and texture of foods and chemicals over extended periods, avoiding degradation and the need for refrigeration.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Temperature | -55°C |
| Max. Ice Capacity | 4 kg |
| Chamber Volume | 6.5 L |
| Performance | 4 kg/24 h |
| Display | 7-inch Touch Screen |
| Freeze Drying Area | 0.12m3 |
| Cold Trap Temperature | ≤ -60°C |
| Number of Trays | 4 pcs |
| Number of Flasks | 8 flasks |
| Tray Spacing | 70 mm |
