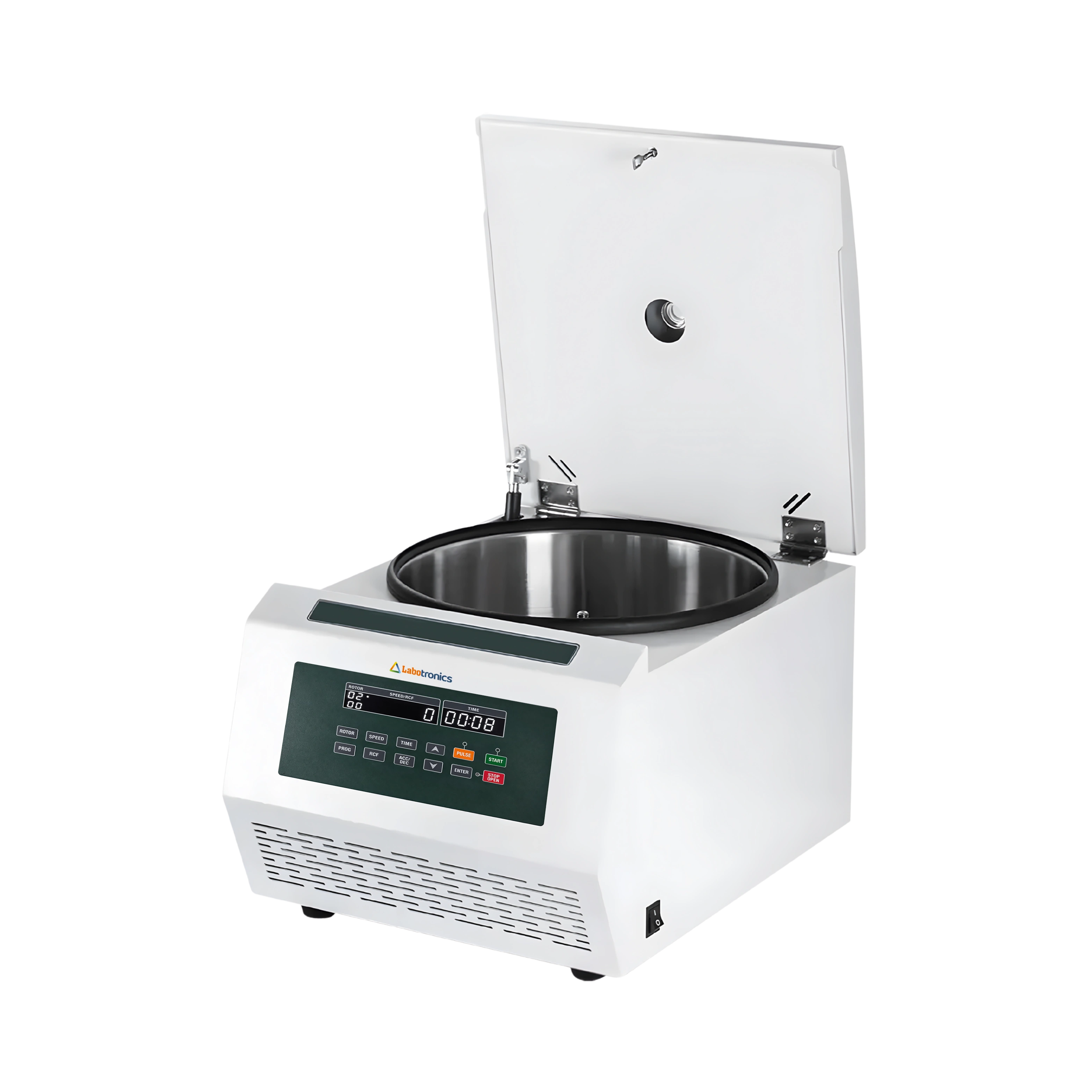

Low speed centrifuge LB-14LSC

Low speed centrifuge LB-14LSC

Low speed centrifuge LB-14LSC is a microcomputer controlled unit with 4000 rpm which is driven by brushless DC stepless speed regulation motor. Features a special key for centrifugal force through which the centrifugal force can be set or observed anytime during the process.

Request Quote Download Catalog

Specifications

Type Vertical
Max speed 4000 rpm
Max RCF 3309 x g
Rotor capacity 4 x 750 ml
Temperature raise ≤ 8 °C
Speed accuracy ± 10 rpm
Noise ≤ 56 dB
Time range 1 s ̴ 99 min / continuation/ short term centrifugal
Power supply AC 220 V 50 Hz
Power 600 VA
Dimensions 580 x 735 x 535 mm
Weight 110 kgs

Features

  • Microcomputer controlled system
  • Rotor is hot press formed of nylon composite material which can be matched with many conventional test tubes
  • Driven by brushless DC stepless speed regulating motor
  • Automatic stop on opening of the door to ensure operational safety
  • AC frequency conversion motor drive
  • Offers nine ascending and descending rate selection modes
  • Offers ten different kinds of custom work mode selection
  • Speed/ centrifugal force can be set and double synchronous display screen
  • Door with double lock rod design, magnetic locks and electric door
  • Up to 30 grams stress tolerance with no special load balancing

Applications

Used for a wide range of biomedical analysis, immunoenzyme analysis, microplate processing and cell culture applications

Rotor Selections

Sr No Model Max speed Max RCF Rotor capacity
1 Swing-out rotor 4000 3309 4 x 750 (square hanging cup)
Adapter 01 24 x 50 ml
Adapter 02 52 x 15 ml (bottom tip with cover)
Adapter 03 116 x vacuum blood tube
Adapter 04 8 x 100 ml (bottom tip with cover)
Adapter 05 116 holes cap remover
