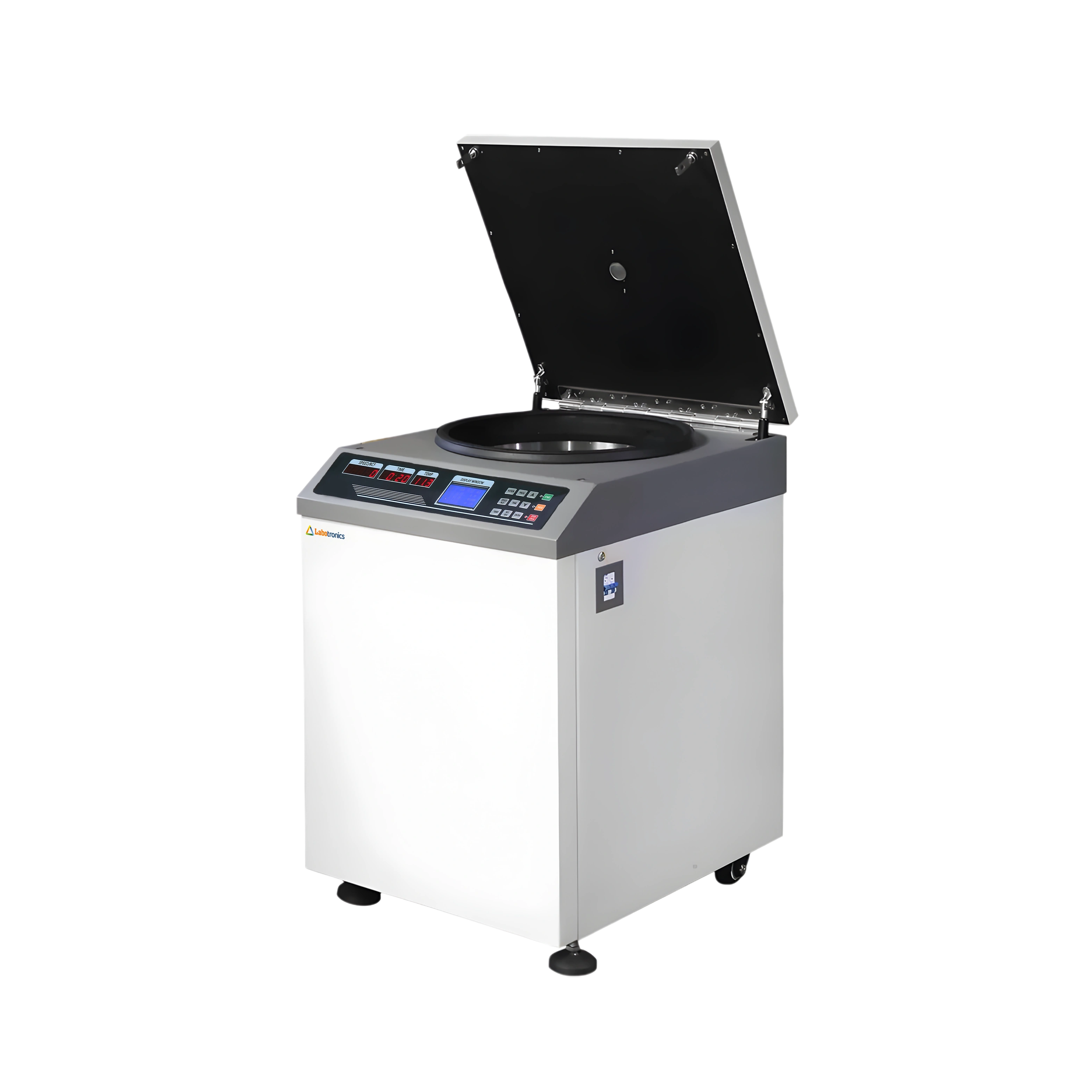

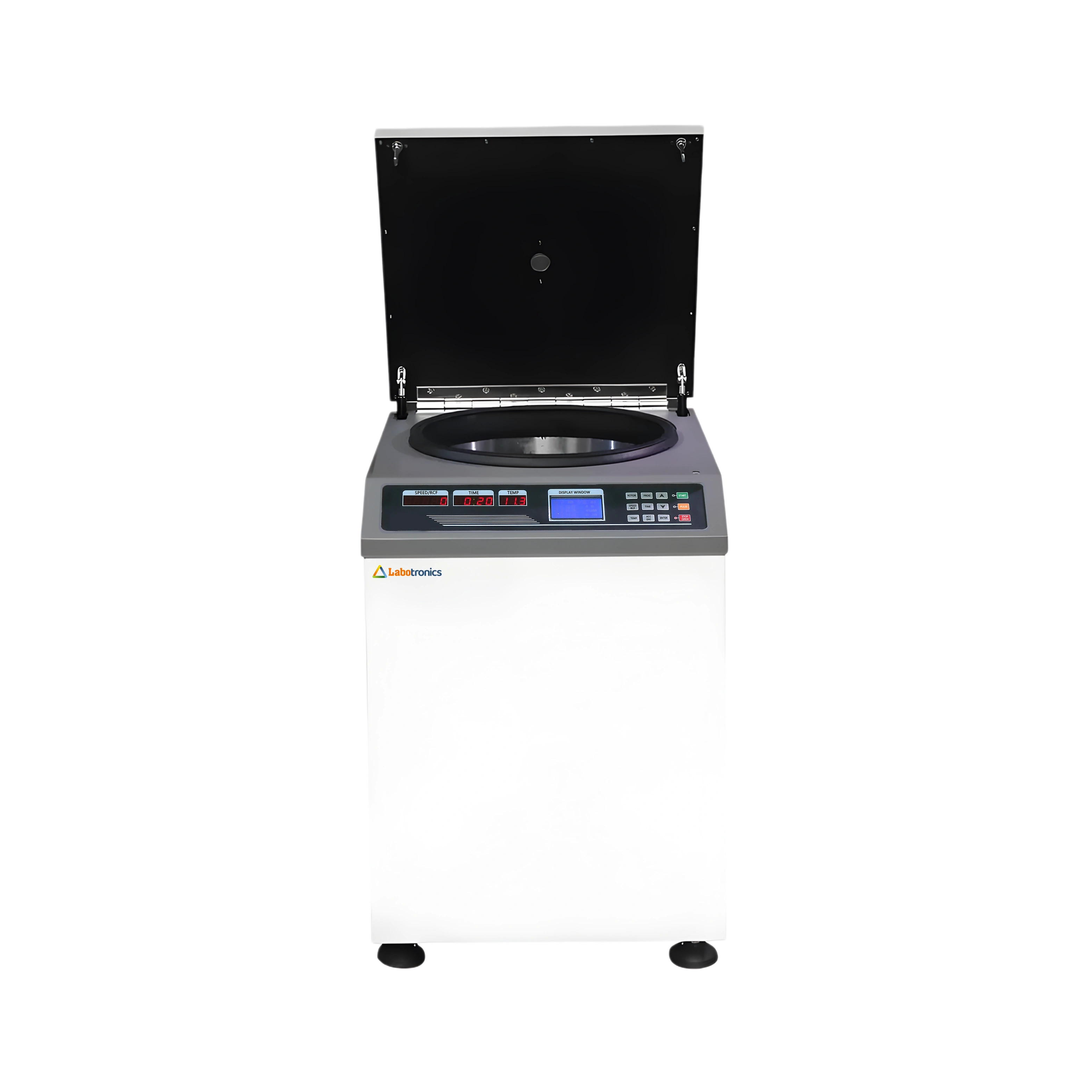

Low speed centrifuge LB-20LSC

Low speed centrifuge LB-20LSC

Low speed centrifuge LB-20LSC is a microcomputer controlled unit with 6000 rpm driven by brushless DC stepless speed regulation motor. Features a special key for centrifugal force through which the centrifugal force can be set or observed anytime during the process.

Buy Now Download Catalog Product Manual

Specifications

Max speed 6000 rpm
Max RCF 5000 x g
Rotor capacity 4 x 100 ml
Temperature raise ≤ 10 °C
Speed accuracy ± 20 rpm
Noise ≤ 55 dB
Timer range (continuation/ short term centrifugal) 1 s ̴ 99 mins
Power supply AC 220 V 50 Hz
Power 300 VA
Dimensions 433 x 580 x 402 mm
Weight 65 kgs

Features

  • Microcomputer controlled system
  • Driven by brushless DC stepless speed regulating motor
  • Automatic stop on opening of the door to ensure operational safety
  • AC frequency conversion motor drive
  • Offers nine ascending and descending rate selection modes
  • Offers ten different kinds of custom work mode selection
  • Speed/ centrifugal force can be set and double synchronous display screen
  • Door with double lock rod design, magnetic locks and electric door
  • Up to 30 grams stress tolerance with no special load balancing

Applications

Used for a wide range of biomedical analysis, immunoenzyme analysis, microplate processing and cell culture applications.

Rotor Selections

Sr No Model Max speed Max RCF Rotor capacity
1 Swing out rotor 5000 rpm 4472 x g 4 x 100 ml (round hanging cup)
Adapter 01 4 x 100 ml
Adapter 02 4 x 50 ml
Adapter 03 12 x 15 ml (bottom tip with cover)
12 x urinary sediment tubes
Adapter 04 16 x 10 ml/15 ml
16 x Vacuum blood tube (higher)
Adapter 05 16 x vacuum blood tube (lower)
2 Angle rotor 6000 rpm 5000 x g 12 x 15 ml
3 ELISA plate rotor 4000 rpm 1842 x g 96 holes x 2
