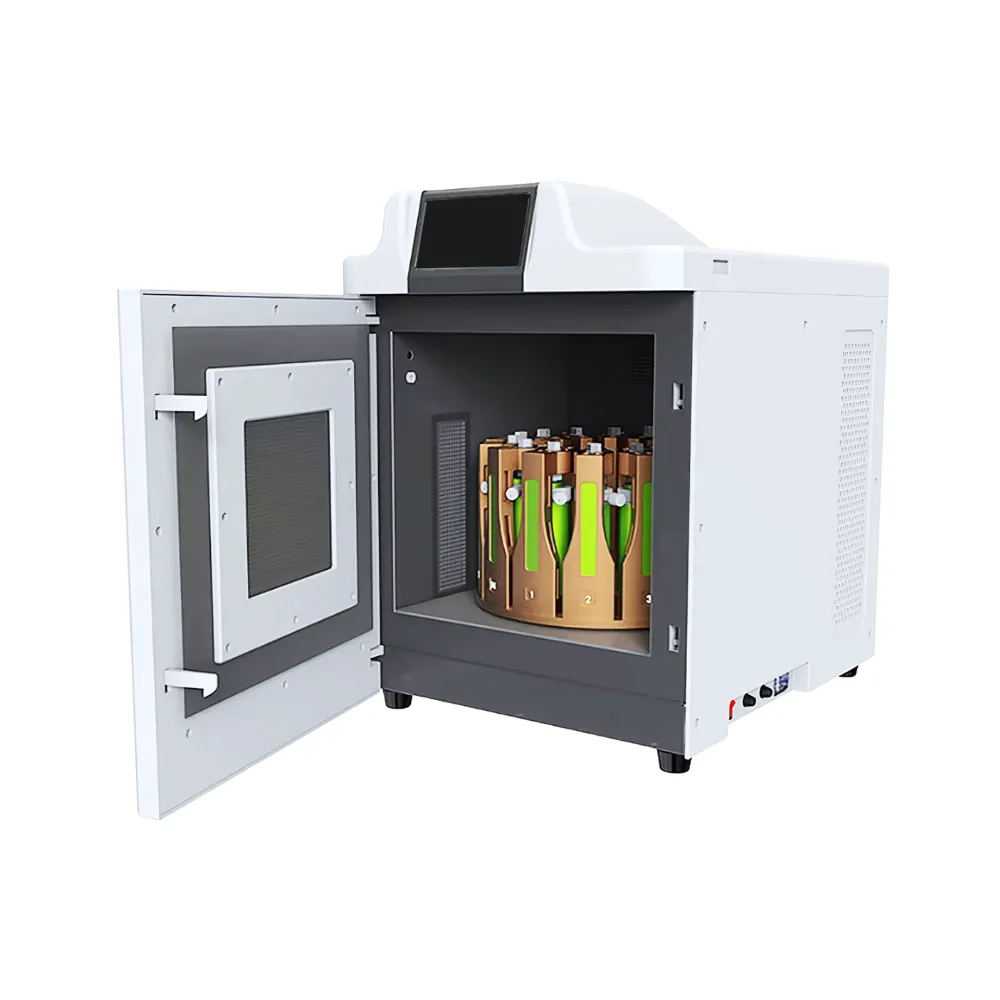

Microwave Digestion System LB-11MDS

Name: Microwave Digestion System LB-11MDS
Brand: Labotronics
SKU: LB-11MDS
Rating: 4.5 (517 reviews)

Microwave Digestion System LB-11MDS offers a 100 mL reaction tank capacity, delivering accurate and efficient sample processing. It features high-efficiency digestion to minimize processing time and enhance productivity. It incorporates an optical fiber sensor for precise temperature measurement. Our microwave digestion system is equipped with a 7-inch touch LCD screen for user-friendly operation and real-time data display.

$ 15050

Download Catalog

Specifications

Reaction Tank Capacity	100 mL
Batch Volume	10
Maximum Temperature	≥ 300°C
Working Temperature Range	0 to 40°C
Humidity Range	15 to 80% RH
Microwave Cavity	65L, 316L stainless steel, multi-layer corrosion-resistant PFA Teflon coated
Microwave Source	2450 MHz, dual magnetron
Pressure Control	G-pressure real-time monitoring, overpressure adjustment, and automatic alarm
Pressure Measurement	Piezoelectric pressure sensor External digestion tank pressure: ≥ 20 MPa Inner digestion tank pressure: ≥ 4 MPa Volume: ≥ 100 mL
Pressure Display Accuracy	± 0.1 MPa
Temperature Measurement	Optical fiber sensor (-50 to 350°C)
Temperature Control Accuracy	± 0.1°C
Full-Tank Temperature Range	0 to 350°C
Control Accuracy	± 0.1°C
Communication Interface	USB, RS-232
Furnace Exhaust System	High-power corrosion-resistant axial fan; cools from 200°C to 60°C in 15 minutes
Inner Tank Material	TFM
External Tank Material	PEEK (explosion-proof)

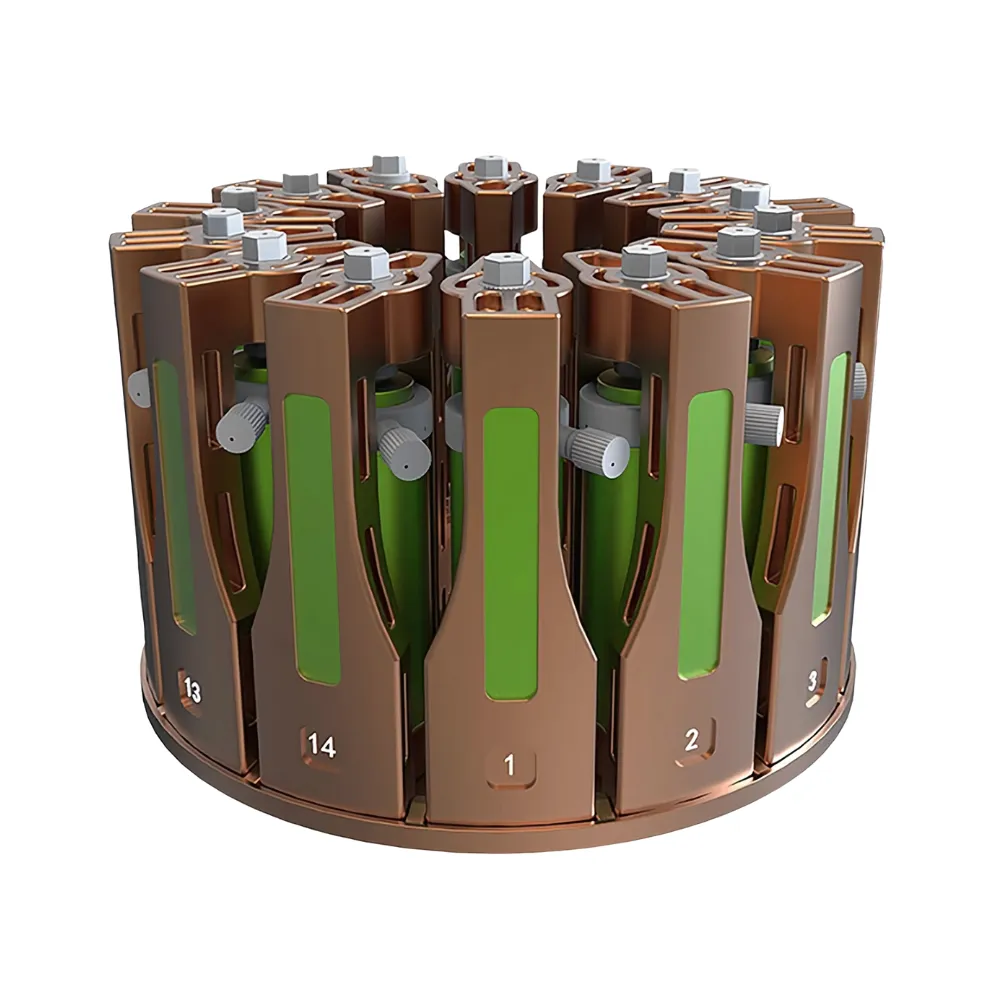

Digesting Rotor Frame	High-strength integrated turntable frame
Display Screen	7-inch large touch LCD
Software System	ARM chip with ZG operating system
Power Consumption	3200W Microwave:2200W
Power Supply	220 to 240 VAC, 50/60Hz, 15A
Dimension (W × D × H)	580 × 680 × 720 mm
Net Weight	65 kg

Features

Rapid sample digestion
Microwave-assisted heating
Automatic shut-off function
Uniform heat distribution
Multi-sample compatibility
Advanced safety controls
High-pressure operation

Applications

Microwave Digestion System LB-11MDS is used to break down solid and liquid samples for accurate elemental analysis. It is widely applied in environmental monitoring, food safety testing, pharmaceutical laboratories, and materials research.
