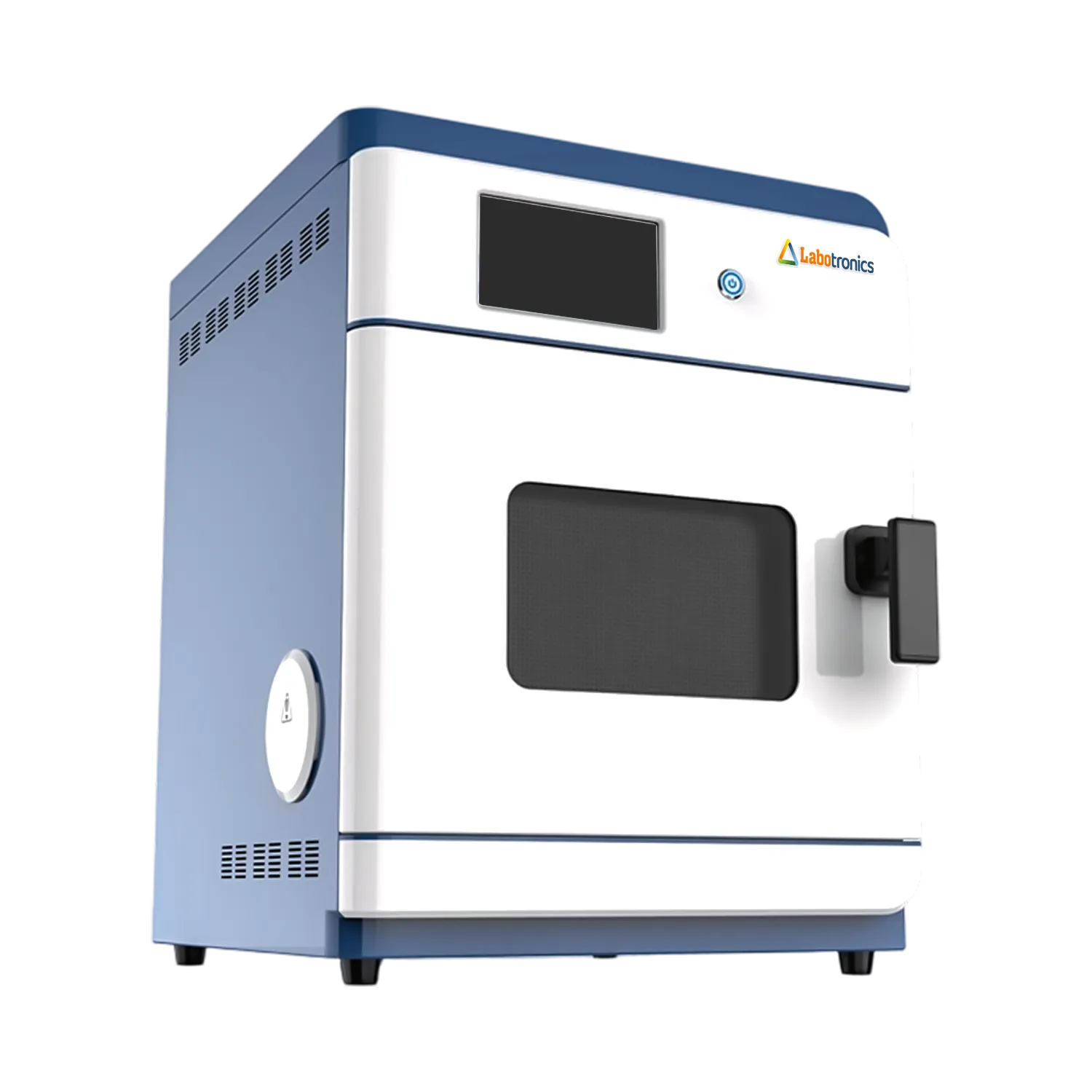

Microwave Digestion System LB-12MDS

Name: Microwave Digestion System LB-12MDS
Brand: Labotronics
SKU: LB-12MDS
Rating: 4.9 (585 reviews)

Microwave Digestion System LB-12MDS offers a 100 mL reaction tank capacity for reliable sample digestion. It features gentle heating to protect sample integrity and ensure accurate results for sensitive samples. It is equipped with a 7-inch touch LCD for user-friendly control and clear data visualization. Our microwave digester processes multiple samples simultaneously, delivering even heat distribution across all vessels.

Get Quote Download Catalog

Specifications

Reaction Tank Capacity	100 mL
Batch Volume	12
Maximum Temperature	≥ 300°C
Working Temperature Range	0 to 40°C
Humidity Range	15 to 80% RH
Microwave Cavity	65L, 316L stainless steel, multi-layer corrosion-resistant PFA Teflon coated
Microwave Source	2450 MHz, dual magnetron
Pressure Control	G-pressure real-time monitoring, overpressure adjustment, and automatic alarm
Pressure Measurement	Piezoelectric pressure sensor External digestion tank pressure: ≥ 20 MPa Inner digestion tank pressure: ≥ 4 MPa Volume: ≥ 100 mL
Pressure Display Accuracy	± 0.1 MPa
Temperature Measurement	Optical fiber sensor (-50 to 350°C)
Temperature Control Accuracy	± 0.1°C
Full-Tank Temperature Range	0 to 350°C
Control Accuracy	± 0.1°C
Communication Interface	USB, RS-232
Furnace Exhaust System	High-power corrosion-resistant axial fan; cools from 200°C to 60°C in 15 minutes
Inner Tank Material	TFM
External Tank Material	PEEK (explosion-proof)
Digesting Rotor Frame	High-strength integrated turntable frame
Display Screen	7-inch large touch LCD
Software System	ARM chip with ZG operating system
Power Consumption	3200W Microwave: 2200W
Power Supply	220 to 240 VAC, 50/60Hz, 15A
Dimension (W × D × H)	580 × 680 × 720 mm
Net Weight	65 kg

Features

Energy-efficient operation
Customizable digestion programs
Easy system maintenance
Low operating costs
Multi-sample compatibility

Applications

Microwave Digestion System LB-12MDS efficiently breaks down complex samples through microwave-assisted acid digestion. It is widely utilized in laboratories within the environmental, pharmaceutical, food, and mining sectors.
