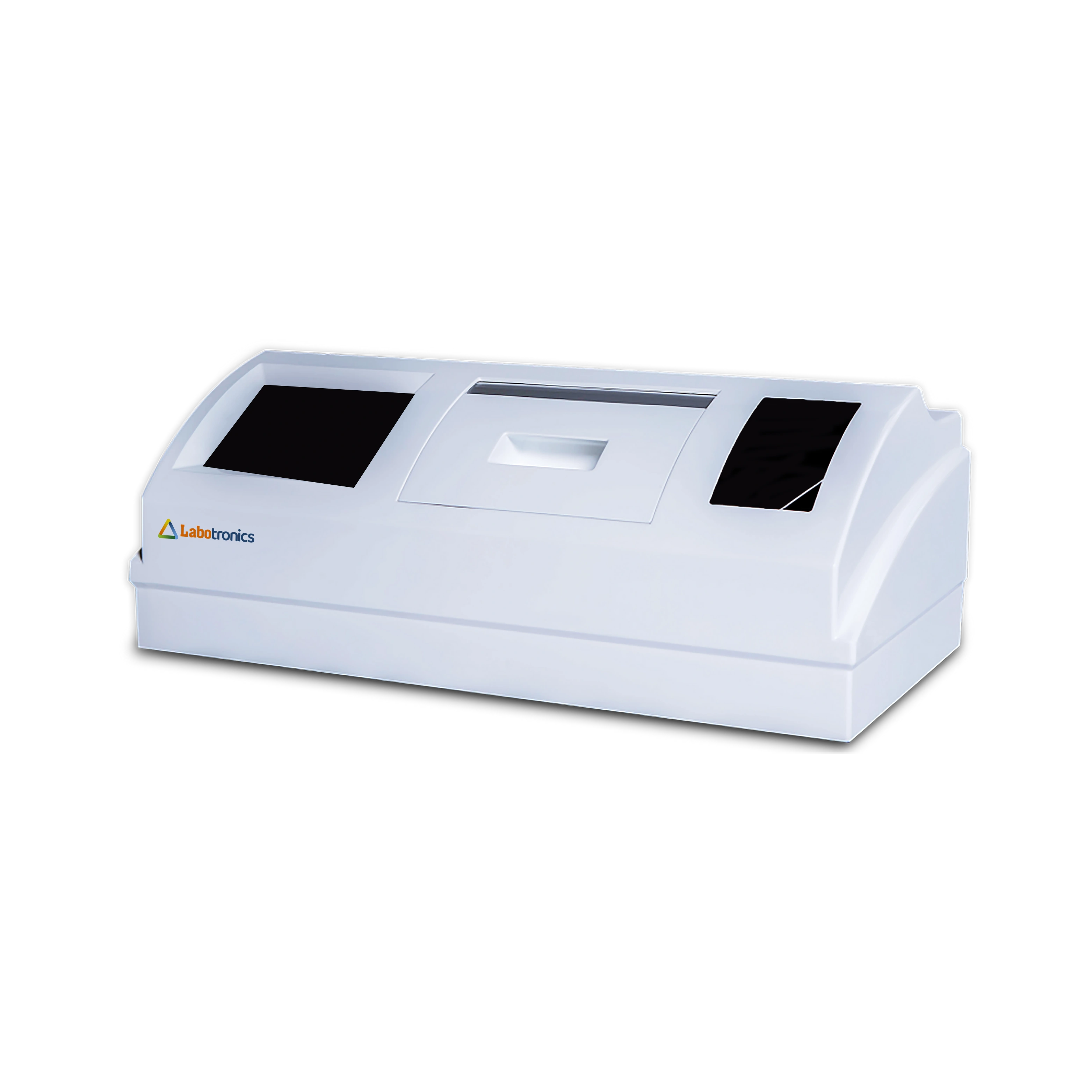

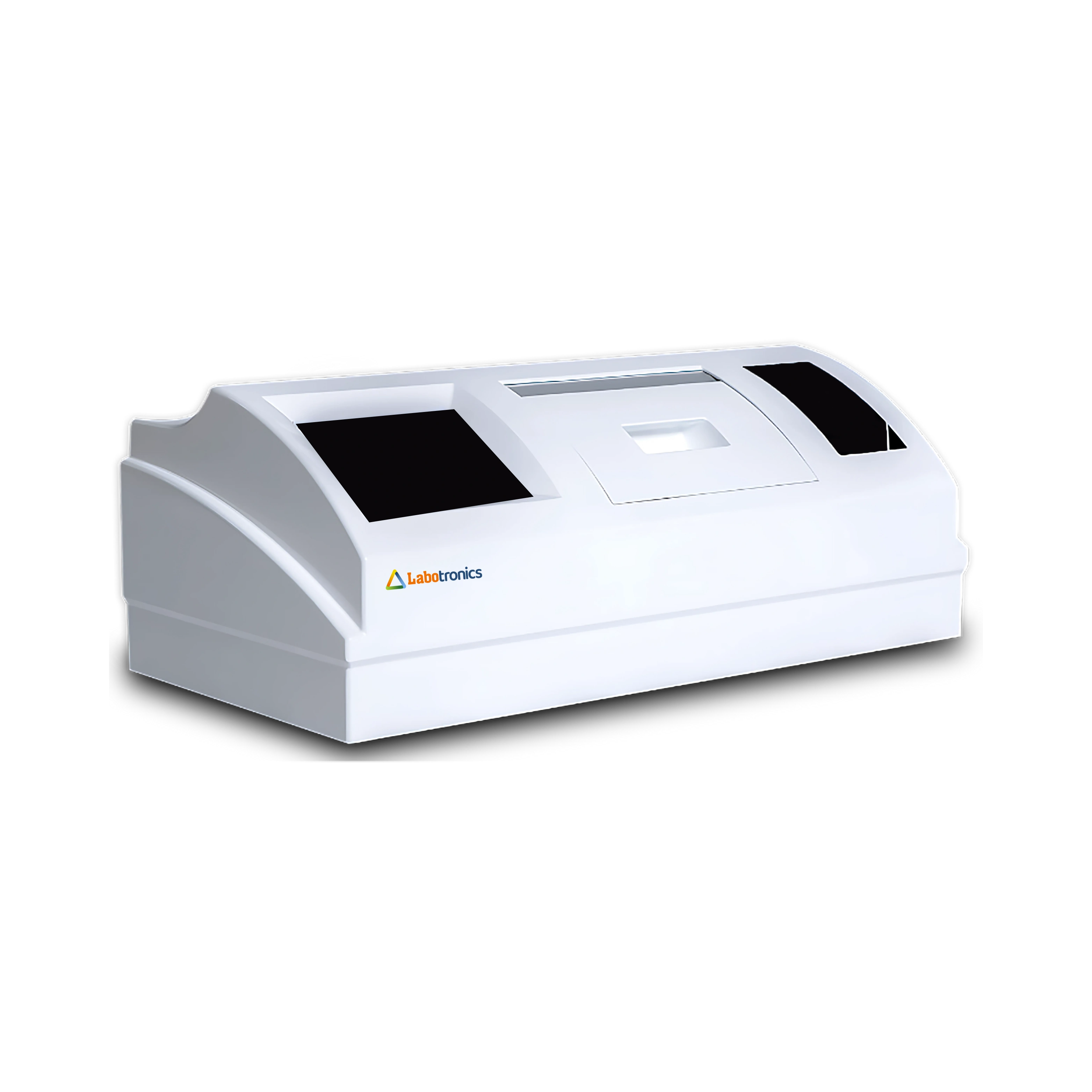

Polarimeter LB-11POM

Name: Polarimeter LB-11POM
Brand: Labotronics
SKU: LB-11POM
Rating: 4.7 (564 reviews)

Polarimeter LB-11POM operates within a measurement range of ± 89.99° for optical rotation and ± 259°Z for sugar content, ensuring precise and reliable analysis. It maintains a temperature control range of 15 °C to 45 °C for accurate and stable measurements. It features a fully automated, highly integrated control system for convenient and easy operation. Our polarimeter is equipped with a 7-inch TFT true color touch screen, providing intuitive and user-friendly control.

$ 8300

Download Catalog

Specifications

Measurement Range	Optical rotation: ±89.99° Sugar content: ±259°Z
Accuracy	±0.01° (−45° ≤ optical rotation ≤ +45°) ±0.02° (optical rotation < −45° or > +45°)
Temperature Control Range	15℃ to 45℃
Temperature Control Accuracy	± 0.2℃
Minimum Reading	0.001° (optical rotation)
Working Wavelengths	405 nm, 436 nm, 546 nm 578 nm, 633 nm, 689 nm Standard: 546 nm, 589 nm
Repeatability	0.002° (optical rotation)
Light Transmittance	1%
Light Source	LED
Data Storage	1000 sets of data
Communication Interface	USB interface
Display	7-inch TFT true color touch screen
Power Consumption	250W
Power Supply	220V ±22V, 50Hz ±1Hz
Dimension (L × W × H)	715 × 355 × 280 mm
Net Weight	24 kg
Gross Weight	30 kg

Features

Multi-mode measurement
Automatic calibration
Precision optical filter
Stable instrument level
Versatile tube compatibility

Applications

Polarimeter LB-11POM is used to analyze the concentration, content, and purity of optically active substances. It is widely applied in the sugar, pharmaceutical, food, chemical, and petroleum industries, as well as in research laboratories.
