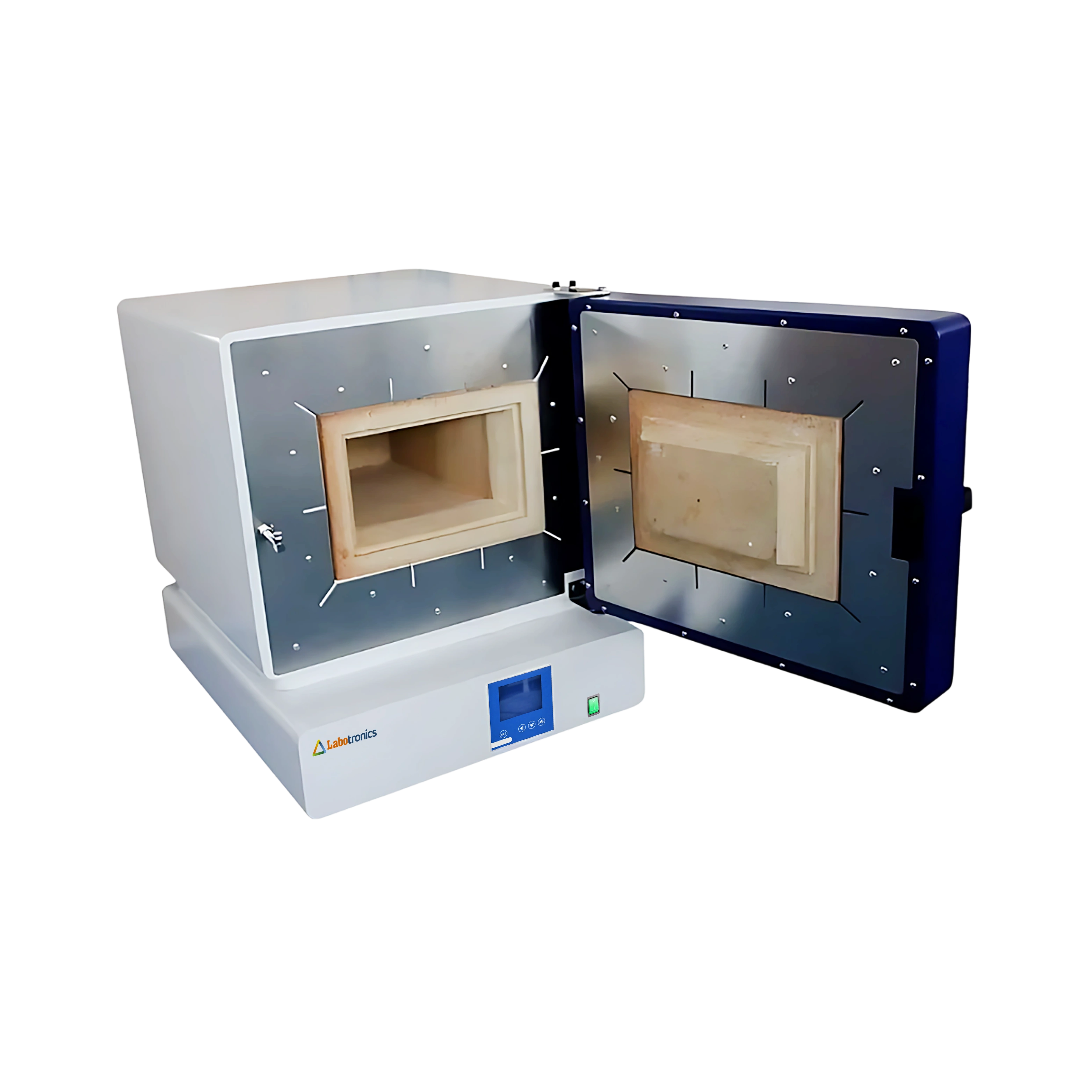

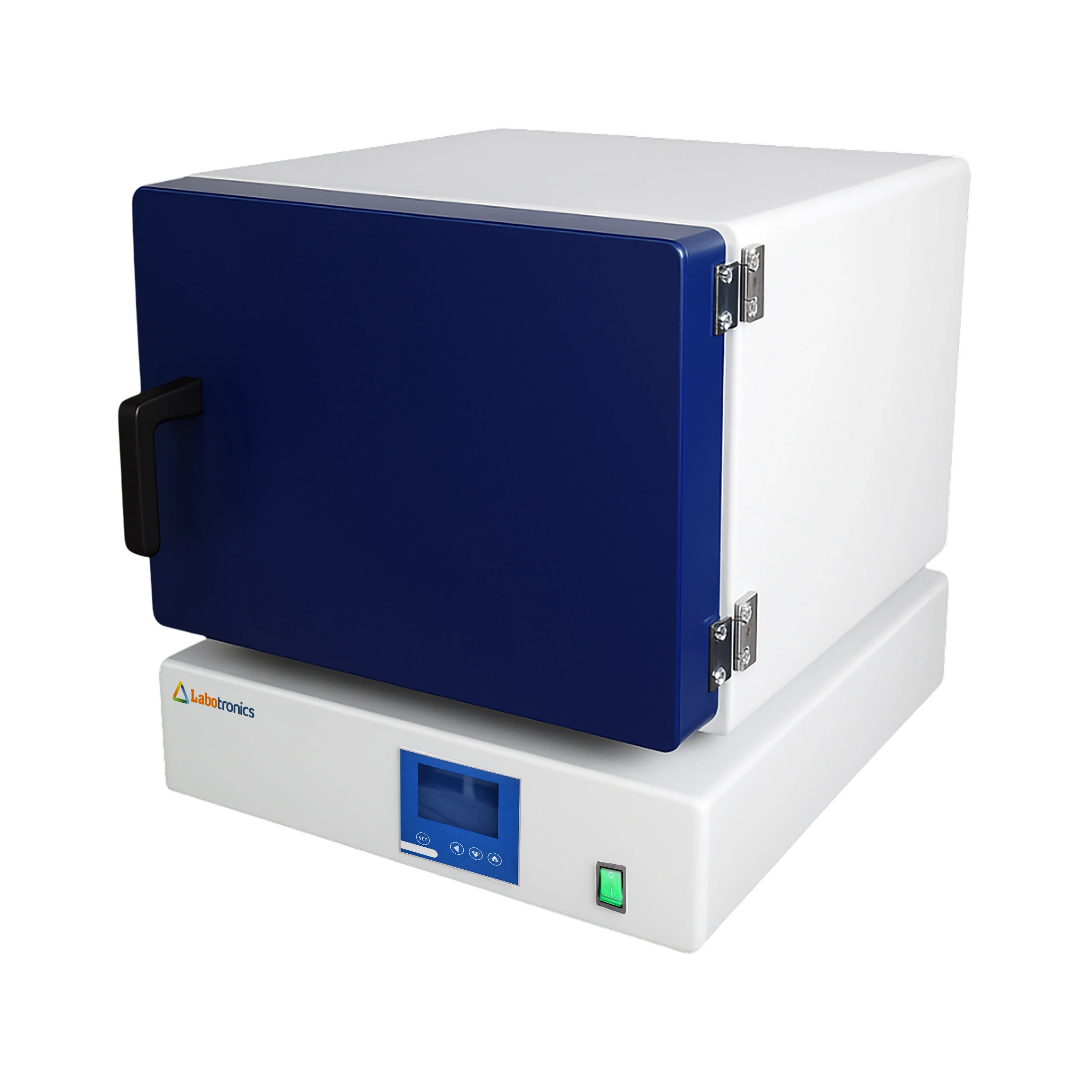

Tank Type Electric Furnace LB-31TEF is a tabletop unit featuring an anti-corrosive stainless-steel light chamber. A microprocessor-based PID controller, positioned at the base of the chamber, ensures precise temperature regulation. The programmable controller allows procedural control of temperature, time, and heating power. Heat loss is minimized with well-sealed doors, enhancing chamber temperature uniformity. For safety, the unit is equipped with a uniquely designed door and an automatic power cut-off switch to protect the end user.
$ 2800
Download CatalogSpecifications
| Chamber volume | 4 L |
| Chamber dimensions ( W × D × H ) | 150 × 250 × 100 mm |
| Maximum temperature | 1300 °C |
| Power | 6 kW |
| Power supply | 220 V / 50 Hz |
Features
Applications
Used in heating for ultimate analysing, measuring, quenching, annealing and tempering of small steel parts in laboratories, R&D institutions, etc. Also used for firing, dissolving and analysing of metal, ceramic, etc.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Chamber volume | 2 L |
| Chamber dimensions ( W × D × H ) | 120 × 200 × 80 mm |
| Maximum temperature | 1200 °C |
| Power | 2.5 kW |
| Power supply | 220 V / 50 Hz |
| Chamber volume | 30 L |
| Chamber dimensions ( W × D × H ) | 300 × 500 × 200 mm |
| Maximum temperature | 1200 °C |
| Power | 12 kW |
| Power supply | 380 V / 50 Hz |
| Chamber volume | 84 L |
| Chamber dimensions ( W × D × H ) | 400 × 600 × 350 mm |
| Maximum temperature | 1200 °C |
| Power | 18 kW |
| Power supply | 380 V / 50 Hz |
| Chamber volume | 4 L |
| Chamber dimensions ( W × D × H ) | 150 × 250 × 100 mm |
| Maximum temperature | 1300 °C |
| Power | 4 kW |
| Power supply | 220 V / 50 Hz |
| Chamber volume | 7 L |
| Chamber dimensions ( W × D × H ) | 200 × 300 × 120 mm |
| Maximum temperature | 1000 °C |
| Power | 4 kW |
| Power supply | 220 V / 50 Hz |
| Chamber volume | 13 L |
| Chamber dimensions ( W × D × H ) | 200 × 400 × 160 mm |
| Maximum temperature | 1300 °C |
| Power | 10 kW |
| Power supply | 380 V / 50 Hz |
| Chamber volume | 30 L |
| Chamber dimensions ( W × D × H ) | 300 × 500 × 200 mm |
| Maximum temperature | 1000 °C |
| Power | 12 kW |
| Power supply | 380 V / 50 Hz |
| Chamber volume | 18 L |
| Chamber dimensions ( W × D × H ) | 200 × 500 × 180 mm |
| Maximum temperature | 1300 °C |
| Power | 8 kW |
| Power supply | 380 V / 50 Hz |
| Chamber volume | 30 L |
| Chamber dimensions ( W × D × H ) | 300 × 500 × 200 mm |
| Maximum temperature | 1600 °C |
| Power | 18 kW |
| Power supply | 380 V / 50 Hz |
| Chamber volume | 5 L |
| Chamber dimensions ( W × D × H ) | 150 × 300 × 120 mm |
| Maximum temperature | 1600 °C |
| Power | 8 kW |
| Power supply | 380 V / 50 Hz |
| Chamber volume | 7 L |
| Chamber dimensions ( W × D × H ) | 200 × 300 × 120 mm |
| Maximum temperature | 1200 °C |
| Power | 5 kW |
| Power supply | 220 V / 50 Hz |
| Chamber volume | 70 L |
| Chamber dimensions ( W × D × H ) | 400 × 500 × 350 mm |
| Maximum temperature | 1000 °C |
| Power | 15 kW |
| Power supply | 380 V / 50 Hz |
| Chamber volume | 84 L |
| Chamber dimensions ( W × D × H ) | 400 × 600 × 350 mm |
| Maximum temperature | 1000 °C |
| Power | 18 kW |
| Power supply | 380 V / 50 Hz |
| Chamber volume | 16 L |
| Chamber dimensions ( W × D × H ) | 250 × 400 × 160 mm |
| Maximum temperature | 1000 °C |
| Power | 8 kW |
| Power supply | 380 V / 50 Hz |
| Chamber volume | 5 L |
| Chamber dimensions ( W × D × H ) | 150 × 150 × 300 mm |
| Maximum temperature | 1200 °C |
| Power | 5 kW |
| Power supply | 220 V / 50 Hz |
