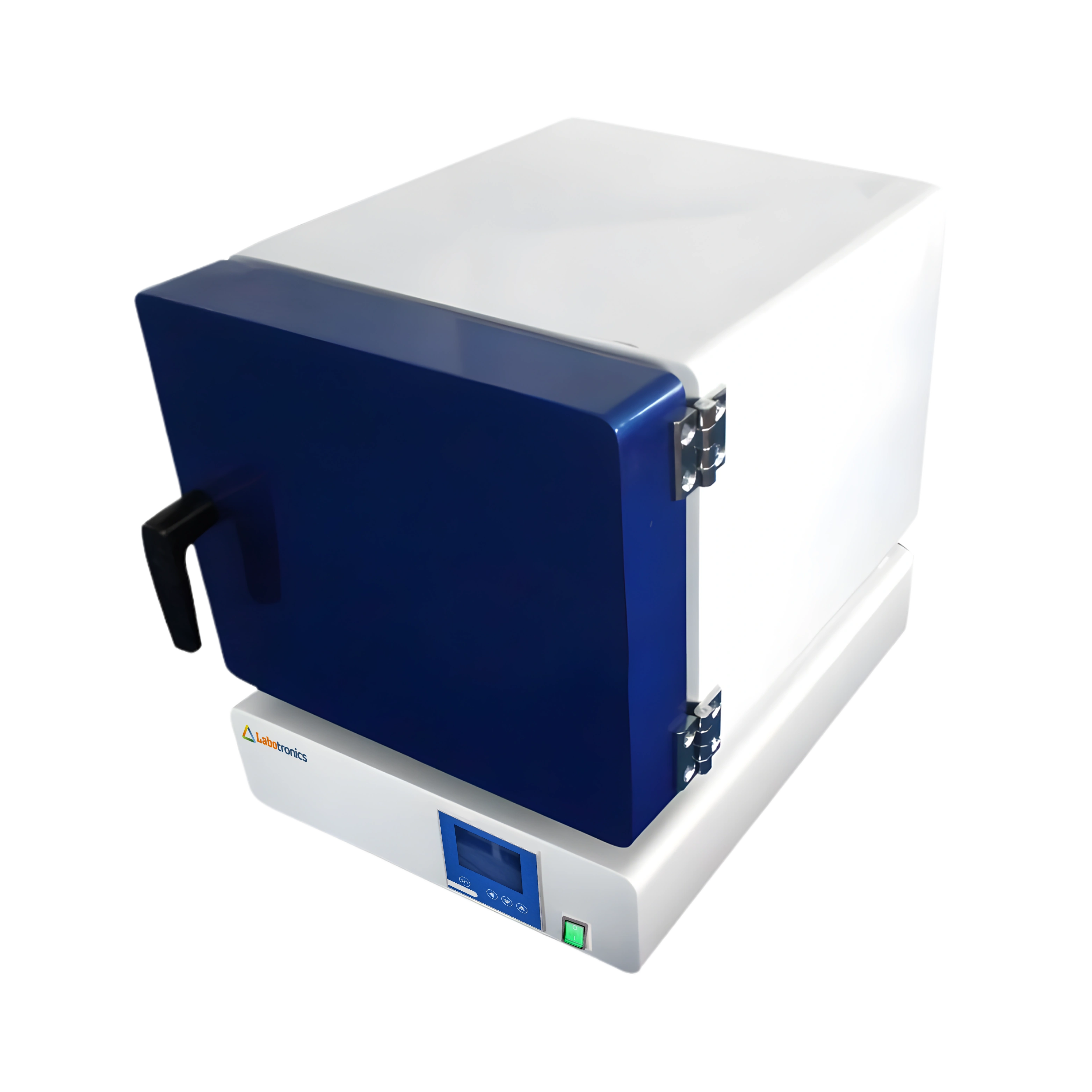

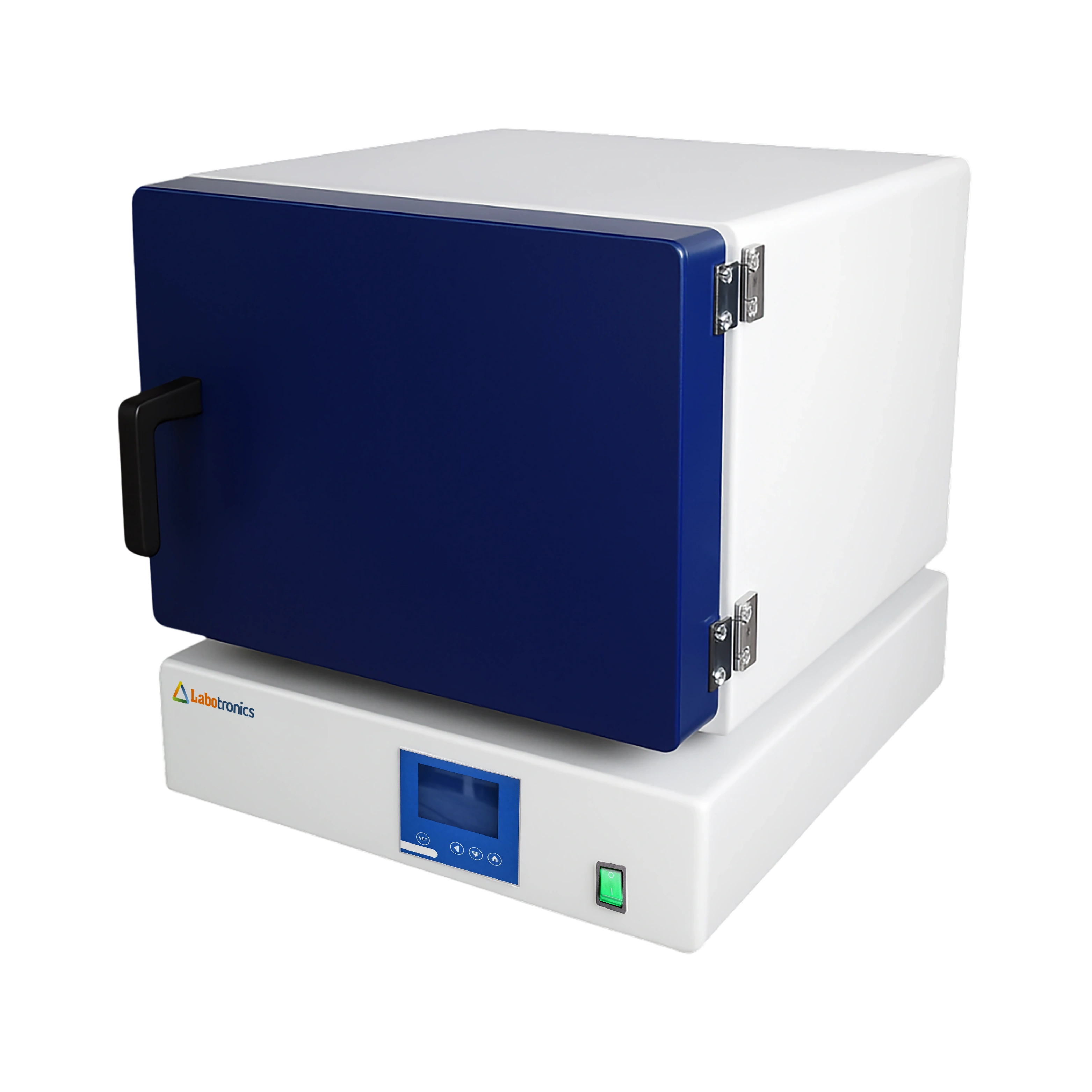

Tank type electric furnace LB-13TEF is a table top unit with anticorrosive, stainless steel light chamber. Microprocessor PID controller installed at the base of chamber accurately controls temperature. Programmable controller provides procedural circulation of temperature, time and heating power. Door seals aid in the reduction of heat loss, thus improving chamber temperature uniformity. Safety devices include unique designed door and auto power cut off switch for end user safety.
Specifications
| Chamber volume | 30 L |
| Chamber dimensions ( W × D × H ) | 300 × 500 × 200 mm |
| Maximum temperature | 1000 °C |
| Power | 12 kW |
| Power supply | 380 V / 50 Hz |
Features
Applications
Used in heating for ultimate analysing, measuring, quenching, annealing and tempering of small steel parts in laboratories, R&D institutions, etc. Also used for firing, dissolving and analysing of metal, ceramic, etc.
Catalog
Dowload PDF Catalog
| Chamber volume | 2 L |
| Chamber dimensions ( W × D × H ) | 120 × 200 × 80 mm |
| Maximum temperature | 1000 °C |
| Power | 2.5 kW |
| Chamber volume | 7 L |
| Chamber dimensions ( W × D × H ) | 200 × 300 × 120 mm |
| Maximum temperature | 1000 °C |
| Power | 4 kW |
| Chamber volume | 16 L |
| Chamber dimensions ( W × D × H ) | 250 × 400 × 160 mm |
| Maximum temperature | 1000 °C |
| Power | 8 kW |
| Chamber volume | 30 L |
| Chamber dimensions ( W × D × H ) | 300 × 500 × 200 mm |
| Maximum temperature | 1000 °C |
| Power | 12 kW |
| Chamber volume | 70 L |
| Chamber dimensions ( W × D × H ) | 400 × 500 × 350 mm |
| Maximum temperature | 1000 °C |
| Power | 15 kW |
| Chamber volume | 84 L |
| Chamber dimensions ( W × D × H ) | 400 × 600 × 350 mm |
| Maximum temperature | 1000 °C |
| Power | 18 kW |
| Chamber volume | 2 L |
| Chamber dimensions ( W × D × H ) | 120 × 200 × 80 mm |
| Maximum temperature | 1200 °C |
| Power | 2.5 kW |
| Chamber volume | 5 L |
| Chamber dimensions ( W × D × H ) | 150 × 150 × 300 mm |
| Maximum temperature | 1200 °C |
| Power | 5 kW |
| Chamber volume | 7 L |
| Chamber dimensions ( W × D × H ) | 200 × 300 × 120 mm |
| Maximum temperature | 1200 °C |
| Power | 5 kW |
| Chamber volume | 16 L |
| Chamber dimensions ( W × D × H ) | 250 × 400 × 160 mm |
| Maximum temperature | 1200 °C |
| Power | 10 kW |
