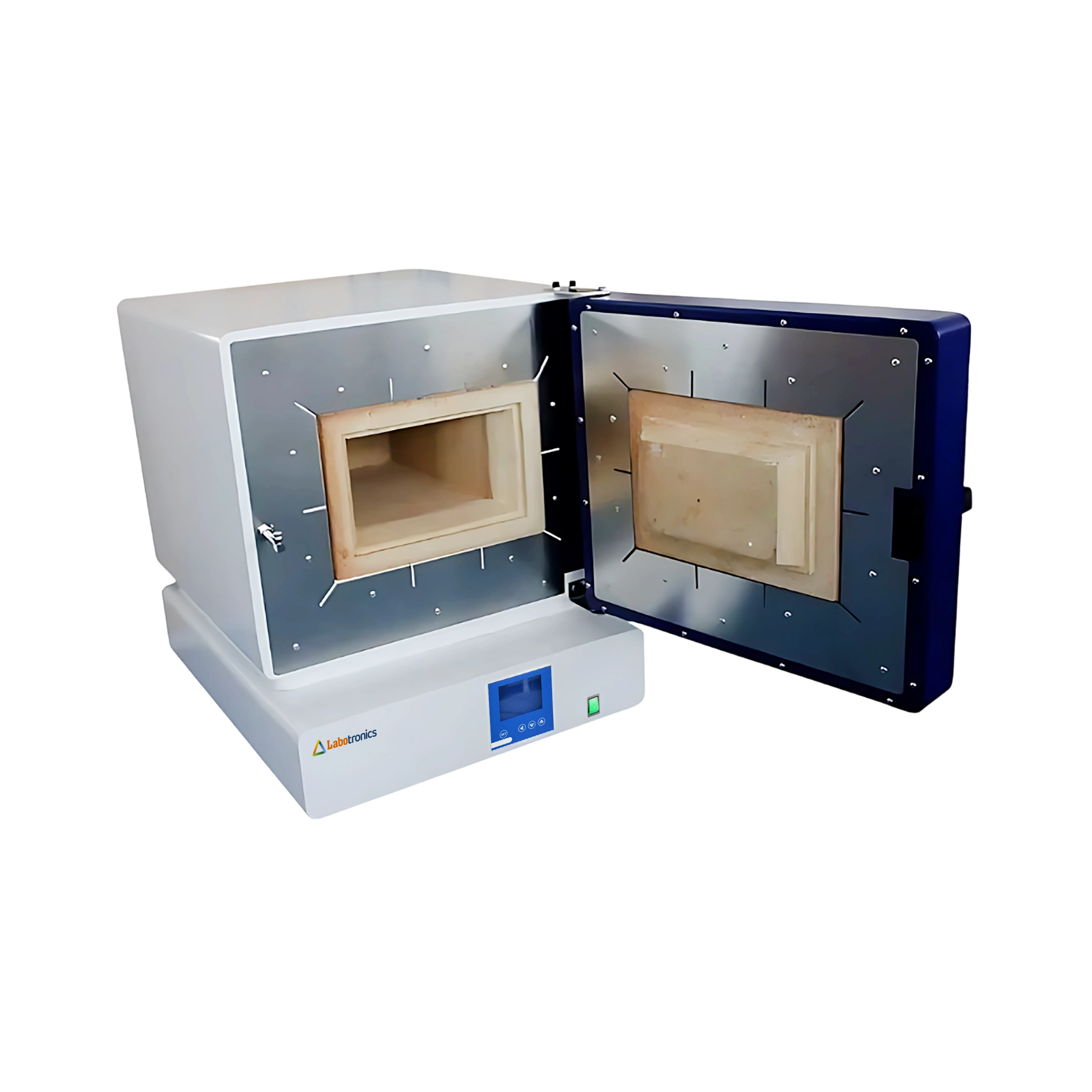

Tank Type Electric Furnace LB-41TEF

Name: Tank Type Electric Furnace LB-41TEF
Brand: Labotronics
SKU: LB-41TEF
Rating: 4.4 (535 reviews)

Tank type electric furnace LB-41TEF is a table top unit with anticorrosive, stainless steel light chamber. Microprocessor PID controller installed at the base of chamber accurately controls temperature. Programmable controller provides procedural circulation of temperature, time and heating power. Door seals aid in the reduction of heat loss, thus improving chamber temperature uniformity. Safety devices include unique designed door and auto power cut off switch for end user safety.

$ 12512.5

Download Catalog

Specifications

Chamber volume	13 L
Chamber dimensions ( W × D × H )	200 × 400 × 160 mm
Maximum temperature	1600 °C
Power	12 kW
Power supply	380 V / 50 Hz

Features

Prevention from high temperature gas leaking
Silicon molybdenum rod and high quality electric stove wire (heating element)
Digital display parameters viewing and control
Ceramic thermal insulation (fiber board)
Optional chamber : fireproofing title chamber and ceramic fiber chamber

Applications

Used in heating for ultimate analysing, measuring, quenching, annealing and tempering of small steel parts in laboratories, R&D institutions, etc. Also used for firing, dissolving and analysing of metal, ceramic, etc.

Get Quote

Tank Type Electric Furnace LB-22TEF

Chamber volume	7 L
Chamber dimensions ( W × D × H )	200 × 300 × 120 mm
Maximum temperature	1200 °C
Power	5 kW
Power supply	220 V / 50 Hz

$ 2300

Tank Type Electric Furnace LB-11TEF

Chamber volume	7 L
Chamber dimensions ( W × D × H )	200 × 300 × 120 mm
Maximum temperature	1000 °C
Power	4 kW
Power supply	220 V / 50 Hz

$ 2212.5

Tank Type Electric Furnace LB-14TEF

Chamber volume	70 L
Chamber dimensions ( W × D × H )	400 × 500 × 350 mm
Maximum temperature	1000 °C
Power	15 kW
Power supply	380 V / 50 Hz

$ 3512.5

Tank Type Electric Furnace LB-32TEF

Chamber volume	18 L
Chamber dimensions ( W × D × H )	200 × 500 × 180 mm
Maximum temperature	1300 °C
Power	8 kW
Power supply	380 V / 50 Hz

$ 3375

Tank Type Electric Furnace LB-15TEF

Chamber volume	84 L
Chamber dimensions ( W × D × H )	400 × 600 × 350 mm
Maximum temperature	1000 °C
Power	18 kW
Power supply	380 V / 50 Hz

$ 4187.5

Tank Type Electric Furnace LB-31TEF

Chamber volume	4 L
Chamber dimensions ( W × D × H )	150 × 250 × 100 mm
Maximum temperature	1300 °C
Power	6 kW
Power supply	220 V / 50 Hz

$ 2650

Tank Type Electric Furnace LB-12TEF

Chamber volume	16 L
Chamber dimensions ( W × D × H )	250 × 400 × 160 mm
Maximum temperature	1000 °C
Power	8 kW
Power supply	380 V / 50 Hz

$ 2812.5

Tank Type Electric Furnace LB-26TEF

Chamber volume	84 L
Chamber dimensions ( W × D × H )	400 × 600 × 350 mm
Maximum temperature	1200 °C
Power	18 kW
Power supply	380 V / 50 Hz

$ 4512.5

Tank Type Electric Furnace LB-21TEF

Chamber volume	5 L
Chamber dimensions ( W × D × H )	150 × 150 × 300 mm
Maximum temperature	1200 °C
Power	5 kW
Power supply	220 V / 50 Hz

$ 2412.5

Tank Type Electric Furnace LB-33TEF

Chamber volume	13 L
Chamber dimensions ( W × D × H )	200 × 400 × 160 mm
Maximum temperature	1300 °C
Power	10 kW
Power supply	380 V / 50 Hz

$ 3187.5

Tank Type Electric Furnace LB-24TEF

Chamber volume	30 L
Chamber dimensions ( W × D × H )	300 × 500 × 200 mm
Maximum temperature	1200 °C
Power	12 kW
Power supply	380 V / 50 Hz

$ 3650

Tank Type Electric Furnace LB-20TEF

Chamber volume	2 L
Chamber dimensions ( W × D × H )	120 × 200 × 80 mm
Maximum temperature	1200 °C
Power	2.5 kW
Power supply	220 V / 50 Hz

$ 2050

Tank Type Electric Furnace LB-42TEF

Chamber volume	30 L
Chamber dimensions ( W × D × H )	300 × 500 × 200 mm
Maximum temperature	1600 °C
Power	18 kW
Power supply	380 V / 50 Hz

$ 14250

Tank Type Electric Furnace LB-10TEF

Chamber volume	2 L
Chamber dimensions ( W × D × H )	120 × 200 × 80 mm
Maximum temperature	1000 °C
Power	2.5 kW
Power supply	220 V / 50 Hz

$ 1987.5

Tank Type Electric Furnace LB-13TEF

Chamber volume	30 L
Chamber dimensions ( W × D × H )	300 × 500 × 200 mm
Maximum temperature	1000 °C
Power	12 kW
Power supply	380 V / 50 Hz

$ 3475
