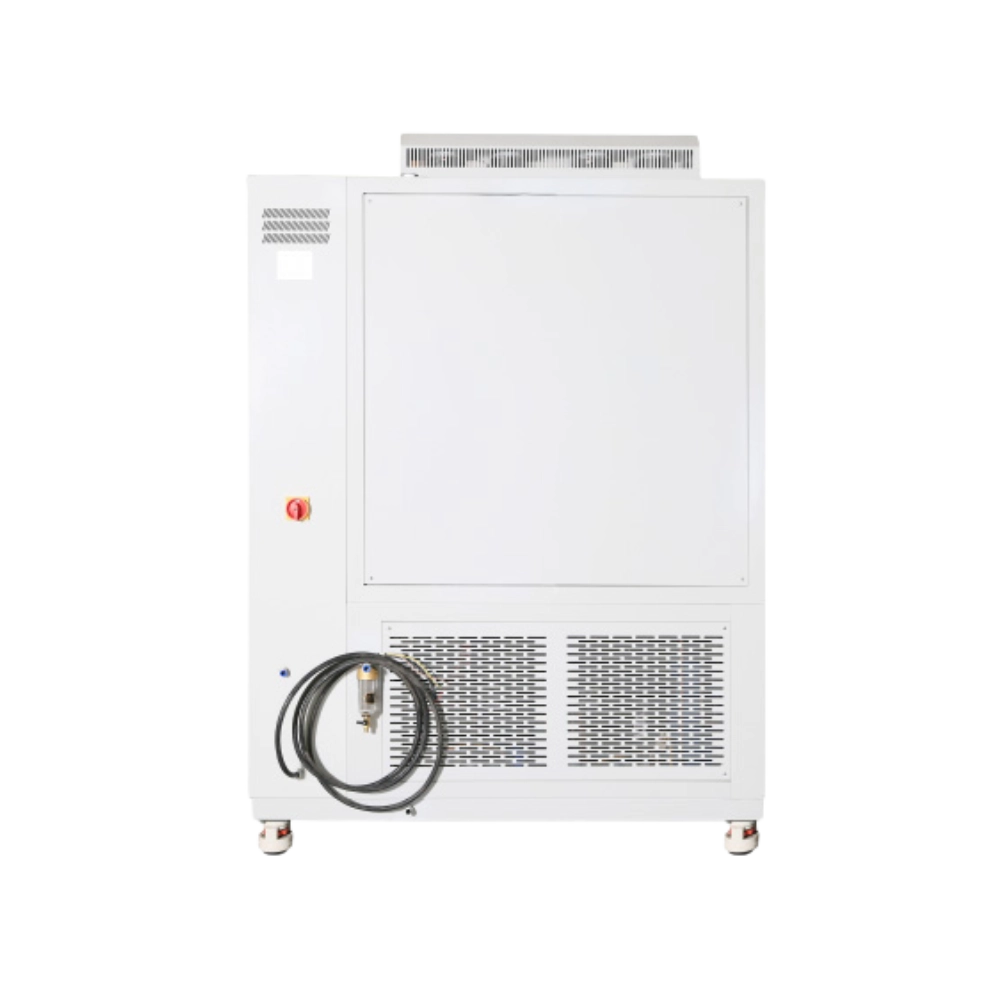

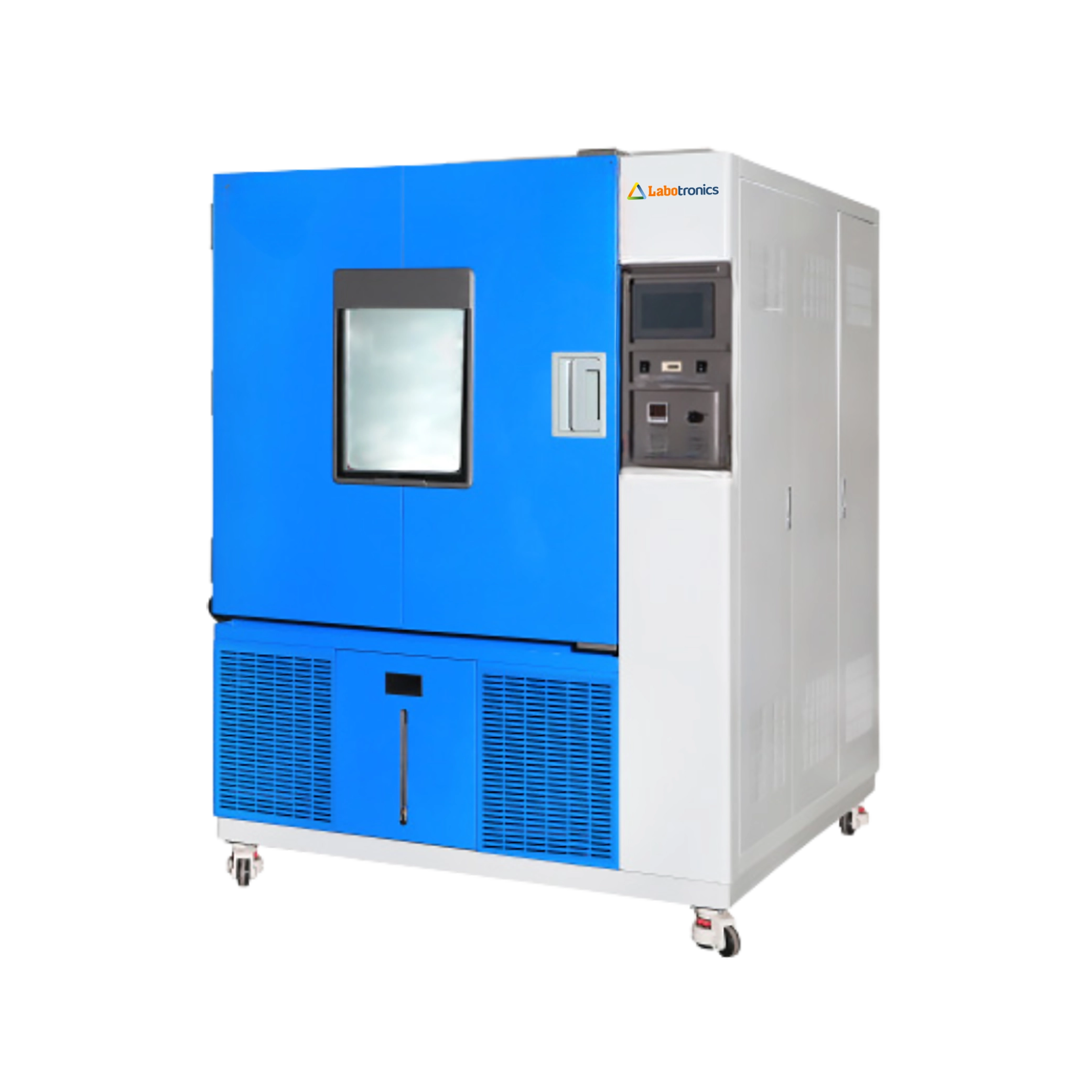

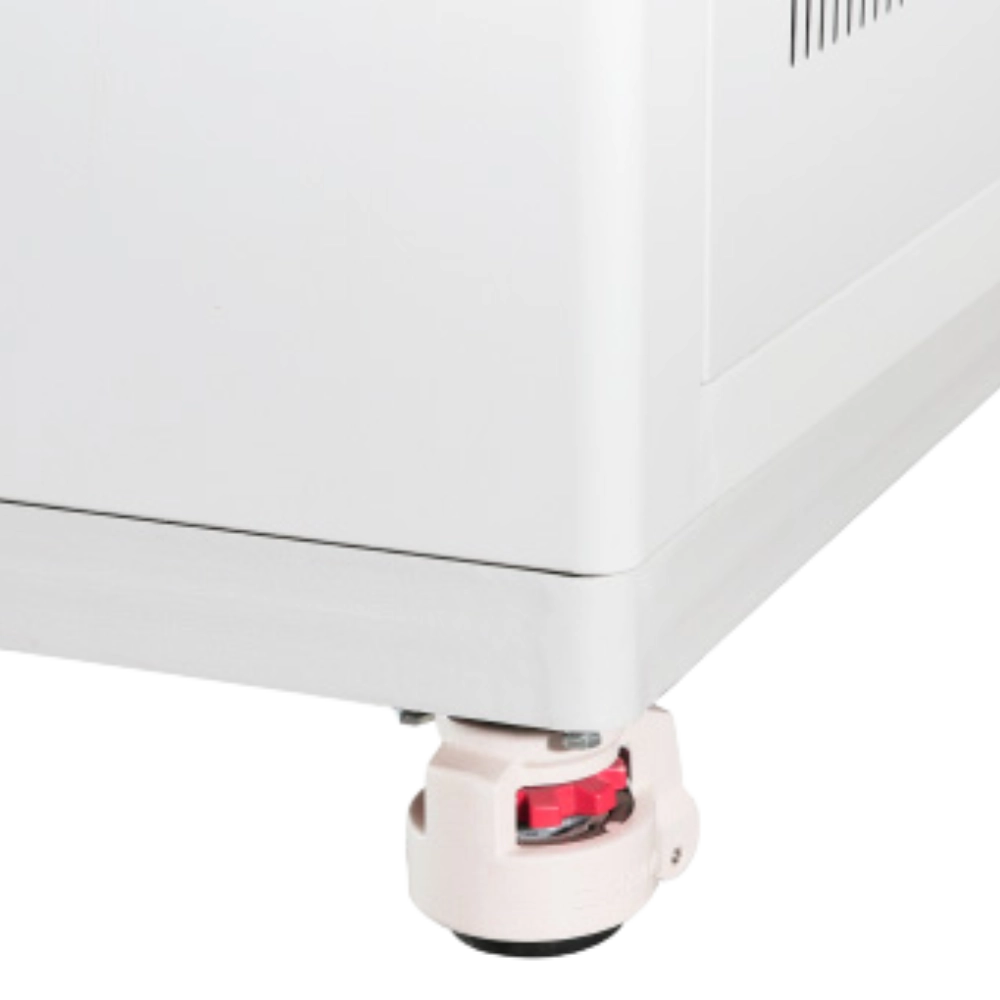

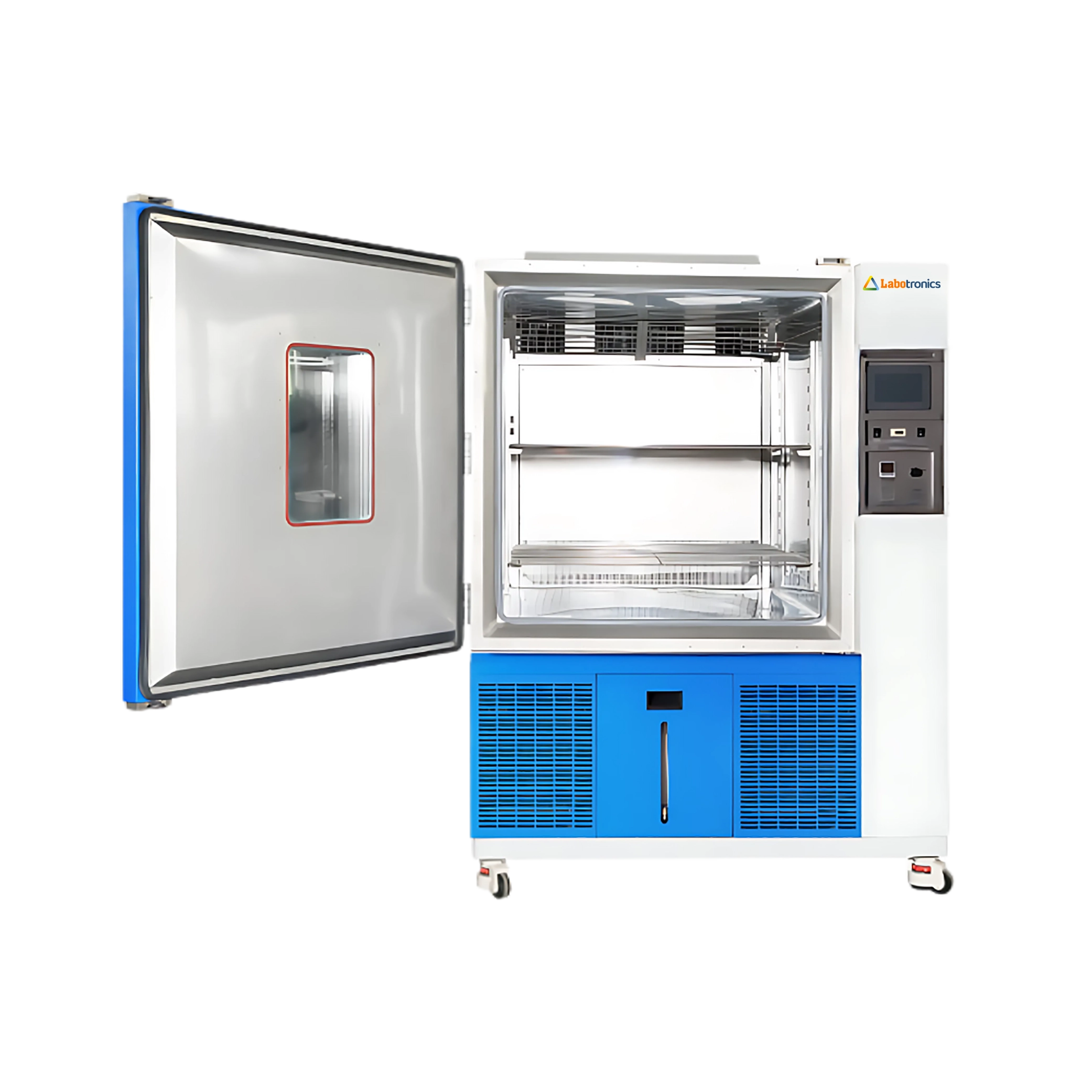

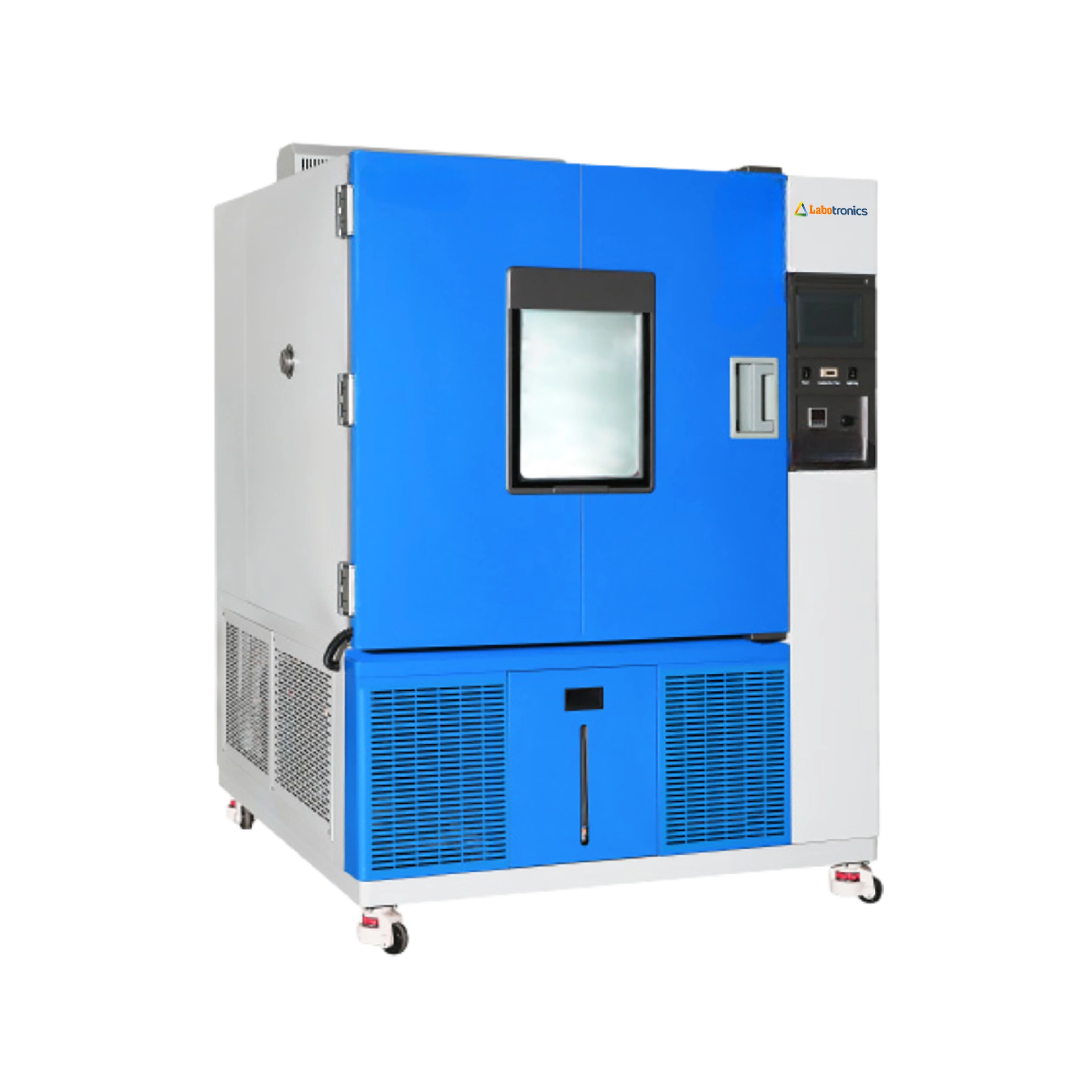

.webp "Temperature and Humidity Test Chamber LB-16CTH")
.webp "Temperature and Humidity Test Chamber LB-16CTH")
.webp "Temperature and Humidity Test Chamber LB-16CTH")
.webp "Temperature and Humidity Test Chamber LB-16CTH")
.webp "Temperature and Humidity Test Chamber LB-16CTH")
.webp "Temperature and Humidity Test Chamber LB-16CTH")
Temperature and Humidity Test Chamber LB-16THC offers a 1000L capacity and operates efficiently within a temperature range of up to 100°C. It features an R404A/R23 refrigerant with a cooling rate of 0.7 to 1.0°C/min. It is equipped with an independent heating system for stable and consistent heating. Our test chamber includes a 7-inch touch screen controller for accurate environmental testing.
$ 11837.5
Download CatalogSpecifications
| Capacity | 1000L |
| Temperature Range | 0 to 100°C |
| Temperature Fluctuation | ≤ ±0.5°C |
| Temperature Uniformity | ≤ 2.0°C |
| Humidity Range | 20% to 98% R.H |
| Humidity Deviation | +2/-3% R.H |
| Heating Rate | 2.0 to 3.0°C/min |
| Cooling Rate | 0.7 to 1.0°C/min |
| Refrigerant | R404A/R23 |
| Humidification System | Shallow slot steam |
| Dehumidification System | Refrigeration dehumidification mode |
| Heating System | NiCr heater |
| Circulation System | Single-cycle, stainless-steel fan |
| Display | 7-inch Touch Screen Controller |
| Interior | Anti-corrosion SUS 304 mirror stainless steel |
| Exterior | Reinforced steel plate with electrostatic spraying |
| Insulation | Fiberglass wool/polyurethane foam |
| Power Supply | 220V 50/60Hz, 380V 50/60Hz or customized |
| Inner Dimension (W × D × H) | 1000 × 1000 × 1000 mm |
| Outer Dimension (W × D × H) | 1560 × 1610 × 2240 mm |
| Weight | 790 kg |
Features
Applications
Temperature and Humidity Test Chamber LB-16THC is used to test product stability, performance, and durability under controlled environmental conditions. It is widely used in electronics, pharmaceuticals, automotive, aerospace, and research laboratories.
Frequently asked questions For Temperature And Humidity Test Chamber
1. What is a Temperature and Humidity Test Chamber?
Temperature and Humidity Test Chamber is a laboratory or industrial device used to simulate environmental conditions by precisely controlling temperature and humidity levels for testing products, materials, or components.
2. Do you offer different types of temperature and humidity test chambers?
Yes, we do! Labotronics offers a wide range of temperature and humidity test chambers, including benchtop models, floor-standing units, and walk-in chambers to meet various environmental testing requirements.
3. How do I choose the right chamber for my application?
It depends on the size of your test sample, the required temperature/humidity range, and your test standards. Our team can help you select the right model based on your specific testing needs and industry requirements.
4. Are your chambers suitable for long-duration tests?
Yes. Our chambers are designed for continuous operation and can run long test cycles ranging from a few hours to several days or weeks, without interruption.
