Abbe Refractometer LB-20ABBE

Abbe Refractometer LB-20ABBE

Abbe refractometer LB-20ABBE is a microprocessor controlled benchtop unit. The modulated system employs rapid and accurate measurement of refractive index, average dispersion and partial dispersion. The automated temperature correction promotes accurate result delivery.

Buy Now Download Catalog

Specifications

Measuring range Refractive index: 1.30000 nD ~ 1.70000 nD
Brix: 0 % ~ 100 %
Measuring accuracy Refractive index: ± 0.0002 %
Brix: ± 0.1 %
Temperature range 0 °C ~ 50 °C
Brix temperature correcting range 15 °C ~ 45 °C
Dimensions 370 × 240 × 470 mm
Weight 12 kgs

Features

  • Digital LCD screen for visual monitoring of set parameters
  • Hard glass prism mechanism
  • Automated measuring system
  • Facilitates data storage
  • RS232 and USB communication interface
  • Anti-corrosive structural unit

Applications

Used for measuring the refractive index of cane sugar, pharmaceutical products, beverages, petroleum products, food, chemicals, etc.

Our Team Of Experts Will Promptly Address Your Inquiry.

What our customers say

Martin M. Nthenge logo

3 months ago

John Mbatsi logo

8 months ago

Sangeeta logo

1 year ago

Add a review

Abbe Refractometer

Abbe Refractometer : Abbe Refractometer LB-11ABBE
Measuring range Refractive index: 1.3000 nD ~ 1.7000 nD
Brix: 0 % ~ 95 %
Measuring accuracy
Temperature range
Thermostatic control
Abbe Refractometer : Abbe Refractometer LB-31ABBE
Measuring range Refractive index: 1.30000 nD ~ 1.70000 nD
Brix: 0 % ~ 100 %
Measuring accuracy Refractive index: ± 0.0002 %
Brix: ± 0.1 %
Temperature range 0 °C ~ 50 °C
Thermostatic control RT ± 10 °C

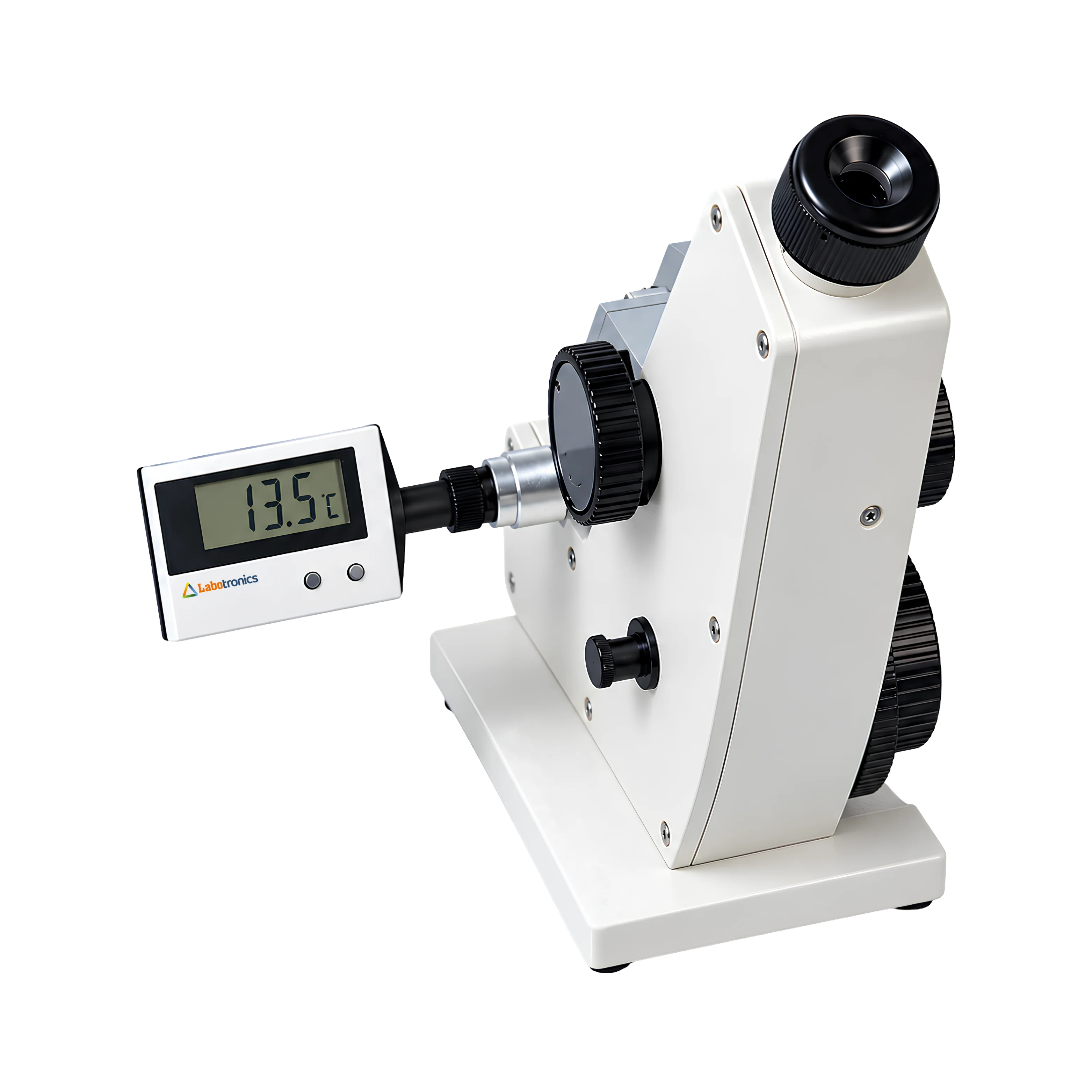

Abbe Refractometer : Abbe Refractometer LB-10ABBE
Measuring range Refractive index: 1.3000 nD ~ 1.7000 nD
Brix: 0 % ~ 95 %
Measuring accuracy
Temperature range
Thermostatic control
Abbe Refractometer : Abbe Refractometer LB-30ABBE
Measuring range Refractive index: 1.30000 nD ~ 1.70000 nD
Brix: 0 % ~ 100 %
Measuring accuracy Refractive index: ± 0.0002 %
Brix: ± 0.1 %
Temperature range 0 °C ~ 50 °C
Thermostatic control RT ± 10 °C

Our industrial fluid refractometer is a precision optical instrument designed for the manufacturing and industrial sector, used to measure the refractive index of various fluids and solutions. It operates by analyzing the way light passes through a sample, offering insights into its composition, concentration, and quality. These robust devices are built to withstand harsh industrial environments and are equipped with high-precision optics, digital displays, and often temperature compensation features for accurate readings.

Measurement range 0-32 % Brix
Minimum division 0.2 % Brix
Accuracy ± 0.20%
Size 200 mm
Measurement range 0-10 % Brix
Minimum division 0.1 % Brix
Accuracy ± 0.10%
Size 200 mm
Measurement range 0-18 % Brix
Minimum division 0.1 % Brix
Accuracy ± 0.10%
Size 200 mm

Our alcohol & grape refractometer is a specialized optical instrument used in winemaking and viticulture to measure the sugar content, often expressed as Brix, in grape juice or grape must, which is a crucial parameter in determining grape ripeness and potential alcohol content in wine. It operates by measuring the refractive index of the grape juice due to its sugar content. By providing accurate Brix readings, winemakers can make informed decisions about when to harvest grapes for optimal wine quality. These refractometers are essential tools for vineyard management, grape growers, and winemakers to ensure the grapes are harvested at the right time for producing high-quality wines with the desired alcohol levels and flavors.

Measurement range 0 % ~ 25 % Vol
Minimum division 0.2 % Vol
Accuracy ± 0.20%
Length 30 x 40 x 160 mm
Measurement range 0 % ~60 % 60 % ~80 % V/V
Minimum division 1% 2%
Accuracy 1% 2%
Length 34 x 40 x 160 mm
Measurement range 0 % ~ 25 % Vol 0~20 Beº
Minimum division 0.2 % Vol 0.2 % Brix
Accuracy ± 0.2 % Vol ± 0.2 % Brix
Length 32 x 40 x 160 mm
Measurement range 0 % ~25 % Vol 0~40 % Brix
Minimum division 0.2 % Vol 0.2 % Brix
Accuracy ± 0.2 % Vol ± 0.2 % Brix
Length 31 x 40 x 160 mm

Our soya bean milk refractometer is a specialized optical instrument designed for the food and beverage industry, particularly in the production of soya milk. It operates by measuring the refractive index of soya bean milk, which is influenced by parameters like sugar and solids content. These portable and user-friendly devices are equipped with precision optics and a clear scale for quick and accurate measurements of soya bean milk samples. Our soya bean milk refractometers are essential tools for manufacturers and quality control personnel, enabling them to monitor and control the concentration of ingredients like soy solids and sugars in the milk, ensuring product quality, adherence to industry standards, and the consistency of soya milk production.

Measurement Range 0 % ~ 32 % Brix 0 % ~ 25 % Bean juice
Minimum Division 0 % ~ 32 % Brix 0 % ~ 25 % Bean juice
Accuracy ± 0.2 % ± 0.5 %
Dimensions 30 x 40 x 160 mm

Labotronics honey refractometer is a specialized optical instrument used in the beekeeping and food industry to determine the moisture content and quality of honey. It operates by measuring the refractive index of honey, which is directly related to its sugar concentration and water content. These portable and easy-to-use devices are equipped with a sample well, precision optics, and a clear scale for quick and accurate measurements. Our honey refractometers are invaluable tools for beekeepers and honey producers, ensuring the quality and purity of honey products by allowing them to monitor and control moisture levels. By accurately assessing the moisture content in honey, these refractometers assist in achieving the desired taste, texture, and shelf life, making them essential for maintaining high-quality honey production standards.

Measurement range 58 % ~ 90 % Brix 38 ~ 43 Be 10 % ~ 33 % water
Minimum division 1 % Brix 0.5 Be 1 % water
Accuracy ± 1 % ± 0.5 Be ± 1 % water
Length 140 mm
Measurement range 13 % ~ 25 %Water
Minimum division 0.1 % water
Accuracy 0.1 % water
Length 140 mm

Our emulsion oil refractometer is a specialized optical instrument commonly used in industries such as food, cosmetics, and pharmaceuticals for measuring the refractive index of oil-in-water or water-in-oil emulsions. It operates by assessing the refractive index of these complex mixtures, which is influenced by the composition and concentration of the components. Equipped with precision optics, a sample well, and a digital interface, emulsion oil refractometers provide accurate and rapid measurements, helping manufacturers and quality control personnel ensure the consistency and quality of emulsion-based products such as creams, lotions, salad dressings, and more.

Measurement range 0 % ~ 15 % M-10 0 ~ 15 % MDT
Minimum division 0.5 % 0.5 %
Accuracy ± 0.1 % ± 0.001 RI
Length 30 × 40 × 170 mm
