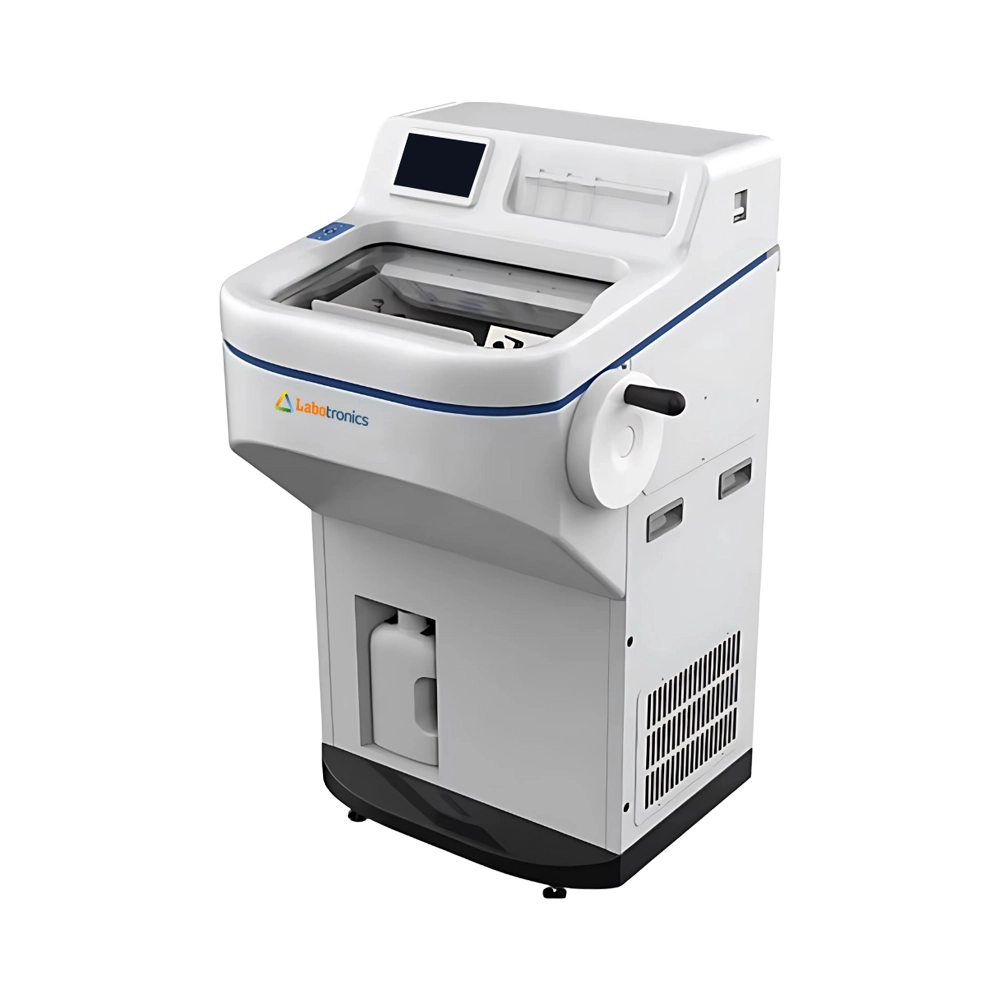

Cryostat Microtome LB-12CS offers a section thickness range of 1 to 100 μm for high-precision tissue slicing. Its freezing chamber temperature is adjustable from -35℃ to 40℃, ensuring optimal sample preservation and cutting conditions. Our microtome features UV sterilization for enhanced safety and a hygienic work environment. It also features an intuitive color LCD touchscreen interface offering easy operation and precise parameter adjustments.
Get Quote Download CatalogSpecifications
| Section Thickness Range | 1 μm to 100 μm |
| Freezing Chamber Temp. Range | -35℃ to 40℃ adjustable |
| Section Steps | 1 to 20 μm: 1 μm step 20 to 50 μm: 2 μm step 50 to 100 μm: 5 μm step |
| Section Thickness Deviation | ±20% |
| Trimming Thickness Range | 1 to 600 μm |
| Trimming Steps | 1 to 50 μm: 5 μm step 50 to 100 μm: 10 μm step 100 to 600 μm: 50 μm step |
| Defrost Mode | Manual / Auto |
| Refrigerating Capacity | 690 W |
| Refrigerant | R449A / 400g ±5g |
| Quick-Freeze Shelf Operating Temperature | -40℃ to 40℃ |
| Quick-Freeze Shelf Minimum Reaching Temperature | -60℃ (±5℃) |
| Specimen Holder Freezing Points | 18 |
| Semiconductor Freezing Points | 2 |
| Sample Retraction | 0 to 200 μm adjustable, 5 μm steps |
| Horizontal Stroke | 25 mm ±1 mm |
| Vertical Stroke | 59 mm ±0.5 mm |
| Max Specimen Size | 55 mm × 55 mm |
| Clamp Adjustment Angles | X and Y axis: ±12°, Z axis: 360° |
| Movement Speeds Slow Forward/Rewind | 300 μm/s |
| Movement Speeds Fast Forward/Rewind | 900 μm/s |
| Main Fuse | 4A |
| Power Supply | 220 to 240VAC, 50Hz / 60Hz; 110 to 127VAC, 60Hz |
| Power Consumption | 220 to 240VAC: 1400VA; 110 to 127VAC: 1200VA |
| Dimension (L×W×H) | 780 mm (650 mm without handwheel) × 700 mm × 1280 mm ±5% |
| Packing Dimension | 913 × 804 × 1467 mm |
| Net Weight | 120 kg |
| Gross Weight | 208±10kg |
Features
Automatic/manual hibernation mode
Semiconductor refrigeration system
Slice count and thickness calculation
Adjustable specimen clamp movement speed
One-piece injection-molded outer shell
Anti-fog heated viewing glass
Standard Accessories
Accessory | Quantity |
Specimen Disc | 10 pcs |
Fuse (4A) | 2 pcs |
Appliance Stand | 1 pc |
Power Line | 1 line |
Hexagonal Wrench | 1 set |
Brush | 1 pc |
Handle | 1 pc |
Applications
Cryostat Microtome LB-12CS is used to prepare thin tissue sections at low temperatures and is widely used in Clinical Pathology Labs, Cancer Diagnosis Centers, Research Laboratories, Veterinary Clinics, Forensic Labs.
| Slice Thickness Range | 0.5μm to 100μm (Optimal: 3 to 5μm) |
| Section Thickness Setting | 0.5 to 5μm in 0.5μm increments 5 to 20μm in 1μm increments 20 to 60μm in 5μm increments 60 to 100μm in 10μm increments |
| Trimming Section Range | 1 to 600μm |
| Trimming Thickness Setting | 1 to 10μm in 1μm increments 10 to 20μm in 2μm increments 20 to 50μm in 5μm increments 50 to 100μm in 10μm increments 100 to 600μm in 50μm increments |
| Slice Thickness Range | 0μm to 60μm |
| Section Thickness Settings | 0 to 2μm: 0.5μm increments 2 to 10μm: 1μm increments 10 to 20μm: 2μm increments 20 to 60μm: 5μm increments |
| Horizontal Specimen Stroke | 20 mm |
| Vertical Specimen Stroke | 50 mm |
| Section thickness range (adjustable) | 1 µm ~ 80 µm |
| Retraction range ( adjustable ) | 0 µm ~ 80 µm ( 5 µm increment ) |
| Horizontal specimen stroke | 20 mm |
| Vertical specimen stroke | 60 mm |
| Section Thickness Range | 0.5 μm to 100 μm (3 to 5 μm is optimal) |
| Section Thickness Setting | 0.5 to 5 μm, in 0.5 μm increments 5 to 20 μm, in 1 μm increments 20 to 60 μm, in 5 μm increments 60 to 100 μm, in 10 μm increments |
| Trimming Thickness | 1 to 600 μm |
| Trimming Thickness Setting | 1 to 10 μm, in 1 μm increments 10 to 20 μm, in 2 μm increments 20 to 50 μm, in 5 μm increments 50 to 100 μm, in 10 μm increments 100 to 600 μm, in 50 μm increments |
| Temperature Range | -5°C to -50°C, Default: -15°C |
| Sectioning Thickness Range | 0.5 to 100 μm, Default: 6 µm |
| Section Thickness Setting | 0.5 to 5 µm, Step: 0.5 µm 5 to 20 µm, Step: 1 µm 20 to 60 µm, Step: 5 µm 60 to 100 µm, Step: 10 µm |
| Trim Thickness Range | 1 to 600 μm, Default: 20 µm |
.webp "Cryostat Microtome LB-11CS")
| Section Thickness Range | 0.5µm to 100µm adjustable |
| Section Thickness Increment Range | 0.5µm to 5µm, in 0.5µm increment 5µm to 20µm, in 1µm increments 20µm to 50µm, in 2µm increments 50µm to 100µm, in 5µm increments |
| Trimming Thickness Range | 1µm to 600µm adjustable |
| Trimming Thickness Increment Range | 0µm to 50µm, in 5µm increments 50µm to 100µm, in 10µm increments 100µm to 600µm, in 50µm increments |
