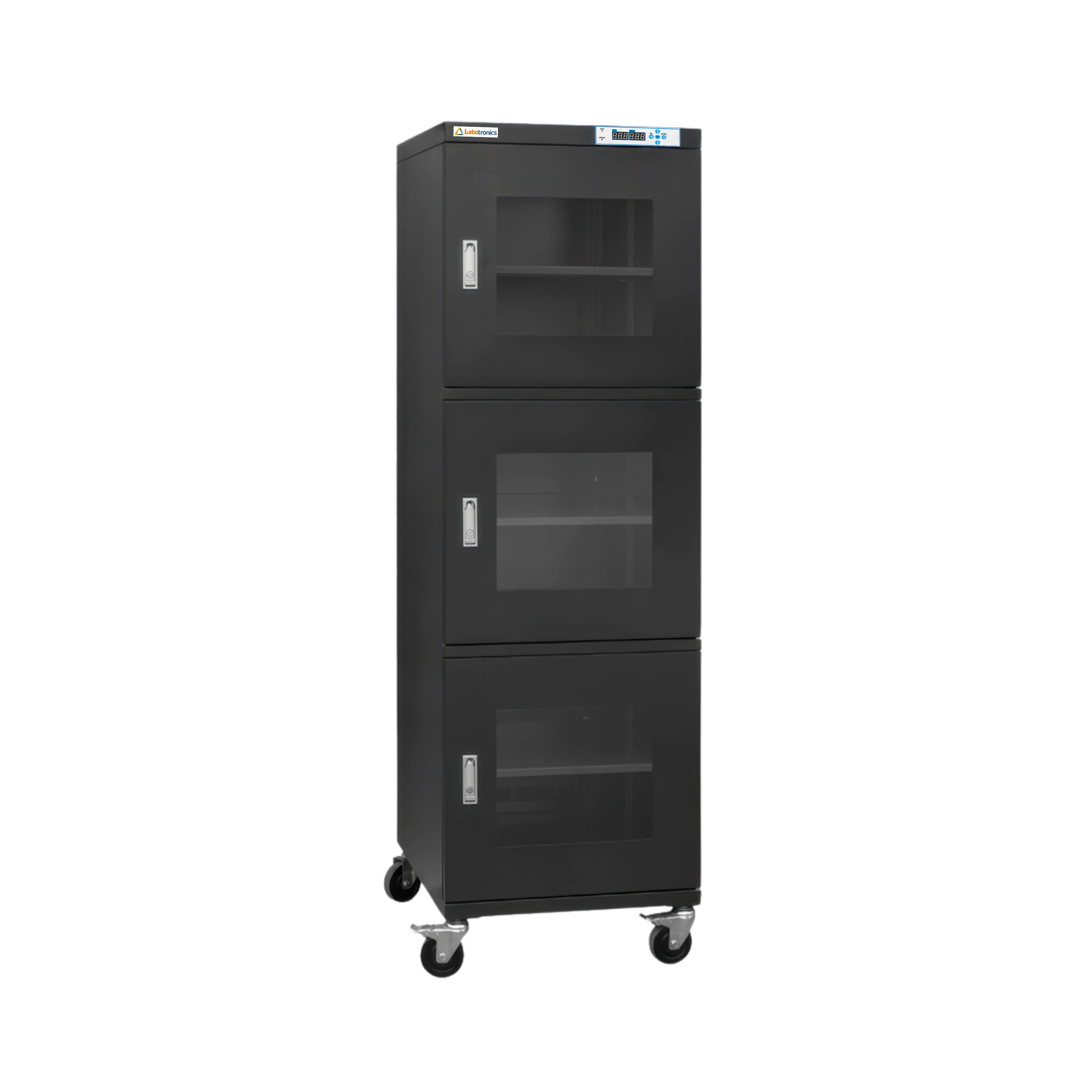

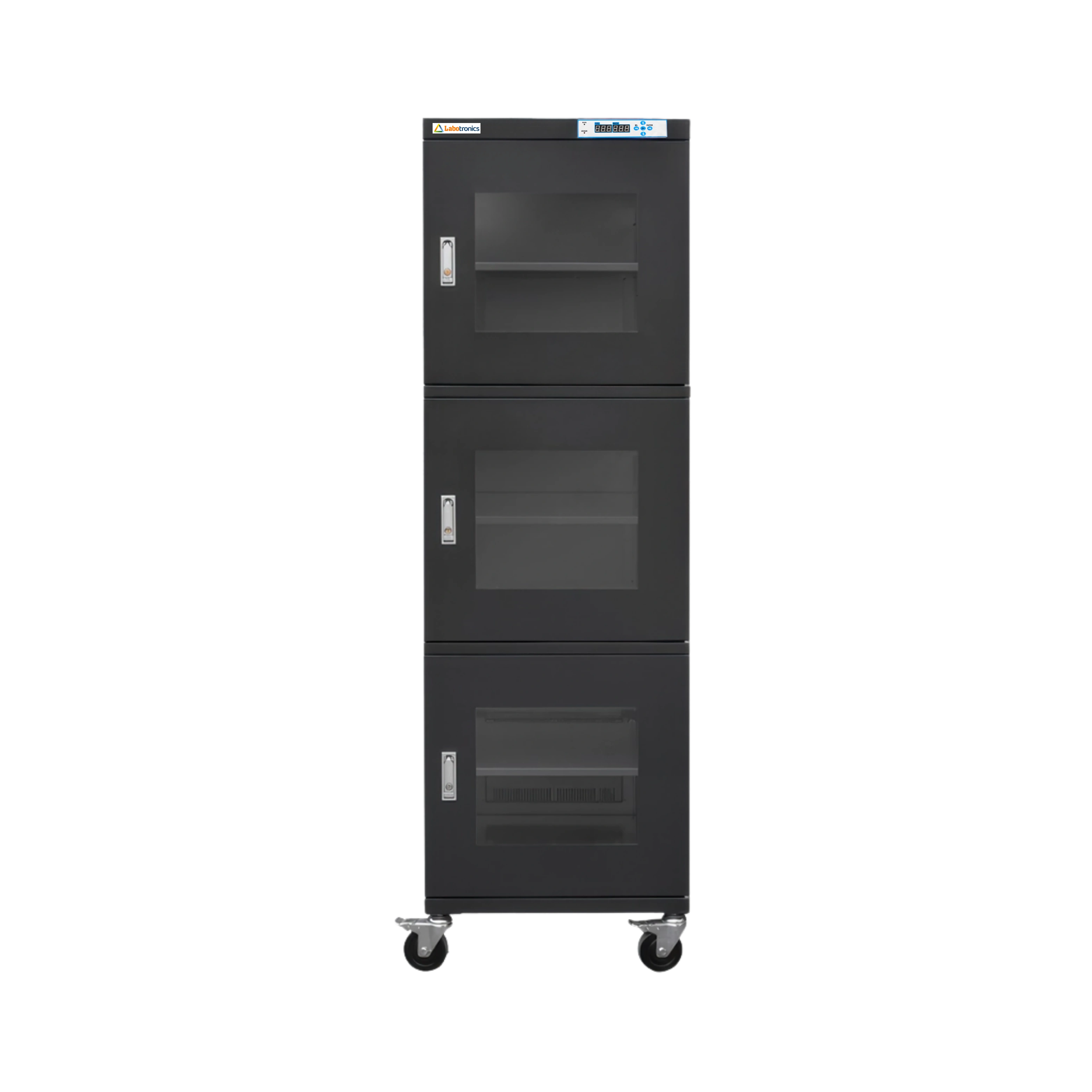

Drying Cabinet LB-46DC maintains an automatic humidity level of less than 10% RH and has a capacity of 718L. It features a high-precision humidity and temperature sensor, ensuring accurate monitoring of humidity levels. It supports heavy storage with a load capacity of up to 80 kg per shelf. Our drying cabinet offers an eco-friendly and reliable storage solution for moisture-sensitive electronic components.
$ 3562.5
Download CatalogSpecifications
| Capacity | 718L |
| Humidity Range | < 10% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Material | 1.2 mm thick galvanized steel with ESD-safe coating |
| Power Consumption | 8W |
| Inner Dimension (W × D × H) | 596 × 682 × 1723 mm |
| Outer Dimension (W × D × H) | 598 × 710 × 1910 mm |
| Net Weight | 84 kg |
| Gross Weight | 105 kg |
Features
Heavy load capacity
Anti-theft locking system
Tempered glass window
ESD-safe coating
Quick humidity recovery
Universal castors with brakes
Optional Accessories
Over-Humidity Buzzer Alarm
Open Door Buzzer Alarm
Three-Color Flashing Light Alarm
Data Logging System with USB Interface
Extra Shelf
Applications
Drying Cabinet LB-46DC is ideal for low-humidity storage of moisture-sensitive electronic components and is suitable for SMT parts, PCB boards, IC packages, and optical lenses. It is widely used in electronics manufacturing, semiconductor industries, laboratories, and research facilities.
