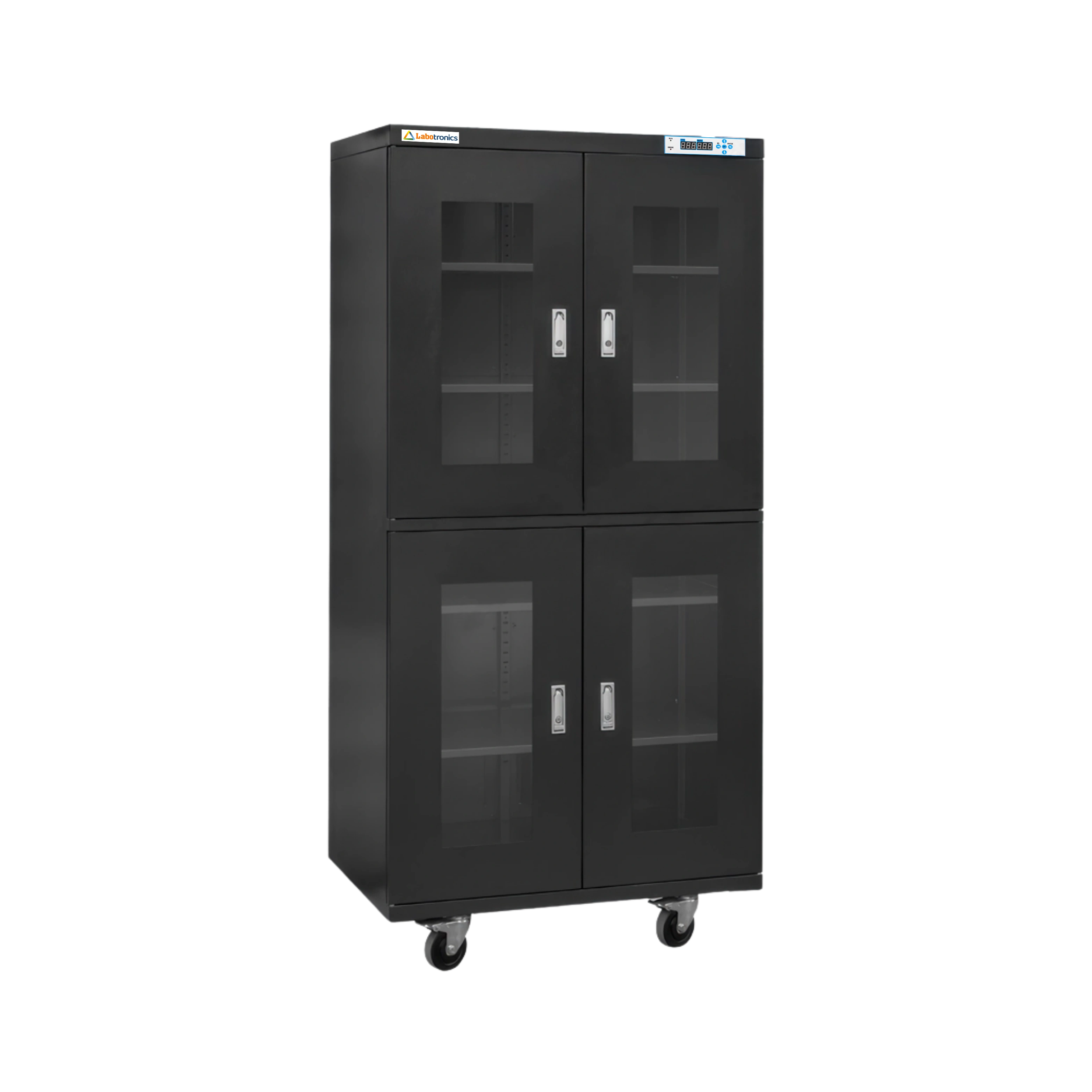

Drying Cabinet LB-48DC has a 1436-liter storage capacity, providing precise and safe storage for electronic components. It features automatic humidity control, maintaining levels below 10%RH for optimal moisture protection. It includes five shelves, allowing flexible storage configurations. Our drying cabinet is equipped with high-precision temperature and humidity sensors, enabling real-time monitoring for consistent drying performance.
$ 3900
Download CatalogSpecifications
| Capacity | 1436L |
| Humidity Range | < 10% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Material | 1.2 mm thick galvanized steel with ESD-safe coating |
| Power Consumption | 20W |
| Inner Dimension (W × D × H) | 1198 × 682 × 1723 mm |
| Outer Dimension (W × D × H) | 1200 × 710 × 1910 mm |
| Net Weight | 144 kg |
| Gross Weight | 189 kg |
Features
Large storage capacity
ESD-safe coating
Secure door lock
Fast moisture recovery
Universal castors
Durable construction
Optional Accessories
Over-Humidity Buzzer Alarm
Open Door Buzzer Alarm
Three-Color Flashing Light Alarm
Data Logging System with USB Interface
Extra Shelf
Applications
Drying Cabinet LB-48DC is used for moisture-sensitive storage of SMT components, PCB boards, IC packages, SMD reels, and optical lenses. It is widely used in electronics manufacturing, semiconductor industries, laboratories, and research facilities.
