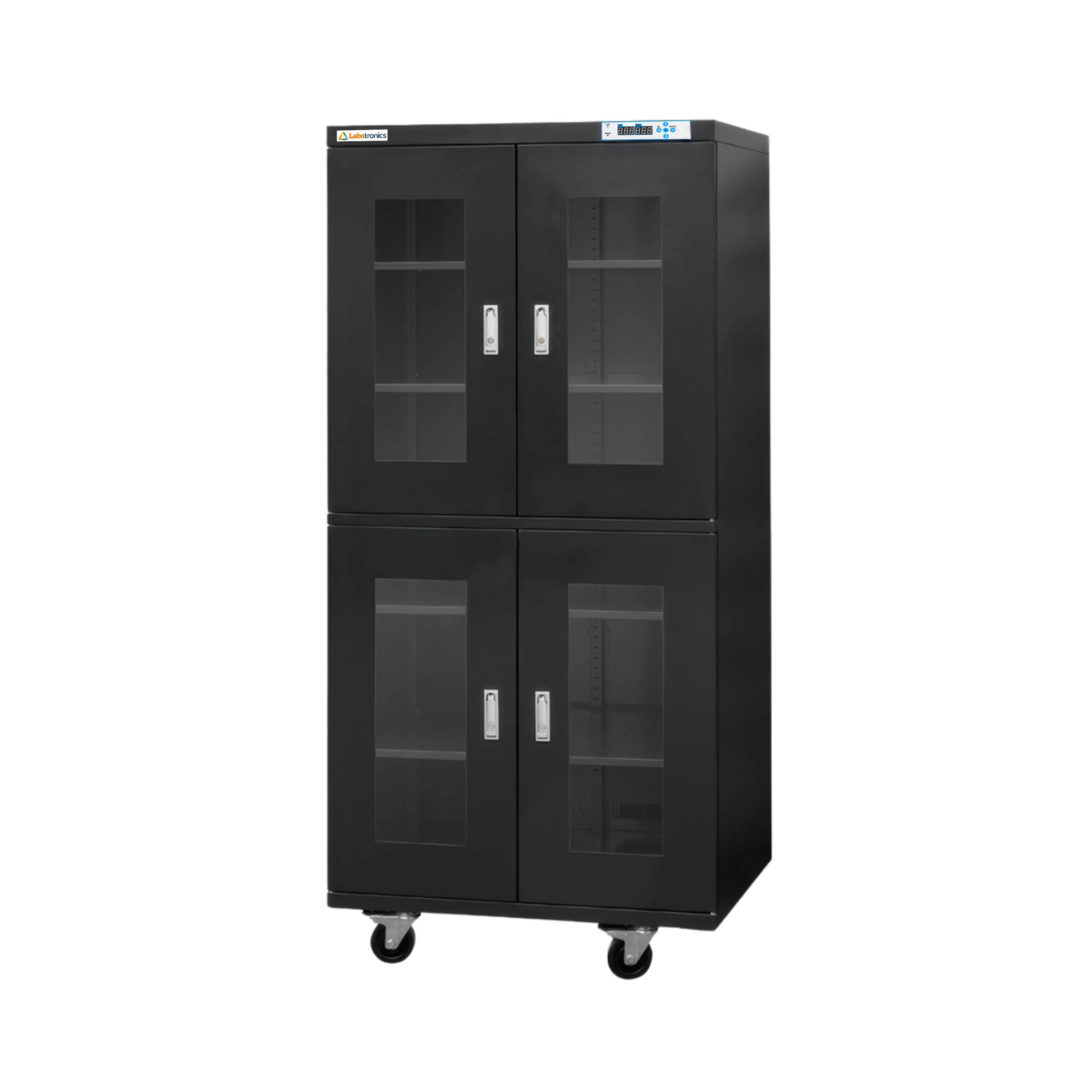

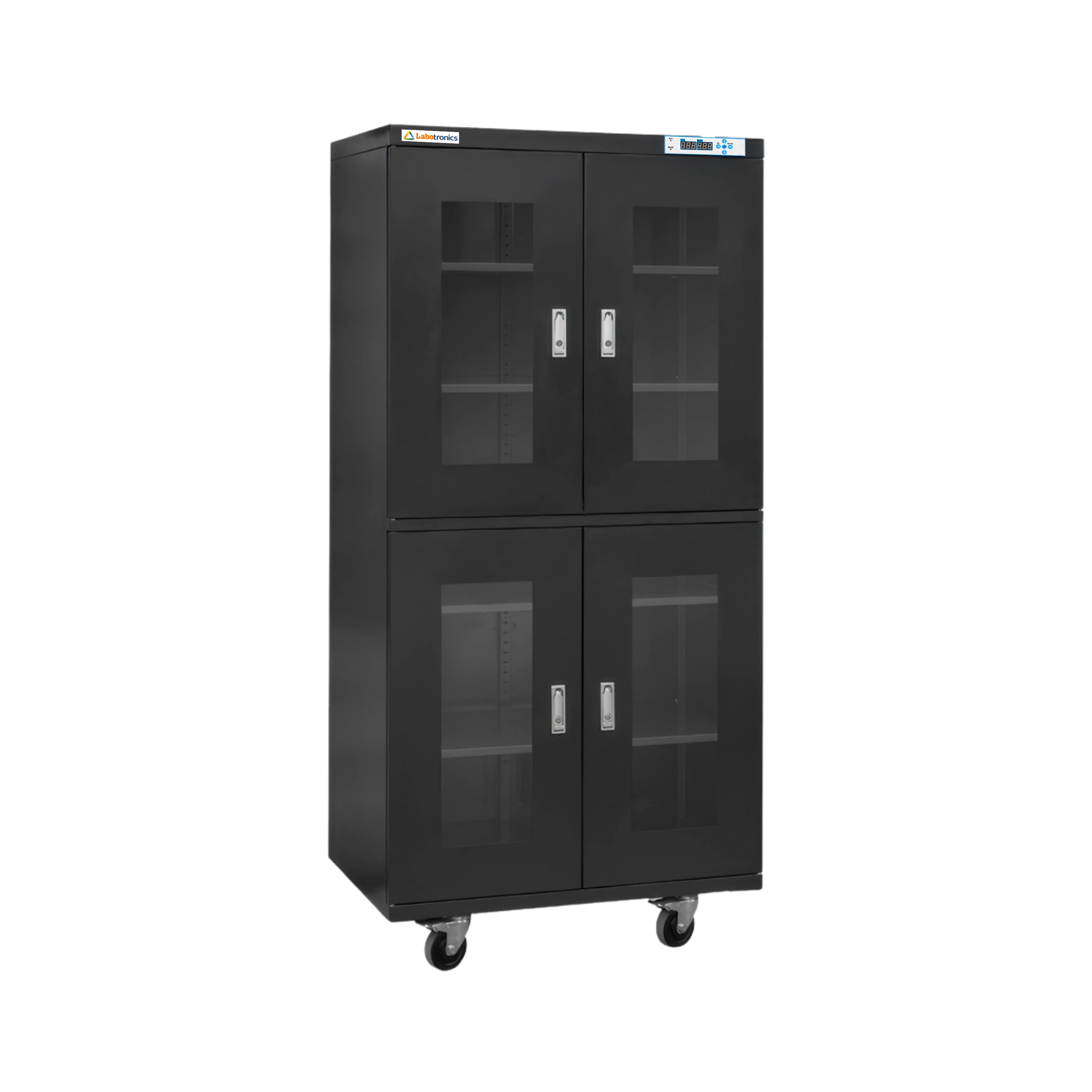

Drying Cabinet LB-65DC offers a capacity of 1436 liters with humidity control of 3% RH, ensuring precise storage of sensitive electronics. It includes five shelves, allowing for flexible storage configurations. It has temperature and humidity sensors for reliable monitoring and control. Our cabinet features an automatic desiccant regeneration mechanism, maintaining precise low-humidity levels.
$ 5543.75
Download CatalogSpecifications
| Capacity | 1436L |
| Humidity Range | < 3% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Material | 1.2 mm thick galvanized steel with ESD-safe coating |
| Power Consumption | 25W |
| Inner Dimension (W × D × H) | 1198 × 682 × 1723 mm |
| Outer Dimension (W × D × H) | 1200 × 710 × 1910 mm |
| Net Weight | 144 kg |
| Gross Weight | 189 kg |
Features
ESD-safe coating
High load capacity
N₂ purging option
Low power consumption
Durable construction
Optional Accessories
Over-Humidity Buzzer Alarm
Open Door Buzzer Alarm
Three-Color Flashing Light Alarm
Data Logging System with USB Interface
Extra Shelf
Applications
Drying Cabinet LB-65DC is used for storing moisture-sensitive electronic components, including semiconductors, SMDs, PCBs, and IC packages. It is ideal for use in electronics manufacturing facilities, R&D laboratories, and SMT production lines.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Capacity | 1436L |
| Humidity Range | 10 to 20% RH (Adjustable) |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 540L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 1436L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 5pcs (Height adjustable) |
| Maximum Load Capacity | 100 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 98L |
| Humidity Range | < 5%RH Automatic |
| Number of Shelves | 1pc |
| Maximum Load Capacity | 50 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 540L |
| Humidity Range | < 10% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 1436L |
| Humidity Range | < 5% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 160L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 50 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 540L |
| Humidity Range | 10 to 20% RH (Adjustable) |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 320L |
| Humidity Range | < 5% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 320L |
| Humidity Range | 10 to 20% RH (Adjustable) |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 240L |
| Humidity Range | 10 to 20%RH (Adjustable) |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 50 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 98L |
| Humidity Range | < 10%RH Automatic |
| Number of Shelves | 1pc |
| Maximum Load Capacity | 50 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 718L |
| Humidity Range | < 3% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 718L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 5pcs (Height adjustable) |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 320L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
