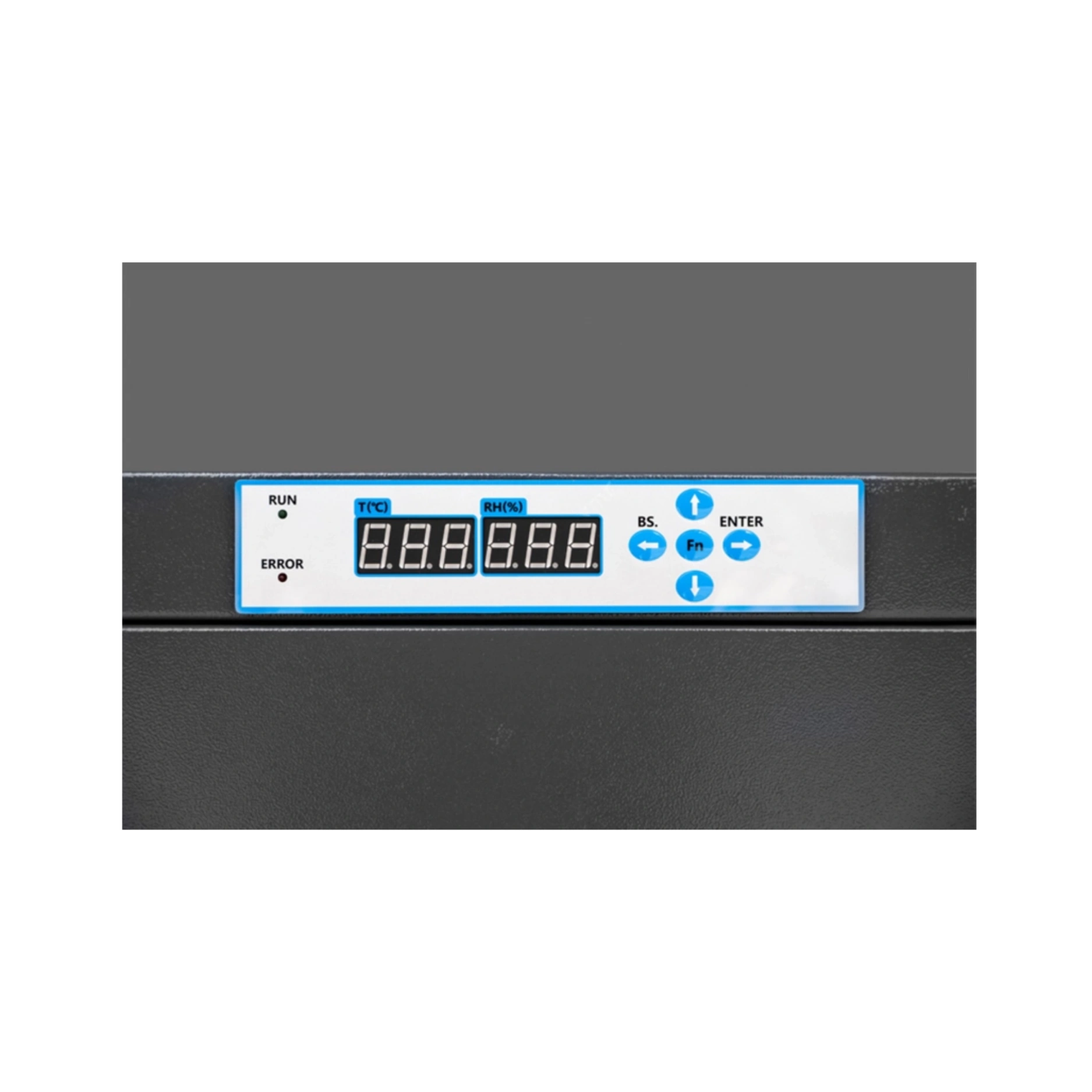

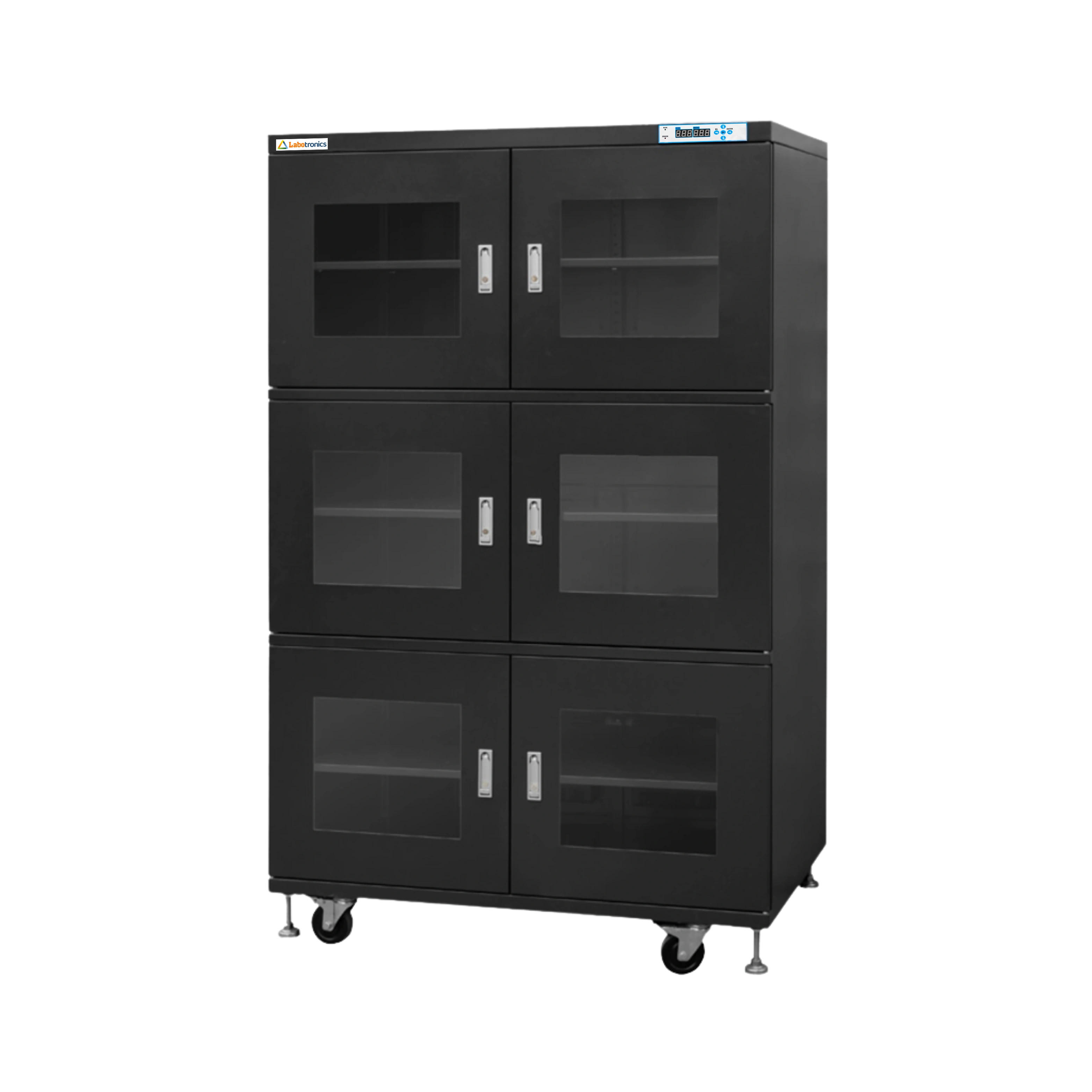

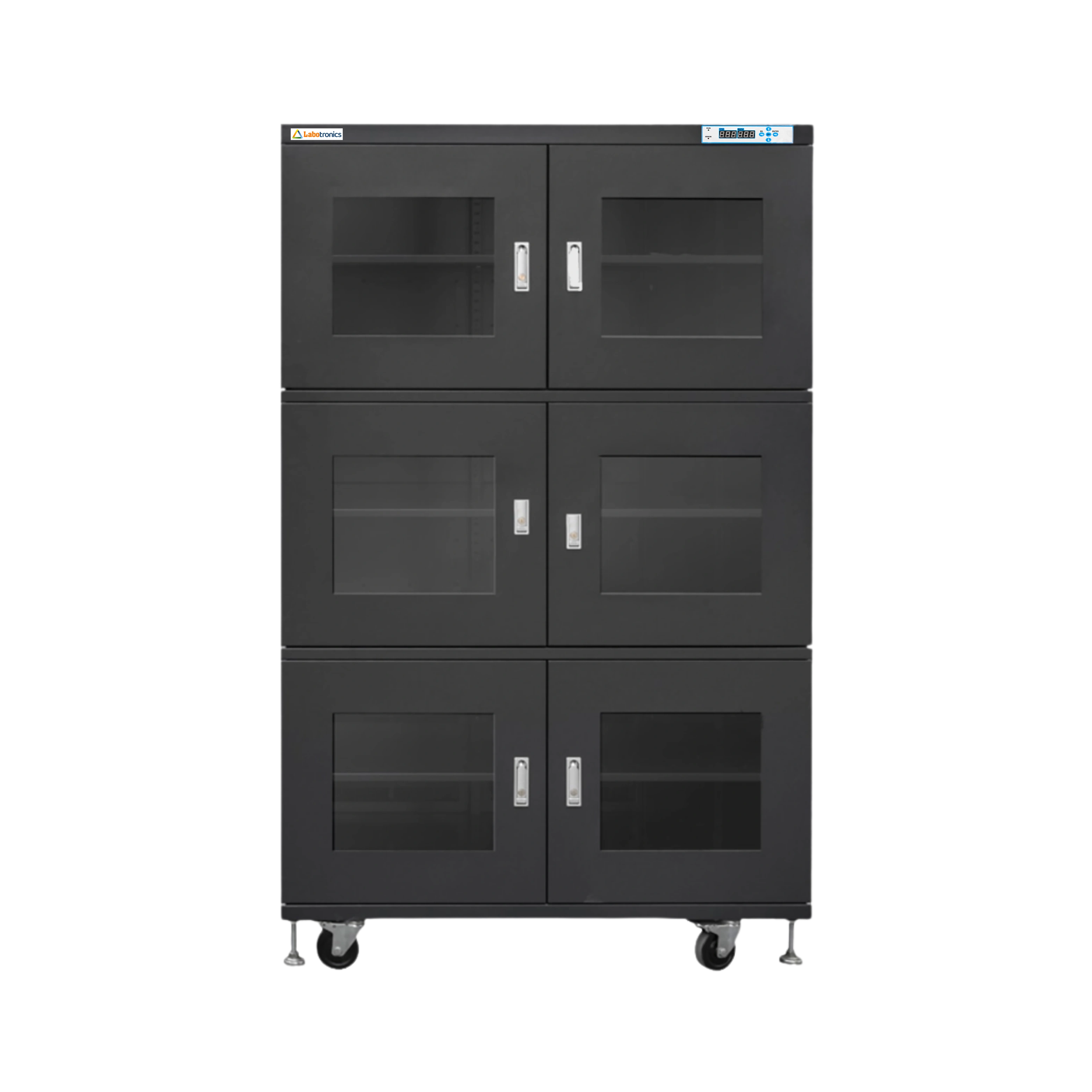

Drying Cabinet LB-49DC offers a capacity of 1436L and maintains humidity levels below 10% RH, ensuring reliable storage for sensitive electronics. It has five shelves, each supporting a maximum load of 100 kg for robust storage. The cabinet incorporates an automatic regeneration system, allowing for maintenance-free drying. Additionally, it features a high-precision humidity and temperature sensor for precise humidity control.
$ 4350
Download CatalogSpecifications
| Capacity | 1436L |
| Humidity Range | < 10% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Material | 1.2 mm thick galvanized steel with ESD-safe coating |
| Power Consumption | 20W |
| Inner Dimension (W × D × H) | 1198 × 682 × 1723 mm |
| Outer Dimension (W × D × H) | 1200 × 710 × 1910 mm |
| Net Weight | 144 kg |
| Gross Weight | 189 kg |
Features
ESD-safe coating
Quick drying time
Smooth mobility wheels
Tempered glass window
Durable construction
Optional Accessories
Over-Humidity Buzzer Alarm
Open Door Buzzer Alarm
Three-Color Flashing Light Alarm
Data Logging System with USB Interface
Extra Shelf
Applications
Drying Cabinet LB-49DC is used for storing and preserving sensitive electronic components. It is ideal for use in electronics manufacturing, semiconductor industries, research laboratories, and PCB assembly units.
