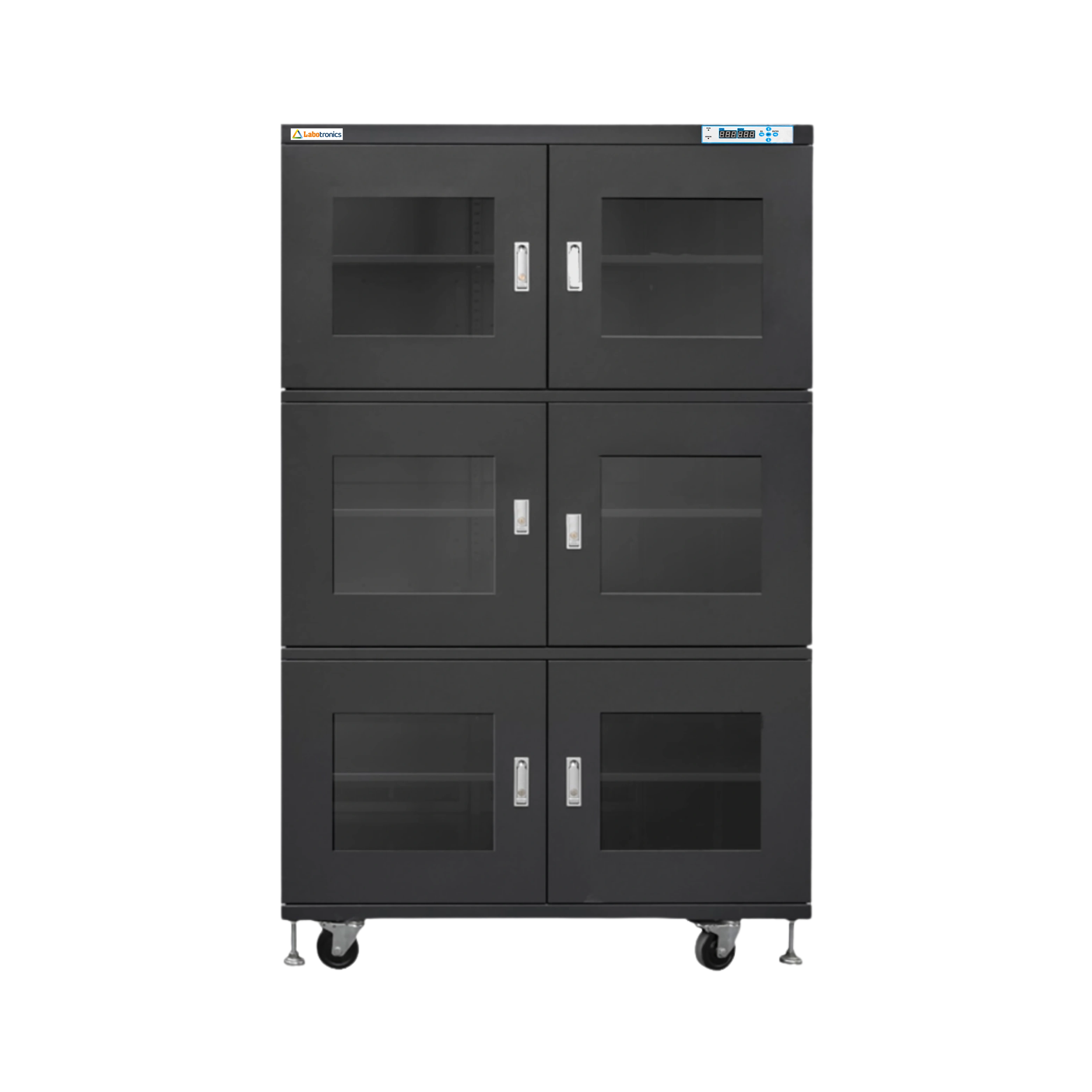

Drying Cabinet LB-20DC

Drying Cabinet LB-20DC

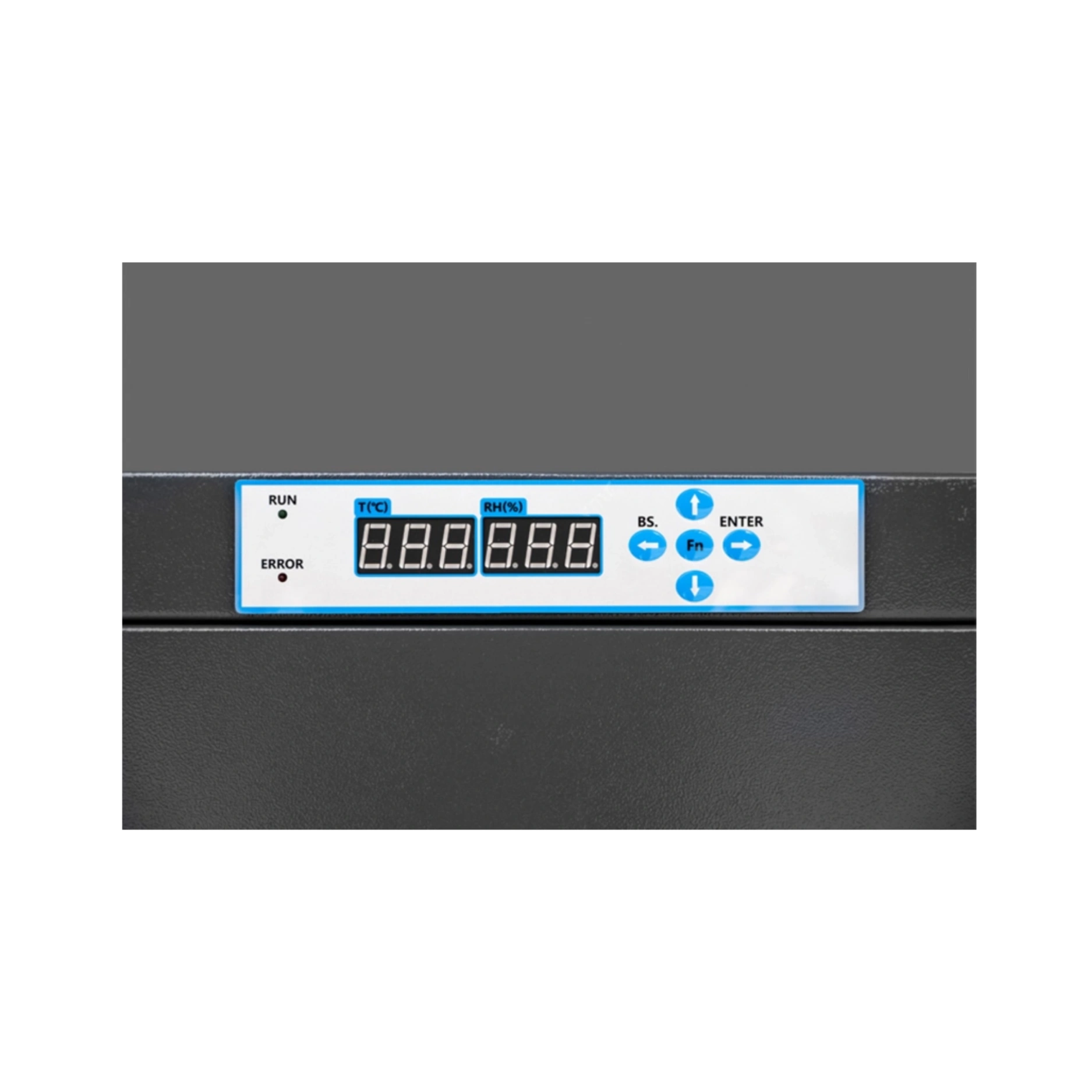

Drying Cabinet LB-20DC operates within a humidity range of 20 to 60% RH and offers a 1436L storage capacity for precisely storing moisture-sensitive materials. It accommodates a maximum load of 100 kg per shelf, ensuring reliable storage. It has a humidity and temperature sensor, providing stable storage conditions. Additionally, our cabinet includes a data logging system, enabling users to track humidity and temperature variations.

$ 3600

Download Catalog

Specifications

Capacity 1436L
Humidity Range 20 to 60% RH (Adjustable)
Number of Shelves 5pcs (Height adjustable)
Maximum Load Capacity 100 kg/shelf
Recovery Time Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH)
Material 1.2 mm thick galvanized steel with ESD-safe coating
Power Consumption 25W
Inner Dimension (W × D × H) 1198 × 682 × 1723 mm
Outer Dimension (W × D × H) 1200 × 710 × 1910 mm
Net Weight 144 kg
Gross Weight 189 kg

Features

  • Adjustable shelving system

  • Over-humidity alarm

  • Pressurized lock system

  • Door-open alert system

  • Automatic humidity regulation

  • Durable steel construction

Optional Accessories

Over-Humidity Buzzer Alarm

Open Door Buzzer Alarm

Three-Color Flashing Light Alarm

Data Logging System with USB Interface

Extra Shelf

Applications

Drying Cabinet LB-20DC is used for preserving and storing moisture-sensitive materials. It is widely applied in electronics manufacturing, semiconductor industries, research laboratories, and PCB assembly
