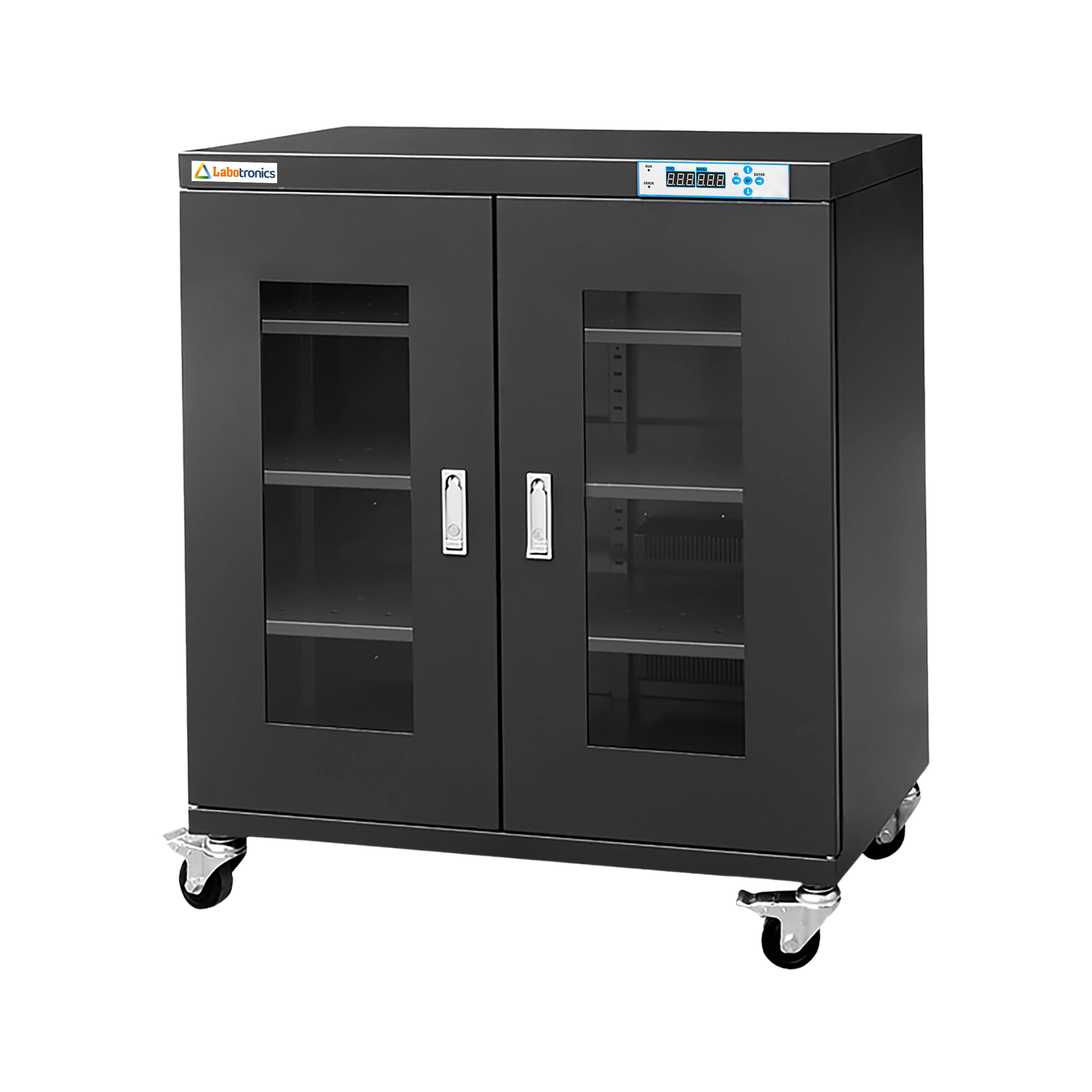

Drying Cabinet LB-54DC offers a 435L storage capacity, ensuring precise and secure storage for sensitive electronic components. It maintains below 5% RH with automatic humidity control to prevent moisture damage. The airtight locking system enhances security by providing anti-theft protection and sealed storage. Our cabinet includes temperature and humidity sensors for real-time monitoring of environmental conditions.
$ 3531.25
Download CatalogSpecifications
| Capacity | 435L |
| Humidity Range | < 5% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Material | 1.2 mm thick galvanized steel with ESD-safe coating |
| Power Consumption | 10W |
| Inner Dimension (W × D × H) | 898 × 572 × 848 mm |
| Outer Dimension (W × D × H) | 900 × 600 × 1010 mm |
| Net Weight | 59 kg |
| Gross Weight | 82 kg |
Features
Large storage capacity
ESD-safe coating
Universal castors
Durable construction
Low maintenance
Optional Accessories
Over-Humidity Buzzer Alarm
Open Door Buzzer Alarm
Three-Color Flashing Light Alarm
Data Logging System with USB Interface
Extra Shelf
Applications
Drying Cabinet LB-54DC is used for moisture-proof storage of PCBA, semiconductors, and electronic components, preventing humidity-related damage. Ideal for electronics manufacturing, laboratories, and research facilities.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Capacity | 160L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 50 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 435L |
| Humidity Range | 10 to 20% RH (Adjustable) |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 320L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 1436L |
| Humidity Range | 10 to 20% RH (Adjustable) |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 1436L |
| Humidity Range | < 5% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 98L |
| Humidity Range | < 5%RH Automatic |
| Number of Shelves | 1pc |
| Maximum Load Capacity | 50 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 240L |
| Humidity Range | < 10% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 50 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 98L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 1pc (Height adjustable) |
| Maximum Load Capacity | 50 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 240L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 50 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 1436L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 5pcs (Height adjustable) |
| Maximum Load Capacity | 100 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 540L |
| Humidity Range | < 5% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 435L |
| Humidity Range | < 3% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 1436L |
| Humidity Range | 10 to 20% RH (Adjustable) |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 98L |
| Humidity Range | < 10%RH Automatic |
| Number of Shelves | 1pc |
| Maximum Load Capacity | 50 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Capacity | 540L |
| Humidity Range | 10 to 20% RH (Adjustable) |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
