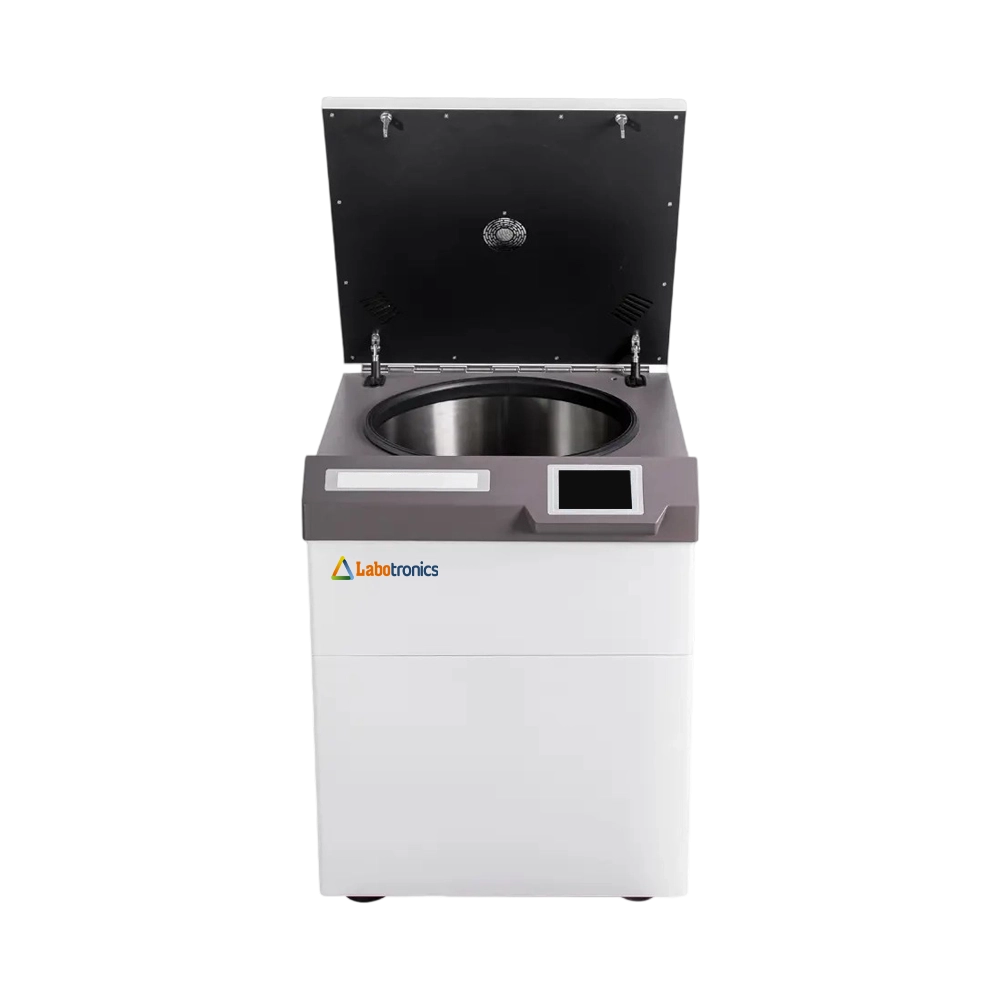

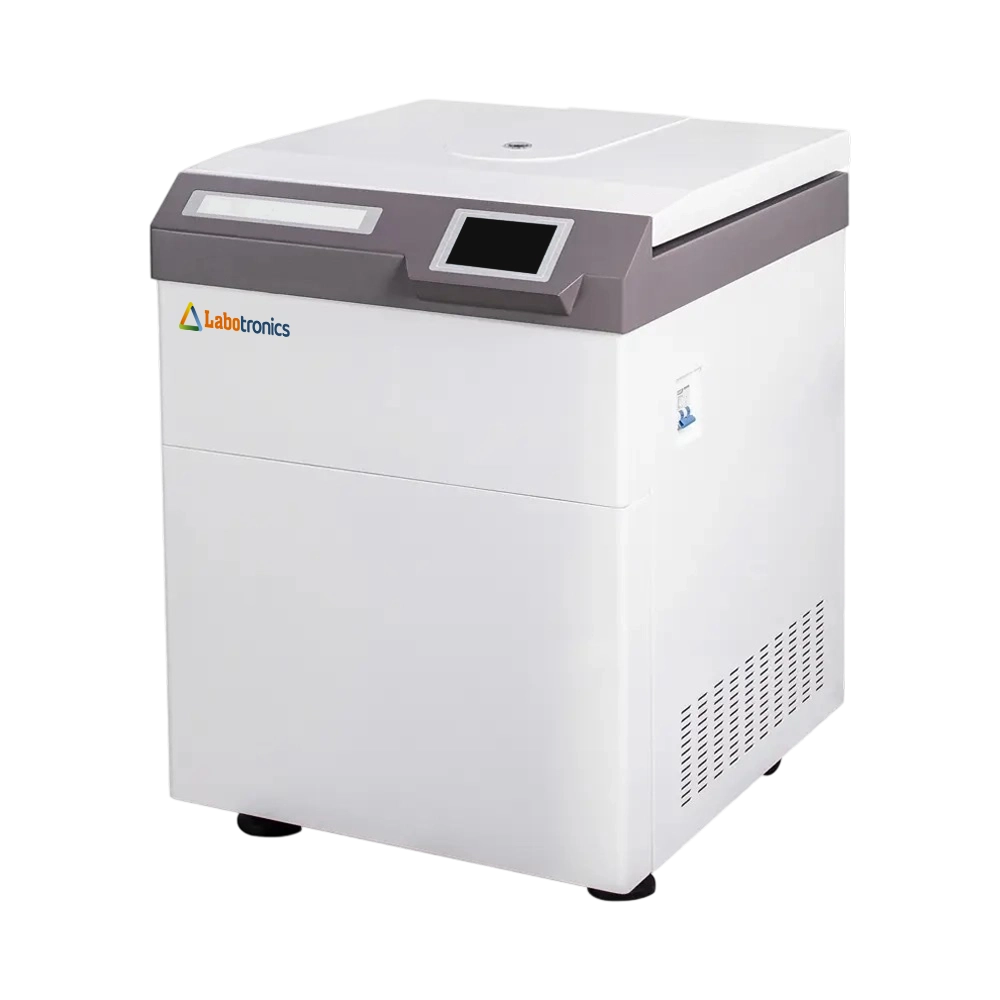

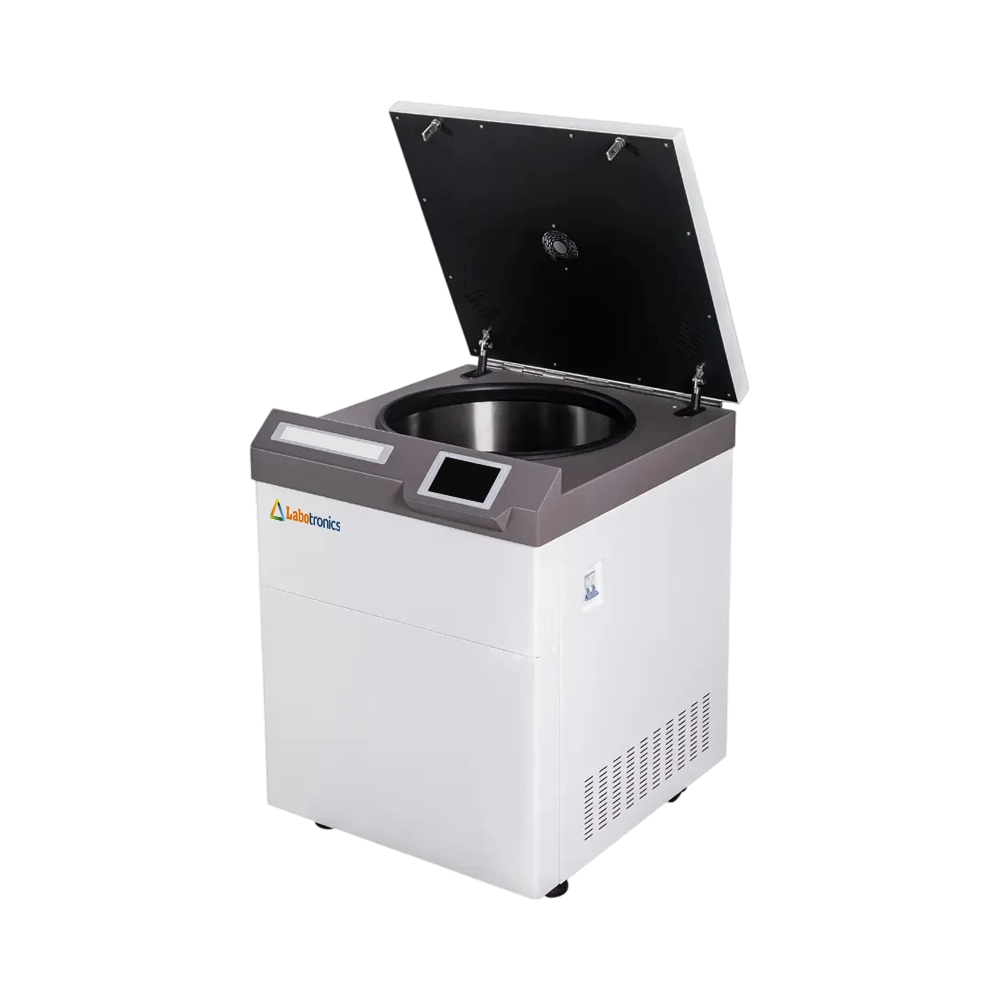

Low speed refrigerated centrifuge LB-20LRC is a microcomputer controlled unit with a speed of 4000 rpm. It is equipped with digitalized LED panel for observing and regulating ongoing parameters such as speed, time and temperature. The parameters can be changed anytime during the operation without any downtime. It consists of an LCD display and the safety and reliability of the unit increases due to its double lock rod design doors with magnetic locks.
Request Quote Download CatalogSpecifications
| Type | Vertical |
| Max speed | 4000 rpm |
| Max RCF | 3309 x g |
| Swing rotor capacity | 4 x 750 ml |
| Speed accuracy | ± 10 rpm |
| Temperature range | -20 °C to -40 °C |
| Temperature accuracy | ± 2 °C |
| Noise | ≤ 56 dB |
| Timer range (hh:mm:ss) | 1 min ̴ 99:99:59 |
| Power supply | AC 220 V 50 Hz |
| Power | 2000 W |
| Dimensions | 580 x 735 x 855 mm |
| Weight | 130 kgs |
Features
Applications
Used for a wide range of biomedical analysis, immunoenzyme analysis, microplate processing and cell culture applications.
Rotor Selections
| Sr No | Model | Max speed | Max RCF | Rotor capacity |
| 1 | Swing-out rotor | 4000 rpm | 3309 x g | 4 x 750 ml |
| Adapter 01 | 24 x 50 ml | |||
| Adapter 02 | 52 x 15 ml | |||
| Adapter 03 | 116 x Vacuum blood tube | |||
| Adapter 04 | 8 x 100 ml | |||
| Adapter 05 | 116 holes cap remover | |||
| 2 | ELISA plate rotor | 4000 rpm | 2403 x g | 96 holes x 4 |
| Speed range | 5000 rpm |
| Maximum RCF | 4390 × g |
| Speed accuracy | ± 20 rpm |
| Time range | 1 min ~ 99 mins |
| Speed range | 6500 rpm |
| Maximum RCF | 5190 × g |
| Speed accuracy | ± 20 rpm |
| Time range | 1 min ~ 99 mins |
| Speed range | 5500 rpm |
| Maximum RCF | 5310 × g |
| Speed accuracy | ± 20 rpm |
| Time range | 1 min ~ 99 mins |
| Speed range | 6500 rpm |
| Maximum RCF | 5310 × g |
| Speed accuracy | ± 20 rpm |
| Time range | 1 min ~ 99 mins |
| Type | Vertical |
| Max speed | 4000 rpm |
| Max RCF | 3309 x g |
| Swing rotor capacity | 4 x 750 ml |
| Type | Vertical |
| Max speed | 4200 rpm |
| Max RCF | 3387 x g |
| Swing rotor capacity | 4 x 600 ml |
| Type | Vertical |
| Max speed | 4200 rpm |
| Max RCF | 5116 x g |
| Swing rotor capacity | 6 x 1000 ml |
| Type | Benchtop |
| Max speed | 4500 rpm |
| Max RCF | 3524 x g |
| Swing rotor capacity | 4 x 300 ml |
| Type | Vertical |
| Max speed | 4500 rpm |
| Max RCF | 3524 x g |
| Swing rotor capacity | 4 x 300 ml |
| Maximum speed | 4200 rpm |
| Maximum RCF | 5116 × g |
| Maximum capacity | 6 × 1000 ml |
| Temperature range | -20°C to 30°C |
