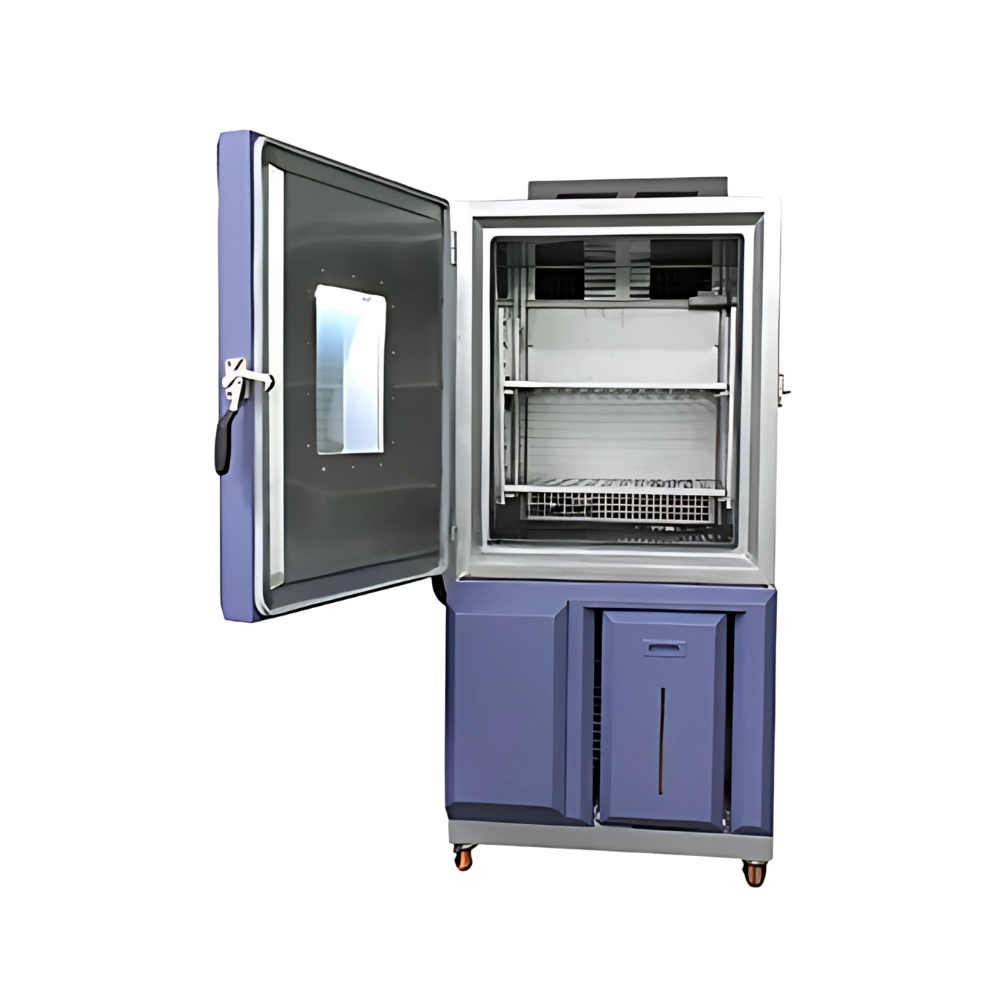

The temperature and humidity test chamber LB-73THC is a 800 L test chamber equipped with a wide range of temperatures ( -20 ºC to 150 ºC ) and relative humidity levels ( 20 % to 98 % ). It is designed to meet comprehensive test conditions of temperature and humidity to test products for their environmental adaptability.
Buy Now Download CatalogSpecifications
| Chamber capacity | 800 L |
| Interior dimensions (W x H x D) | 1000 x 1000 x 800 mm |
| Exterior dimensions (W x H x D) | 1280 x 2160 x 1750 mm |
| Temperature range | ( -20 °C to 150 °C ) |
| Constant temperature | ( ± 0.5 °C ) |
| Temperature uniformity | ( ± 2.0 °C ) |
| Humidity range | 20 % to 98 % R.H |
| Constant humidity | ± 2.5 % R.H |
| Humidity uniformity | ± 5.0 % R.H |
| Heat up time ( within 35 min ) | -20 °C to 100 °C |
| Cool down time ( within 45 min) | 23 °C to -20 °C |
| Ambient temperature | 5 °C to 35 °C |
| Power supply | AC 380 V ± 10 % 50 Hz |
| Power output | 12.8 kW |
| Refrigeration system ( standard ) | Air cooled |
| Refrigeration system ( optional ) | Water cooled |
| Compressor | Hermetic compressor system |
| Refrigeration stage | Single-stage refrigeration |
| Refrigerant | CFC-free refrigerant ( HFC-507 / HFC-23 ) |
| Control system | Balanced Temperature and Humidity control system |
| Screen panel controller | 7-inch LCD Touch panel |
| Operation mode | Program or setting |
| Memory capacity | 123 programs 1200 steps All repeat 999 cycles Part repeat 99 cycles |
| Interior material | Stainless steel plate ( SUS 304 ) |
| Exterior material | Baked painting steel or Stainless steel ( SUS304 ) |
| Insulation material | Rigid polyurethane foam and Glass fiber wool |
| Weight | 500 kg |
Features
Applications
Used in industrial and research institutes for paper, plastic, electronics, automotive, pharmaceuticals equipment to improve product reliability, environmental adaptability and service life
Standard Accessories
| Accessory No | Accessory | Units |
| 1 | Sight window | 1 |
| 2 | Cable port ( port 50 mm ) | 1 |
| 3 | Shelves | 2 |
| 4 | Chamber lamp | 1 |
| 5 | Power cable | 1 |
Standard Safety Devices
| Safety Device No. | Safety Device |
| 1 | No fuse breaker |
| 2 | Over pressure, Over heat and over current protection for compressor |
| 3 | Over temperature protect |
| 4 | Over load protect of blower |
| 5 | Dry heat protection |
What our customers say
Alves .
1 year ago
SACHINI SAMUDIKA
3 years ago
ZAQ AHMED
1 year ago
Add a review
| Chamber capacity | 408 L |
| Interior dimensions (W x H x D) | 700 x 750 x 800 mm |
| Exterior dimensions (W x H x D) | 980 x 1940 x 1740 mm |
| Temperature range | ( -20 °C to 150 °C ) |
| Chamber capacity | 225 L |
| Interior dimensions (W x H x D) | 700 x 700 x 480 mm |
| Exterior dimensions (W x H x D) | 980 x 1890 x 1460 mm |
| Temperature range | ( -20 °C to 150 °C ) |
| Chamber capacity | 1000 L |
| Interior dimensions (W x H x D) | 1000 x 1000 x 1000 mm |
| Exterior dimensions (W x H x D) | 1280 x 2160 x 1950 mm |
| Temperature range | ( -70 °C to 150 °C ) |
| Chamber capacity | 1000 L |
| Interior dimensions (W x H x D) | 1000 x 1000 x 1000 mm |
| Exterior dimensions (W x H x D) | 1280 x 2160 x 1950 mm |
| Temperature range | ( -20 °C to 150 °C ) |
| Chamber capacity | 150 L |
| Interior dimensions (W x H x D) | 600 x 600 x 460 mm |
| Exterior dimensions (W x H x D) | 880 x 1730 x 1400 mm |
| Temperature range | ( -20 °C to 150 °C ) |
| Chamber capacity | 225 L |
| Interior dimensions (W x H x D) | 700 x 700 x 480 mm |
| Exterior dimensions (W x H x D) | 980 x 1890 x 1460 mm |
| Temperature range | ( -20 °C to 150 °C ) |
| Chamber capacity | 408 L |
| Interior dimensions (W x H x D) | 700 x 750 x 800 mm |
| Exterior dimensions (W x H x D) | 980 x 1940 x 1740 mm |
| Temperature range | ( -20 °C to 150 °C ) |
| Chamber capacity | 408 L |
| Interior dimensions (W x H x D) | 700 x 750 x 800 mm |
| Exterior dimensions (W x H x D) | 980 x 1940 x 1740 mm |
| Temperature range | ( -70 °C to 150 °C ) |
| Chamber capacity | 225 L |
| Interior dimensions (W x H x D) | 700 x 700 x 480 mm |
| Exterior dimensions (W x H x D) | 980 x 1890 x 1460 mm |
| Temperature range | ( -70 °C to 150 °C ) |
| Chamber capacity | 1000 L |
| Interior dimensions (W x H x D) | 1000 x 1000 x 1000 mm |
| Exterior dimensions (W x H x D) | 1280 x 2160 x 1950 mm |
| Temperature range | ( -20 °C to 150 °C ) |
| Chamber capacity | 800 L |
| Interior dimensions (W x H x D) | 1000 x 1000 x 800 mm |
| Exterior dimensions (W x H x D) | 1280 x 2160 x 1750 mm |
| Temperature range | ( -70 °C to 150 °C ) |
| Chamber capacity | 800 L |
| Interior dimensions (W x H x D) | 1000 x 1000 x 800 mm |
| Exterior dimensions (W x H x D) | 1280 x 2160 x 1750 mm |
| Temperature range | ( -20 °C to 150 °C ) |
| Chamber capacity | 150 L |
| Interior dimensions (W x H x D) | 600 x 600 x 460 mm |
| Exterior dimensions (W x H x D) | 880 x 1730 x 1400 mm |
| Temperature range | ( -20 °C to 150 °C ) |
Labotronics Constant Temperature and Humidity Test Chambers are controlled environments designed for testing the impact of specific temperature and humidity levels on various materials and products. These chambers provide a stable and reproducible setting, allowing researchers and manufacturers to assess how items perform under different climate conditions. By subjecting samples to controlled temperature and humidity variations, these test chambers simulate real-world conditions, helping to identify potential issues, optimize designs, and ensure the durability and performance of products in diverse environments.
| Temperature range | - 20 °C ~ 150 °C |
| Humidity range | 20 % ~ 98 % |
| Heat up time | 4 °C / min |
| Cool down time | 1 °C / min |
| Temperature range | 25 °C ~100 °C |
| Humidity range | 20 % ~ 98 % |
| Heat up time | 4 °C / min |
| Cool down time | 1 °C / min |
| Temperature range | - 40 °C ~ 150 °C |
| Humidity range | 20 % ~ 98 % |
| Heat up time | 4 °C / min |
| Cool down time | 1 °C / min |
| Temperature range | 0 °C ~ 150 °C |
| Humidity range | 20 % ~ 98 % |
| Heat up time | 4 °C / min |
| Cool down time | 1 °C / min |
Our Environmental Stress Screening (ESS) Test Chambers are specialized facilities designed to subject electronic components or products to extreme temperature variations, mechanical vibrations, and other environmental stresses. These chambers play a crucial role in ensuring the reliability and robustness of electronic systems by simulating real-world conditions. Typically used in quality control processes during manufacturing, ESS Test Chambers help identify latent defects or weaknesses in electronic devices that may lead to premature failure in the field. Through controlled cycles of rapid temperature changes and mechanical stresses, these chambers accelerate the aging process, allowing manufacturers to detect and rectify potential issues before products reach end-users.
| Chamber capacity | 1000 L |
| Temperature change rate | 10 °C / min |
| Interior dimension ( W x H x D ) | 1000 x 1000 x 1000 mm |
| Exterior dimensions ( W x H x D ) | 1600 x 2200 x 2000 mm |
| Chamber capacity | 1000 L |
| Temperature change rate | 15 °C / min |
| Interior dimension ( W x H x D ) | 1000 x 1000 x 1000 mm |
| Exterior dimensions ( W x H x D ) | 1600 x 2200 x 2000 mm |
| Chamber capacity | 408 L |
| Temperature change rate | 10 °C / min |
| Interior dimension ( W x H x D ) | 800 x 850 x 600 mm |
| Exterior dimensions ( W x H x D ) | 1400 x 2050 x 1600 mm |
| Chamber capacity | 225 L |
| Temperature change rate | 10 °C / min |
| Interior dimension ( W x H x D ) | 600 x 750 x 500 mm |
| Exterior dimensions ( W x H x D ) | 1200 x 1950 x 1500 mm |
Labotronics Plant Growth Test Chamber offers fully customizable environment. Ideal for modifying experiments to your specific needs. Stay in control with real-time monitoring and easy data analysis. Our chamber’s compact design maximizes lab space without sacrificing functionality. Intuitive interface simplifies experimentation for all skill levels. Our chamber ensures reliable results and promotes innovation in plant biology and agriculture.
| Volume | 450 L |
| Temperature Range | 0℃ to 65℃ (Without illumination) 10℃ to 65℃ (With illumination) |
| Temperature Resolution Ratio | 0.1℃ |
| Temperature Motion | ± 0.5℃ |
| Volume | 1135L |
| Temp. Range (Lights ON) | +3℃ to +45℃ |
| Temp. Range (Lights OFF) | +3℃ to +45℃;(Optional: -10℃ to +45℃) |
| Temp. Precision | 0.1℃ |
Labotronics Salt Spray Test Chambers are specialized equipment designed to simulate harsh environmental conditions, specifically the corrosive effects of salt-laden air, on materials and coatings. Widely used in the automotive, aerospace, and marine industries, these chambers expose samples to a controlled saltwater mist, replicating the corrosive impact of coastal or marine environments. By subjecting materials to this accelerated corrosion process, Salt Spray Test Chambers help manufacturers assess the durability and corrosion resistance of products such as metal components, coatings, and finishes.
| Chamber capacity | 60 L |
| Interior dimensions (W x H x D) | 600 x 400 x 450 mm |
| Exterior dimensions (W x H x D) | 1130 x 1070 x 630 mm |
| Temperature range | 35 °C ± 1°C to 50 °C ± 1°C |
| Chamber capacity | 270 L |
| Interior dimensions (W x H x D) | 900 x 500 x 600 mm |
| Exterior dimensions (W x H x D) | 1460 x 1280 x 910 mm |
| Temperature range | 35 °C ± 1°C to 50 °C ± 1°C |
| Chamber capacity | 108 L |
| Interior dimensions (W x H x D) | 600 × 450 × 400 mm |
| Exterior dimensions (W x H x D) | 1340 × 2880 × 1520 mm |
| Temperature range | 35 °C ~ 50 °C |
| Chamber capacity | 800 L |
| Interior dimensions (W x H x D) | 1600 x 500 x 1000 mm |
| Exterior dimensions (W x H x D) | 2240 x 1500 x 1600 mm |
| Temperature range | 35 °C ± 1°C to 50 °C ± 1°C |
Our Altitude Test Chambers are specialized enclosures designed to simulate high-altitude conditions for testing the performance and durability of various products. These chambers control factors such as pressure, temperature, and humidity to replicate the low-pressure environments found at different altitudes. Widely used in aerospace, automotive, and electronics industries, altitude test chambers help assess how materials and components withstand reduced air pressure, ensuring the reliability and safety of products like aircraft, automotive systems, and electronic devices that may encounter high-altitude conditions during their lifecycle.
| Chamber capacity | 1000 L |
| Interior dimensions ( W x H x D ) | 1000 x 1000 x 1000 mm |
| Exterior dimension ( W x H x D ) | 1450 x 2400 x 2050 mm |
| Temperature range | ( -70 °C to 150 °C ) |
| Chamber capacity | 2000 L |
| Interior dimensions ( W x H x D ) | 1200 x 1200 x 140 mm |
| Exterior dimension ( W x H x D ) | 1650 x 2600 x 2450 mm |
| Temperature range | ( -70 °C to 150 °C ) |
| Chamber capacity | 504 L |
| Interior dimensions ( W x H x D ) | 700 x 900 x 800 mm |
| Exterior dimension ( W x H x D ) | 1150 x 2300 x 1850 mm |
| Temperature range | ( -70 °C to 150 °C ) |
| Chamber capacity | 1500 L |
| Interior dimensions ( W x H x D ) | 1000 x 1000 x 1500 mm |
| Exterior dimension ( W x H x D ) | 1450 x 2400 x 2550 mm |
| Temperature range | ( -70 °C to 150 °C ) |
