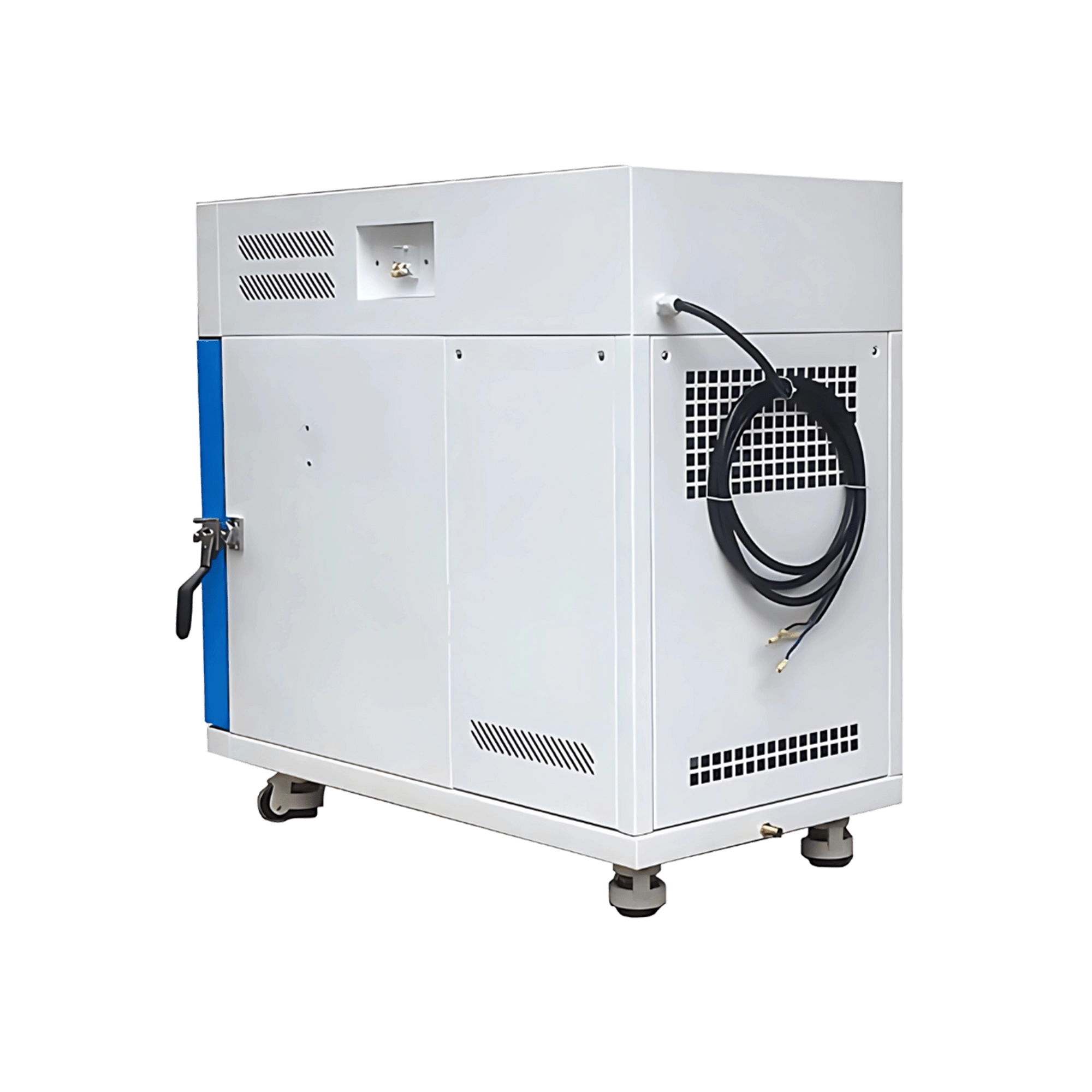

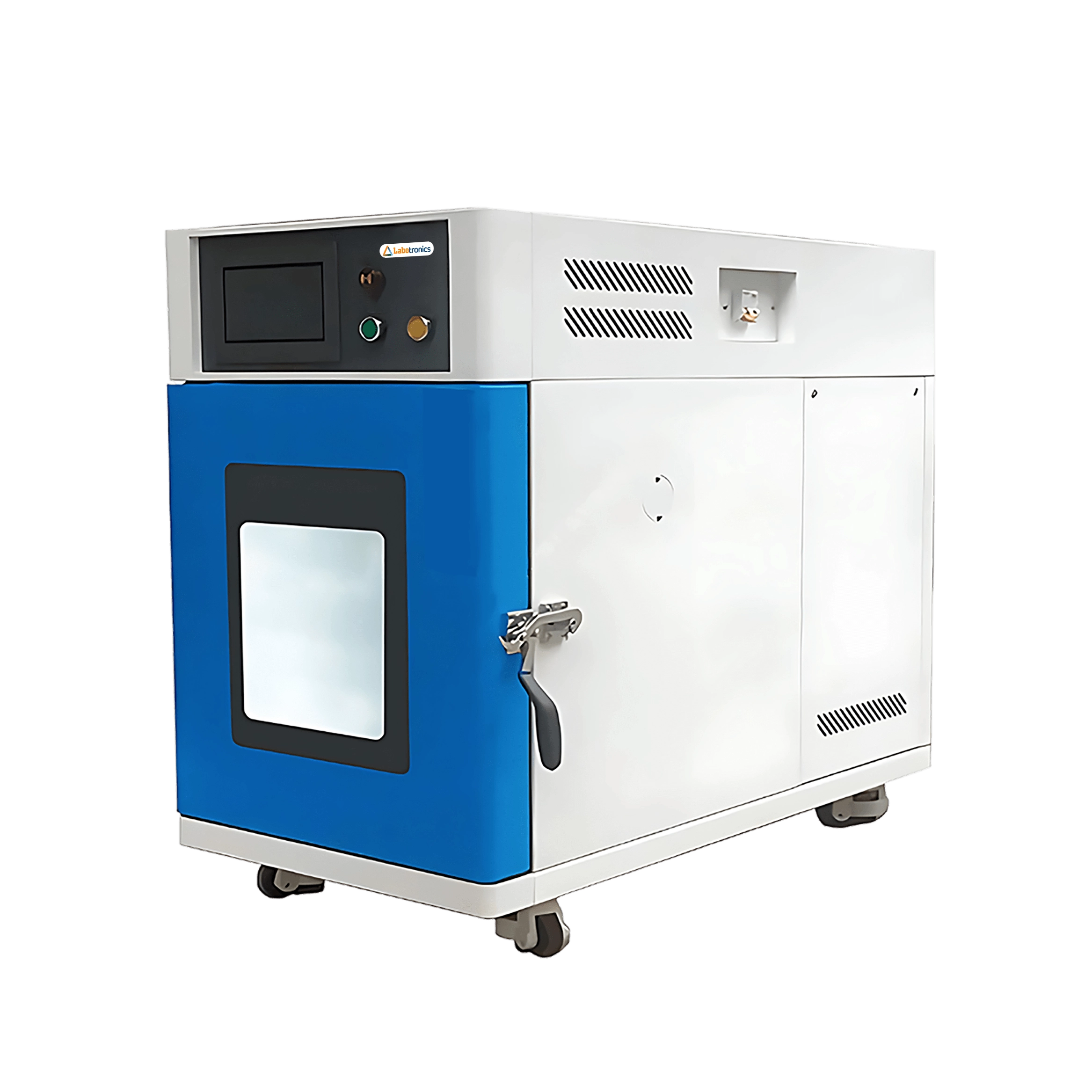

Temperature and Humidity Test Chamber LB-31THC offers a 50L capacity and a temperature range of -40 to +150°C for reliable product testing. It has a dual cooling mode refrigeration system for efficient cooling. It is equipped with a NiCr heater, ensuring stable and consistent temperature control. Our test chamber features a 7-inch Touch Screen Controller for real-time monitoring of temperature and humidity levels.
$ 8050
Download CatalogSpecifications
| Capacity | 50L |
| Temperature Range | -40 to 150°C |
| Temperature Fluctuation | ≤ ± 0.5°C |
| Temperature Uniformity | ≤ 2°C |
| Humidity Range | 20% to 98% R.H |
| Humidity Deviation | +2/-3% R.H |
| Heating Rate | 2.0 to 3.0°C/min |
| Cooling Rate | 0.7 to 1.0°C/min |
| Temperature Cycling Capability | Programmable 30 °C for 6 hours and 25 °C for 6 hours (repeatable) |
| Humidification System | Shallow slot steam |
| Dehumidification System | Refrigeration dehumidification mode |
| Heating System | NiCr heater |
| Refrigeration | Unit cooling mode/Dual cooling mode |
| Circulation System | Single-cycle, stainless-steel fan |
| Display | 7-inch Touch Screen Controller |
| Interior | Anti-corrosion SUS 304 mirror stainless steel |
| Exterior | Cold rolled steel plate with electrostatic spraying |
| Insulation | Fiberglass wool/polyurethane foam |
| Power | 220V·50HZ/60HZ,380V 50HZ/60HZ |
| Internal Dimension (W × D × H) | 350 × 320 × 450 mm |
| External Dimension (W × D × H) | 600 × 1350 × 1100 mm |
| Weight | 100 kg |
Features
Applications
Temperature and Humidity Test Chamber LB-31THC is ideal for testing the performance and durability of materials, components, and products. It is widely used in electronics, automotive, aerospace, and pharmaceutical industries.
Frequently asked questions For Temperature And Humidity Test Chamber
1. What is a Temperature and Humidity Test Chamber?
Temperature and Humidity Test Chamber is a laboratory or industrial device used to simulate environmental conditions by precisely controlling temperature and humidity levels for testing products, materials, or components.
2. Do you offer different types of temperature and humidity test chambers?
Yes, we do! Labotronics offers a wide range of temperature and humidity test chambers, including benchtop models, floor-standing units, and walk-in chambers to meet various environmental testing requirements.
3. How do I choose the right chamber for my application?
It depends on the size of your test sample, the required temperature/humidity range, and your test standards. Our team can help you select the right model based on your specific testing needs and industry requirements.
4. Are your chambers suitable for long-duration tests?
Yes. Our chambers are designed for continuous operation and can run long test cycles ranging from a few hours to several days or weeks, without interruption.
