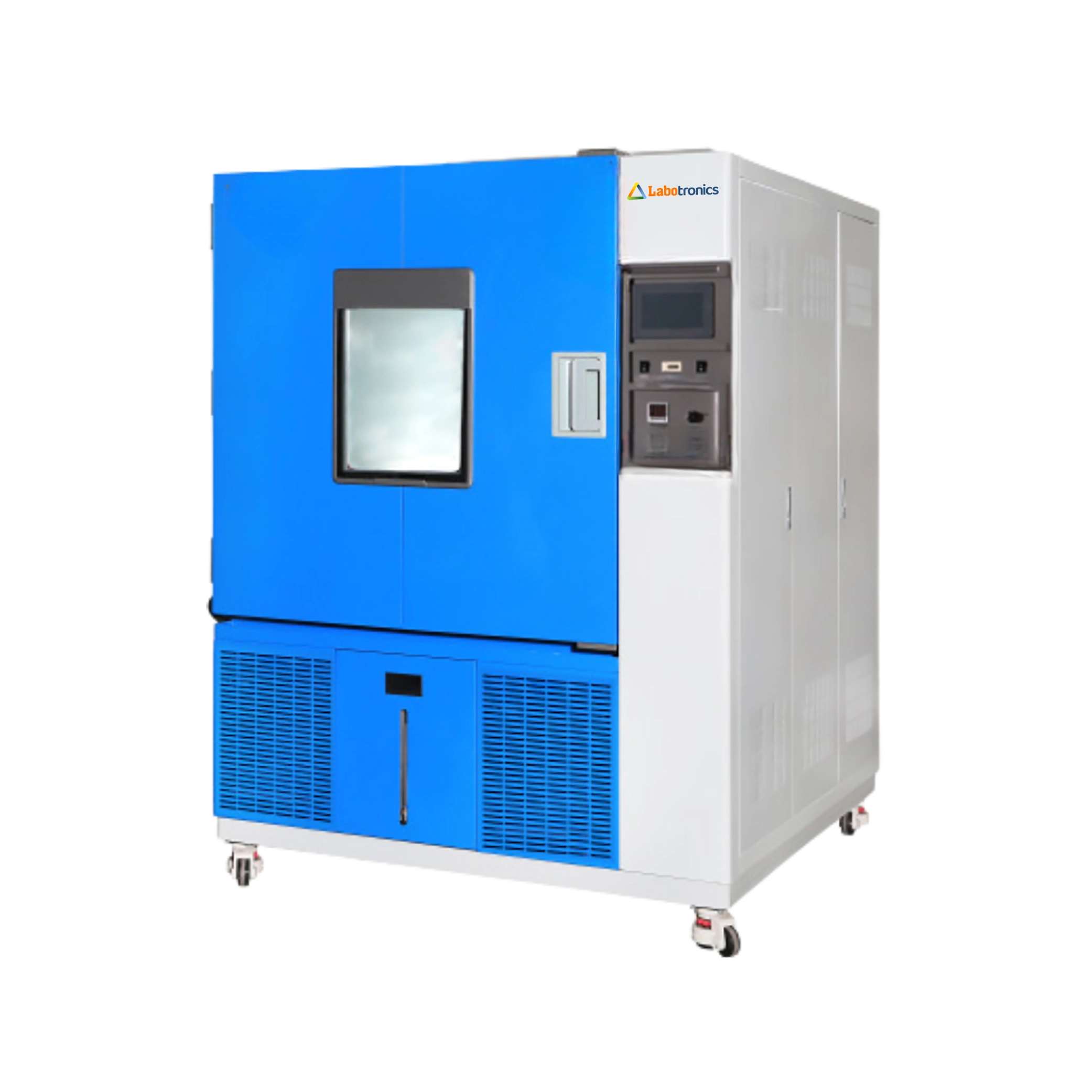

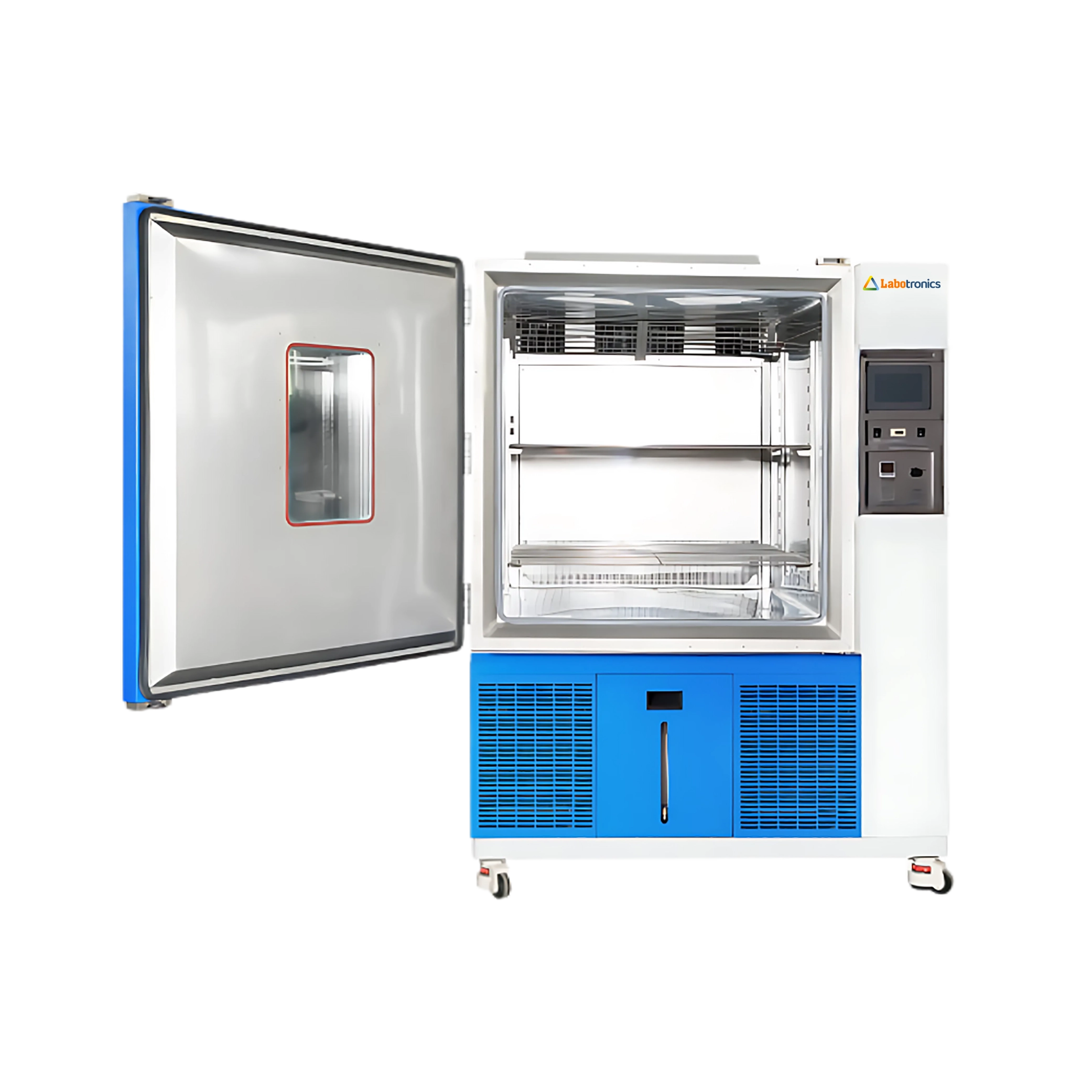

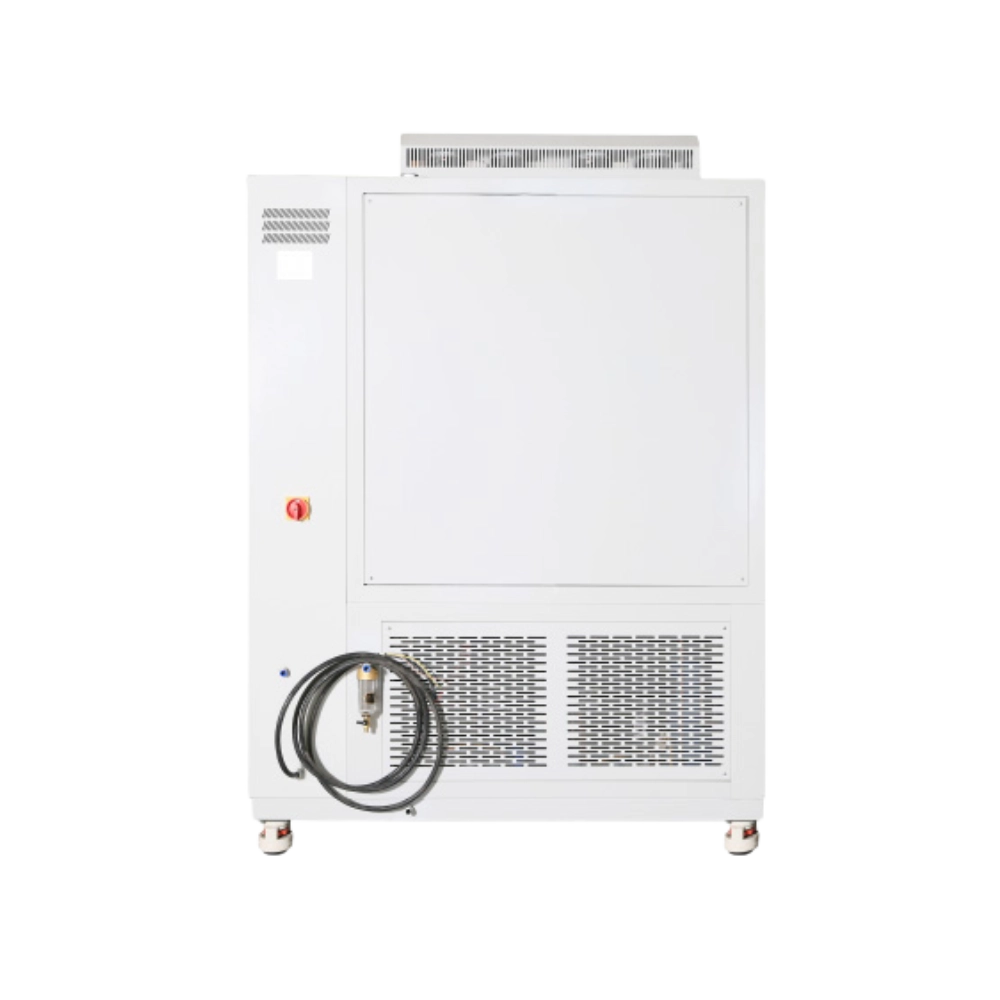

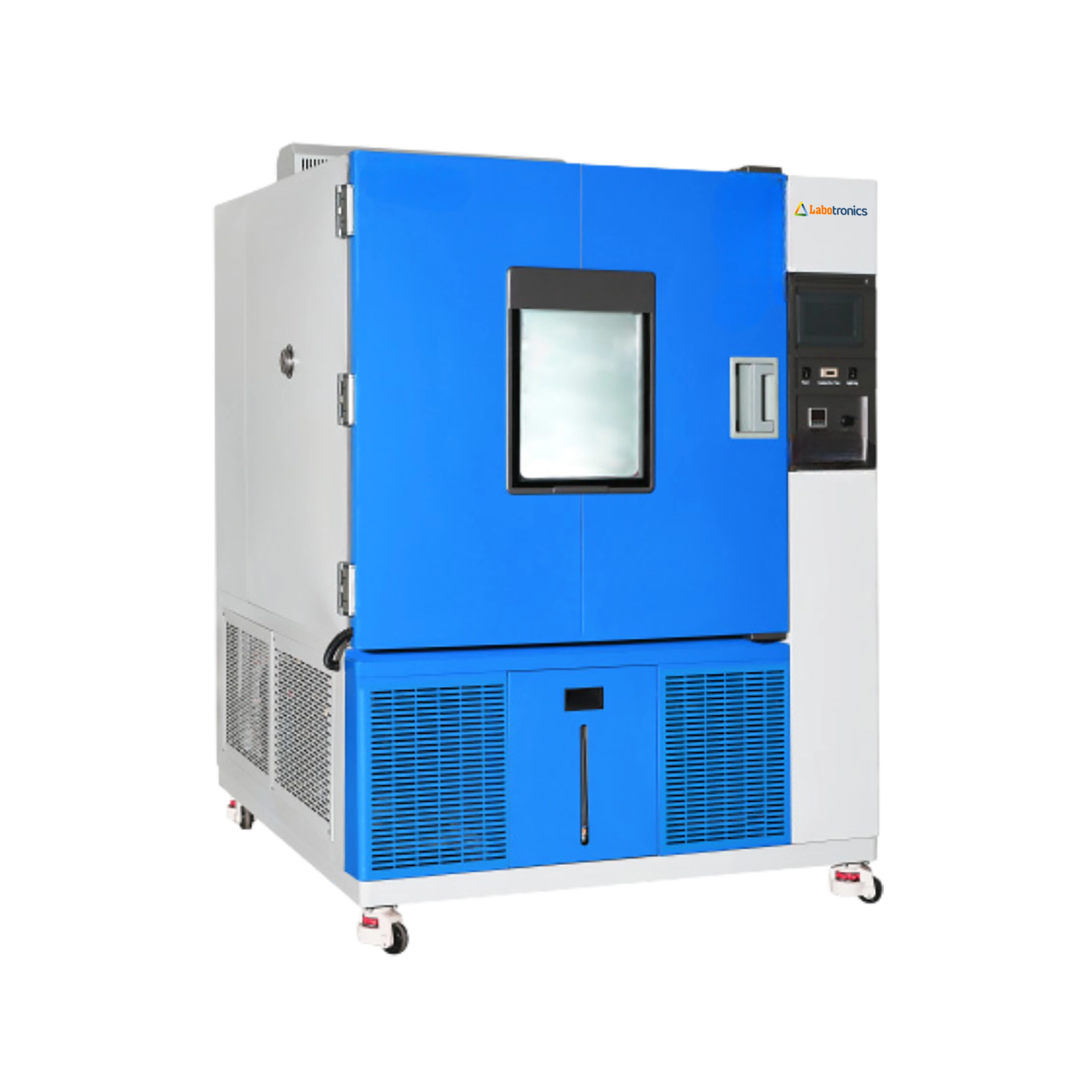

Temperature and Humidity Test Chamber LB-24CTH

Temperature And Humidity Test Chamber LB-24THC

Name: Temperature And Humidity Test Chamber LB-24THC
Brand: Labotronics
SKU: LB-24THC
Rating: 4.9 (501 reviews)

Temperature and Humidity Test Chamber LB-24THC features a capacity of 500 liter and operates efficiently at a temperature of up to 150°C. It includes a NiCr heater along with an independent heating system for stable heating control. It is equipped with a multi-leaf centrifugal fan for uniform temperature distribution. Our test chamber includes a digital screen control, ensuring precise product testing.

$ 8900

Download Catalog

Specifications

Capacity	500L
Temperature Range	0 to 150°C -20°C to 150°C (Customizable) - 40°C to 150°C (Customizable) - 70°C to 150°C (Customizable)
Temperature Fluctuation	≤ ±0.5°C
Temperature Uniformity	≤ 2.0°C
Humidity Range	20% to 98% R.H
Humidity Deviation	+2/-3% R.H
Heating Rate	2.0 to 3.0°C/min
Cooling Rate	0.7 to 1.0°C/min
Refrigerant	R404A/R23
Humidification System	Shallow slot steam
Dehumidification System	Refrigeration dehumidification mode
Heating System	NiCr heater
Circulation System	Single-cycle, stainless-steel fan
Display	7-inch Touch Screen Controller
Interior	Anti-corrosion SUS 304 mirror stainless steel
Exterior	Reinforced steel plate with electrostatic spraying
Insulation	Fiberglass wool/polyurethane foam
Internal Dimension (W × D × H)	800 × 700 × 900 mm
External Dimension (W × D × H)	1350 × 1300 × 2200 mm
Weight	590 Kg

Features

User-friendly interface
Automated water supply
Water shortage alarm
Overheat protection
Low noise operation
Durable construction

Applications

Temperature and Humidity Test Chamber LB-24THC is ideal for evaluating product durability and performance, providing accurate environmental testing. It is widely used in electronics, automotive, aerospace, and materials science industries.

1. What is a Temperature and Humidity Test Chamber?

Temperature and Humidity Test Chamber is a laboratory or industrial device used to simulate environmental conditions by precisely controlling temperature and humidity levels for testing products, materials, or components.

2. Do you offer different types of temperature and humidity test chambers?

Yes, we do! Labotronics offers a wide range of temperature and humidity test chambers, including benchtop models, floor-standing units, and walk-in chambers to meet various environmental testing requirements.

3. How do I choose the right chamber for my application?

It depends on the size of your test sample, the required temperature/humidity range, and your test standards. Our team can help you select the right model based on your specific testing needs and industry requirements.

4. Are your chambers suitable for long-duration tests?

Yes. Our chambers are designed for continuous operation and can run long test cycles ranging from a few hours to several days or weeks, without interruption.
