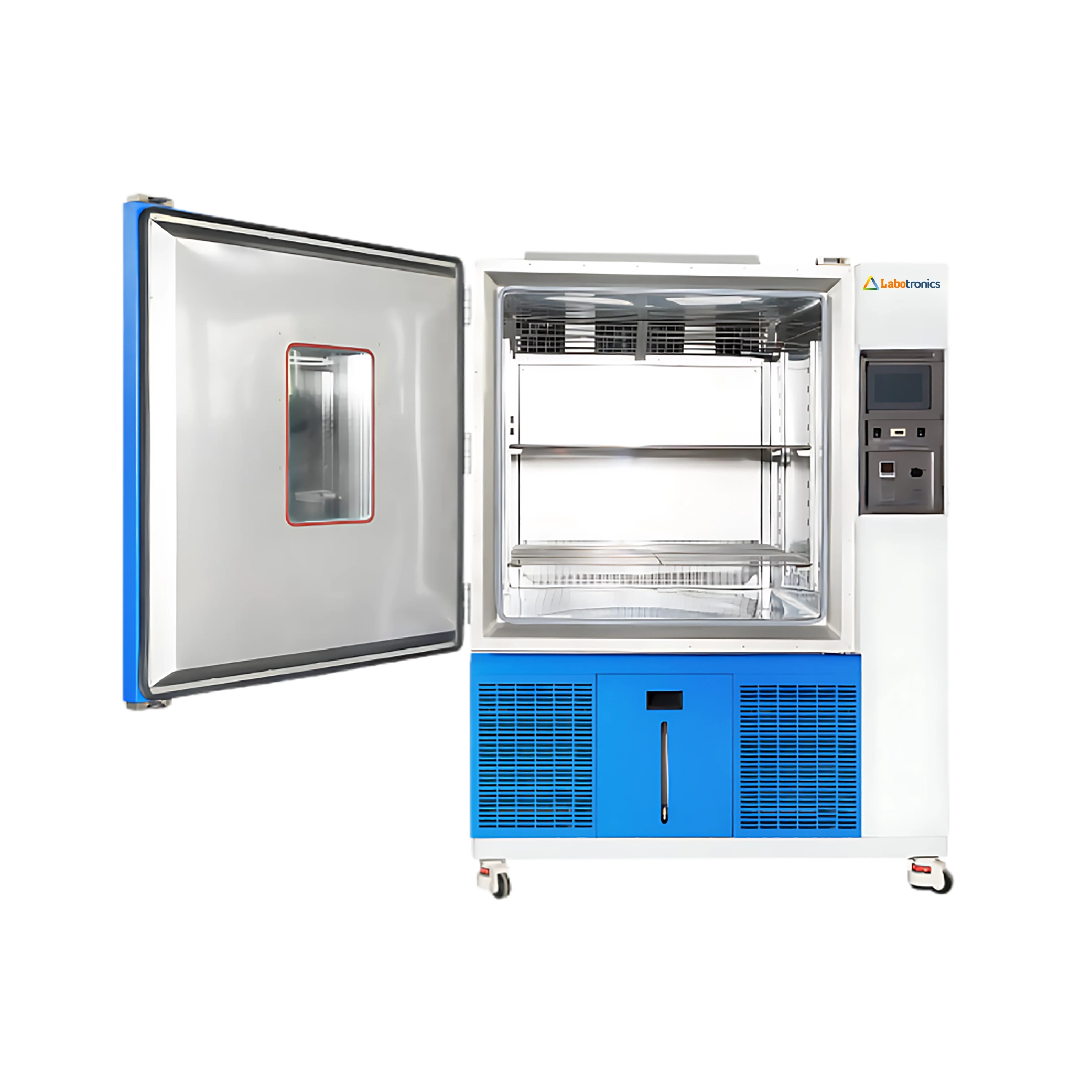

Temperature and Humidity Test Chamber LB-13CTH

Temperature And Humidity Test Chamber LB-13THC

Name: Temperature And Humidity Test Chamber LB-13THC
Brand: Labotronics
SKU: LB-13THC
Rating: 4.9 (575 reviews)

Temperature and Humidity Test Chamber LB-13THC operates with a maximum temperature range of up to 100°C and has a 250L testing capacity. It is equipped with an independent heating system for stable and uniform temperature control. It utilizes a shallow slot steam humidification for precise humidity regulation. Our test chamber features a 7-inch digital touchscreen, ensuring reliable environmental testing.

$ 7443.75

Download Catalog

Specifications

Capacity	250L
Temperature Range	0 to 100°C
Temperature Fluctuation	≤ ±0.5°C
Temperature Uniformity	≤ 2.0°C
Humidity Range	20% to 98% R.H
Humidity Deviation	+2/-3% R.H
Heating Rate	2.0 to 3.0°C/min
Cooling Rate	0.7 to 1.0°C/min
Refrigerant	R404A/R23
Humidification System	Shallow slot steam
Dehumidification System	Refrigeration dehumidification mode
Heating System	NiCr heater
Circulation System	Single-cycle, stainless-steel fan
Display	7-inch Touch Screen Controller
Interior	Anti-corrosion SUS 304 mirror stainless steel
Exterior	Reinforced steel plate with electrostatic spraying
Insulation	Fiberglass wool/polyurethane foam
Power Supply	220V 50/60Hz, 380V 50/60Hz or customized
Inner Dimension (W × D × H)	600 × 500 × 810 mm
Outer Dimension (W × D × H)	1120 × 1100 × 2010 mm
Weight	550 kg

Features

Advanced refrigeration system
Automatic water supply
Large viewing window
Customizable settings
Durable construction
Low maintenance

Applications

Temperature and Humidity Test Chamber LB-13THC is perfect for testing materials and components' durability under extreme temperature and humidity conditions. It is widely used in electronics, automotive, and pharmaceutical industries.

1. What is a Temperature and Humidity Test Chamber?

Temperature and Humidity Test Chamber is a laboratory or industrial device used to simulate environmental conditions by precisely controlling temperature and humidity levels for testing products, materials, or components.

2. Do you offer different types of temperature and humidity test chambers?

Yes, we do! Labotronics offers a wide range of temperature and humidity test chambers, including benchtop models, floor-standing units, and walk-in chambers to meet various environmental testing requirements.

3. How do I choose the right chamber for my application?

It depends on the size of your test sample, the required temperature/humidity range, and your test standards. Our team can help you select the right model based on your specific testing needs and industry requirements.

4. Are your chambers suitable for long-duration tests?

Yes. Our chambers are designed for continuous operation and can run long test cycles ranging from a few hours to several days or weeks, without interruption.
