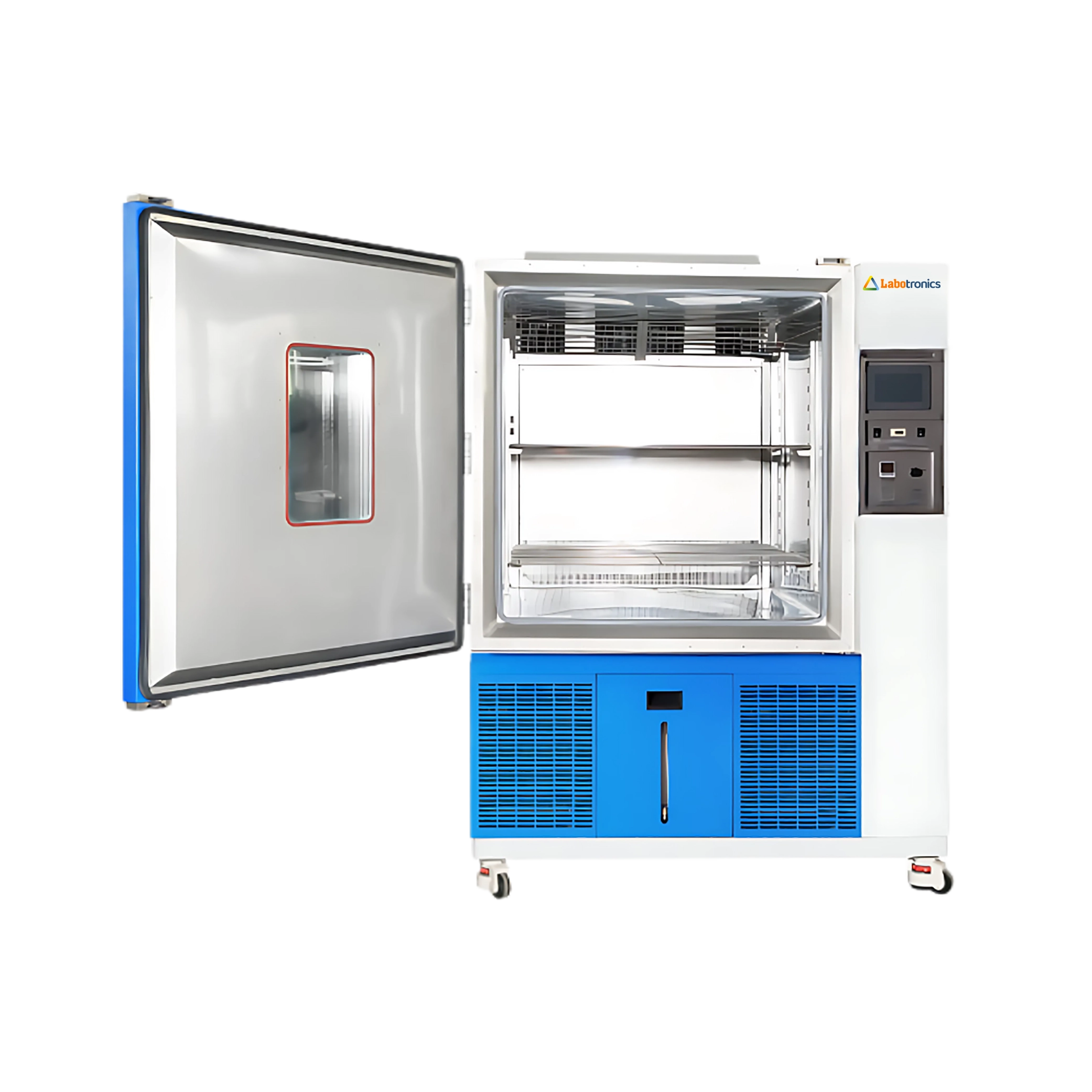

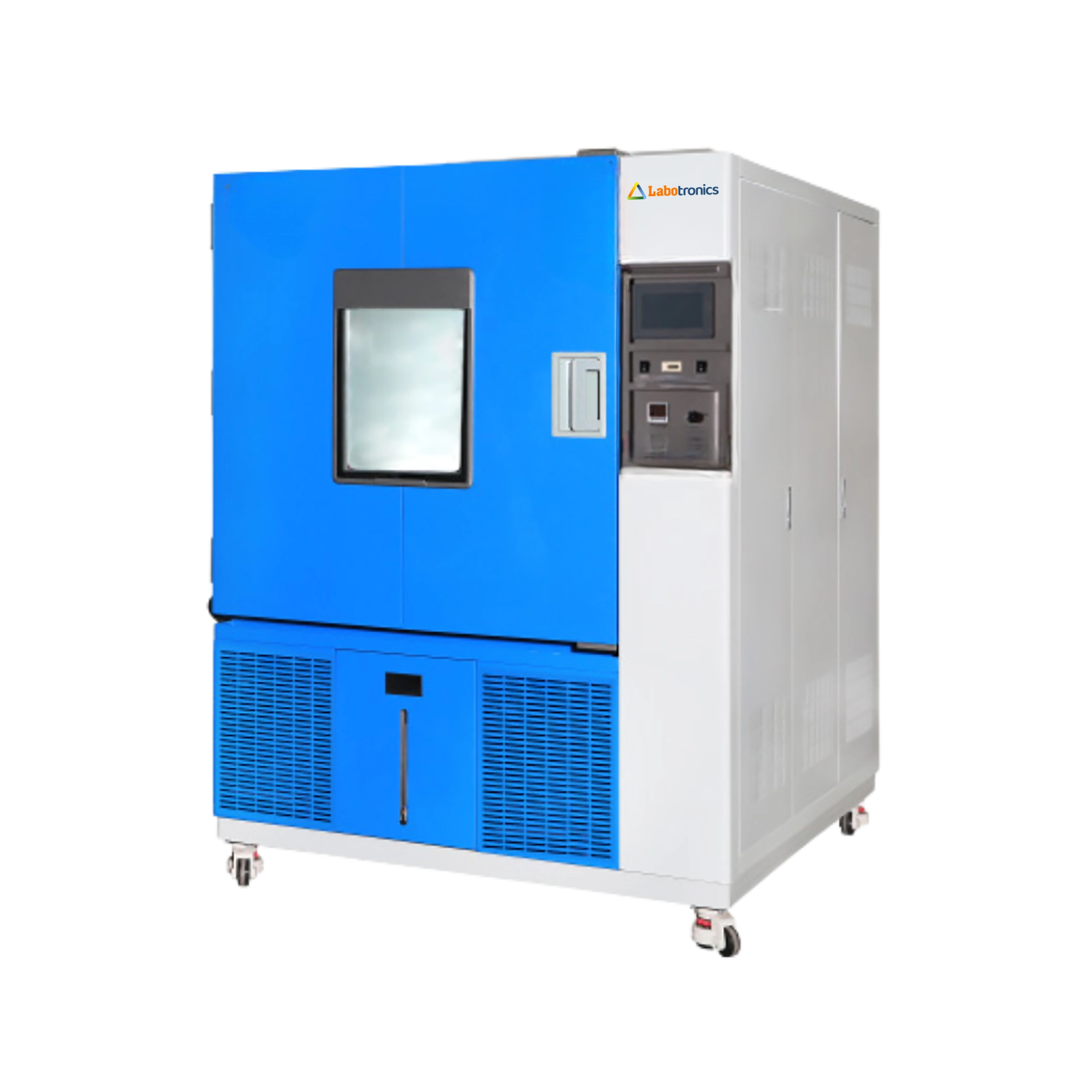

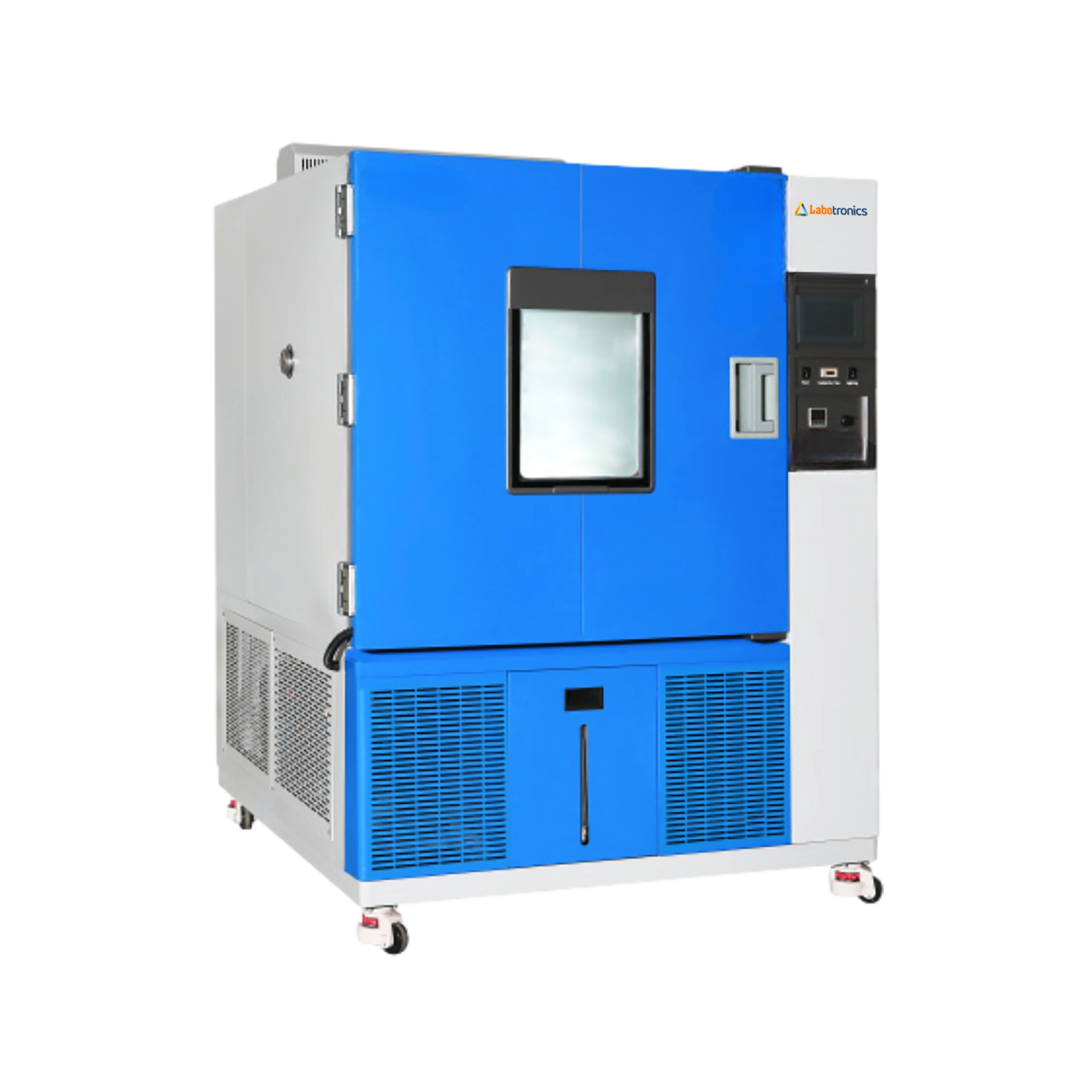

Temperature and Humidity Test Chamber LB-20THC provides a 50L capacity and operates at a temperature range of up to 150°C for reliable product testing. It has a NiCr heater and steam humidification system for consistent humidity control. It features a high-quality refrigeration system for efficient cooling. Our test chamber offers digital screen control, ensuring precise monitoring of humidity and temperature levels.
$ 6075
Download CatalogSpecifications
| Capacity | 50L |
| Temperature Range | 0 to 150°C -20°C to 150°C (Customizable) - 40°C to 150°C (Customizable) - 70°C to 150°C (Customizable) |
| Temperature Fluctuation | ≤ ± 0.5°C |
| Temperature Uniformity | ≤ 2.0°C |
| Humidity Range | 20% to 98% R.H |
| Humidity Deviation | +2/-3% R.H |
| Heating Rate | 2.0 to 3.0°C/min |
| Cooling Rate | 0.7 to 1.0°C/min |
| Refrigerant | R404A/R23 |
| Humidification System | Shallow slot steam |
| Dehumidification System | Refrigeration dehumidification mode |
| Heating System | NiCr heater |
| Circulation System | Single-cycle, stainless-steel fan |
| Display | 7-inch Touch Screen Controller |
| Interior | Anti-corrosion SUS 304 mirror stainless steel |
| Exterior | Reinforced steel plate with electrostatic spraying |
| Insulation | Fiberglass wool/polyurethane foam |
| Power Supply | 220V 50/60Hz, 380V 50/60Hz |
| Inner Dimension (W × D × H) | 350 × 320 × 450 mm |
| Outer Dimension (W × D × H) | 950 × 950 × 1400 mm |
| Weight | 200 kg |
Features
Applications
Temperature and Humidity Test Chamber LB-20THC is used to test the durability and performance of products. It is widely used in electronics, automotive, aerospace, and materials testing industries.
Frequently asked questions For Temperature And Humidity Test Chamber
1. What is a Temperature and Humidity Test Chamber?
Temperature and Humidity Test Chamber is a laboratory or industrial device used to simulate environmental conditions by precisely controlling temperature and humidity levels for testing products, materials, or components.
2. Do you offer different types of temperature and humidity test chambers?
Yes, we do! Labotronics offers a wide range of temperature and humidity test chambers, including benchtop models, floor-standing units, and walk-in chambers to meet various environmental testing requirements.
3. How do I choose the right chamber for my application?
It depends on the size of your test sample, the required temperature/humidity range, and your test standards. Our team can help you select the right model based on your specific testing needs and industry requirements.
4. Are your chambers suitable for long-duration tests?
Yes. Our chambers are designed for continuous operation and can run long test cycles ranging from a few hours to several days or weeks, without interruption.
