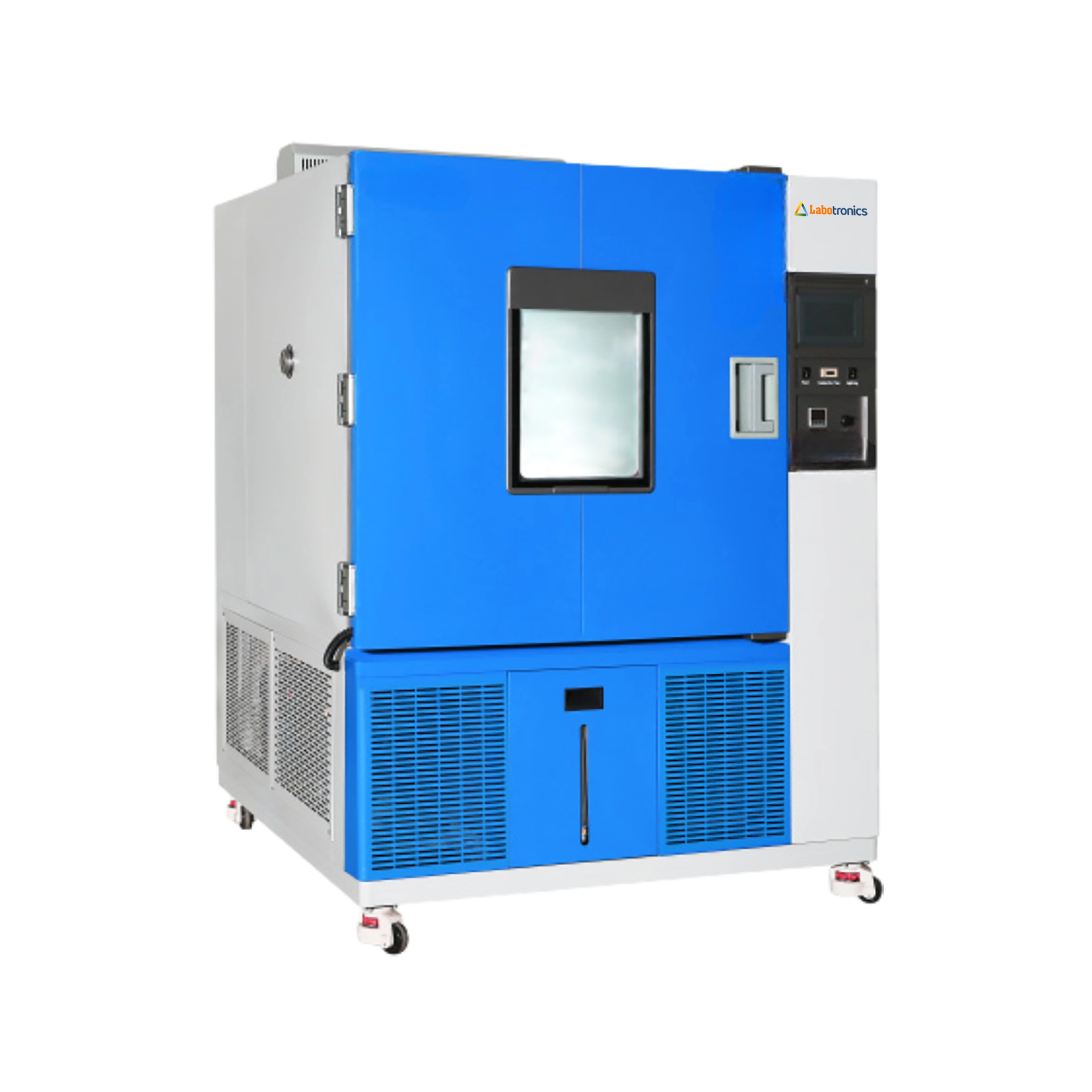

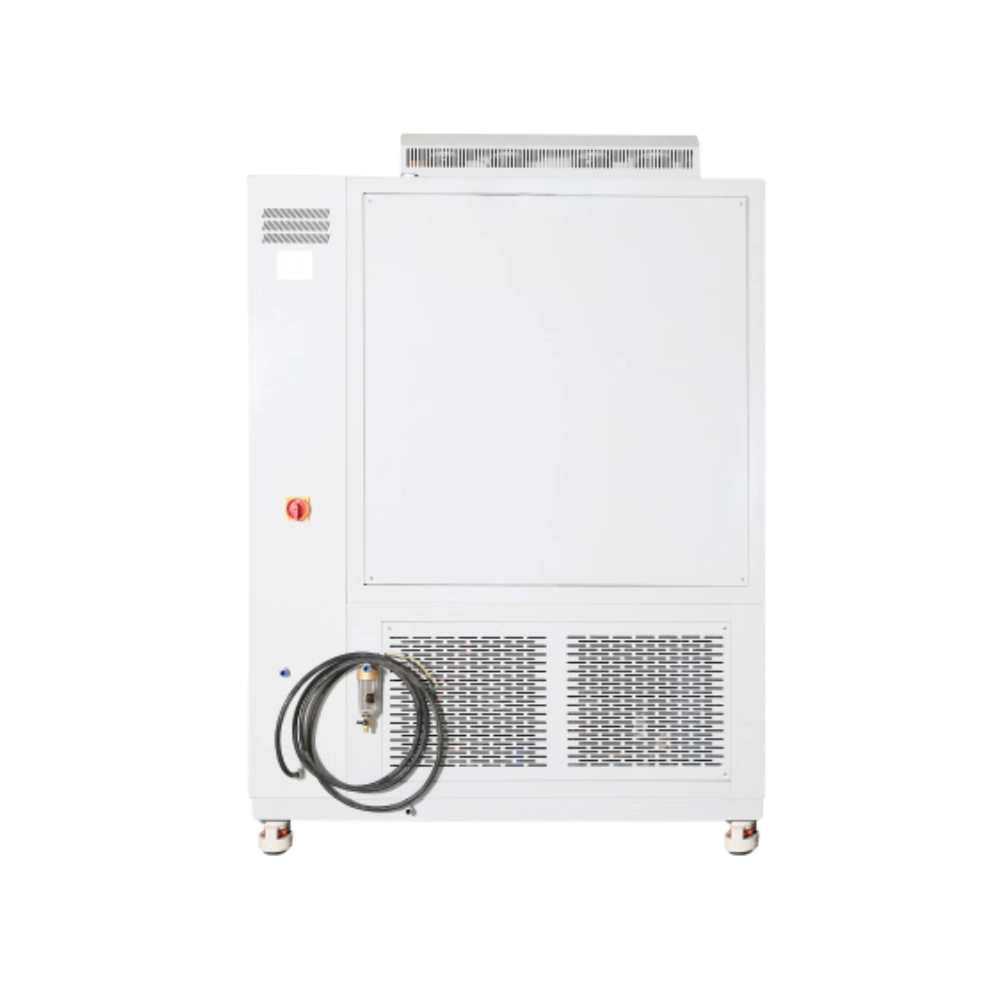

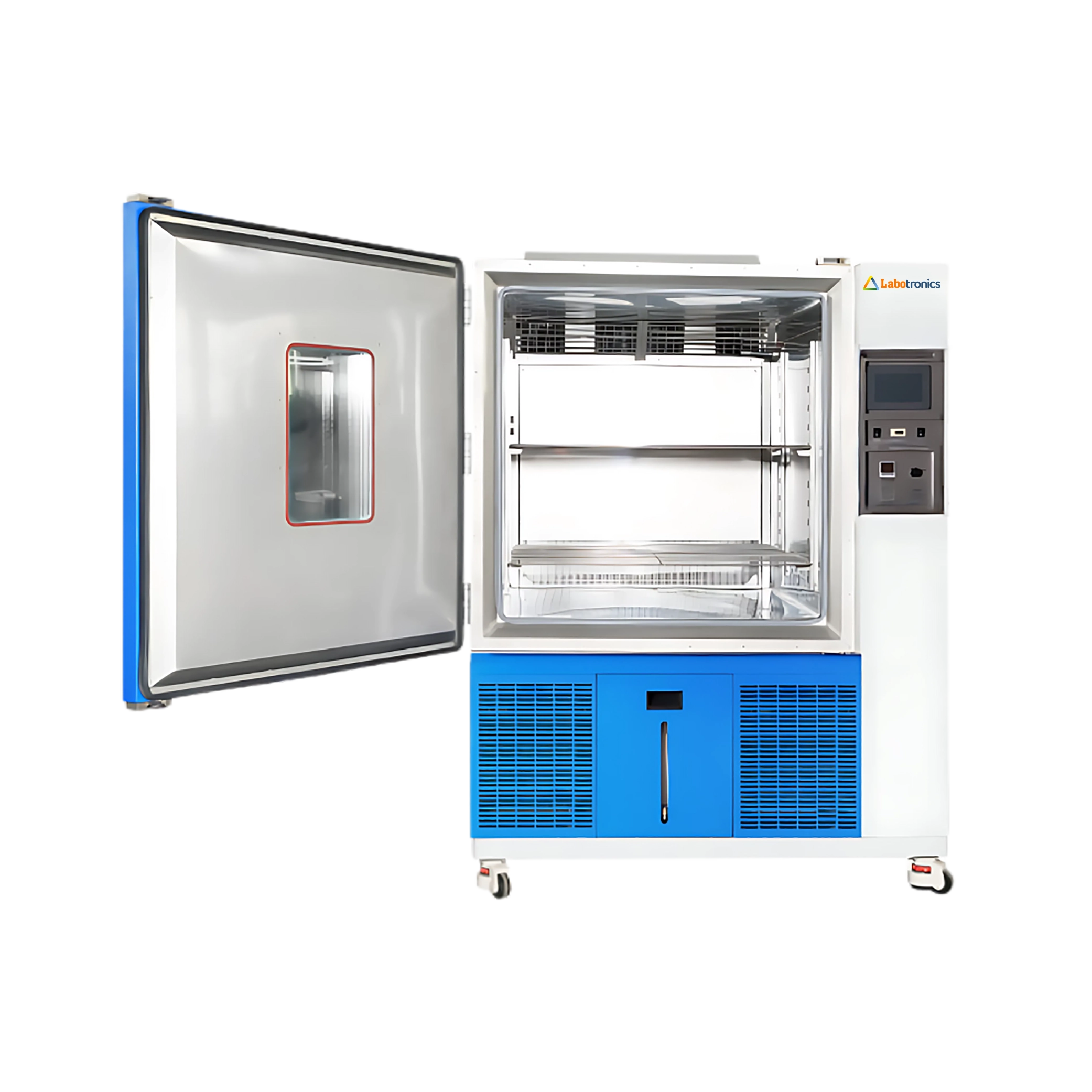

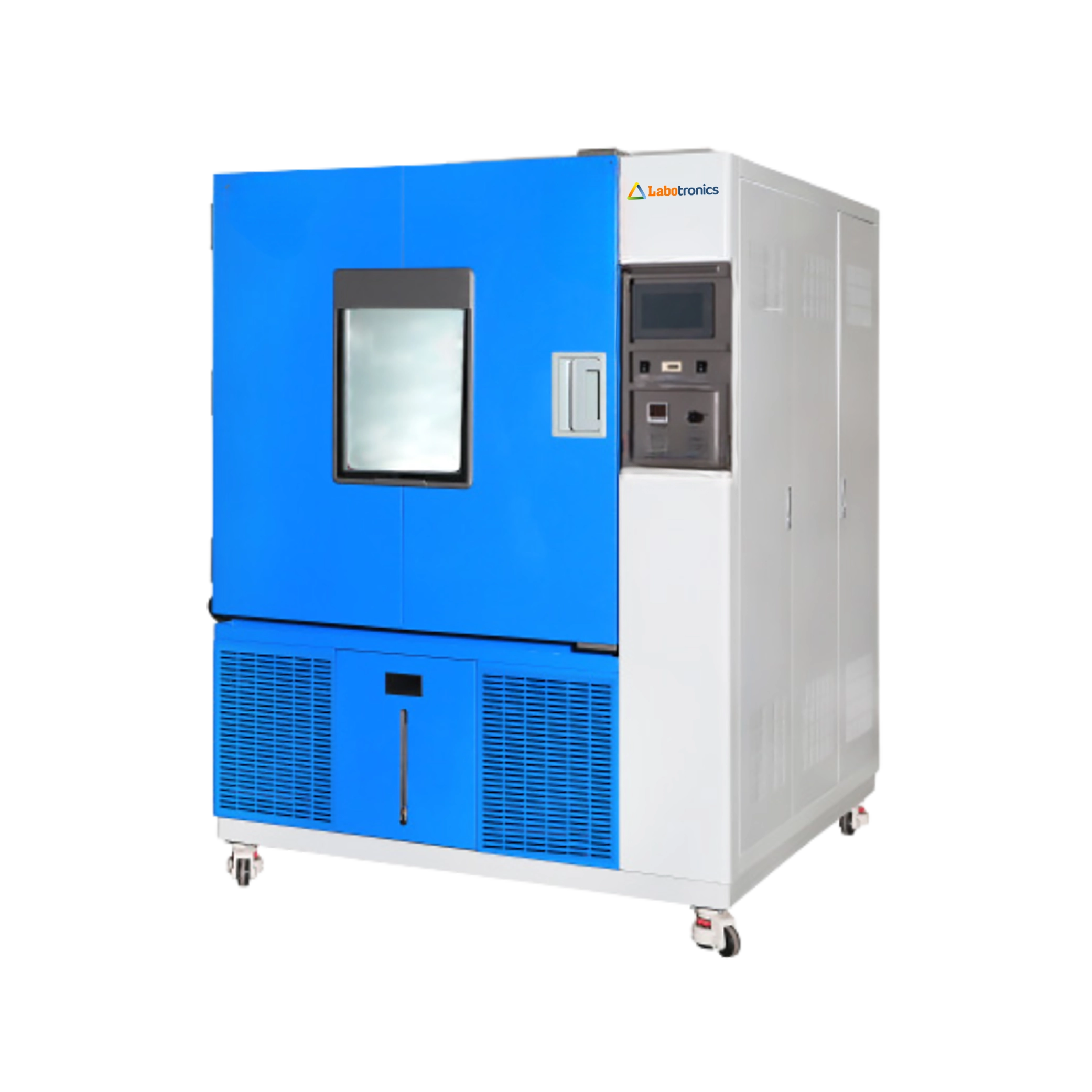

Temperature Test Chamber LB-14TTC
Temperature Test Chamber LB-14TTC offers a maximum temperature range of up to 150°C and a 100L capacity for reliable product testing. It provides a heating rate of 2.0 to 3.0°C/min, ensuring stable and uniform heating. It features an advanced dual-mode refrigeration system, enabling efficient cooling. Our test chamber includes a 7-inch touchscreen for real-time tracking of safety alarms and temperature levels.
$ 5541.25
Download CatalogSpecifications
| Capacity | 100L |
| Temperature Range | 0 to +150°C |
| Temperature Fluctuation | ≤ ±0.5°C |
| Temperature Uniformity | ≤ 2.0°C |
| Heating Rate | 2.0 to 3.0°C/min |
| Cooling Rate | 0.7 to 1.0°C/min |
| Refrigerant | R404A/R23 |
| Refrigeration System | Unit cooling mode / Dual cooling mode |
| Heating System | NiCr heater, independent system |
| Circulation System | Single cycle, long axis and stainless-steel multi-leaf type centrifuge fan |
| Display | 7-inch touch screen |
| Interior | Anti-corrosion SUS#304 mirror stainless steel |
| Exterior | Reinforced Steel plate with electrostatic spraying |
| Insulation | Superfine fiberglass wool/polyurethane foam |
| Power Supply | 220V 50/60Hz, 380V 50/60Hz or customized |
| Inner Dimension (W × D × H) | 500 × 400 × 500 mm |
| Outer Dimension (W × D × H) | 1050 × 1030 × 1750 mm |
| Gross Weight | 300 kg |
Features
- Advanced cooling system
- Overheat protection
- High-quality compressor
- Large viewing window
- User-friendly interface
- Low noise operation
Applications
Temperature Test Chamber LB-14TTC is perfect for testing the performance and durability of materials and components. It is widely used in electronics, automotive, aerospace, and pharmaceuticals for quality assurance and environmental testing.
Frequently asked questions For Temperature Test Chamber
1. What is the capacity of the LB-14TTC?
The LB-14TTC offers a 100L spacious internal chamber, providing ample room to test multiple products or large samples simultaneously, ideal for industrial and research applications.
2. How is the temperature test monitored?
Our chamber comes with a digital touchscreen display that shows real-time temperature readings, set points, and test duration.
3. What types of products can be tested in the LB-14TTC chamber?
Our LB-14TTC can test electronics, automotive components, aerospace parts, medical devices, plastics, packaging, and industrial materials.
4. Can the LB-14TTC run automated temperature cycles?
Yes, it supports programmable multi-step temperature cycles, allowing automated heating and cooling stages for repeatable and hands-free testing.
5. What is a Temperature Test Chamber used for?
A Temperature Test Chamber is used to simulate specific temperature conditions to test the durability, stability, and performance of products or materials in industries like electronics, automotive, aerospace, and pharmaceuticals.
6. How is temperature stability maintained during testing?
The chamber is equipped with precise control systems and insulated walls to ensure consistent temperature levels throughout the testing cycle.
7. How easy is it to operate the chamber with gloves on?
The user interface is designed to be glove-friendly, allowing operators to adjust settings and monitor tests without removing protective equipment.
8. Can the Labotronics test chamber handle both high and low temperatures?
Yes, Our Temperature Test Chambers can simulate a wide range of conditions, from extreme cold to high heat, making them ideal for various testing requirements.
