Temperature Test Chamber LB-16TTC

Temperature Test Chamber LB-16TTC

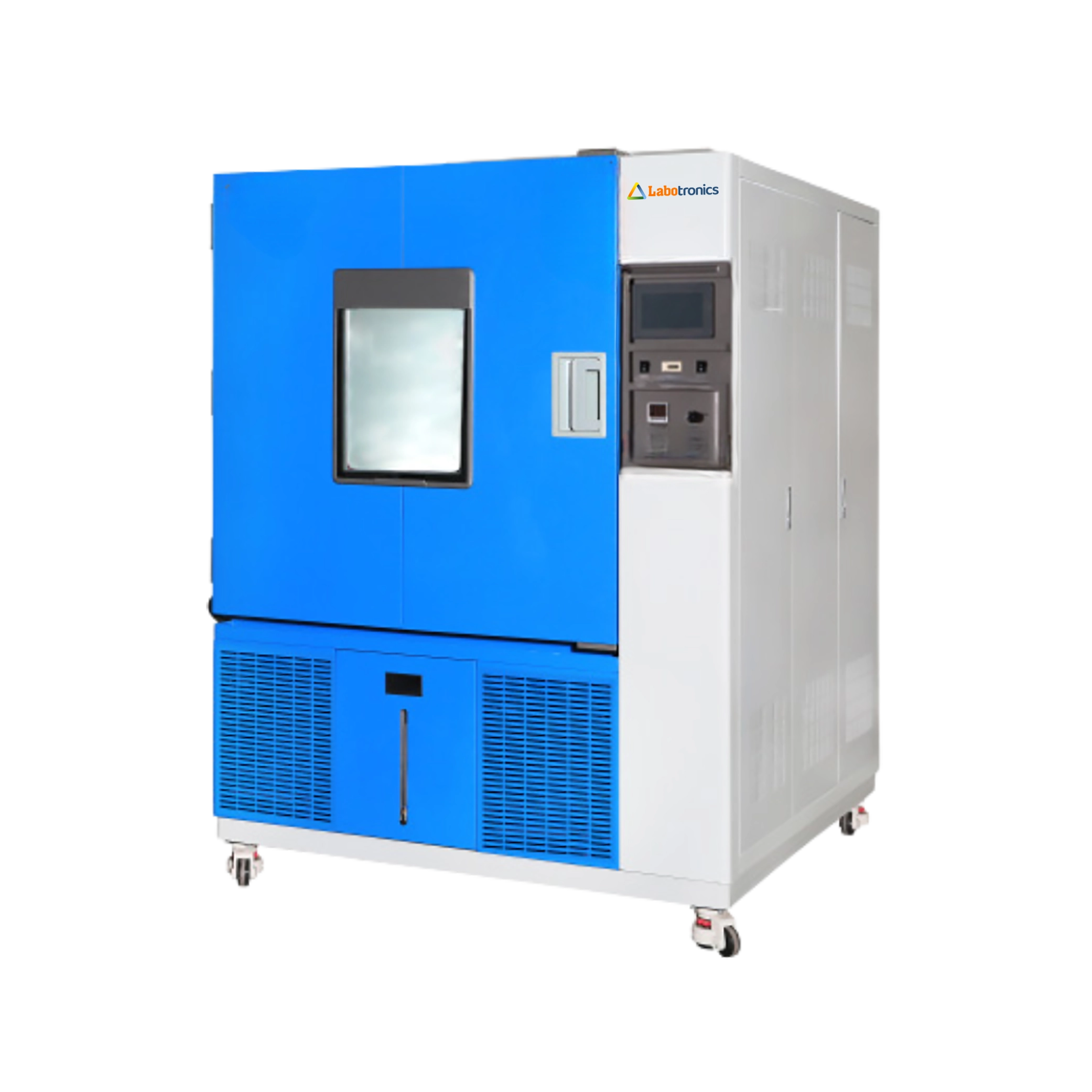

Temperature Test Chamber LB-16TTC provides a 100L testing capacity and operates efficiently within a temperature range of -40 to +150°C. It features dual cooling mode refrigeration for optimal cooling. It is equipped with a multi-leaf centrifuge fan, promoting uniform air circulation. Our temperature test chamber offers a 7-inch digital touchscreen display, ensuring precise and accurate product testing.

$ 7728.75

Download Catalog

Specifications

Capacity 100L
Temperature Range -40 to +150°C
Temperature Fluctuation ≤ ±0.5°C
Temperature Uniformity ≤ 2.0°C
Heating Rate 2.0 to 3.0°C/min
Cooling Rate 0.7 to 1.0°C/min
Refrigerant R404A/R23
Refrigeration System Unit cooling mode / Dual cooling mode
Heating System NiCr heater, independent system
Circulation System Single cycle, long axis, and stainless-steel multi-leaf type centrifuge fan
Display 7-inch touch screen
Interior Anti-corrosion SUS#304 mirror stainless steel
Exterior Reinforced Steel plate with electrostatic spraying
Insulation Superfine fiberglass wool/polyurethane foam
Power Supply 220V 50/60Hz, 380V 50/60Hz or customized
Inner Dimension (W × D × H) 500 × 400 × 500 mm
Outer Dimension (W × D × H) 1050 × 1030 × 1750 mm
Gross Weight 300 kg

Features

  • Advanced refrigeration system
  • Audio signal alarm
  • Energy efficient unit
  • Customizable power supply
  • Programmable setting

Applications

Temperature Test Chamber LB-16TTC is ideal for testing the durability and performance of materials and products under extreme temperature conditions. It is widely used in electronics, automotive, aerospace, and material testing industries.
Temperature Test Chamber LB-16TTC Banner
Temperature Test Chamber LB-16TTC Banner

Get Quote

Frequently asked questions For Temperature Test Chamber

1. What does the Labotronics LB-16TTC Temperature Test Chamber offer?

Labotronics LB-16TTC provides precise temperature control for testing electronics, automotive parts, aerospace components, and other materials in labs and quality control settings.

2. How does the LB-16TTC support environmental testing?

Our chamber simulates heat and cold conditions to check product durability, stability, and performance under controlled temperatures.

3. What makes programmable test cycles valuable?

The LB-16TTC features programmable cycles that allow automated, repeatable testing with minimal manual effort, saving time and improving accuracy.

4. Is the LB-16TTC suitable for sensitive materials?

Yes, the chamber maintains stable temperatures and uniform airflow to protect delicate samples from thermal shock.

5. Can the LB-16TTC handle long-term testing?

Absolutely. our LB-16TTC chamber is designed for continuous operation and long-duration test cycles.

6. What is a Temperature Test Chamber used for?

A Temperature Test Chamber is used to simulate specific temperature conditions to test the durability, stability, and performance of products or materials in industries like electronics, automotive, aerospace, and pharmaceuticals.

7. How is temperature stability maintained during testing?

The chamber is equipped with precise control systems and insulated walls to ensure consistent temperature levels throughout the testing cycle.

8. How easy is it to operate the chamber with gloves on?

The user interface is designed to be glove-friendly, allowing operators to adjust settings and monitor tests without removing protective equipment.

9. Can the Labotronics test chamber handle both high and low temperatures?

Yes, Our Temperature Test Chambers can simulate a wide range of conditions, from extreme cold to high heat, making them ideal for various testing requirements.

Still have questions?

If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
