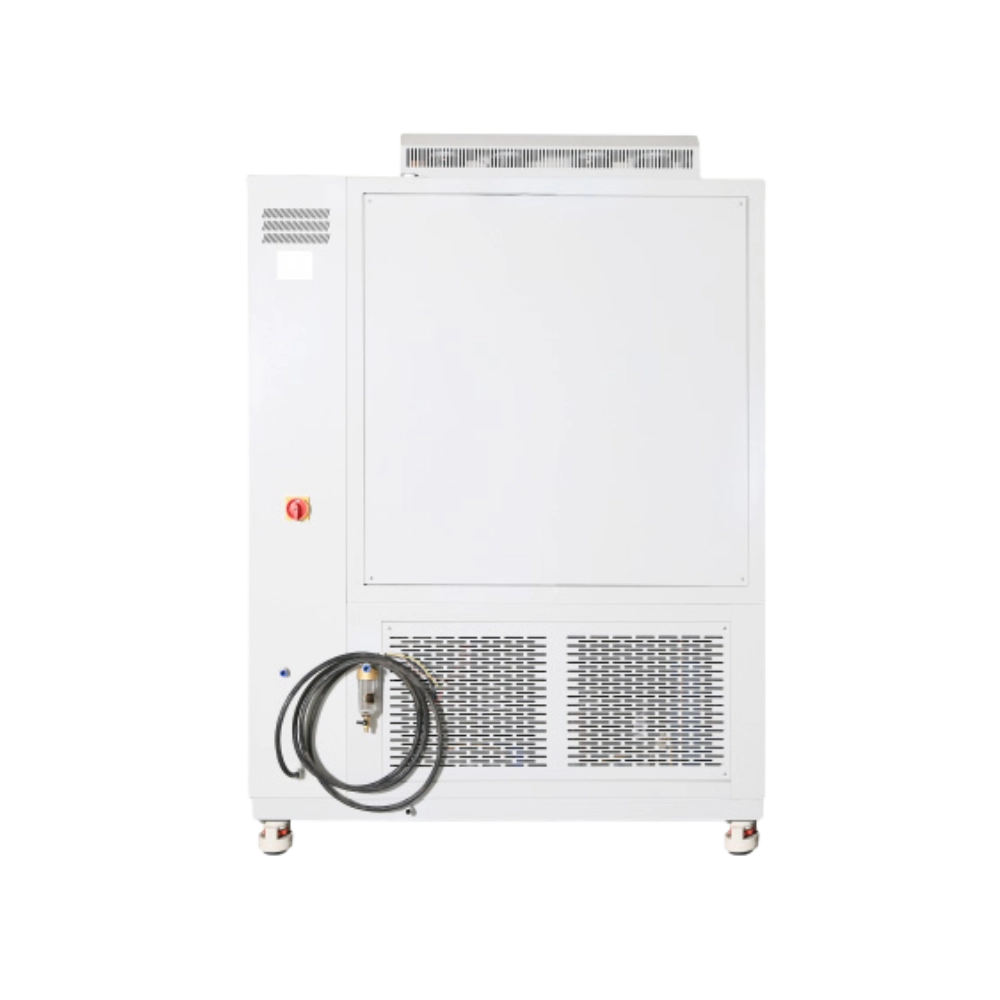

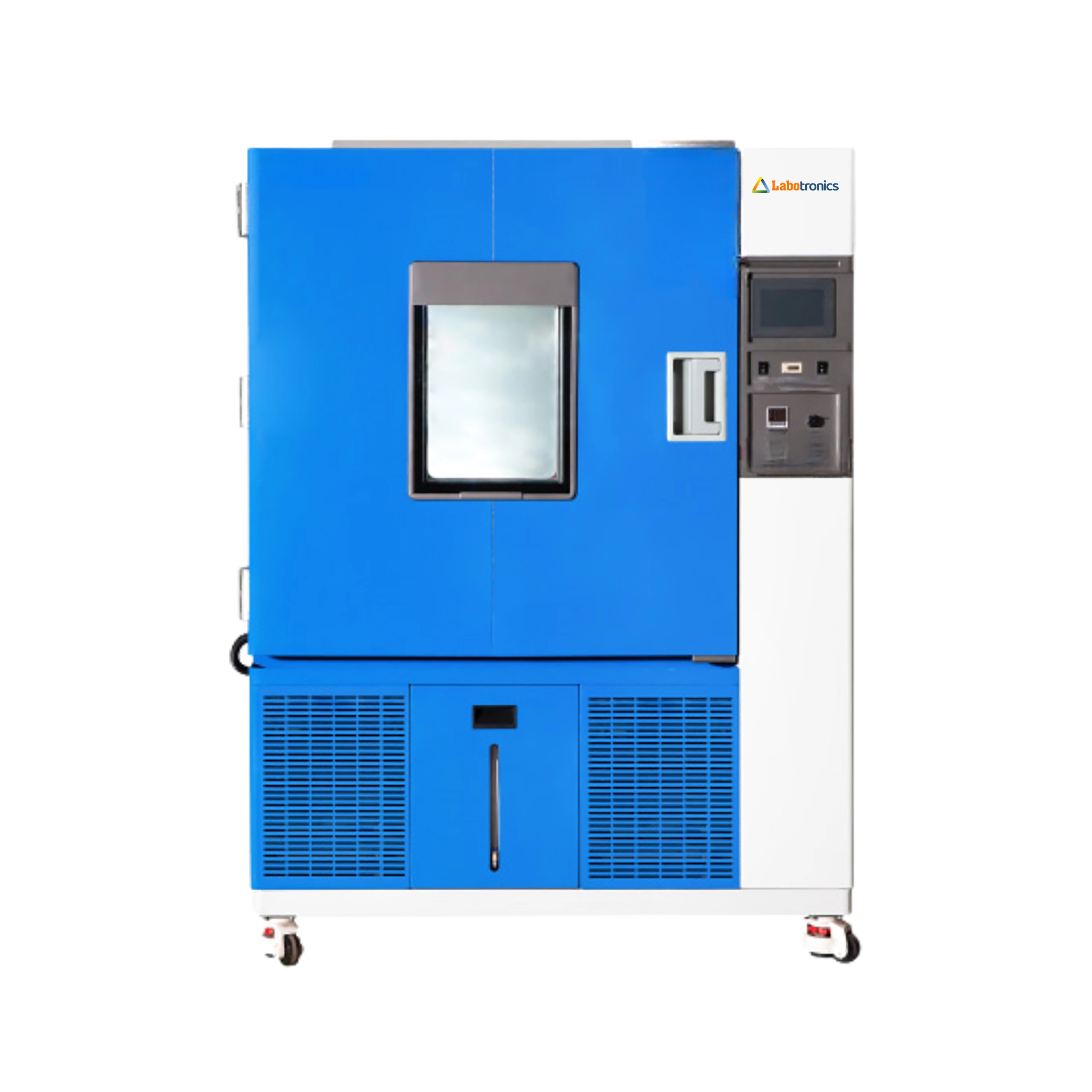

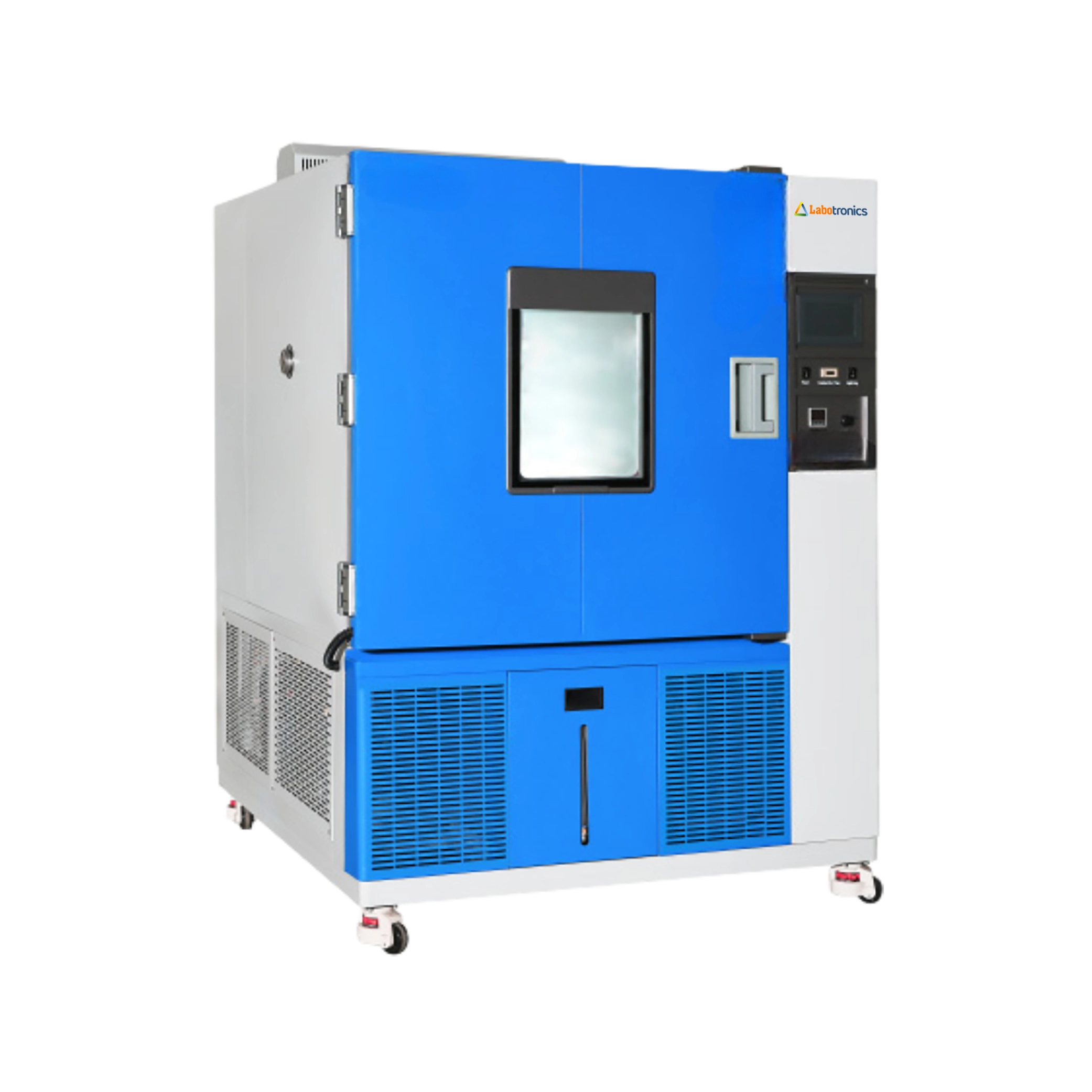

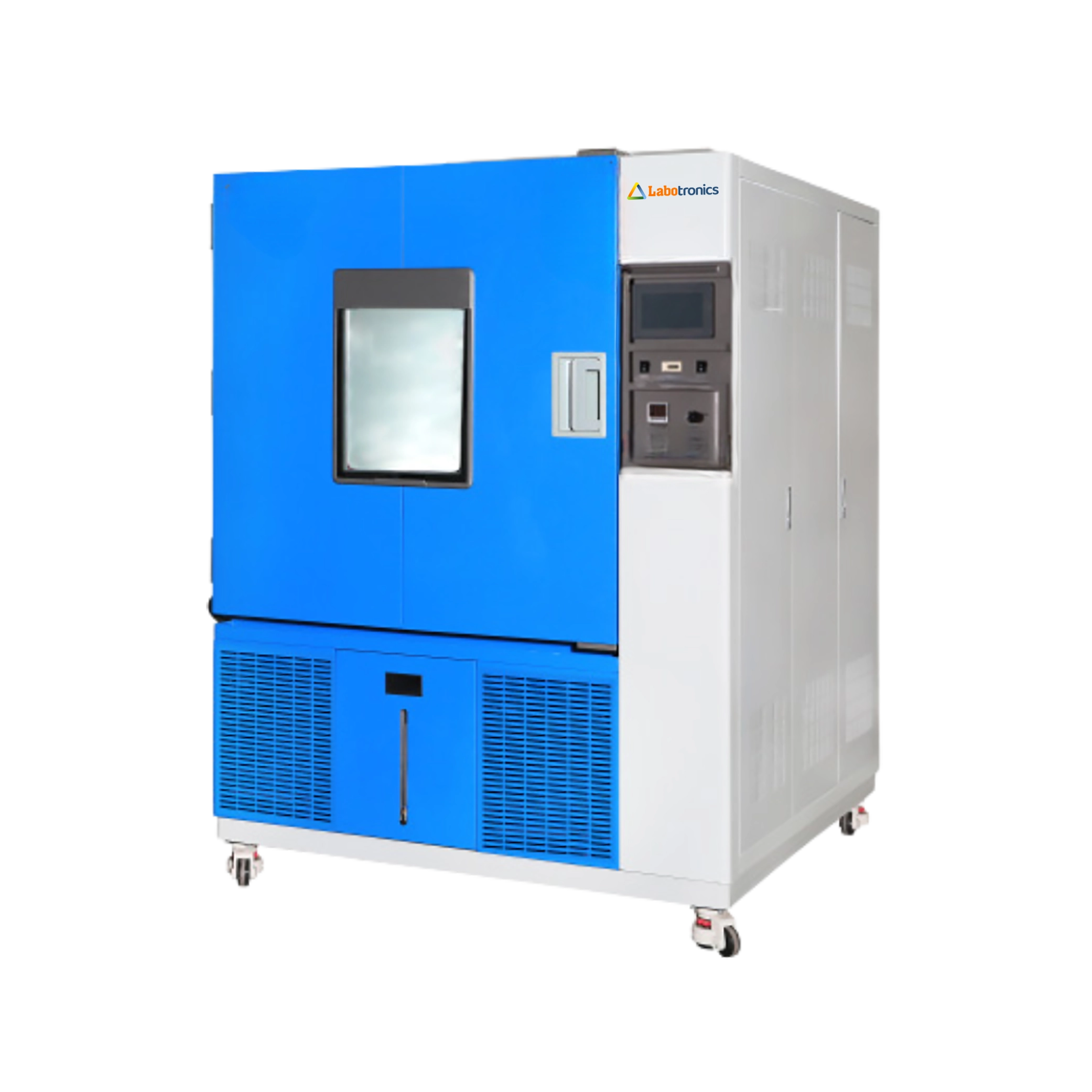

Temperature Test Chamber LB-32TTC

Temperature Test Chamber LB-32TTC

Temperature Test Chamber LB-32TTC offers an 800L capacity and a temperature range of -40 to +150°C for reliable product testing. It is equipped with a multi-leaf centrifuge fan for uniform temperature distribution. It has independent heating system, ensuring stable and consistent heating. Our test chamber includes a digital display, enabling real-time tracking of temperature levels and testing parameters.

$ 13896.25

Download Catalog

Specifications

Capacity 800L
Temperature Range -40 to +150°C
Temperature Fluctuation ≤ ±0.5°C
Temperature Uniformity ≤ 2.0°C
Heating Rate 2.0 to 3.0°C/min
Cooling Rate 0.7 to 1.0°C/min
Refrigerant R404A/R23
Refrigeration System Unit cooling mode / Dual cooling mode
Heating System NiCr heater, independent system
Circulation System Single cycle, long axis, and stainless-steel multi-leaf type centrifuge fan
Display 7-inch touch screen
Interior Anti-corrosion SUS#304 mirror stainless steel
Exterior Reinforced Steel plate with electrostatic spraying
Insulation Superfine fiberglass wool/polyurethane foam
Power Supply 220V 50/60Hz, 380V 50/60Hz or customized
Inner Dimension (W × D × H) 1000 × 800 × 1000 mm
Outer Dimension (W × D × H) 1560 × 1410 × 2240 mm
Gross Weight 730 kg

Features

  • Advanced refrigeration system
  • Transparent viewing window
  • Customizable setting
  • Audio signal alarm
  • User-friendly interface

Applications

Temperature Test Chamber LB-32TTC is perfect for testing material performance, durability, and reliability under extreme temperature conditions. It is ideal for applications in the electronics, aerospace, automotive, and manufacturing industries.
Temperature Test Chamber LB-32TTC Banner
Temperature Test Chamber LB-32TTC Banner

Get Quote

Frequently asked questions For Temperature Test Chamber

1. What type of test cycles can be performed with the LB-32TTC?

Our LB-32TTC supports programmable test cycles, including thermal cycling, stability testing, and endurance testing, making it ideal for multiple industrial and research applications.

2. What are the safety features included in the LB-32TTC?

The LB-32TTC comes with over-temperature protection, automatic fault detection, and system alarms for deviations, ensuring safe operation and protection of both users and test samples.

3. How fast does the LB-32TTC stabilize at the set temperature?

Labotronics LB-32TTC features advanced heating and cooling systems that stabilize test conditions quickly, reducing downtime and enabling efficient high-throughput testing.

4. How does the LB-32TTC improve product quality assurance?

By simulating extreme environmental conditions, the LB-32TTC helps manufacturers detect material weaknesses early, ensuring products meet strict safety and reliability standards.

5. What is a Temperature Test Chamber used for?

A Temperature Test Chamber is used to simulate specific temperature conditions to test the durability, stability, and performance of products or materials in industries like electronics, automotive, aerospace, and pharmaceuticals.

6. How is temperature stability maintained during testing?

The chamber is equipped with precise control systems and insulated walls to ensure consistent temperature levels throughout the testing cycle.

7. How easy is it to operate the chamber with gloves on?

The user interface is designed to be glove-friendly, allowing operators to adjust settings and monitor tests without removing protective equipment.

8. Can the Labotronics test chamber handle both high and low temperatures?

Yes, Our Temperature Test Chambers can simulate a wide range of conditions, from extreme cold to high heat, making them ideal for various testing requirements.
