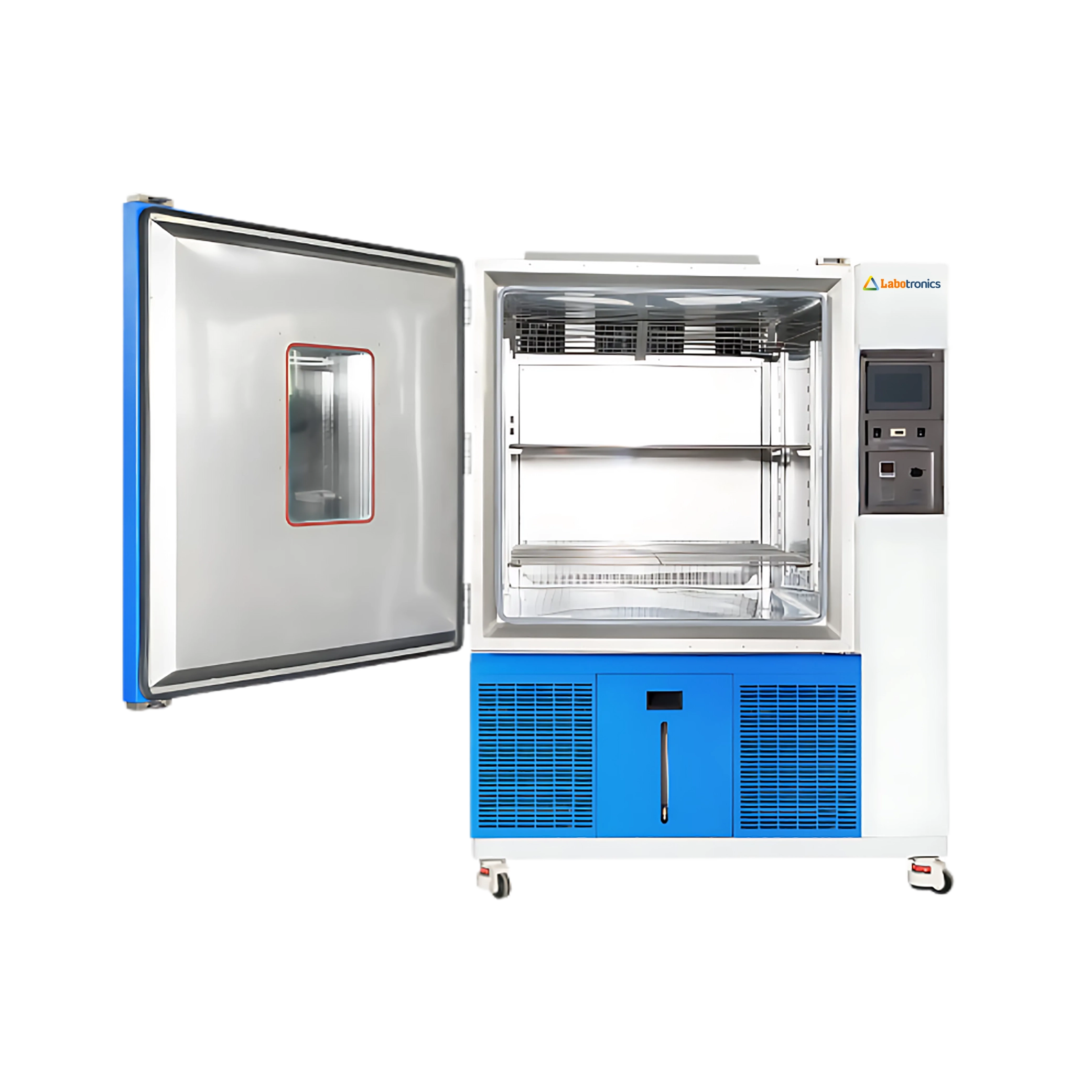

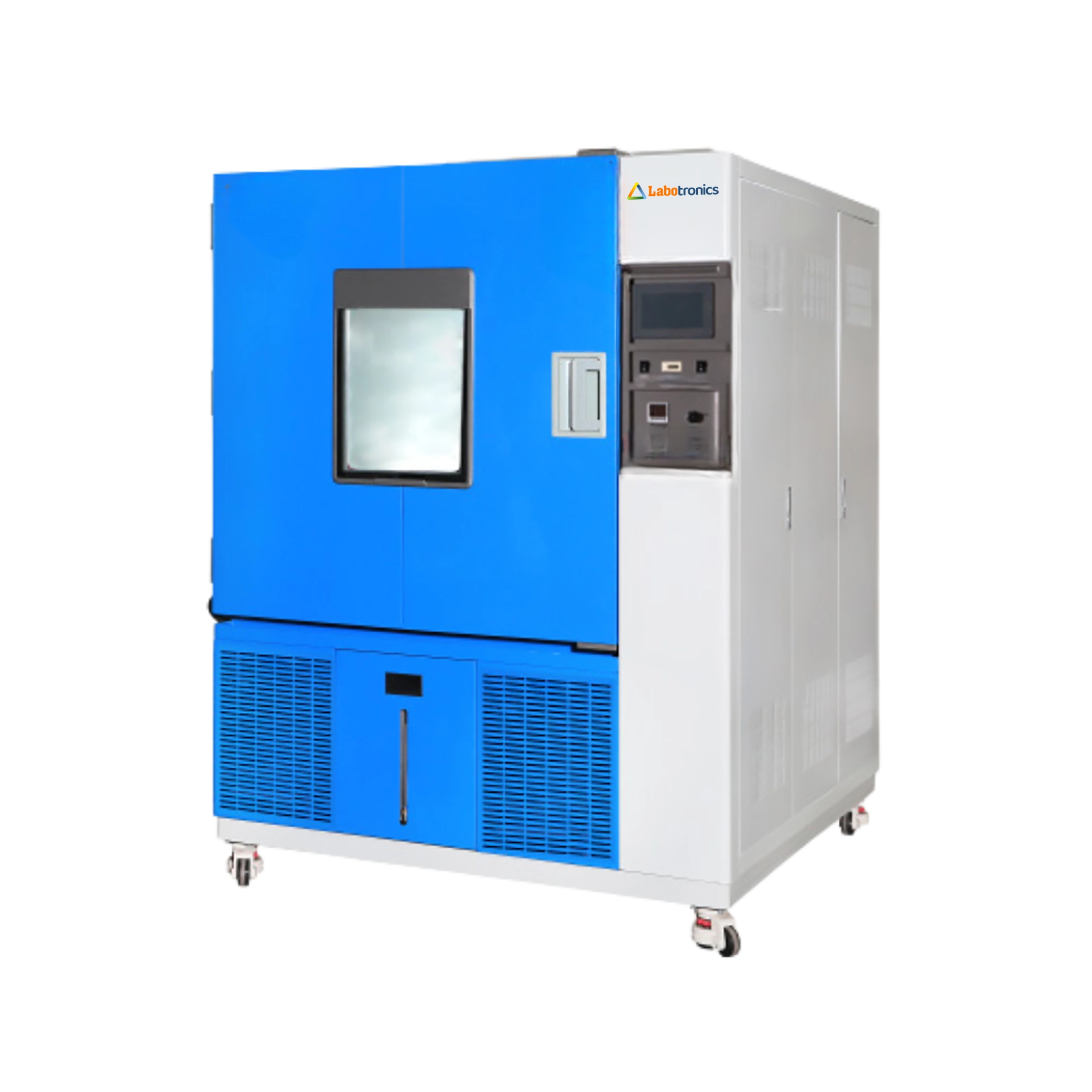

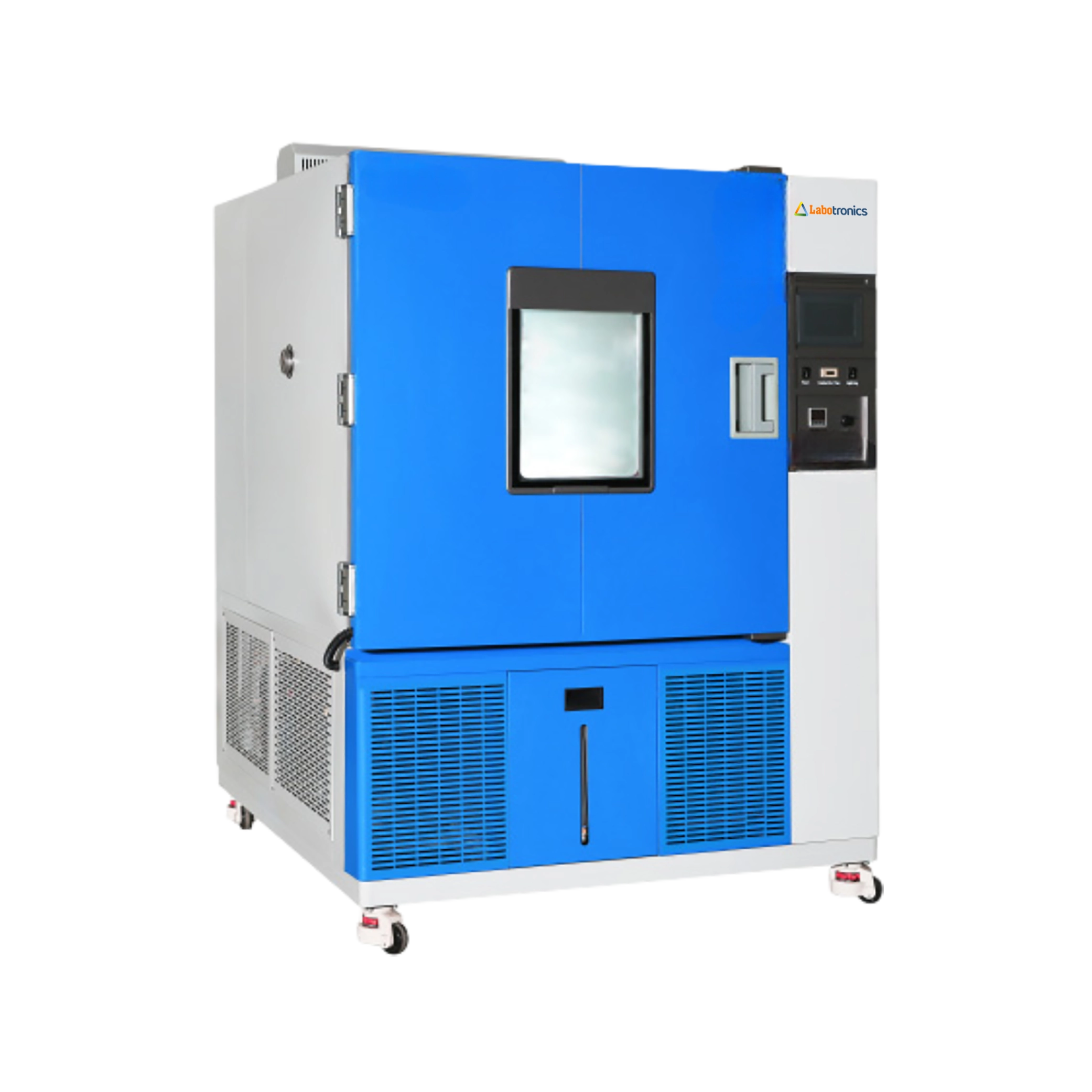

Temperature Test Chamber LB-19TTC

Temperature Test Chamber LB-19TTC

Temperature Test Chamber LB-19TTC operates within a temperature range of -20 to +150°C, providing reliable product testing with a 150-liter capacity. It includes a multi-leaf centrifuge fan, promoting uniform temperature distribution. It has an independent NiCr heating system for efficient temperature control. Our test chamber features a digital display, allowing precise monitoring of temperature levels.

$ 7453.75

Download Catalog

Specifications

Capacity 150L
Temperature Range -20 to +150°C
Temperature Fluctuation ≤ ±0.5°C
Temperature Uniformity ≤ 2.0°C
Heating Rate 2.0 to 3.0°C/min
Cooling Rate 0.7 to 1.0°C/min
Refrigerant R404A/R23
Refrigeration System Unit cooling mode / Dual cooling mode
Heating System NiCr heater, independent system
Circulation System Single cycle, long axis, and stainless-steel multi-leaf type centrifuge fan
Display 7-inch touch screen
Interior Anti-corrosion SUS#304 mirror stainless steel
Exterior Reinforced Steel plate with electrostatic spraying
Insulation Superfine fiberglass wool/polyurethane foam
Power Supply 220V 50/60Hz, 380V 50/60Hz or customized
Inner Dimension (W × D × H) 500 × 500 × 600 mm
Outer Dimension (W × D × H) 1050 × 1100 × 1850 mm
Gross Weight 450 kg

Features

  • Advanced refrigeration system
  • User-friendly interface
  • Customizable setting
  • Low maintenance
  • Durable construction
  • Low noise operation

Applications

Temperature Test Chamber LB-19TTC is used for testing components and materials under extreme temperatures. It is ideal for electronics, automotive, aerospace, pharmaceutical industries, and R&D labs.

Get Quote

Temperature Test Chamber LB-19TTC Banner
Temperature Test Chamber LB-19TTC Banner

Frequently asked questions For Temperature Test Chamber

1. What is the main purpose of the LB-19TTC?

The LB-19TTC is developed to test the temperature-dependent performance of products for industries like electronics, automotive, aerospace, and pharmaceuticals.

2. How uniform is the temperature distribution inside the chamber?

The LB-19TTC is engineered with a uniform airflow system and high-precision sensors, ensuring even temperature distribution across the chamber for consistent and reliable testing results.

3. Can the LB-19TTC handle complex temperature profiles?

Yes. The chamber supports programmable multi-stage temperature cycles, including ramps, holds, and repeated sequences, enabling precise simulations of real-world environmental conditions.

4. How reliable is the LB-19TTC for continuous use?

Labotronics LB-19TTC, built with high-quality components and a robust airflow system, ensures consistent performance even during long-term or frequent testing cycles.

5. What is a Temperature Test Chamber used for?

A Temperature Test Chamber is used to simulate specific temperature conditions to test the durability, stability, and performance of products or materials in industries like electronics, automotive, aerospace, and pharmaceuticals.

6. How is temperature stability maintained during testing?

The chamber is equipped with precise control systems and insulated walls to ensure consistent temperature levels throughout the testing cycle.

7. How easy is it to operate the chamber with gloves on?

The user interface is designed to be glove-friendly, allowing operators to adjust settings and monitor tests without removing protective equipment.

8. Can the Labotronics test chamber handle both high and low temperatures?

Yes, Our Temperature Test Chambers can simulate a wide range of conditions, from extreme cold to high heat, making them ideal for various testing requirements.
